ITEM NO.90314

ASSEMBLY INSTRUCTIONS

A

B

C

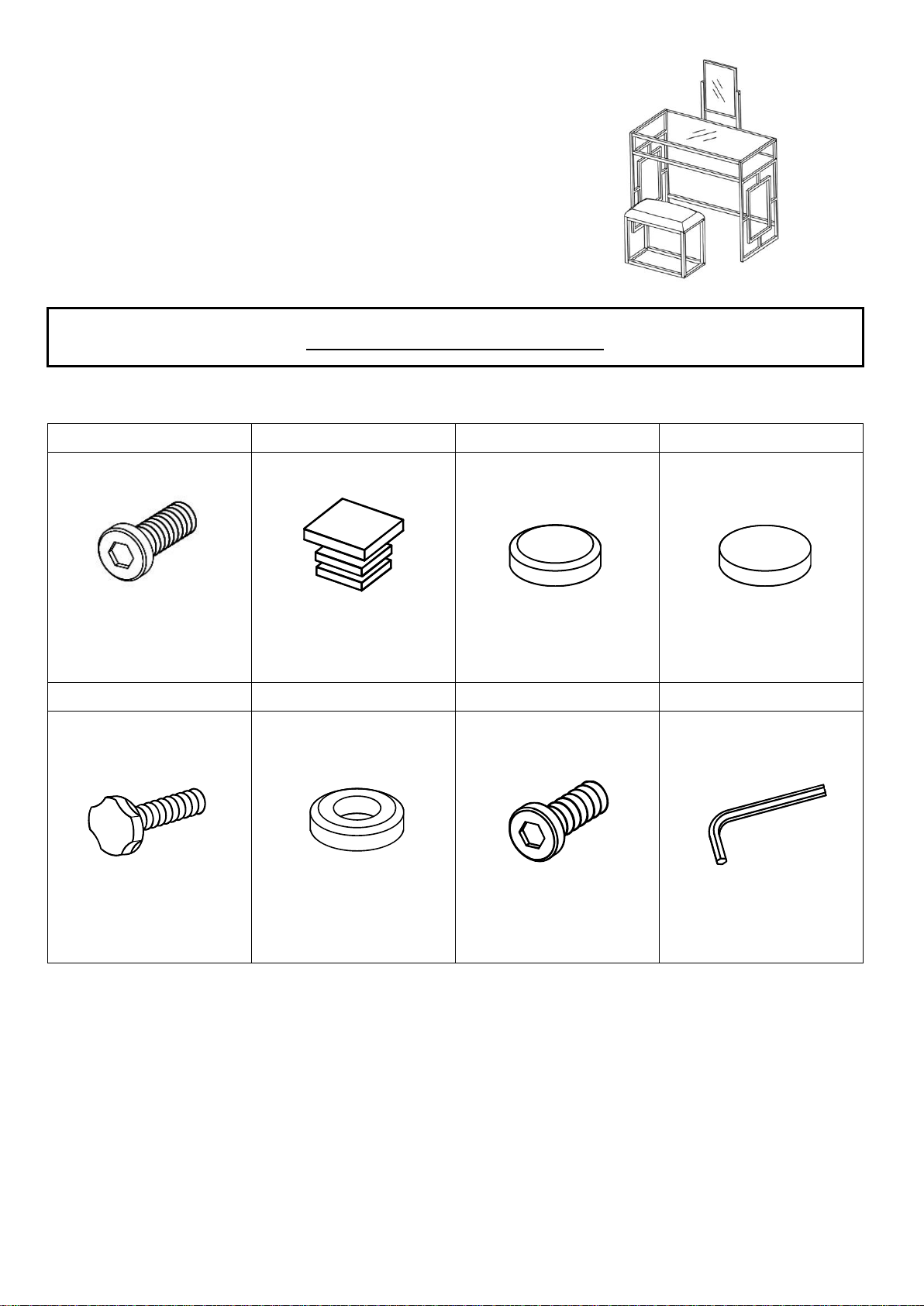

D

BOLT 1/4” x 1-1/2”

22PCS

FOOT CAP

8PCS

BOLT CAP

18PCS

GLASS PAD

12PCS

E

F

G

H

BOLT

2PCS

NUT

2PCS

BOLT 1/4” x 1-3/4”

4PCS

ALLEN WRENCH

1PC

ASSEMBLY INSTRUCTIONS

①

②

③

④

STOOL BOTTOM

STRETCHER

2PCS

STOOL SIDE PANEL

2PCS

CUSHION

1PC

TABLE SIDE PANEL

2PCS

⑤

⑥

⑦

⑧

TABLE FRONT FRAME

1PC

TABLE BACK FRAME

1PC

MIRROR STRETCHER

2PCS

MIRROR

1PC

⑨

⑩

⑪

GLASS

2PCS

TABLE BOTTOM

STRETCHER

1PC

STOOL TOP STRETCHER

2PCS

STEP 1

Attach stool side

panels (2) to stool top

stretchers (11) and

stool bottom stretchers

(1) together using bolt

(A) as shown.

Attach cushion (3) to

the assembled metal

base using bolt (G) as

shown.

Then, cover the bolts

(A) by bolt caps (C),

and insert foot caps (B)

into the bottom of stool

side panels (2) as

shown.

STEP 2

Attach table side

panels (4) to table front

frame (5), table back

frame (6) and table

bottom stretcher (10)

together using bolt (A)

as shown.

Then, cover the bolts

(A) by bolt caps (C) as

shown.

STEP 3

Attach mirror stretchers

(7) to the table frames

using bolts (A) as

shown.

Align mirror stretchers

(7) to the holes of the

mirror (8).

Make sure to place the

nuts (F) in-between the

holes of the mirror (8)

and mirror stretchers

(7), then screw the bolt

(E) tightly.

STEP 4

Attach glass pads (D)

to the table frames,

then carefully place the

glass (9) to the table as

shown.
