Exterior Dimensions Interior Dimensions Door

*Approx. Base (Roof Edge to Roof Edge) (Wall to Wall) Opening

Size Size Width Depth Height Width Depth Height Width Height

6' x 5' 74" x 57" 76 1/4" 59 1/2" 79 1/8" 71 1/4" 54 1/4" 77 7/8" 32" 69 1/4"

1,8 m x 1,4 m 188,0 cm x 144,8 cm 193,7 cm 151,1 cm 201,0 cm 181,0 cm 137,8 cm 197,8 cm 81,3 cm 175,9 cm

* Size rounded o to the nearest foot

BUILDING DIMENSIONS

CAUTION: SOME PARTS HAVE SHARP EDGES. CARE

MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES

TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ

SAFETY INFORMATION PROVIDED IN THIS MANUAL

BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES

WHEN HANDLING METAL PARTS.

708430118

ED65

Owner's Manual & Assembly Instructions

Storage Area: 27 Sq. Ft. 167 Cu. Ft.

2,5 m24,7 m3

Missing Parts, Questions on Assembly?

Call: 1-800-851-1085 or

[email protected]

Do not return to dealer, they are not

equipped to handle your requests.

CL01

Model No. ED65BS ED65LG

ED65SB ED65Z GD65 B

WR65 WR65EU

Owner's Manual

Before beginning construction, check local building codes regarding footings, location

and other requirements. Study and understand this owner's manual.

Important information and helpful tips will make your construction easier and more

enjoyable.

Assembly Instructions: Instructions are supplied in this manual and contain all

appropriate information for your building model. Review all instructions before you begin,

and during assembly, follow the step sequence carefully for successful results.

Flooring and Anchoring: Your storage building must be anchored to prevent wind

damage. A base is necessary to construct a square and level building. Anchoring and

base materials are not included with your building. We recommend the combined use

of an Arrow Floor Frame Kit and an Arrow Anchoring Kit as an effective method of

securing your building to the ground (Available at your local dealer, Arrow's website

arrowsheds.com or call Arrow's Customer Service department 1-800-851-1085) or you

may construct a base and anchoring system of your choice. Your assembly instructions

provide information on a few methods commonly used to secure and level a storage

building.

Parts and Parts List: Check to be sure that you have all the necessary parts for

your building.

•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the

numbers on the Parts List page.

•If you nd that a part is missing, include the model number of your building and contact:

Arrow Shed, LLC Customer Service Department

1101 North 4th Street Breese, Illinois 62230

•Separate contents of the carton by the part number while reviewing parts list. The rst few steps

show how to join related parts to make larger sub assemblies which will be used later.

•Familiarize yourself with the hardware and fasteners for easier use during construction. These are

packaged within the carton. Note that extra fasteners have been supplied for your convenience.

BEFORE YOU BEGIN....

A03

1-800-851-1085 or assist@arrowsheds.com

Selecting and Preparing Your Site: Before assembly, you will want to decide on a

location for your building. The best location is a level area with good drainage.

•Allow enough working space for ease of moving parts into position during assembly. Be sure there

will be enough space at entrance for doors to open fully and enough space around the building to

be able to fasten the panel screws from the outside.

•Before you begin the rst steps in assembling your parts, a base should be constructed and

an anchoring system should be ready to use.

Watch the Weather: Be sure the day you select to install your building is dry and calm.

Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground.

Teamwork: Whenever possible, two or more people should work together to assemble

your building. One person can position parts or panels while the other is able to handle the

fasteners and the tools.

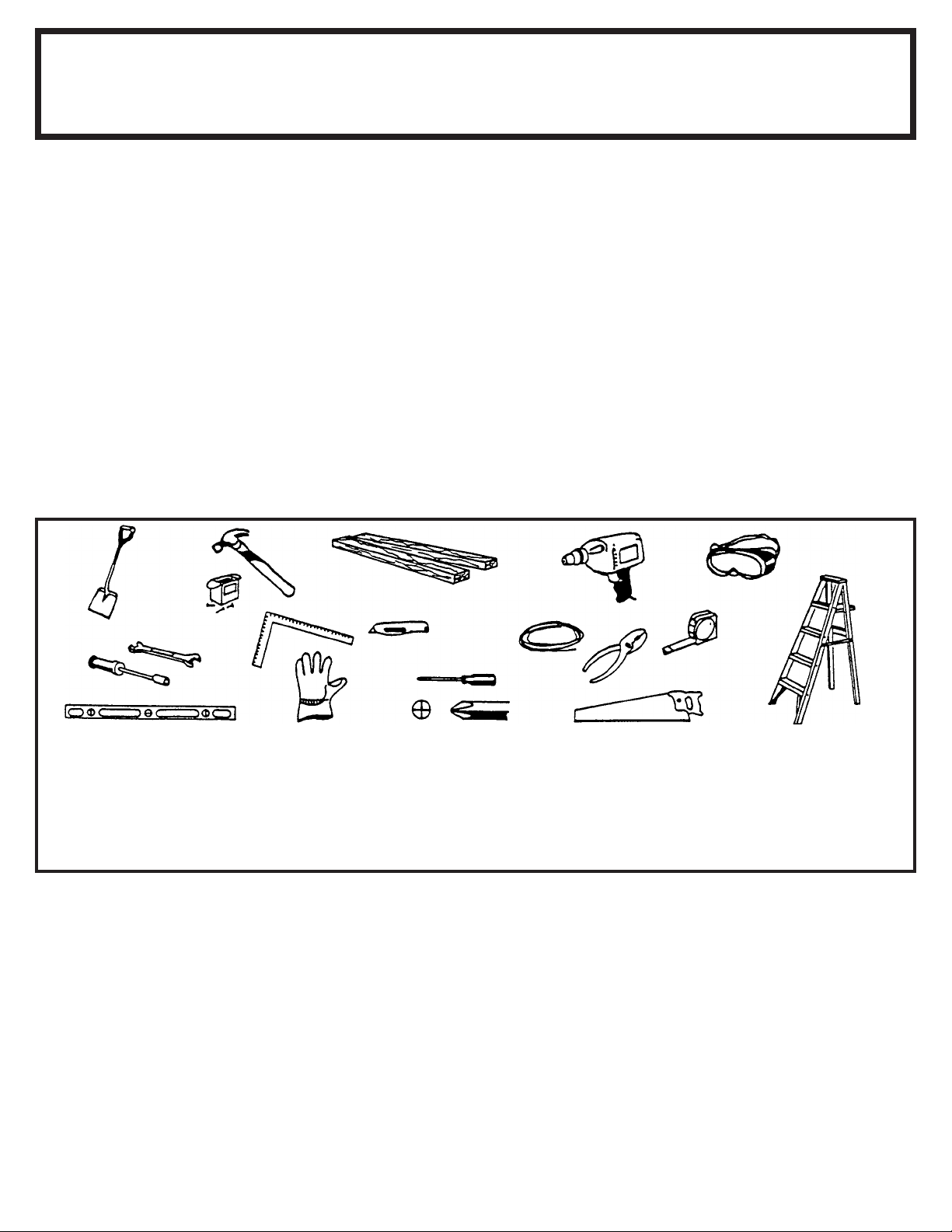

Tools and Materials: These are some basic tools and materials you will need for the

construction of your building. Decide which method of anchoring and the type of base you

wish to use in order to form a complete list of the materials you will need.

Base Preparation

• Hammer and Nails

• Spade or Shovel

• Hand Saw / Power Saw

• Lumber and/or Concrete

Optional Time-Savers

• Wrench / Nut Driver

• Electric / Cordless Drill

• Square

• String (for squaring frame)

Required

• Work Gloves

• Step Ladder

• Utility Knife / Scissors

• Pliers

• Carpenter's Level

• Tape Measure

Required

• Eye Goggles

• No. 2 Phillips Screwdriver

(With Hardened Magnetic Tip)

Note: A power screwdriver or vari-

able speed drill with Phillips-tip

attachment can speed assembly by

as much as 40%.

PLAN AHEAD....

A04

Safety precautions are important to follow throughout the construction of your building.

•Care must be taken when handling various

pieces of your building since some contain

sharp edges. Please wear work gloves, eye

protection and long sleeves when assembling

or performing any maintenance on your

building.

•Practice caution with the tools being used in

the assembly of this building. Be familiar with

the operation of all power tools.

•Never concentrate your total weight on the

roof of the building. When using a step ladder

make sure that it is fully open and on even

ground before climbing on it.

•Keep children and pets away from worksite

to avoid distractions and any accidents which

may occur.

•Do not attempt to assemble the building if

parts are missing because any building left

partially assembled may be seriously damaged

by light winds. Call 1-800-851-1085 or assist@

arrowsheds.com

•Do not attempt to assemble the building on a

windy day, because the large panels acting as a

"sail", can be whipped about by the wind making

construction dicult and unsafe.

SAFETY FIRST....

A05

safety edge

sharp edge

Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up

scratches as soon as you notice them on your unit. Immediately clean the area with a wire

brush; wash it and apply touch-up paint per manufacturer's recommendation.

Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy

amounts of snow on roof can damage building making it unsafe to enter. In snow country,

Roof Strengthening Kits are available for most Arrow Buildings for added protection against

heavy snow accumulation. Contact Arrow as outlined on the Ordering Accessories page

to place an order.

Doors: Always keep the door tracks clear of dirt and other debris that prevent them from

sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep

doors closed and locked to prevent wind damage.

Fasteners: Use all washers supplied to protect against weather inltration and to protect

the metal from being scratched by screws. Regularly check your building for loose screws,

bolts, nuts, etc. and retighten them as necessary.

Moisture: A plastic sheet (vapor barrier) placed under the entire oor area with good

ventilation will reduce condensation.

Other Tips....

• Wash o inked part numbers on coated panels with soap and water.

• Silicone caulking may be used for watertight seals throughout the building.

Keep this Owner's Manual and Assembly Instructions for future reference.

CARE & MAINTENANCE....

A06

Do not store swimming pool chemicals in your building. Combustibles and

corrosives must be stored in air tight approved containers.

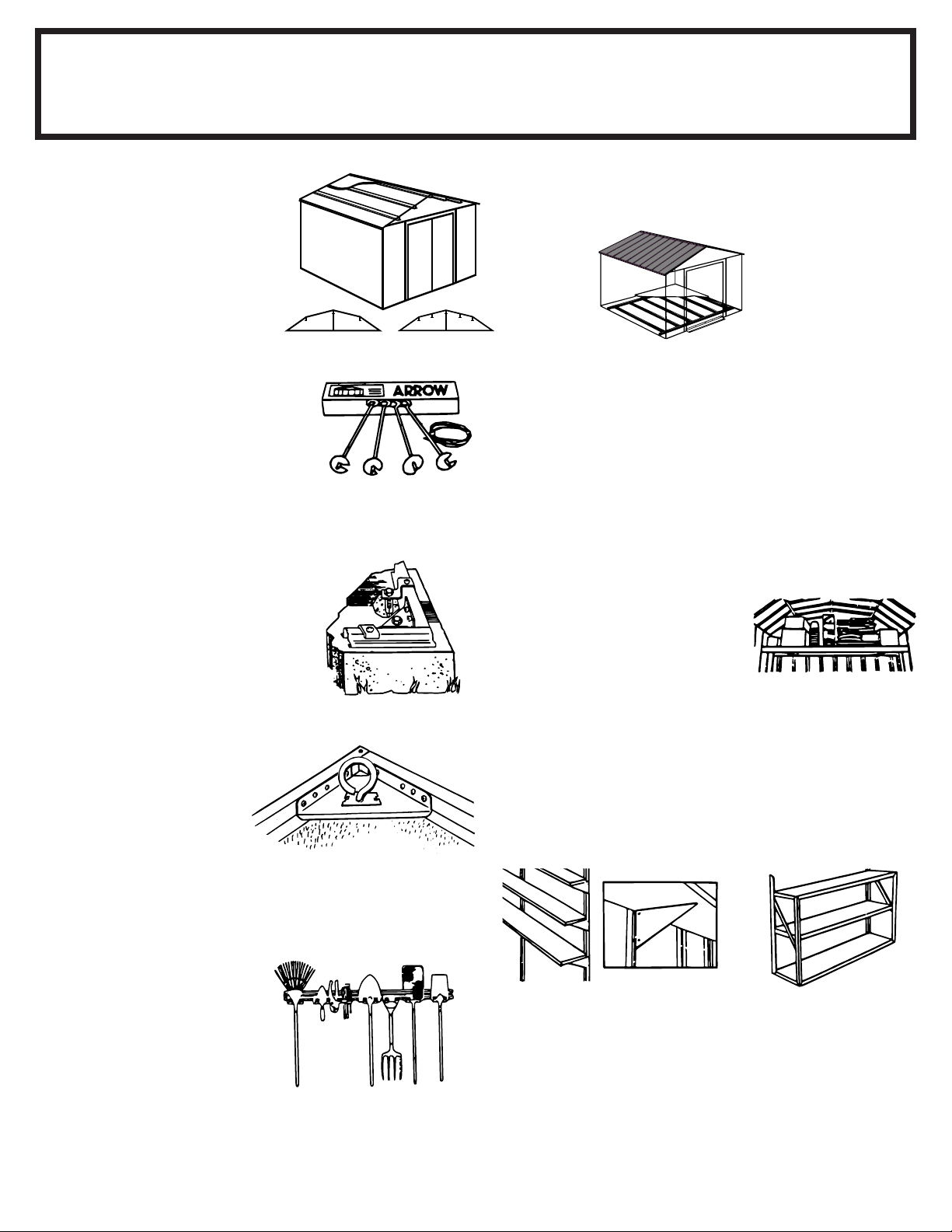

ACCESSORIES....

A07

* Some drilling required to t buildings without mid-wall bracing.

Model No. SS404

• Makes 8" to 12" (20,3-30,5 cm)

wide shelves in any length.

• Brackets, braces,

hardware included.

Lumber is not included.

Model No. SS900-B

• Grey color

• 3 shelves

• Holds up to 85 lbs. (38 kg)

(even weight distribution)

Heavy-duty, galvanized steel shelf units help organize storage

space. They easily mount on the wall or sit on the oor. Fits all

Arrow buildings.*

SHELF UNITS

ATTIC KIT / WORKBENCH KIT

Model No. AT101

Heavy-duty galvanized steel bars that

t all 10' (3,0 m) wide Arrow buildings.

They install quickly and easily to

help organize space and create

more useable space as an attic or

workbench. Will hold up to 250 lbs.

(113 kg) evenly distributed.

Some drilling required to t buildings without mid-wall bracing.

Model No. AK100

New concrete anchor system permits

anchoring any size Arrow building

directly to a concrete slab. Each kit

contains heavy-duty, hot-dipped

galvanized steel corner gussets and

perimeter clips which t over the oor

frame and lag bolt into a concrete slab.

Full assembly instructions and a 1/4"

masonary drill bit are included.

TOOL HANGING RACK

Model No. TH100

The perfect tool organizer. Twin

25 1/2" (64,8 cm) steel channels

plus ve heavy-duty snap-in

hangers and a small tool holder for

screwdrivers, pliers, etc. Holders

slide along channel for fully

adjustable spacing. Great for

garage, basement, or the back

of any door. Fits all Arrow

storage buildings.

ROOF STRENGTHENING

(heavy snow load) KITS

Extra roof beams and gable braces

designed for added protection against

heavy snow accumulation. Increases

the strength of your roof.

ANCHOR KITS

Model No. AK4

Anchor Kit contains heavy-duty steel

augers, 60' (18 m) of steel cable and

4 cable clamps. No digging or concrete

pouring, just insert cable under roof,

over roof beams, into augers and twist

augers into the ground. For buildings

larger than 10'x9' (3,0 m x 2,6 m), use 2 kits.

FLOOR FRAME KITS

MODELS FB47410, FB5465, FB106-A

FB109-A and FB1014-A

A simple new oor frame system made of heavy-duty, hot-dipped

galvanized steel. Use as base for plywood, sand or stone.

Model No. AK600

Earth Anchor Kit anchors any size

Arrow building to the ground.

Each kit contains heavy duty,

hot-dipped galvanized steel

corner gussets and 4 earth anchors.

BEFORE AFTER

We recommend that you purchase accessory items from your local storage building dealer whenever possible;

however, because the full line of accessories is not always available from all dealers, Arrow is oering them

to you on a direct basis.

There are two ways to order Arrow Storage Building Accessories:

SPECIAL NOTE:

If your accessory is shipped via truck line a day time phone number is required to arrange delivery. If no

one is available to sign for the delivery, you may be subject to a re-delivery charge assessed by the carrier.

ORDERING ACCESSORIES....

A08 02/13

Option 1

Accessories can be purchased

through

arrowsheds.com

Option 2

Order accessories by telephone

using your MasterCard or Visa credit card.

Call toll free 1-800-851-1085

(Customer Service).

Allow 2 weeks for delivery.

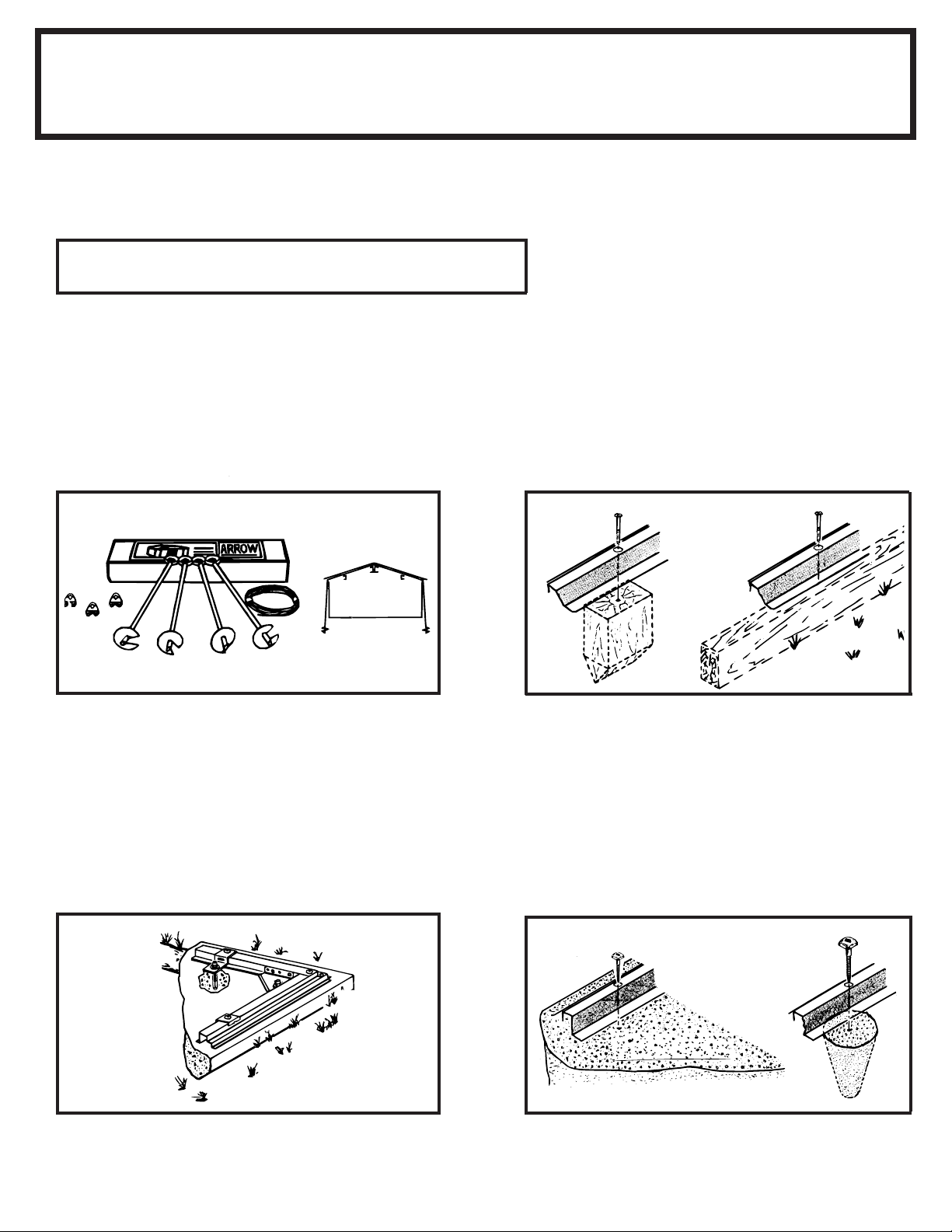

The Base For Your Building

FRONT

(DOOR)

FRONT

(DOOR)

Base

C09

Note: Finished Slab dimensions, with lumber removed.

No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is

recommended as an eective method of properly securing your building after assembly is complete.

OPTION 1: Directly on ground (earth)

Assemble your building directly on level ground (grass, dirt, rock, sand, etc.). If you choose this option Arrow has a simple kit available to

provide a oor inside the shed to keep stored items o the ground. This kit can be used to support a plywood oor (wood not included)

or be lled with sand/rock to provide a solid surface. (Order No. FB5465)

Allow 1 - 2 hours for construction.

OPTION 2: Wood Platform

If you decide to build your own base, be sure to select the appropriate materials.

These are the recommended materials for your base:

2 x 4's (38 mm x 89 mm) Pressure Treated Lumber

5/8" (15,5 mm) 4 x 8 (1220 mm x 2440 mm) Plywood-exterior grade NOTE: Pressure Treated Lumber must not be used where it

will make contact with your storage building. The properties of Pressure Treated Lumber will cause accelerated corrosion.

If Pressure Treated Lumber comes in contact with your storage building your warranty will be voided.

10 & 4 penny Galvanized Nails Concrete Blocks (optional)

The platform should be level and at (free of bumps, ridges etc.)

to provide good support for the building. The necessary materials

may be obtained from your local lumber yard.

To construct the base follow instructions and diagram.

Construct frame (using 10 penny galvanized nails)

Measure 16"/24" (40,6 cm/61,0 cm) sections to construct

inside frame (see diagram)

Secure plywood to frame (using 4 penny galvanized nails)

Allow 6 - 7 hours for construction.

OPTION 3: Concrete Slab

The slab should be at least 4" (10,2 cm) thick. It must be level and at to provide good support for the frame.

The following are the recommended materials for your base.

1 x 4's (19 mm x 89 mm) (will be removed once the concrete cures)

Concrete Sheet of 6 mil plastic

We recommend for a proper strength concrete to use a mix of:

1 part cement 3 parts pea sized gravel 2 1/2 parts clean sand

Prepare the Site/Construct a Base

1. Dig a square, 6" (15,2 cm) deep into the ground (remove grass).

2. Fill up to 4" (10,2 cm) in the square with gravel and tamp rm.

3. Cover gravel with a sheet of 6 mil plastic.

4. Construct a wood frame using four planks of 1x4 (19 mm x 89 mm)

lumber.

5. Pour in concrete to ll in the hole and the frame giving a

total of 4" (10,2 cm) thick concrete. Be sure surface is level.

Allow 3 - 5 hours for construction and a week for concrete curing time.

Note: Platform/Slab will extend 9/16" (1,4 cm) beyond oor

frame on all four sides. Seal this 9/16" (1,4 cm) of wood with a

roong cement (not included), or bevel this 9/16" (1,4 cm) of

concrete when pouring, for good water drainage.

74"

188,0 cm

16"/24"

40,6 cm/61,0 cm

57"

144,8 cm

57"

144,8 cm

74"

188,0 cm

It is important that the entire oor frame be anchored after the building is erected.

Below are recommended ways of anchoring.

Anchoring Down The Building

Anchoring

A10

Arrow Anchoring Kit: (Model No. AK100 or 68383)

Recommended for use with the concrete base.

Contains: Corner gussets, perimeter clips, hardware,

1/4" masonary drill bit and installation instruction.

Anchoring into Concrete:

1. For poured concrete slab or footing or patio blocks:

Use 1/4" x 2" (6 mm x 51 mm) Lag Screws.

2. For Anchor Post of Concrete poured after building is

erected: Use 1/4" x 6" (6 mm x 152 mm) Lag Screws.

Arrow Anchoring Kit: (Model No. AK4 or 60298)

Recommended for use with any suggested base.

Contains: 4 Anchors with Cable, Clamps and

installation instruction.

Anchoring into Wood/Post:

Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm)

dia. holes provided in the frames for proper anchoring.

OVER THE BEAMS

AND INTO THE GROUND

1. 2.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Arrow Storage Products Deposito all'aperto

Arrow Storage Products

Arrow Storage Products SpaceMaker WL86CL Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products WR82 Series Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products SCP84CC Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products SpaceMaker RMA1010CL Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products BRN101060CCFG Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products SpaceMaker LWSM65 Series Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products FKCS02 Series Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products Woodlake Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products BW54FB Series Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products LM10667 Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products Commander series Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products EPA84 Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products VM108 Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products CM1014-A1 Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products ED86 Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products HM8667 Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products EZEE SHED EZ10872HVCREU Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products FKE03 Series Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products EG66AN Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products LM10667S Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products BD88GB Manuale per l'uso e la cura

Arrow Storage Products

Arrow Storage Products FKE02 Series Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products LO1010 Istruzioni per l’uso

Arrow Storage Products

Arrow Storage Products NW108A Manuale per l'uso e la cura

Manuali Deposito all'aperto popolari di altre marche

USP

USP DURAMAX 10 Ft x 8 Ft StoreMax Plus Manuale utente

TYGO

TYGO Nyland Manuale utente

Duratuf

Duratuf GL105 Manuale utente

Viking

Viking SD5300SS Manuale tecnico

USP

USP DURAMAX Apex Pro 10.5 Ft x 8 Ft 40116 Manuale utente

ModuLaro

ModuLaro Lojo WC202200 Manuale utente

Lifetime

Lifetime 6418 Manuale utente

rollaway container

rollaway container ARPCA24 Manuale utente

Duratuf

Duratuf Havelock Manuale utente

X-METAL

X-METAL 4065 Manuale utente

Outdoor Life Products

Outdoor Life Products FP2030 F Manuale utente

Royalcraft

Royalcraft Faro 295L Storage Box Manuale utente

Riverlea

Riverlea Duratuf KIWI KS3 Manuale utente

OLT

OLT GS84D-FJ-Plywood Manuale utente

Rubbermaid

Rubbermaid 5L45 Manuale utente

garofalo

garofalo TUSCANY EVO Manuale utente

Duratuf

Duratuf Kiwi MK1 Manuale utente

Eden

Eden CA2988 Manuale utente
