BLOTZ Onaga Rocket Kohaya Manuale utente

Onaga Rocket Kohaya

B28-VSF-006

Please read these instructions fully before starting construction.

PVA or equivalent glue will be required to stick sections together.

Sand paper can be used to gently clean any joints.

A sharp modelling knife will be required to remove sections from the sprue. Please use knives with due care and remember

to cut away from yourself at all times.

During the construction of this model, you may find it convenient to use pegs / elastic bands to hold pieces in place while

you allow glue to dry.

Take the sides, struts and support plates (shown

above) from the sprue.

Stick the support plates to the reverse side of a side

piece as shown above. The arrow should point

towards the front of the ship.

The same pieces shown from the other side –

showing the position of the notch.

Attach the other side piece and slide the support

struts into place.

Take the main deck and “wall”from the sprue.

Attach the deck using the holes / lugs provided.

Glue the “wall”into position. Allow to dry.

Take the base plate and prow sections from the

sprue.

Turn the model over and attach the base plate as

shown above.

Glue the prow pieces into place.

Take the middle and upepr deck sections plus the

top “wall”….

..and glue them into position.

Take the pieces shown above from the sprue.

Attach them to the model as shown, with etched

detail facing outwards.

Take the two angled supports.

Glue them into place.

Then take the two side stern plates…

..and attach one on each side of the model.

Take the stern pieces.

And glue them into place.

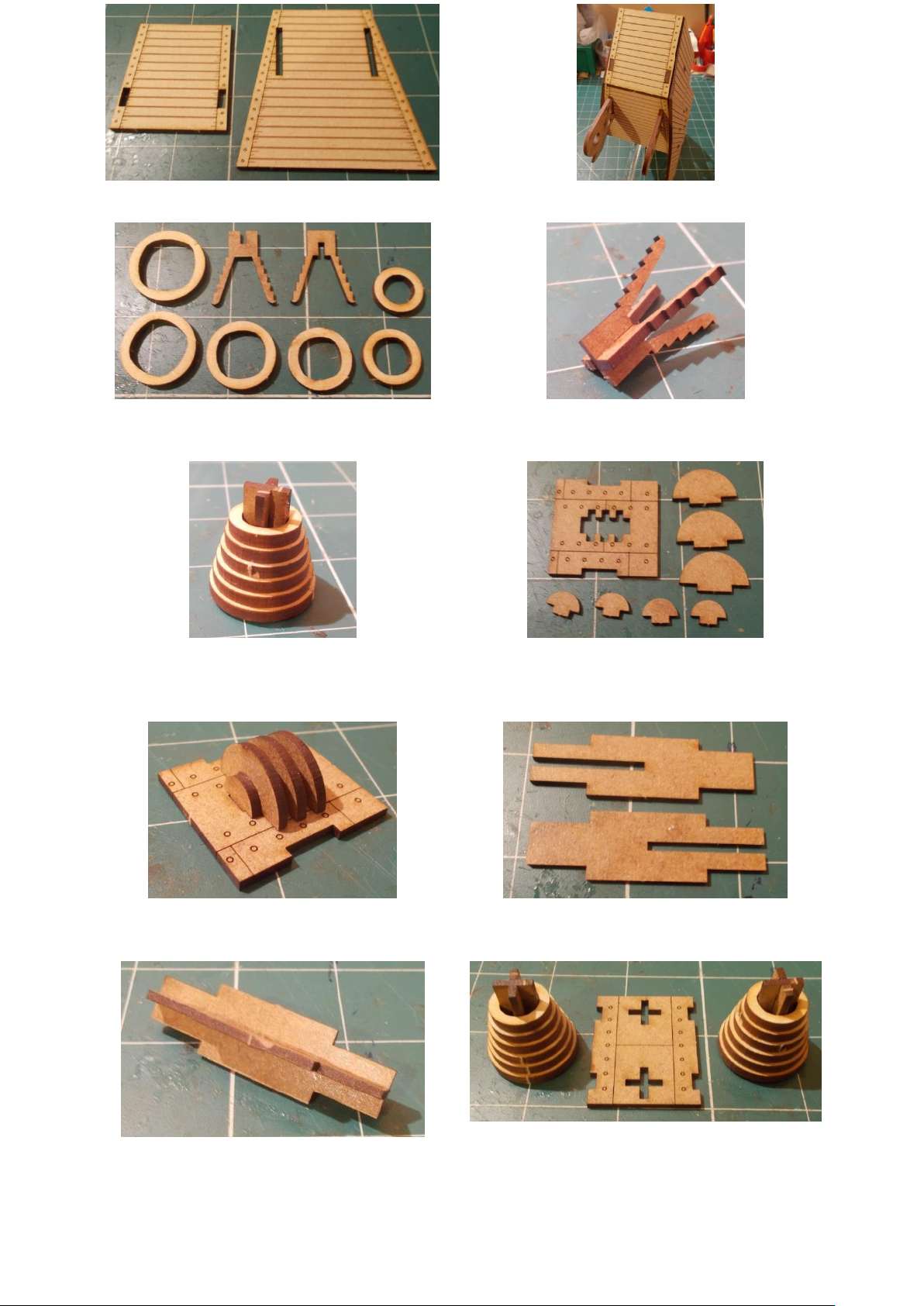

Each rocket is formed from the pieces shown

above.

Start by glueing the internal supports together.

Place the largest ring over the supports, aligning

the flat portions of the inner ring with the

supports. Repeat for the other rings.

The sides of the rocket are formed from these

pieces.

Glue the semi-circles into the central space as

shown.

The axle is made from these pieces.

Glue them together as shown.

The rear plate plus the two rockets.

Glued together as above.

All the pieces of the rocket section.

Place the axle through the holes in the sides, then

attach the sides to the rear plate as shown above.

Glue the rest of the pieces into place.

The washers…

Place three on each end of the axle.

Each front sail is formed from the pieces shown

above.

Glue the main sections back to back, then attach

the support brackets.

Glue the two outer “clips”into position.

The two completed front sails.

The rear sails are formed from these pieces.

As with the front sails, glue the ain pieces back to

back then attach the supports –note these slope

down towards to the front of the sail.

Glue the brackets into place.

The ships wheel is formed from these three pieces.

Glue them together as shown.

Attach the ships wheel to the hole in the middle

deck, then glue the door frames and ladders into

place.

Attach the front and rear sales, aligning their lugs

with the holes in the hull plates.

Gently flex the rocket support struts and insert the

rocket section. You may need to glue this to help

hold it in position.

The completed model.
