ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

Fine Furniture for every stage of life

PAGE 1 OF 6

ASSEMBLY INSTRUCTIONS

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

WARNING!

1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store

immediately.

2. This product is for home use only and not intended for commercial establishments.

ASSEMBLY TIME 20 MINUTES

PARTS IDENTIFICATION

PAGE 2 OF 6

AHEADBOARD

PANEL 1PC

BLEFT

HEADBOARD LEG 1PC

CRIGHT

HEADBOARD LEG 1PC

D BED RAIL 2PCS

ESTORAGE

FOOTBOARD 1PC

F CENTER RAIL 1PC

CENTER RAIL

SUPPORT WITH

LEVELER

3PCS

H FOOTBOARD LEG 5PCS

IROLL SLAT

(8PCS) 1SET

ASSEMBLY INSTRUCTIONS

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

WARNING!

1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store

immediately.

2. This product is for home use only and not intended for commercial establishments.

HARDWARE IDENTIFICATION

NOTE:

Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.

PAGE 3 OF 6

1BIG ALLEN WRENCH

(M5 - BLK) 1PC

2SMALL

(M4- BLK) 1PC

3FLAT HEAD SCREW

(M4 x 35mm - RBW) 22PCS

4BOLT 2

(M6 x 40mm - RBW) 6PCS

5BOLT 3

(M6 x 50mm - RBW) 2PCS

6BOLT 1

(M6 x 30mm - RBW) 1PC

7BOLT 4

(M6 x 70mm - RBW) 5PCS

ALLEN WRENCH

ASSEMBLY INSTRUCTIONS

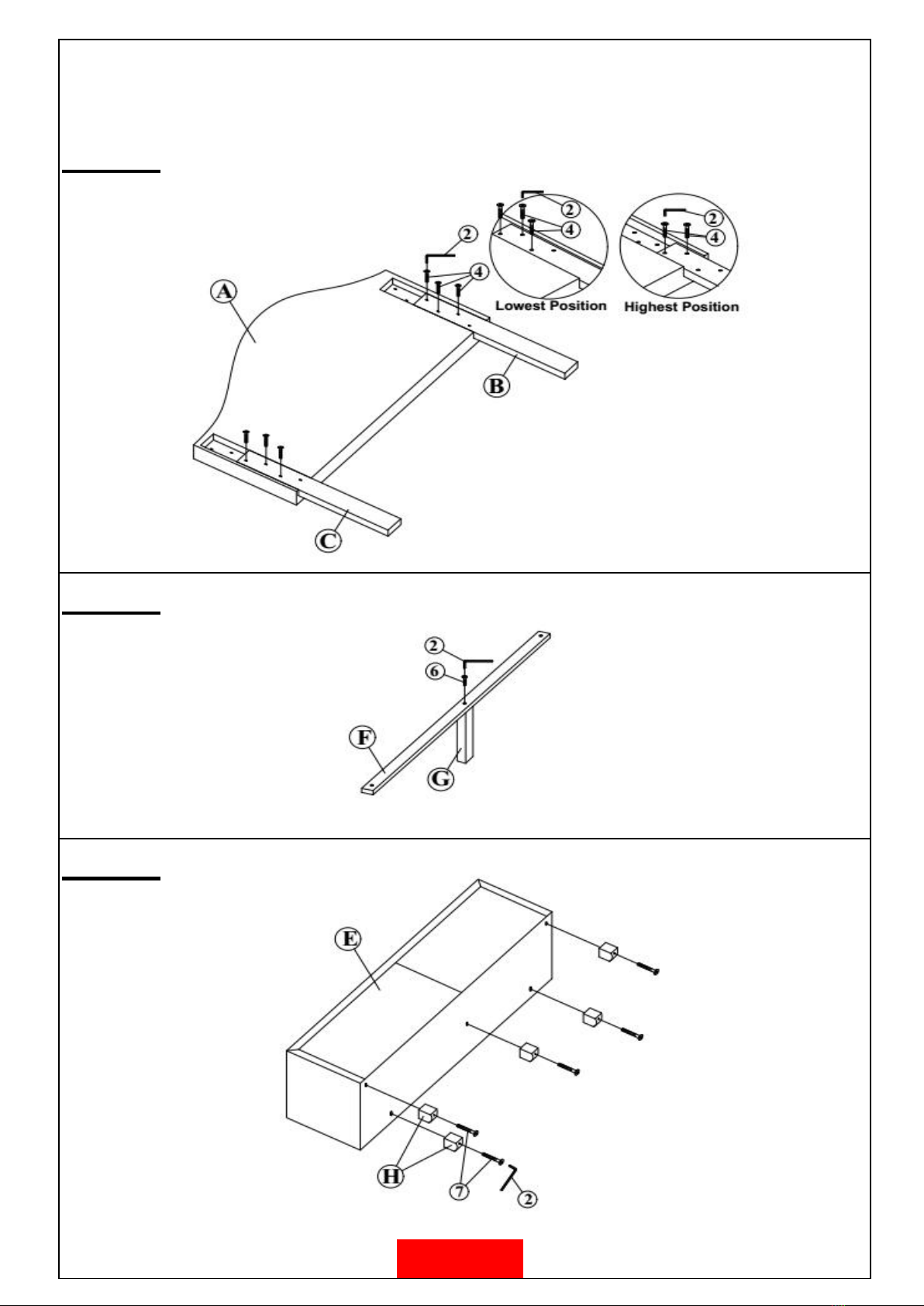

STEP 1

STEP 2

STEP 3

PAGE 4 OF 6

ASSEMBLY INSTRUCTIONS

STEP 4

STEP 5

STEP 6

PAGE 5 OF 6

ASSEMBLY INSTRUCTIONS

STEP 7

COMPLETE

PAGE 6 OF 6

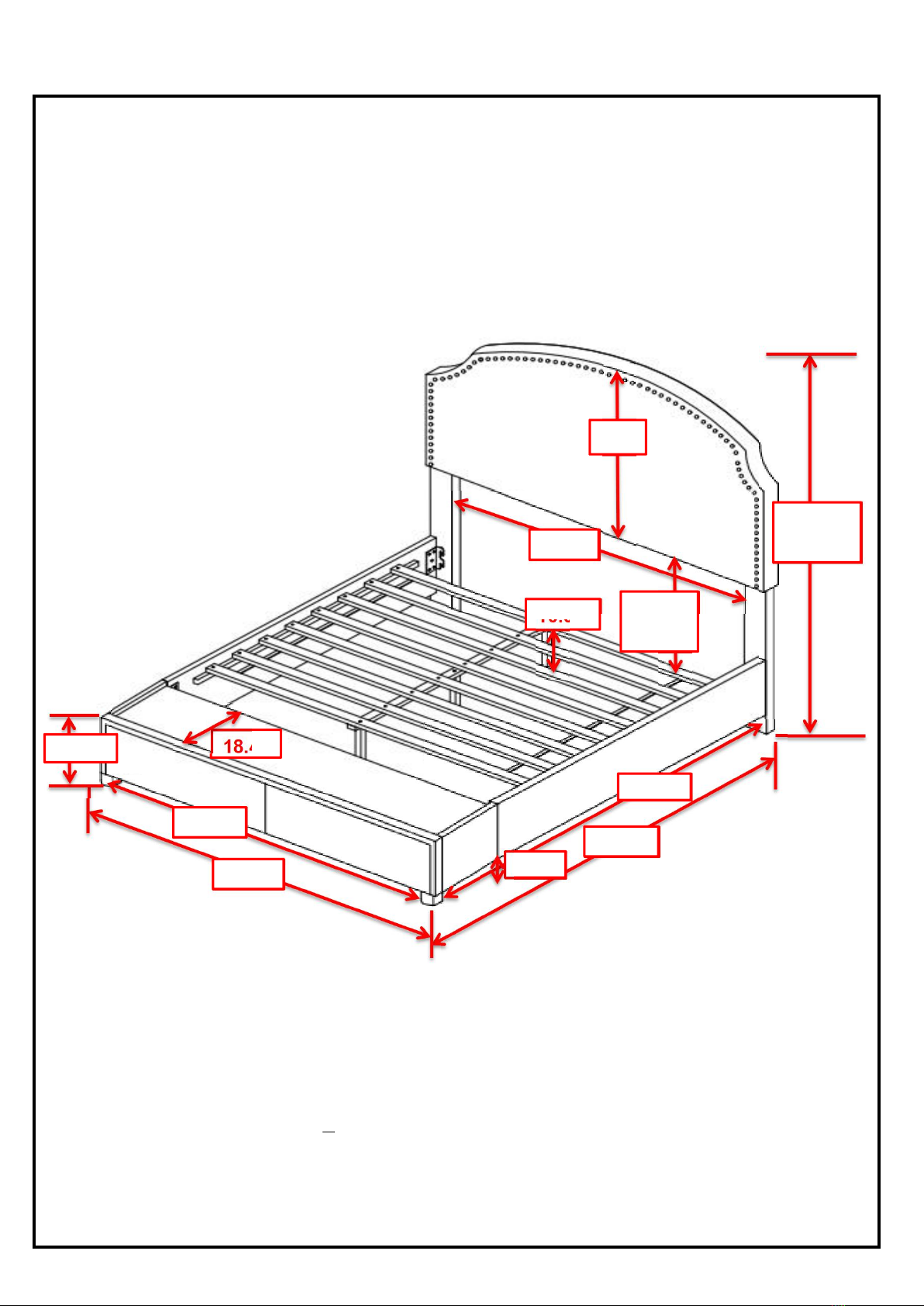

Note:Dimension tolerance +5%

INNER SIZE: 61” X 80.31”

INNER SIZE OF DRAWER: 4.92” X 14.56” X 28.11”

42.50”-

46.46”

79.72”

6.89”-

10.83”

83.86”

24”

57.60”

10.04”

2.76”

64.37”

18.43”

56.50”

12.40”
