Quick Guide
About this guide
The guide includes instructions for using and managing the product. Pictures, charts,
images and all other information hereinafter are for description and explanation only.
The information contained in the guide is subject to change, without notice, due to
firmware updates or other reasons.
Please find the latest version at WWW.GRUNDIG-SECURITY.COM
Limitation of Liability / Legal Disclaimer
Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the
integrity and correctness of the contents in this document, but no formal guarantee
shall be provided. Use of this document and the subsequent results shall be entirely
on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the
right to change the contents of this document without prior notice. Design and
specifications are subject to change without prior notice.
The product described herein, with its hardware, software and documentation is
provided “as is”, without any warranty, expressed or implies, including without
limitation, merchantability, satisfactory quality, fitness for a particular purpose, and
non-infringement of a third party.
In no event will our company and its employees or agents be liable to you for any
special, consequential, incidental, or indirect damages, including among others,
damages for loss of business profits, business interruption, or loss of data or
documentation, in connection with the use of this product, even if our company has
been advised of the possibility of such damages.
Regarding to products with internet access, the use of the product shall be wholly at
your own risks. Our company shall not take any responsibilities for abnormal
operation, privacy leakage or other damages resulting from cyber-attack, hacker
attack, virus inspection, or other internet security risks; however our company will
provide timely technical support if required. Surveillance laws vary by jurisdiction
before using this product in order to ensure that your use conforms to the applicable
3
law. Our company shall not be liable in the event that this product is used with
illegitimate purposes.
In the event of any conflicts between this manual and the applicable law, the later
prevails.
Trademark
Each of trademarks herein is registered. The name of this product and other
trademarks mentioned in this manual are the registered trademark of their
respective company.
Copyright of this document is reserved. This document shall not be reproduced,
distributed or changed, partially or wholly, without formal authorization.
OPEN SOURCE SOFTWARE LICENSE INFORMATION
The software components provided with Grundig products may contain copyrighted
software that is licensed under various open source software licenses. For detailed
information about the contained open source software packages, the used package
versions, license information and complete license terms, please refer to the product
detail pages on our website. The complete open source software license information
is also included in firmware files of affected products. Please also check your
product’s CD-ROM and manuals for additional information.
You may obtain the complete corresponding open source part of a specific product
from us for a period of three years after our last shipment of this product by sending
an email to: info@grundig-security.com
Safety and Installation Instructions
Introduction
Please read these instructions carefully and keep them for future reference. You must
heed all the warnings and cautions as well as follow all the safety and installation
4
instructions.
The appearance of the products, functions and firmware or software upgrade may
differ from this manual.
GRUNDIG reserves the right to perform needed changes without prior notice.
Safety Instructions
Make sure that you only use the power adapter that is specified in the specifications
sheet of the product. If you use any other adapter or connect the power supply
incorrectly, this may cause explosion, fire, electric shocks or damage the product. Do
not connect several devices to one power adapter as this may cause an adapter
overload and can lead to over-heating and fire. Make sure that the plug of the power
adapter is firmly connected to the power socket.
Do not place containers with liquids on the product. Do not place conducting items
like tools, screws, coins or other metal items on the product. These may fall from the
product or can cause fire or electric shocks or other physical injuries.
Do not push or insert any sharp items or any objects into the device as this may
cause damage to the product, fire, electric shocks and/or physical injuries.
Do not block any ventilation openings, if there are any. Ensure that the product is
well ventilated to prevent any over-heating.
Do not subject the device to physical shock or drop the product.
If the product uses batteries, please use a battery type that is recommended by the
manufacturer. Improper use or replacement of the battery may result in the hazard
of explosion.
Do not use any accessories that are not recommended by GRUNDIG. Do not modify
the product in any way.
If the product starts to smell or smoke comes out of the device, immediately stop
using the product and disconnect it from the power supply to prevent fire or electric
shocks. Then contact your dealer or the nearest service center.
If the product does not work correctly, contact your dealer or nearest service center.
Never open, disassemble or alter the product yourself. GRUNDIG cannot accept any
5
liability or responsibility for problems caused by attempted and unauthorized repair
and maintenance.
Installation Instructions
It is necessary to fix the device firmly if the product is installed on a wall or ceiling.
Do not install the product on surfaces or in places that are vibrating. Do not install
the product near radiation sources.
Do not install the product near heat sources, like radiators or other equipment that
produces some heat. If the product is not classified by any IP class, do not install the
product in very cold or hot temperatures (please refer to the working temperature
specified in the specification sheet of the product), dusty, dirty or damp
environment.
If the product is classified by any IP class, never touch the product cover directly with
your fingers, because the acidic sweat of the fingers may damage the surface coating
of the product cover. To clean the inside and outside of the product cover, use a soft
and dry cloth. In any case, do not use alkaline detergents. The correct configuration
of all passwords and other security settings is the sole responsibility of the installer
and/or end-user (this applies especially to IP Cameras and Recorders).
Special Installation Instructions for Cameras
Do not touch the sensor module with your fingers. Do not aim the camera or camera
lens at a strong light such as the sun or a bright lamp. Irreversible damage to the
camera can be caused by a strong light.
Do not expose the sensor of the product to laser beams as this may damage the
sensor.
If the product supports IR, you need to take some precautions to prevent IR
reflection. Do not install the product close to reflective surfaces of objects as this
may cause reflection. If the product has a dome cover, please remove the protection
film only after installation to prevent dust or grease on the camera which can cause
reflection. The foam ring around the lens must be seated flush against the inner
6
surface of the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to
the camera body so that the foam ring and the dome cover are attached seamlessly.
For cleaning, use a clean cloth with a bit of ethanol and wipe it carefully and gently.
In any case, do not use alkaline detergents.
If a glove is provided in the package, please use it to open the product cover. Never
touch the product cover directly with fingers, because the acidic sweat of the fingers
may damage the surface coating of the product cover.
Special Installation Instructions for IP Cameras
Make sure that the latest firmware is installed on the IP Device. You may get the
latest firmware from www.grundig-security.com website or from
techsupport@grundig-security.com.
7
Table of Contents
1 Camera Introduction ................................................................................... 8
1.1 Overview ................................................................................................. 8
1.2 Appearance ............................................................................................. 8
1.3 Dimensions (mm) .................................................................................... 9
1.4 Connect ................................................................................................. 11
2 Operation ................................................................................................. 12
2.1 Installation and cable connection .......................................................... 12
3. Common Faults ........................................................................................ 15
4 Network Set and Access ........................................................................... 17
4.1 Accessing by Web Browsers ................................................................... 17
8
1 Camera Introduction
1.1 Overview
The GD-TI-AT30105K Thermal Positioning System Camera is a series of camera
specially designed for long range day and night surveillance. In the daytime, it uses a
telephoto lens and high-definition camera imaging, which can take into account both
short-range and large-range search and long-distance feature image collection; at
night, the most the advanced uncooled thermal imaging detector has good imaging
effect, is easy to conceal, and is not affected by external lighting; the whole machine
adopts network video output to ensure the convenience of video monitoring. The
whole machine is powered by a wide-width power supply, which is convenient for
customers to install and use.
1.2 Appearance
Thermal lens
Visible lens
PT
Wiper
Figure 1-1 Front Lateral View
9
1.3 Dimensions (mm)
Figure 1-3 Front View
Figure 1-2 Back Lateral View
Outgoing line interface
Camera and PT
cable interface
10

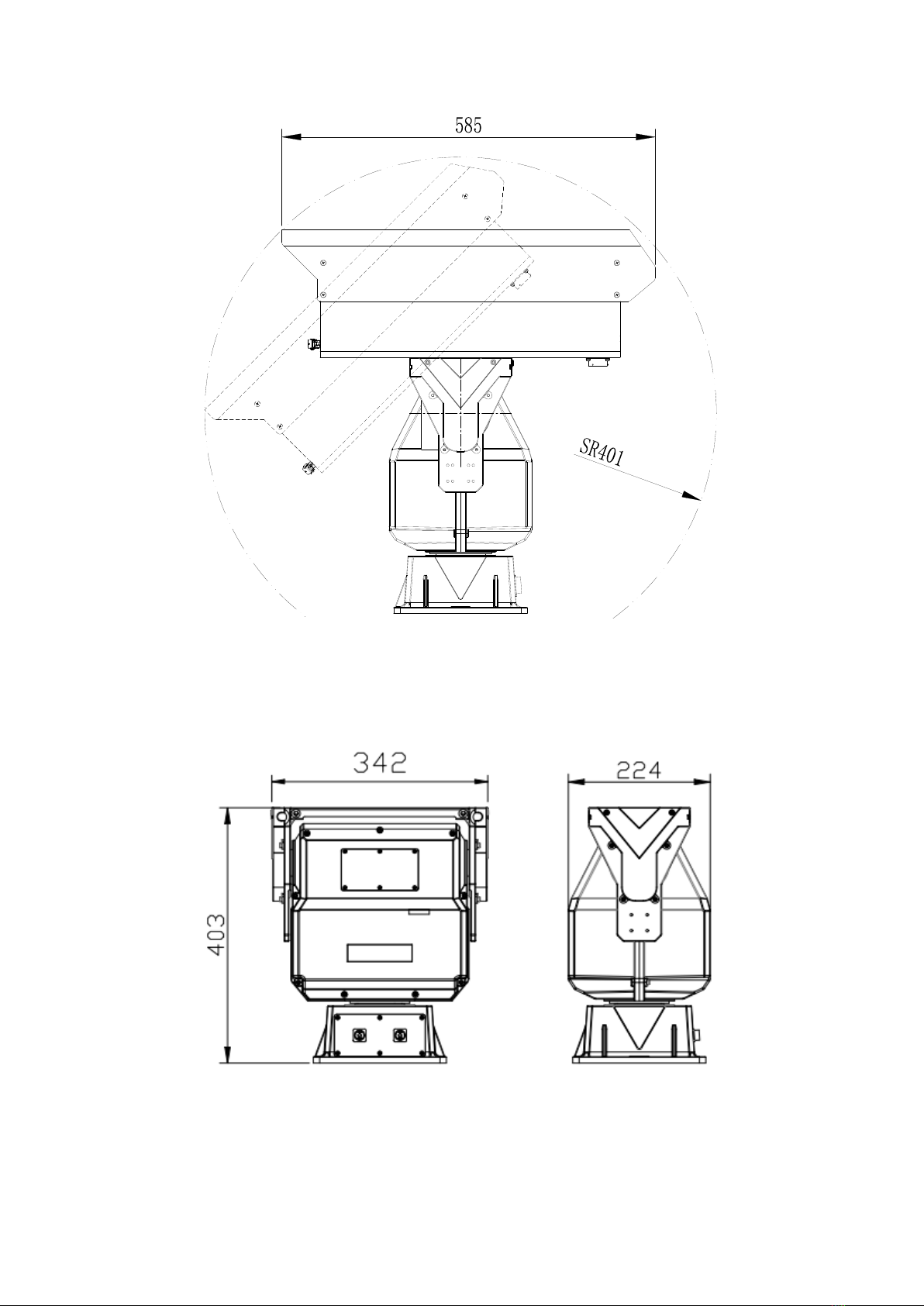

Figure 1-4 Lateral View
Figure 1-5 Front and side view of PTZ
