INSTRUCTIONS FOR KNOBSETSINSTALLATION OF TUBULAR

DETERMINE HANDING OF YOUR DOOR

Stand at exterior side and face to your door.

Your door is left hand door if hinge were installed at your left hand.

Your door is right hand door if hinge were installed at your right hand.

Hinge

RIGHT HAND DOOR

EXTERIOR

LEFT HAND DOOR

Hinge

a. This latch is set for

2-3/8" (60 mm) backset.

b. Keep spindle cam in correct position

as illustrated.

Pull spindle cam all the way to right.

c. Your latch is now set for 2-3/4" (70 mm) backset.

To reset 2-3/8" (60 mm) backset, just push spindle

cam back to left side.

Please make sure that the cams are staying with

square shape.

a. b. c.

ADJUSTABLE LATCH FOR 2-3/8" (60 mm) AND 2-3/4" (70 mm) BACKSET

TAR-EN1

Outside Assembly Strike Plate

Latch

Inside Assembly

PACKAGE CONTENTS TOOLS NEEDED (NOT INCLUDED)

Keys Removal Tool Latch/Strike Screws Qty. 4 Mounting Screws Qty. 2

Phillips Screwdriver

Tape Measure

Backset is a distance from the door edge to the centr of the hole on door face.

Some locks are supplied with adjustable latch which can fit 2-3/8" (60 mm) or 2-3/4" (70 mm) backset.

Just follow the steps shown below to change backset.

1-3/8"-1-3/4"

35 mm-45 mm

25.4 mm 2-1/8"

54 mm

2-3/8" (60 mm)

2-3/4" (70 mm)

backset

Use enclosed to mark holes on door face.

Drill Ø2-1/8" (54 mm) holes from both sides of door.

Drill Ø1" (25.4 mm) holes in door edge for latches.

template

PREPARE DOOR AND CHECK DIMENSIONS

Close door to make horizontal cent e line

of strike.

Measure one half of door thickness from

door stop and mark vertical centre line

of strike.

Drill 1"(25 mm) hole 1/2"(13 mm) deep at

intersection of horizontal and vertical line

of strike.

Match screw holes on strike with centre

lines on jamb.

Mark outline and chisel 1/16" (1.6 mm)

deep for strike.

Install strike and tighten screws.

Ø2-1/8" 54 mm ( )

FOR BACKSET ( )2-3/4" 70 mm

FOR BACKSET ( )2-3/8" 60 mm

45 mm 40 mm 35 mm

1-3/4" 1-3/8"1-9/16"

Make 1"(25.4 mm)hole at center of door edge.

Fold on dotted line and fit on door edge

TEMPLATE

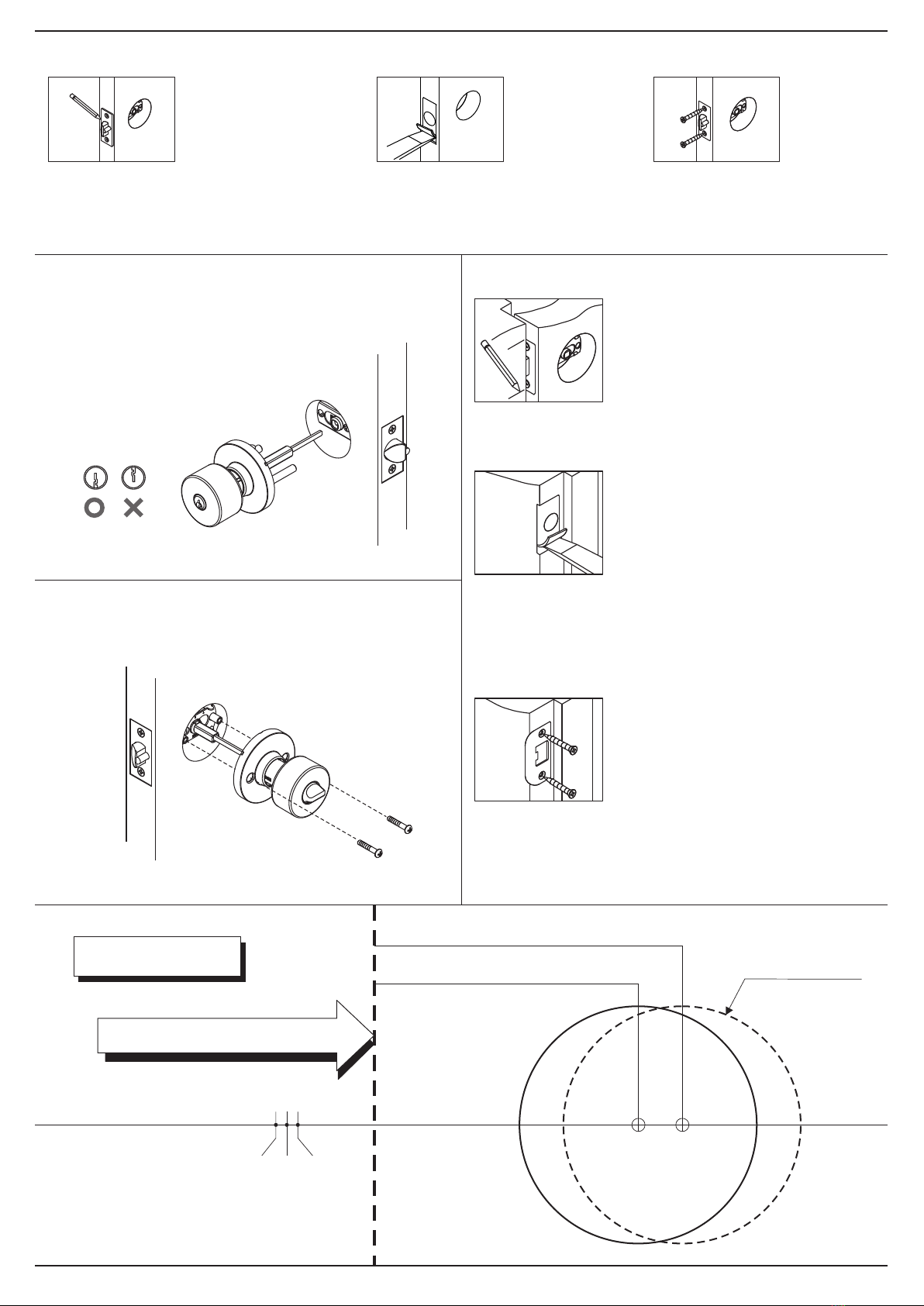

3. INSTALL LATCH

Insert latch in hole and keep it parallel

to door face.

Mark outline of face plate and remove latch.

Chisel 1/8" (3 mm) deep or until

face plate flush with door edge.

Insert latch and tighten screws.

4. INSTALL OUTSIDE KNOB 6. INSTALL STRIKE

a. b.

Install inside knob and tighten screws until lock is firm.

Insert spindle through latch.

Press flush against door.

NOTE: Key hole must be in down position.

5. INSTALL INSIDE KNOB

Customer service 1-800-221-3379
