Installation manual CA-HM-UNI-EVO.007 | Version 1.0

EN - Installation Manual

Open locking mechanism

Metal cage Unit support

Screen support

Unit cover

Small hardware

Screen connector cover

Screen neck

Screen cover

Left& right support brackets installed

Mount side support bracket with the hardware

supplied (included with the installation kit)

Mount unit support to the side brackets

using the supplied hexagonal bolds

(included with the installation kit)

1 2

4

3

CA-HM-UNI-EVO.007

INSTALLATION KIT FOR SPH-EVO93DAB

Installation manual CA-HM-UNI-EVO.007 | Version 1.0

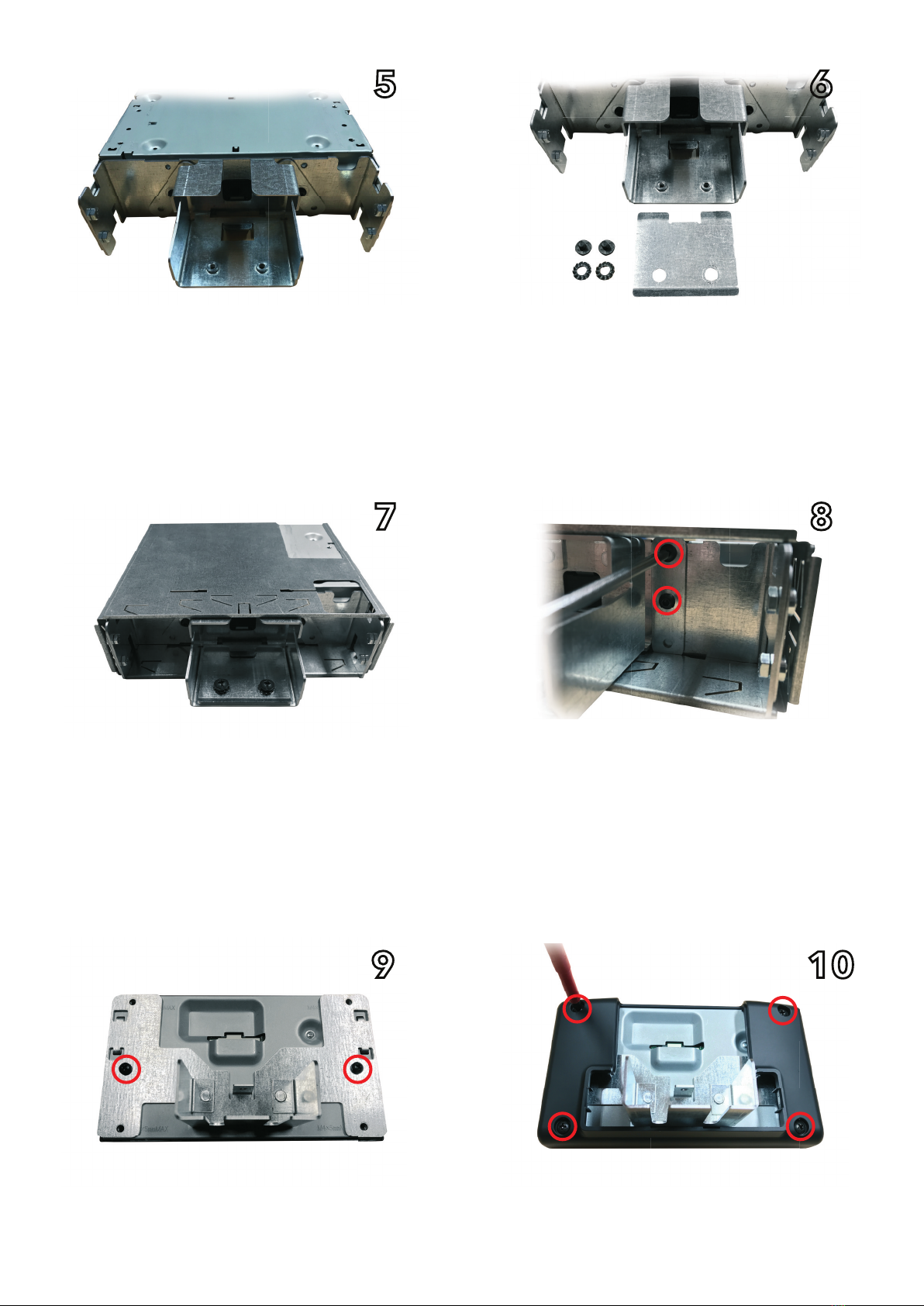

Completed installation of unit

with unit support

Slide the complete mechanism into the metal cage

Mount screen support to the screen using

the two center screws on each side

(included with SPH-EVO82DAB)

Install sliding mecha using the shown hardware

(included with the installation kit)

Lock the unit support into the metal cage by opening the two

metal tabs and tighten the indicated screws (on both sides)

Mount screen cover onto the screen support

using the remaining four screws as indicated

(included with SPH-EVO82DAB)

5 6

8

10

7

9

Installation manual CA-HM-UNI-EVO.007 | Version 1.0

Whilst sliding the silver box in the car pull the display cable

through using some tape and extension cable CD-RGB150E

(not included)

Completely inserted screen neck

Slide the screen neck into the unit cover,

pay attention to the positioning of the tabs

Slide the screen support into the unit support

12 13

1514

Mount screw covers, paying attention to the marked numbers and locations

11

1 2

4

3

Installation manual CA-HM-UNI-EVO.007 | Version 1.0

Pull the screen neck towards the screen holder

until it ‘clicks’ into place

Slide the connector cover in the back of the screen

and fix the screw (included with SPH-EVO82DAB)

18 19

Choose the desired distance for your screen and tighten

the two screws on top (included with the installation kit)

Insert the connector into the screen

1716

Final product image

20
