Build Limitless Wall-Mount Rack

support@prxperformance.com 701-566-0452

All questions, feedback, and return information should be sent to: [email protected] or

call us at 1-701-566-0452

LIMITED LIFETIME WARRANTY: This product is warranted by PRx Performance LLC, to the original user-owner only, against

defective materials or workmanship for the lifetime of the product. During the warranty period, or “lifetime” of the product,

at the discretion of PRx management, if the product is found to be defective, it will be repaired or replaced without charge.

This warranty does not cover defects in the product caused by ordinary wear and tear, abuse, misuse, overloading, accident

(including shipping damage), improper maintenance or alteration. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER

WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY OR ANY IMPLIED WARRANTY OF

FITNESS FOR A PARTICULAR PURPOSE OF THIS PRODUCT. PRx PERFORMANCE INC. SHALL NOT BE LIABLE FOR ANY

CONSEQUENTIAL OR INCIDENTAL DAMAGES. Email [email protected] or call 701-566-0452. See full warranty at

www.prxperformance.com

WARNING: SERIOUS INJURY OR DEATH COULD OCCUR IF PRECAUTIONS ARE NOT TAKEN.

2 (701) 566-0452

[email protected] 3

Item # Description QTY

1 Upright, 95” or 81” 2

2 42” Pull-Up Bar 1

3 Crossmember, 42” or 18” 2

4 5/16” Spacer 4

5 5/8” Nylock Nut 10

6 5/8” Flat Washer 12

7 5/8” x 4 1/4” Hex Head Bolt 6

8 5/16” x 2 1/2” Lag Screw 4

9 5/16” Oversized Flat Washer 4

10 Foot Anchor 2

11 5/8” x 4 1/2” Hex Head Bolt 4

5,6,11

5,6,7

5,6,11

4,8,9

6,7

4,8,9

10 5,6

5,6

6,7

5,6,7

Part List

ITEM# DESCRIPTION QTY

1UPRIGHT, 95” or 81” 2

242” PULL-UP BAR 1

3CROSSMEMBER, 42” or 18” 2

45/16” SPACER 4

55/8” NYLOCK NUT 10

65/8” FLAT WASHER 12

75/8”x 4 1/4” HEX HEAD BOLT 6

85/16”x2-1/2” LAG SCREW 4

95/16” OVERSIZED FLAT WASHER 4

10 FOOT ANCHOR 2

11 5/8”x 4 1/2” HEX HEAD BOLT 4

Tools Needed:

1. 15/16 Open-End Wrench

2. 15/16” Socket

3. Socket Wrench

4. 1/2” Socket

5. Stud Finder

6. Cordless Drill

7. Cordless Impact

8. 7/32” Drill Bit

9. Step Stool

10. Second Person

11. Tape Measure

12. Level

support@prxperformance.com 701-566-0452

Additional Items Needed

(Not Included):

• 2” thick Ledger Board,

length dependent on

stud spacing.

• Mounting Hardware

for Ledger Board.

• Floor Mounting Hard-

ware

Wall Mount Rack Parts and Tools Needed

Build Limitless®Wall-Mount Rack

All Parts & Tools Needed

Tools Needed

1. 15/16” Open-End

Wrench

2. 15/16” Socket

3. Socket Wrench

4. 1/2” Socket

5. Stud Finder

6. Cordless Drill

7. Cordless Impact

8. 7/32” Drill Bit

9. Tape Measure

10. Level

11. Step Stool

12. Second Person

Additional Items Needed

(not included):

1. 2x10 ledger board,

length dependent on

stud spacing.

2. Mounting hardware

for ledger board.

3. Floor mounting

hardware.

4 (701) 566-0452

Wall-Mount Rack Assembly Instructions

1. Lay the uprights and crossmembers on the oor with the logo facing out and attach the

crossmembers (Figure 1).

NOTE: Make sure the widest portion of the crossmember is at the top of the upright

(Figure 2).

2. Secure all hardware, but do not fully tighten.

1. Attach the crossmembers to the uprights as shown in Figure 1. It may be easiest to lay the uprights

and crossmembers on the floor with the logo side facing out. NOTE: Make sure the crossmembers

are attached with the tubes closer to the bottom side of the end plates, as shown in Figure 3.

2. Make sure all hardware is snug.

Wall-Mount Rack Assembly Instructions

Figure 1

6,7

Figure 2

Min.

Max.

Figure 1

Figure 2

[email protected] 5

Figure 1

1 3

Wall-Mount Rack Assembly Instructions

1. Attach the pull-up bar to the uprights as shown in Figure 1. A second person may be needed at this

time.

2. Make sure all hardware is snug.

Wall-Mount Rack Assembly Instructions

1. Attach the pull-up bar to the uprights (Figure 1). A second person may be needed at this time.

2. Secure all hardware, but do not fully tighten.

Figure 1

6 (701) 566-0452

Contact customer service if

hardware other than wood

screws are needed for

mounting the ledger board.

WARNING: SERIOUS

INJURY OR DEATH

COULD OCCUR IF

PRECAUTIONS ARE

NOT TAKEN.

1. Locate studs in the area that you want to place your rack.

2. Measure from the floor to where you will be placing the bottom of the ledger board. For 95” uprights this

distance is 86-1/2”. For 81” uprights this distance is 72-1/2”.

3. The minimum length of the ledger board must be at least 50”. Make sure the ledger board can attach to

at least 3 studs. Attach the ledger board to each stud, with a minimum of 2 screws per stud.

Ledger Board Installation

2 SCREWS PER STUD

86-1/2”

(95”Upright)

72-1/2”

(81”Upright)

Ledger Board Installation

Ledger board is not included. Your 2x10 ledger board should be a minimum length of 50”, and long

enough to attach to at least 3 studs (for safety and security).

1. Locate studs in the area that you want to place your rack.

2. Measure from the oor to where you will be placing the bottom of the ledger board. For 95”

uprights this distance is 86 ½”. For 81” uprights this distance is 72 ½”.

3. Attach the ledger board to each stud, with a minimum of 2 screws per stud.

95” Upright

= 86 ½” from

oor to bottom

of ledger board

81” Upright

= 72 ½” from

oor to bottom

of ledger board

[email protected] 7

Attach Rack to Ledger Board

1. Once the ledger board is installed, place your assembled rack against the ledger board as shown

below. WARNING: Make sure you have enough ceiling height to rotate the rack up against the

ledger board without hitting the ceiling. See table below for ceiling height requirements.

2. Make sure uprights are parallel to the wall before marking and drilling holes for mounting. Have a

second person hold it in place while you mark the hole locations and drill pilot holes for your lag

bolts using the 7/32” drill bit, drill to a minimum depth of 2 ½” (Figure 1).

3. Attach foot anchors to the bottom of the uprights (Figure 2).

4. Make sure bottom of uprights are 42” apart before anchoring to the oor.

5. Once rack is anchored to the oor, fully tighten all hardware.

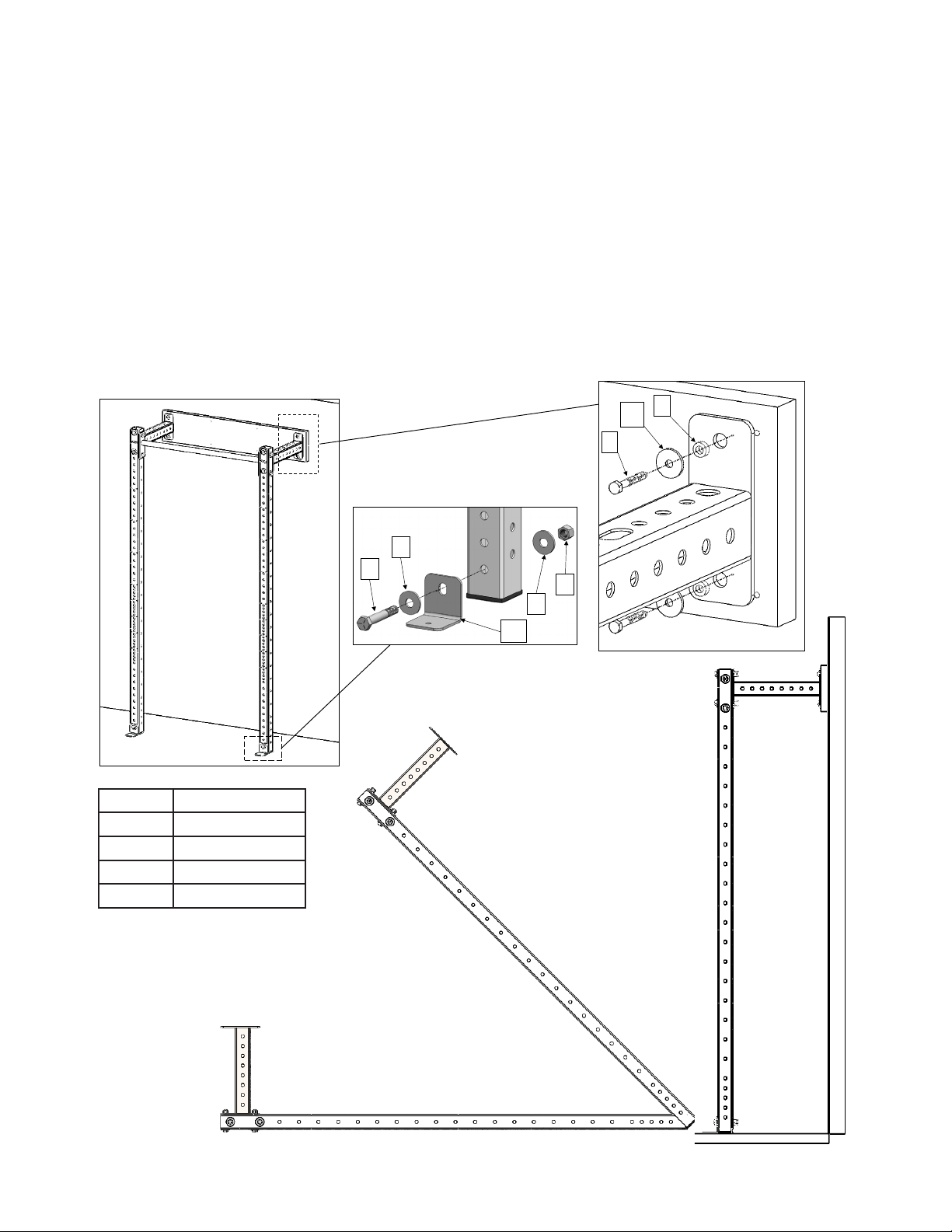

Attach Rack to Ledger Board

1. Once the ledger board is installed, place your assembled rack against the ledger board as shown below.

WARNING: Make sure you have enough ceiling height to rotate the rack up against the ledger board

without hitting the ceiling. See table below for required heights needed.

2. Make sure uprights are parallel to the wall before marking and drilling holes for mounting. Have one per-

son hold it in place while you mark the hole locations and drill pilot holes for your lag bolts using the

7/32” drill bit, to a minimum depth of 2-1/2”. (Figure 1)

3. Attach foot anchors to the bottom of the uprights a shown in Figure 2.

4. Bottom of uprights can now be spaced at 42” and anchored to the floor. (Hardware not supplied)

5. Tighten all hardware after anchoring to the floor.

[email protected] 701-566-0452

RACK HEIGHT REQ’D.

95-18 99”

95-42 107”

81-18 85”

81-42 95”

Figure 1

NOTE: If ceiling height is less than min.

Contact Customer Service.

Figure 2

Rack Height Required

95-18 99”

95-42 107”

81-18 85”

81-42 95”

NOTE: If ceiling height is

less than minimum, contact

Customer Service.

Figure 1

Figure 2
