Rugged Ridge 12107.14 Manuale utente

Copyright © 2017 Omix-Ada®, Inc.

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | [email protected]

Wall Mount Freedom Panel Holder

Page 1/3

Part # 12107.14

OMIX-ADA®TECHNICAL SUPPORT

PHONE: M-F 8am - 5pm EST 1-800-449-6649 | EMAIL: [email protected]

FOR WARRANTY INFORMATION VISIT: www.Omix-Ada.com

1. Retainer Bracket (2) 2. Lower Bracket (2)

Components

This product is designed to be mounted to a wall that has studs spaced 16”

on center. Due to differences in building materials, mounting hardware is not

supplied. Failure to secure product to studs can result in damage to product,

property, or serious injury.

CAUTION

!

Copyright © 2017 Omix-Ada®, Inc.

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | [email protected]

Wall Mount Freedom Panel Holder

Page 2/3

3. Determine proper length of 5/16” lag bolts for your

application. Bolts must go 2” into stud.

4. Using 5/16” lag bolt and 5/16” at washer, attach

Lower Brackets to wall.

2. Determine appropriate mounting position. Using

Lower Bracket for reference, mark and drill one 1/4”

pilot hole in the center of each stud. Pilot hole must

go 2” into stud.

1. Using a stud nder, locate four studs in a row. For

proper mounting, studs should be 16” on center.

Copyright © 2017 Omix-Ada®, Inc.

460 HORIZON DR. SUITE 400 | SUWANEE, GA 30024 | PHONE: 770-614-6101 | FAX: 770-614-6069 | [email protected]

Wall Mount Freedom Panel Holder

Page 3/3

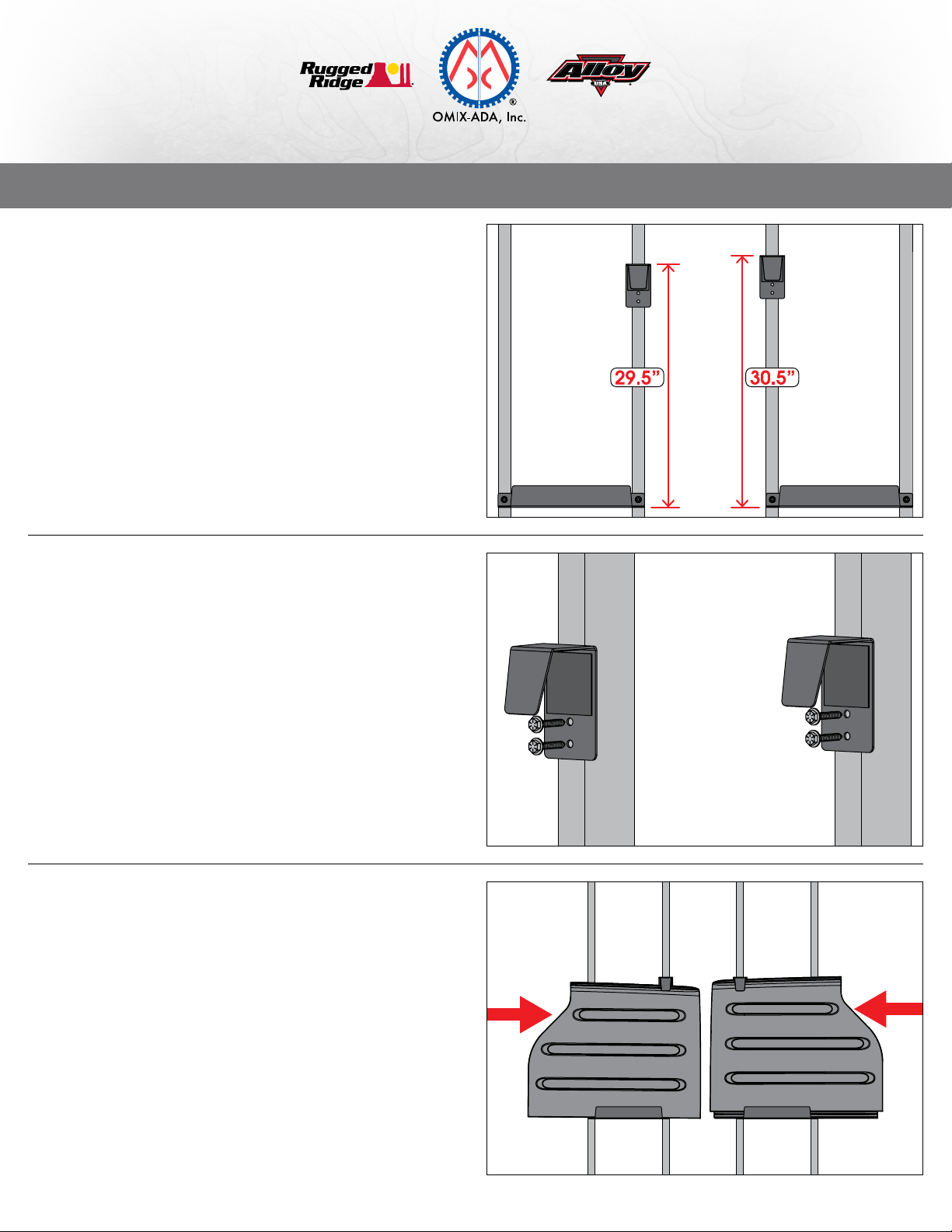

9. Slide freedom panels in holder as shown.

7. Drill 1/4” pilot holes where marked. Pilot hole must

go 2” into stud.

8. Using 5/16” lag bolts and 5/16” at washers, attach

Retainer Brackets to wall.

5. Mark a line 29.5” above bottom surface of

Lower Bracket on second stud from left. Align top of

Retainer Bracket with line and mark mounting holes.

6. Mark a line 30.5” above bottom surface of

Lower Bracket on third stud from left. Align top of

Retainer Bracket with line and mark mounting holes.
