Owner’s Manual
Granite Peak
10’ x 10’ Hard Top Gazebo
Model Number: GP/GAZ10-2
SKU Number: 101642582
Note: This gazebo is designed to be used as a permanent fixture.
Scan For Video
Assembly Instructions!
2of21

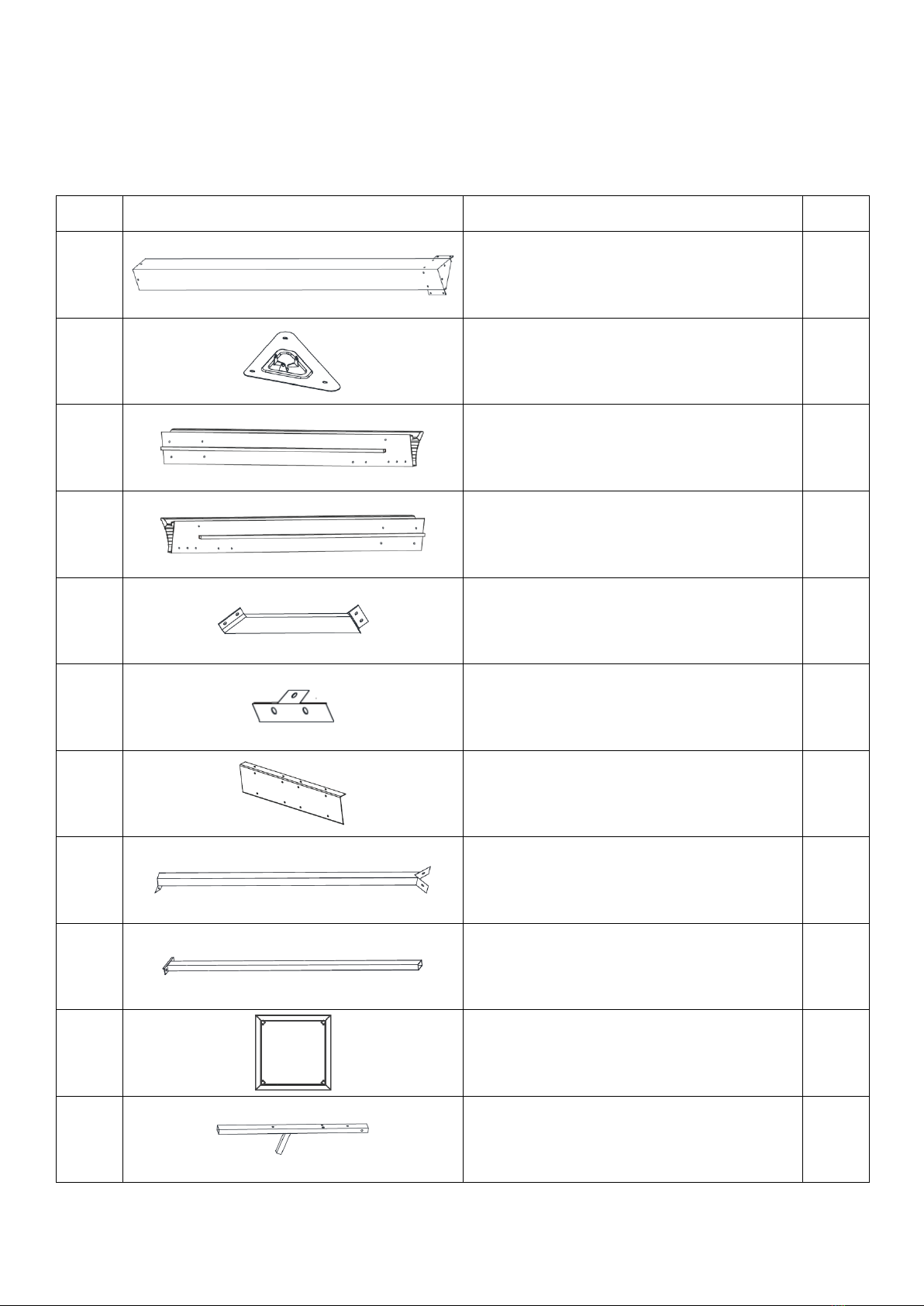

Parts List
Granite Peak 10’ x 10’ Hard Top Gazebo
Letter
Illustration
Description
Qty.
A
Corner Post
4
B
Corner Post Base Plate
4
C1
Lintel
4
C2
Lintel
4
E
Lintel Corner Support Bar
8
F
Lintel Bracket
4
G2
Lintel Connector
4
H
Main Roof Corner Support
4
I
Main Roof Vertical Center Support
4
J
Main Roof Center Frame
1
K1
Roof Vent - Corner Supports
4

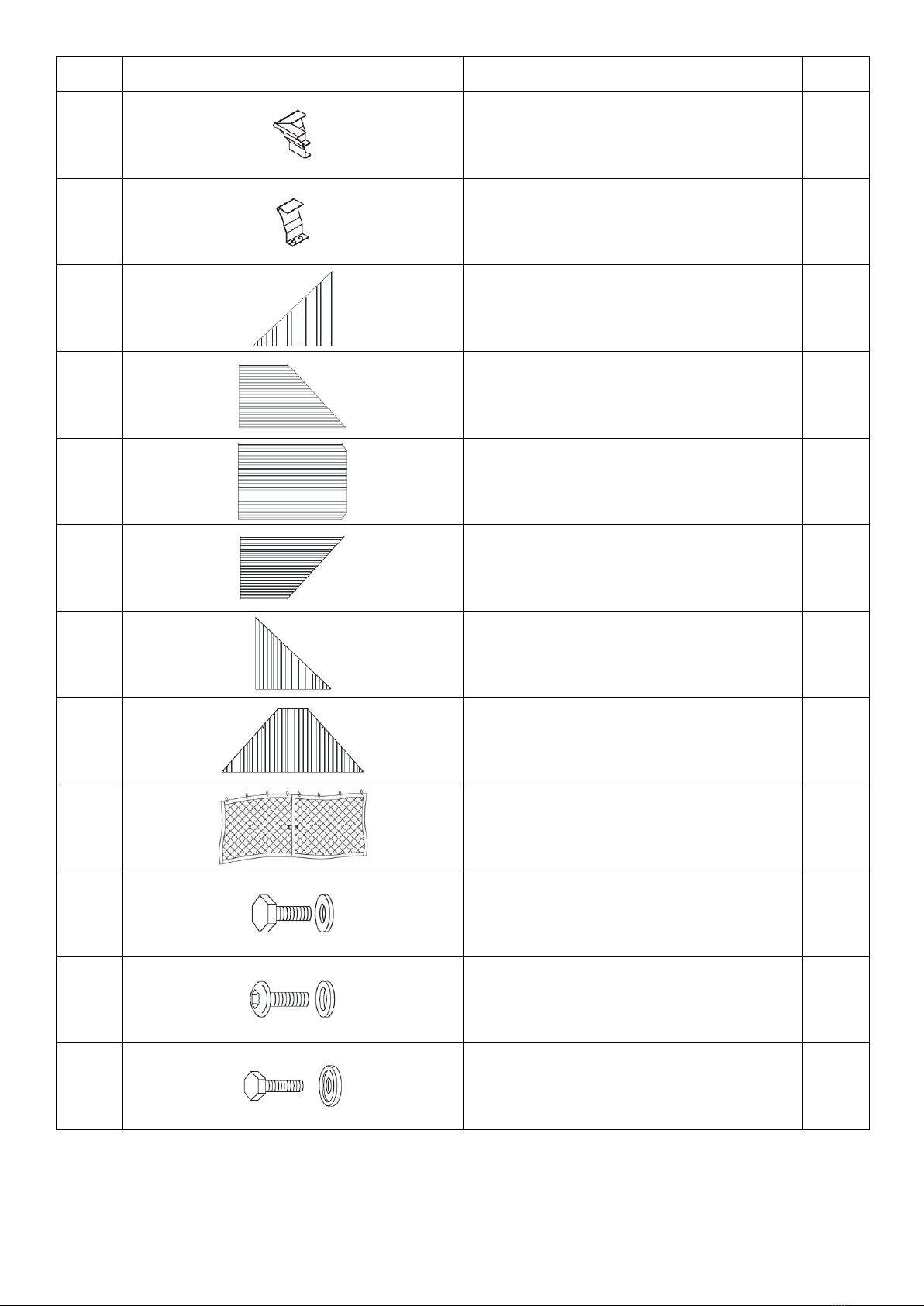

3of21
Letter
Illustration
Description
Qty.
K2
Roof Vent Connector
1
K3
Roof Vent Hook
1
L
Roof Vent - Top Trim
1
M
Main Roof – Lower Horizontal Support
8
N
Main Roof – Upper Horizontal Support
8
O1
Main Roof Connector - Corner
8
O2
Main Roof Connector - Center
8
P1
Roof Vent Frame
4
Q1
Main Roof Corner Trim
4
Q2
Roof Vent Corner Trim
4
Q3
Main Roof Center Frame Trim
4
R1
Roof Vent Side Trim
4

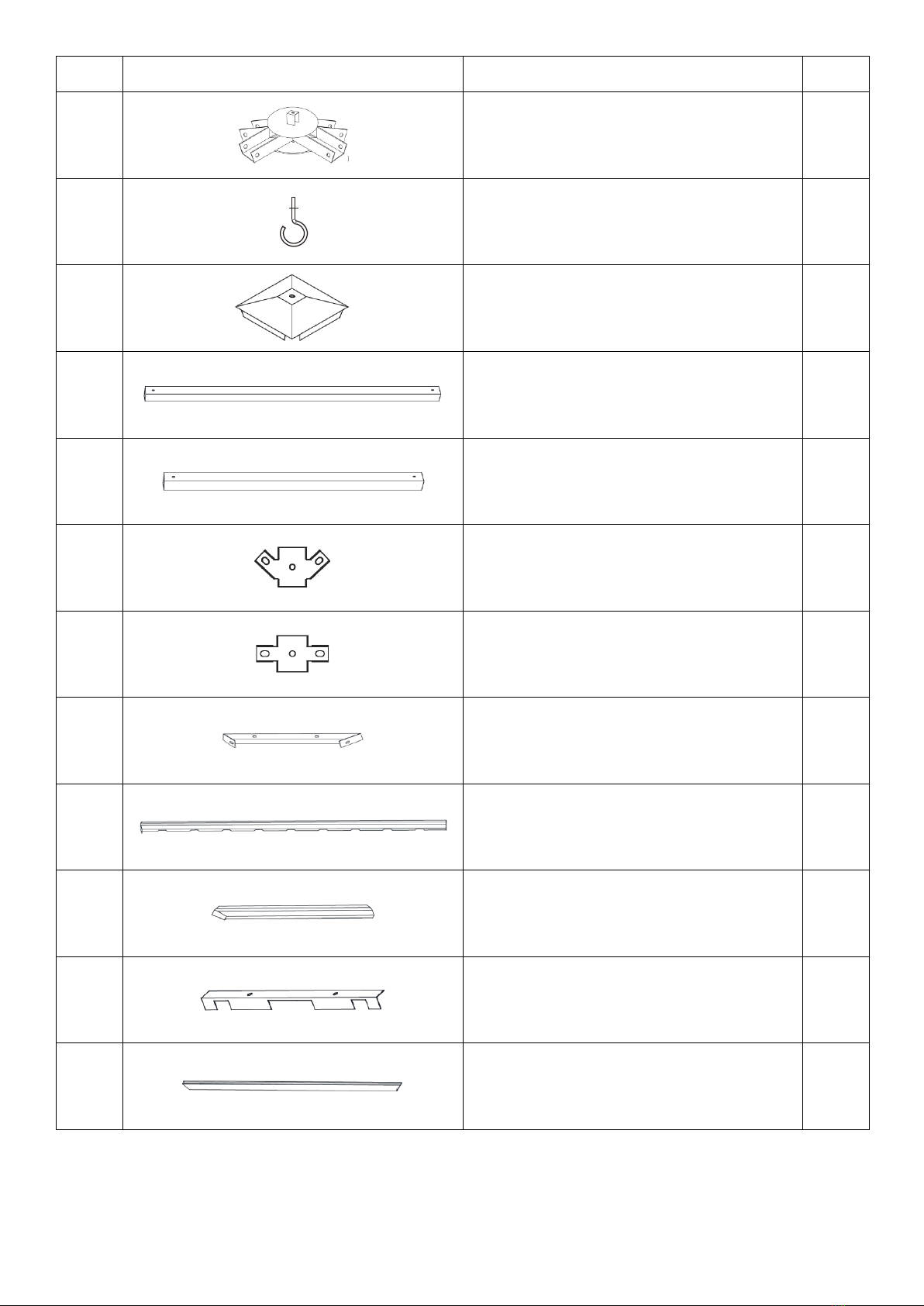

4of21
Letter
Illustration
Description
Qty.
S1
Lintel Cover - Corner
4
S2
Lintel Cover - Center
4
T1
Main Roof Panel - Left Corner
4
T2
Main Roof Panel - Left Side
4
T3
Main Roof Panel - Center
4
T4
Main Roof Panel - Right Side
4
T5
Main Roof Panel - Right Corner
4
U1
Roof Vent Panel
4
V
Mosquito Netting
4
AA
M6 x 15mm Bolt with Steel Washer
177
BB
M8 x 15mm Bolt with Steel Washer
48
CC
M6 x 15mm Bolt with Plastic Washer
8

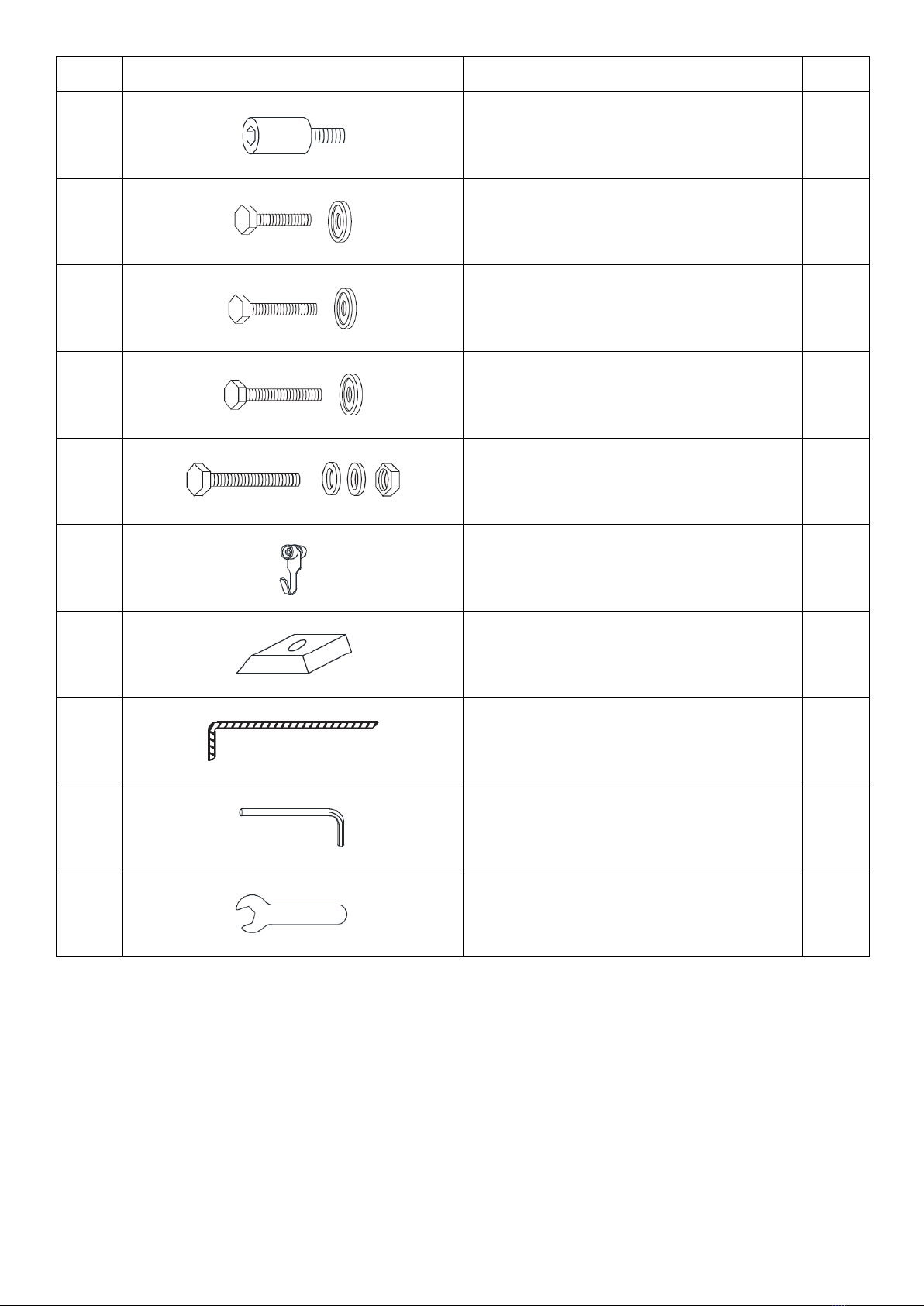

5of21
Letter
Illustration
Description
Qty.
DD
M6 x 15mm Bolt
16
EE
M6 x 25mm Bolt with Plastic Washer
24
FF
M6 x 35mm Bolt with Plastic Washer
8
GG
M6 x 40mm Bolt with Plastic Washer
8
II
M6 x 55mm Bolt with Flat Washer & Nut
4
JJ
Mosquito Netting Hook
40
KK
Spacer
24
LL
Ground Stake
12
MM
M8 Allen Wrench
1
NN
M6 Hex Wrench
2
6of21
Assembly Instructions
Granite Peak 10’ x 10’ Hard Top Gazebo
Note: For video instructions please visit:
https://shadenshelters.com/10x10-granite-peak-gazebo
Important:
⚫Read all the instructions before assembly. Failure to do so may result in faulty assembly and
potential injury.
⚫Before assembling the product, remove all protective materials, hardware kit(s), and identify all
parts packed in the carton are present. (Note: If any part is missing or damaged, do not attempt to
assemble). Contact Shade N’ Shelters Customer Support. See page 21.
⚫Assemble on a stable level surface to avoid damage to gazebo and possible injury.
⚫Two people are required to assemble this product.
⚫Gazebo dimensions are measured from roof corner to roof corner.
WARNING: DO NOT TIGHTEN BOLTS UNTIL NOTED AFTER EACH STEP!
Step 1: Connect Corner Post Base Plate (B) to Corner Post (A) using Bolts (AA). Repeat for all Corner Posts
and Base Plates. Tighten all Bolts. See Figure 1.
Figure 1
7of21
Step 2A: Insert ten Mosquito Netting Hooks (JJ) into the channel of each Lintel (C2). See Figure 2-1.
Step 2B: Attach Lintel Connector (G2) to Lintel (C2) using Bolts (BB). Hand Tighten Only.
See Figure 2-2
Step 2C: Attach Lintel (C1) to Lintel Connector (G2) using Bolts (BB). Attach Lintel Brackets (F) to Lintel
(C1 and C2) using Bolts (BB). Tighten all Bolts. Repeat Step 2A to 2C for remaining Lintels (C1
and C2). See Figure 2-3.
Figure 2-1 Figure 2-2
Figure 2-3
8of21
Step 3A: Attach Corner Posts (A) to end of Long Lintels (C1 and C2) first with Bolts (AA) then with Bolts
(DD). Tighten all Bolts. See Figure 3-1.
Step 3B: Repeat for opposite side Long Lintels (C1 and C2) and Corner Posts (A). See Figure 3-2.
Figure 3-1
Figure 3-2
9of21
Step 4A: Attach Corner Posts (A) to Lintel (C1 and C2) first with Bolts (AA) then with Bolts (DD). Repeat for
opposite side Lintels (C1 and C2). See Figure 4-1.
Step 4B: Attach Support Bars (E) to Lintels (C1 and C2) and Corner Posts (A) with Bolts (AA).
See Figure 4-2.
Step 4C: Repeat for all Corner Posts and Lintels. Tighten all Bolts. See Figure 4-3.
Figure 4-1
Figure 4-2
Figure 4-3
10 of21

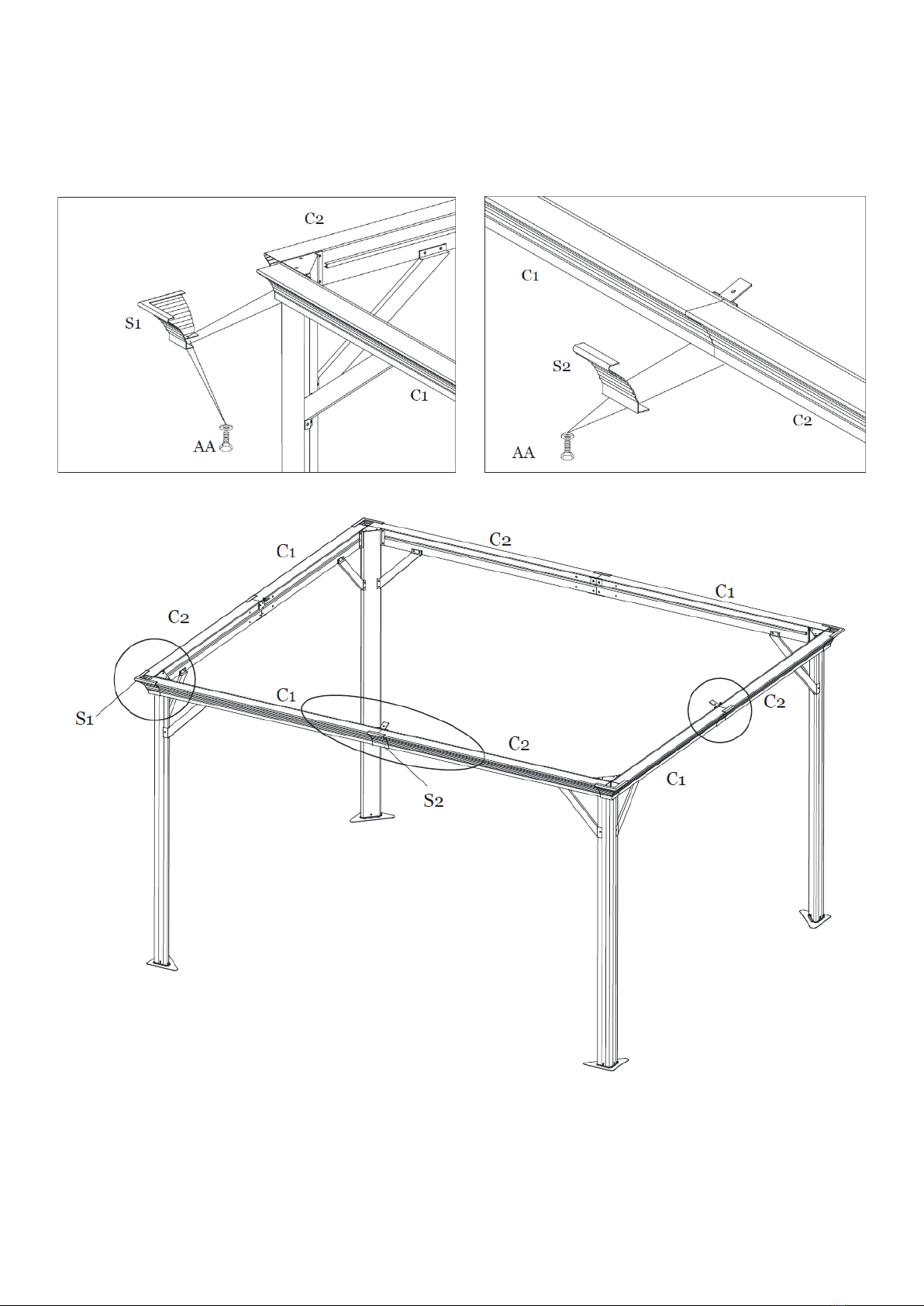

Step 5A: Attach Corner Lintel Cover (S1) to Lintel (C1) and Lintel (C2) with Bolts (AA). Repeat for all corners.
Tighten all Bolts. See Figure 5-1.
Step 5B: Attach Center Lintel Cover (S2) to Lintels (C1 and C2). Tighten all Bolts. See Figure 5-2.
Step 5C: Repeat for opposite sides. Tighten all Bolts. See Figure 5-3.
Figure 5-1 Figure 5-2
Figure 5-3
