ITEM NO.: S-1102

REVISED FEB 05, 2018

Printed in Vietnam

- 1 -

ASSEMBLY INSTRUCTIONS

Description

Item No.

: 24 IN ARLINGTON STOOL

: S-1102

ITEM NO.: S-1102

REVISED FEB 05, 2018

Printed in Vietnam

- 2 -

BEFORE ASSEMBLY

Thank you for purchasing this quality product. This product has been designed for easy assembly

and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to

beginning assembly, however, make sure all parts and hardware are included and free of obvious

defect. If a part is missing or defective, please contact the store where purchased. If hardware is

missing, or you need help with assembly, please call toll free 888-944-8396.

IMPORTANT NOTE:

-Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the

parts from being scratched.

-Remove all wrapping material, including staples & packing straps before you start to

assemble.

-DO NOT tighten all screws and bolts until completely assembled.

-Keep all hardware parts out of reach of children.

ASSEMBLY TOOLS REQUIRED

NOT INCLUDED

ITEM NO.: S-1102

REVISED FEB 05, 2018

Printed in Vietnam

- 3 -

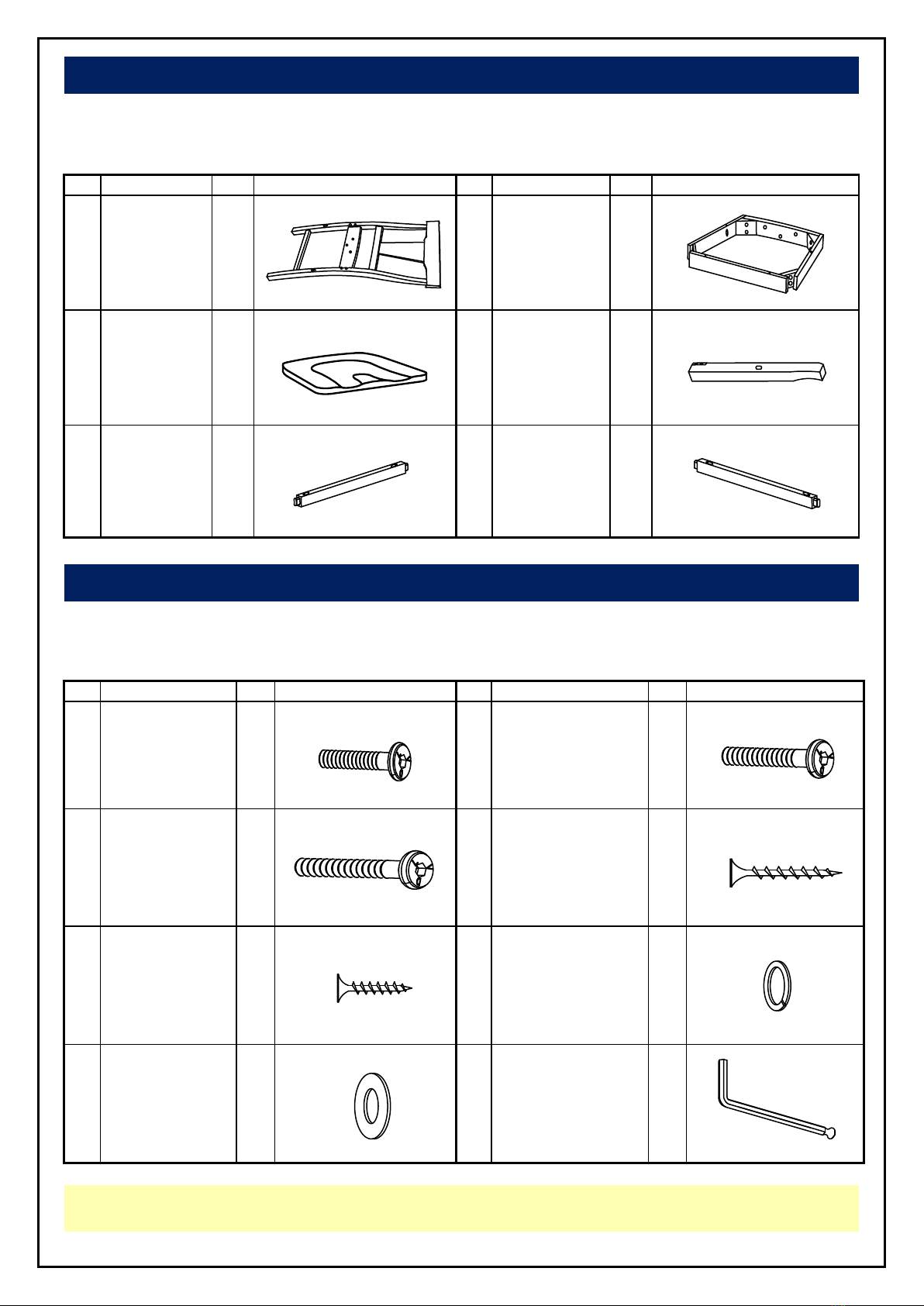

PART LIST

When unpacking, please be careful not to discard any parts with the packaging. Before continuing,

please make sure you have the following parts:

Description

Qty

Sketch

Description

Qty

Sketch

Chair Back

Seat Frame

Chair Seat

Front Leg

(L-R)

Side Stretcher

(L-R)

Front Stretcher

HARDWARE LIST

When unpacking, please be careful not to discard any parts with the packaging. Before continuing,

please make sure you have all of the following hardware:

Description

Qty

Sketch

Description

Qty

Sketch

Short Bolt

(M6 x 40mm)

Medium Bolt

(M6 x 60mm)

Long Bolt

(M6 x 80mm)

Long Screw

(M4 x 50mm)

Short Screw

(M4 x 35mm)

Lock Washer

(6.5 x11mm)

Flat Washer

(6.5 x19mm)

Allen Key

(M4 x 30mm x 110mm)

ITEM NO.: S-1102

REVISED FEB 05, 2018

Printed in Vietnam

- 4 -

STEP 1

Attach seat frame (B) to the back (A) with bolts (1) and (3), and washers (6) and (7) as shown below.

Tighten with Allen key (8).

Note: DO NOT tighten any of the bolts, until the stool is assembled, then put on a flat level surface to

make sure the stool is level and then tighten the bolts.

STEP 2

Attach front legs (D) to the seat frame with bolts (2), and washers (6) and (7) as shown below. Tighten

with Allen key (8).

Attach front stretcher (F) between front legs, and then attach side stretchers (E) to front and back

legs with screws (4) as shown below. Tighten with a screwdriver.

ITEM NO.: S-1102

REVISED FEB 05, 2018

Printed in Vietnam

- 5 -

STEP 3

Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver.
