SmartClass Fiber OLP-87 NG-PON2 Power Meter

SmartClass Fiber OLP-87 PON Power Meter

QUICK CARD

https://www.viavisolutions.com/en-us/products/pon-testing

Measuring Power Levels at the ONT

This quick card describes how to connect to a fiber under test, configure FTTx settings,

and read power measurements with the VIAVI OLP-87 NG-PON2 selective power meter.

►SmartClass Fiber OLP-87 NG-PON2

Wavelength Selective Power Meter with

SW V20.20.06 or greater

►P5000i Fiber Microscope (recommended)

►Fiber optic cleaning tool

►Two (2) SC APC Patch Cords

EQUIPMENT REQUIREMENTS

Figure 1: Equipment Requirements

FIBER INSPECTION GUIDELINES

Figure 2: P5000i Fiber Inspection Microscope

Connection

Type

Inspection

Tip

SC-APC

Bulkhead

SC-APC

Patch Cord

Figure 3: Inspect Before You Connect

►Clean both sides of every connection point (bulkhead connectors, patch cords, and

OLP-87 ports) prior to connections. If equipped, use the P5000i Fiber Microscope to

test the end-faces.

►Focus fiber on the screen. If dirty, clean the end-face.

►If it appears clean, run inspection test.

►If it fails, clean the fiber and re-run inspection test. Repeat until it passes.

VIAVI//Public

SmartClass Fiber OLP-87 NG-PON2 Power Meter

SmartClass Fiber OLP-87 PON Power Meter

QUICK CARD

CONNECT TO FIBER UNDER TEST (FUT)

1. Connect an SC APC patch cord between

the OLP-87 OLT connector and the OLT.

2. Connect an SC APC patch cord between

the OLP-87 ONT connector and the ONT.

1. Press the Home button to show the Home Screen.

2. Tap the NGPON2 icon.

3. Press the Menu button.

4. Tap the More soft key.

5. Tap Pass/Fail DS Channel Selection and set

which channels are activated for Pass/Fail testing.

6. Press the Back button twice to return to NGPON2

Test Results.

Figure 4: OL-87, Top View

(Power Meter Connectors) Figure 5: Through Mode testing

The OLP-87 should be connected between the OLT and ONT at the ONT as follows:

CONFIGURE TEST SETTINGS

Figure 6:OLP-87, Front View

NGPON2

Power

Meter icon

Home

Button

Power

Button

Probe

icon

button

Back

button

Figure 8: Select Channels

Figure 7: Menu Screen

to OLT to ONT

VIAVI//Public

SmartClass Fiber OLP-87 NG-PON2 Power Meter

SmartClass Fiber OLP-87 PON Power Meter

QUICK CARD

Product specifications and descriptions in this

document are subject to change without notice.

Patented as described at viavisolutions.com/patents

To reach the VIAVI office nearest you,

visit viavisolutions.com/contact

+1 844 GO VIAVI

(+1 844 468-4284)

MEASURE POWER LEVELS

Read Power Measurements and Status:

➢1535nm is the Upstream channel from the ONT.

➢1596.34nm, 1597.19nm, 1598.04nm, and 1598.89nm are the Downstream channels

from the OLT.

7. Tap the Menu button

8. Tap the Test Location soft key and and set

Location:

▪Select FDH if testing at the Fiber Distribution

Hub.

▪Select FDT if testing at the Fiber Distribution

Terminal.

▪Select ONT if testing at the Home or Business.

▪Select Anywhere to disable Pass/Fail Analysis

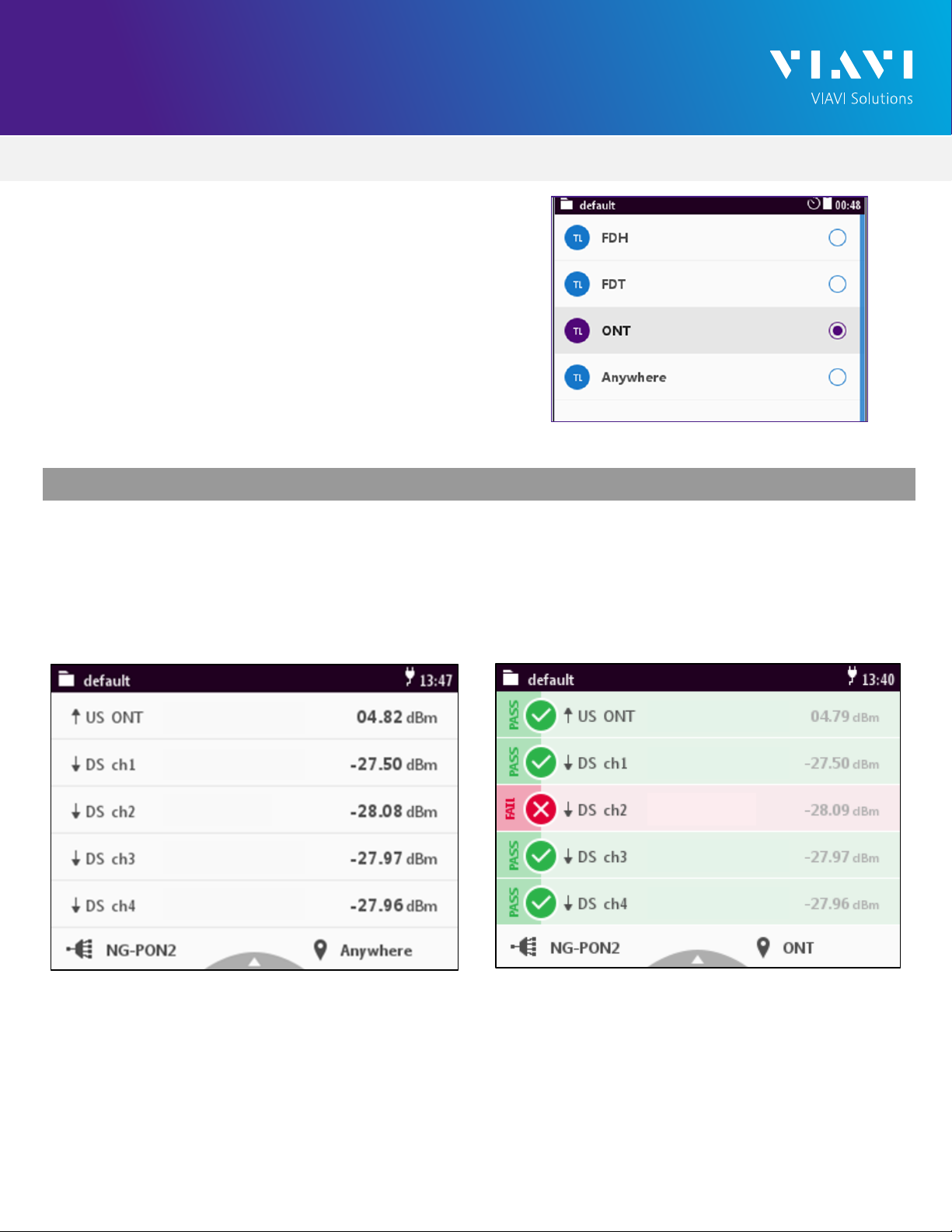

and Channel Selection. Figure 9: Select Test Location

Figure 10: Test Results Example,

Location = Anywhere, no Pass/Fail Analysis Figure 11: Test Results Example,

Location = ONT

1532 -1535 nm

1596.34 nm

1597.19 nm

1598.04 nm

1598.89 nm

1532 -1535 nm

1596.34 nm

1597.19 nm

1598.04 nm

1598.89 nm
