1010music Bitbox Micro 2.2 Manuale utente

Pads Screen

PRESET NAME

Touch to load and save presets.

CLOCK

Beats : bars

PROGRESS BAR

Bar is white when waiting for

quantization break to start playback.

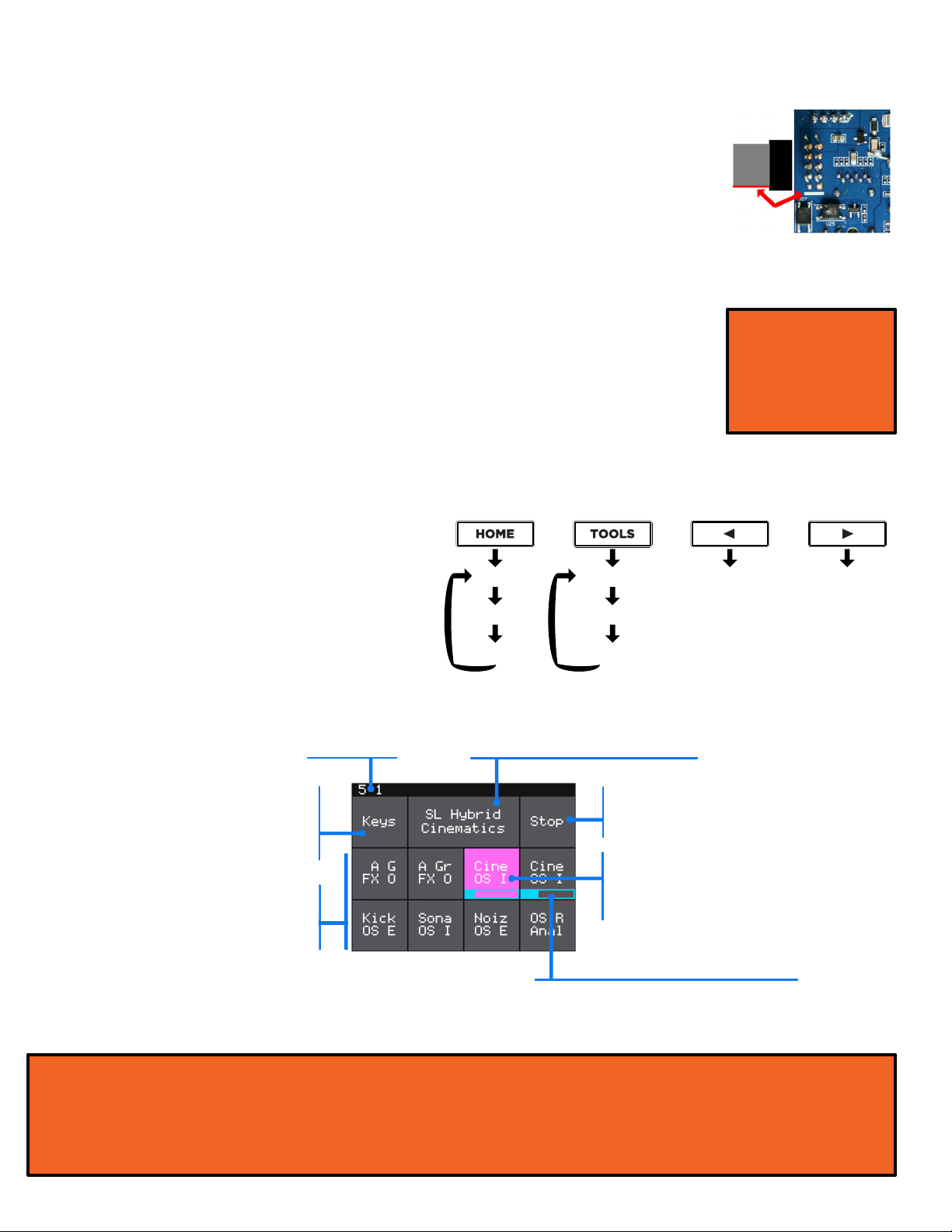

SELECTED PAD

Touch a pad or turn a knob

to change selection.

STOP BUTTON

Touch once to stop

playback of pads.

KEYS BUTTON

Touch to play selected

pad with on screen

keyboard.

PADS

Touch to

trigger.

SETUP

1. Insert the microSD card into the MICRO SD slot, notched edge away

from the screen.

2. Connect the narrow end of the ribbon power cable to the module, with

the red side of the cable on the side of the header with a white bar.

3. Turn off your Eurorack then connect the wide end of the ribbon power

cable to the Eurorack +12V power supply, with the red side of the cable

aligned with pin 1 or the -12V pins on the power supply bus.

4. Mount the module into the rack and then power it up.

5. After boot up, the bitbox micro displays the Pads screen with a grid of

WAV les loaded from one of the presets provided on the microSD

card.

6. Connect Out 7 and Out 8 to your mixer or speakers.

OVERVIEW

When bitbox micro powers up, you see the

Pads Screen. Touch a pad to trigger it.

Push the Home and Tools buttons to cycle

through the other screens. Push the

arrow buttons to view more or less detail

about the selected element. Turn the

knobs to select elements and assign

values.

Pads Settings More DetailLess Detail

Mixer Input

FX Output

Ribbon Cable

Orientation

Bitbox Micro 2.2 Quick Start Guide

NOTE:

■ The bitbox micro does not automatically save your changes. Any unsaved

changes will be lost when you load a preset or power down the module. Touch

the Preset Name and then touch Save to commit the changes to the preset.

The bitbox

micro requires

400mA on the

+12V rail only.

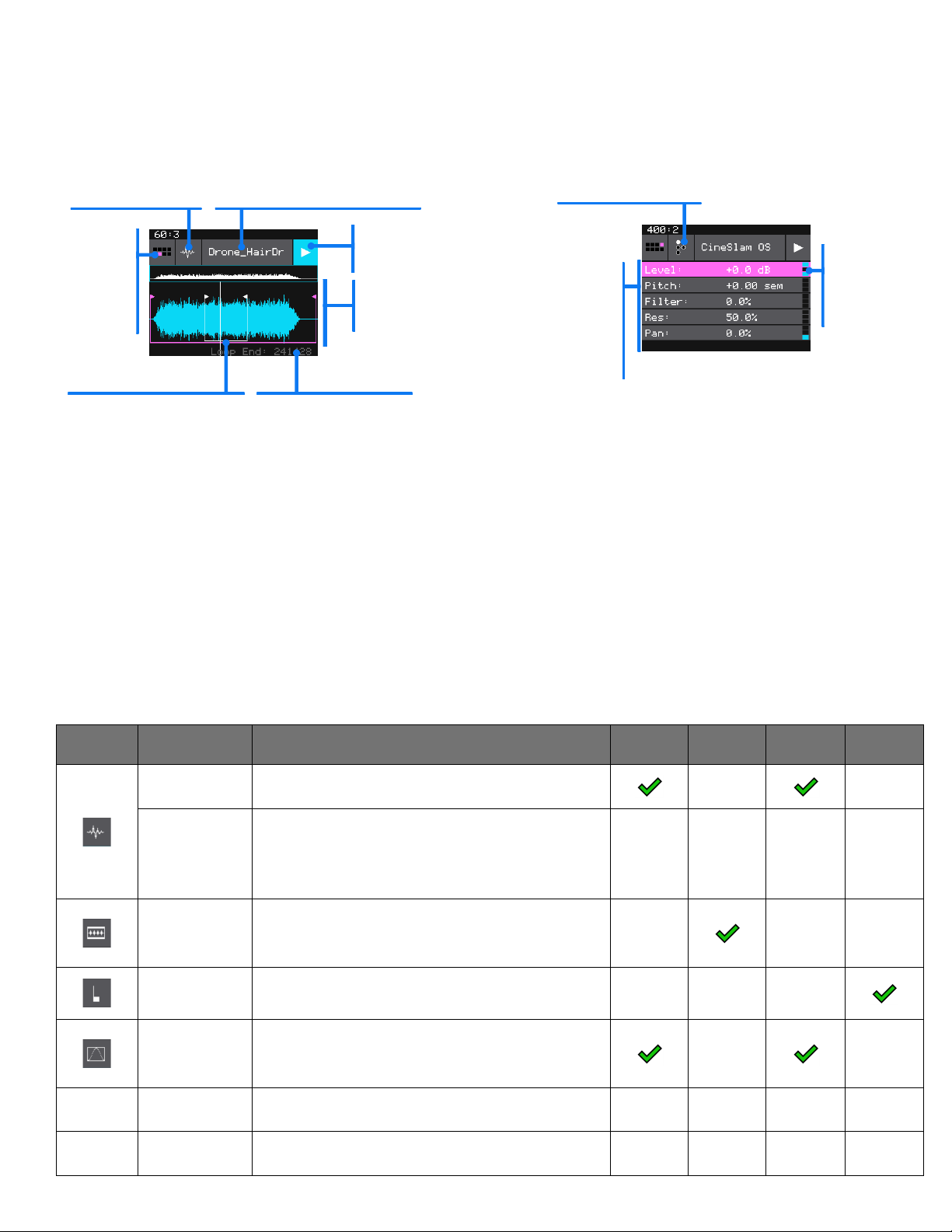

CONFIGURE A PAD

Push the Right Arrow button from the Pads screen to drill into the Waveform and

Parameters screens.

PARAMETERS

PAGE

Touch to change.

PARAMETERS

Top knob

selects a

parameter,

bottom knob

changes the

value.

MODULATION

SLOTS

Push the right

arrow button to

congure.

PAD

GRID

Touch to

choose a

dierent

pad.

PLAYBACK RANGE

(Pink) & LOOP

POINTS (White)

Turn the top knob to

select an end point to

control. Turn the bottom

knob to set the end

point’s position.

END POINT: VALUE

The name of the

selected end point

and it’s current value.

PLAY

Touch to

trigger the pad.

WAVEFORM

Pinch to zoom.

Drag to scroll.

WAV FILE NAME

Touch to load a dierent

WAV le.

PAD MODE

Touch to change.

Parameters

Icon Pad Mode Description Reverse

Playback

Beat

Sync

Set Loop

Points

Play

Slices

Sample Use to play single notes, free playing audio

samples or drum hits.

Multi-Sample Spread a list of wav les across the keyboard

to get more realistic instrument pitch

shifting or to map different sounds to each

key on the keyboard.

Clip Use for synchronized loops and quantized

playback, e.g. drum loops and guitar tracks

between one and eight measures long.

Slicer Use with a WAV le with different sections

that you want to trigger independently.

Granular Generate new sounds from your samples.

The sample is played back in small portions

about 10 to 200ms in length, called grains.

New Rec Use to start recording a new WAV le or

clear a WAV from a pad.

New Multi Use to start recording a new set of WAVs for

use in multi-sampling.

SELECT A PAD MODE

Touch the Pad Mode button on the Waveform screen to select one of the following pad

modes:

Waveform

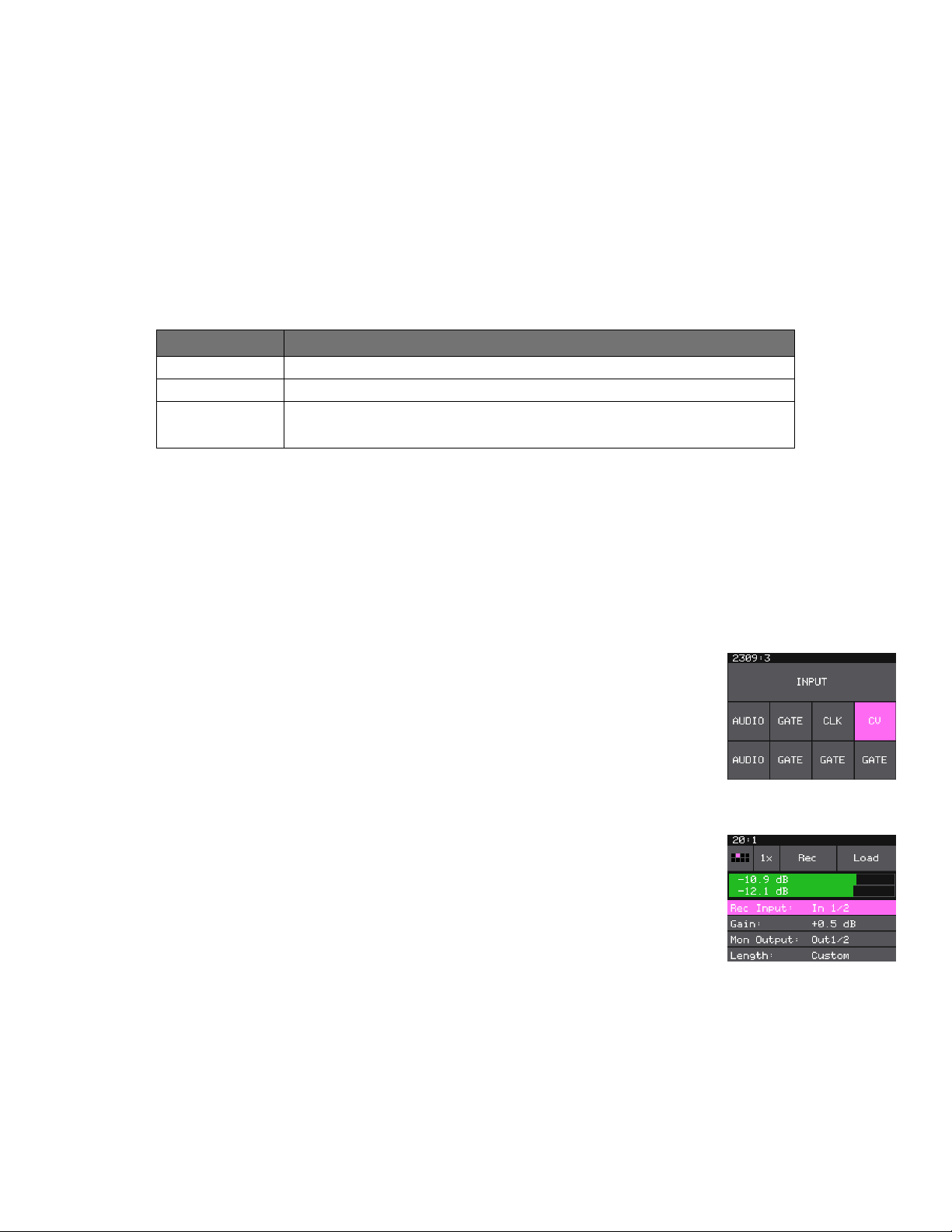

RECORD A WAV FILE

1. Congure the Inputs to Receive Audio:

▪Push Tools twice to go to the Input screen. The input grid maps to

the array of input ports below the screen.

▪Turn the bottom knob with input 1 selected to choose Audio.

Repeat for input 2.

▪Plug the recording source into Inputs 1 and 2.

2. Push Home. Select an empty pad and press the Right Arrow button

to display the Load and Record screen.

3. Use the knobs to select parameters and assign values.

4. Touch the Rec button. The bitbox micro will start recording. The

timing of the recording can be synchronized with the clock by using

the Rec Quant parameter. Recording will start when a signal is

received if you set the Threshold parameter to On.

5. Touch the Stop button to end recording. If you congured a recording

length, bitbox micro will stop recording when the target length is

reached. The le will be saved in a folder with the same name as the

preset under the \Presets folder on the microSD card.

INPUTS AND OUTPUTS

The bitbox micro has 8 input and 8 output ports. By default, all inputs are set to Gate mode.

Outputs 7 and 8 are congured as the main audio outputs, playing audio routed to buses

Out1 and Out 2 with FX applied. Push Tools to access the Inputs and Outputs screens, then

turn the bottom knob to change the setting for the selected port.

Connection Port Conguration Options

Inputs 1 – 2: Gate, CV, Clock, Audio

Inputs 3 – 8: Gate, CV, Clock

Outputs 1-8: Assignable to Audio Buses Out1 - Out8, Out 1+FX and

Out 2+FX.

A gate signal on a Gate input will trigger the corresponding pad. Connect a controller to the

MIDI In port to trigger pads and modulate parameters.

Load and Record

Input

CLEAR A PAD

1. Select a loaded pad and push the Right Arrow button to display the Waveform screen.

2. Touch the Pad Mode icon to the left of the WAV le name at the top of the screen and

then touch New Rec. You will now see the Load and Record screen.

EFFECT

INDICATOR

The blue

triangle

indicates an

eect has been

applied.

EFFECT

PARAMETERS

The top knob

selects a

parameter, the

bottom knob

changes its value.

PADS

Select a pad,

then turn the top

knob to adjust the

Delay send, and

the bottom knob

to adjust the

Reverb send.

SELECTED

EFFECT

Touch to select an

eect. Touch the

Right Arrow button

to access the

settings for the

selected eect.

EFFECT METER

The send amount

for the selected pad.

Effects Delay

Parameters

Tools

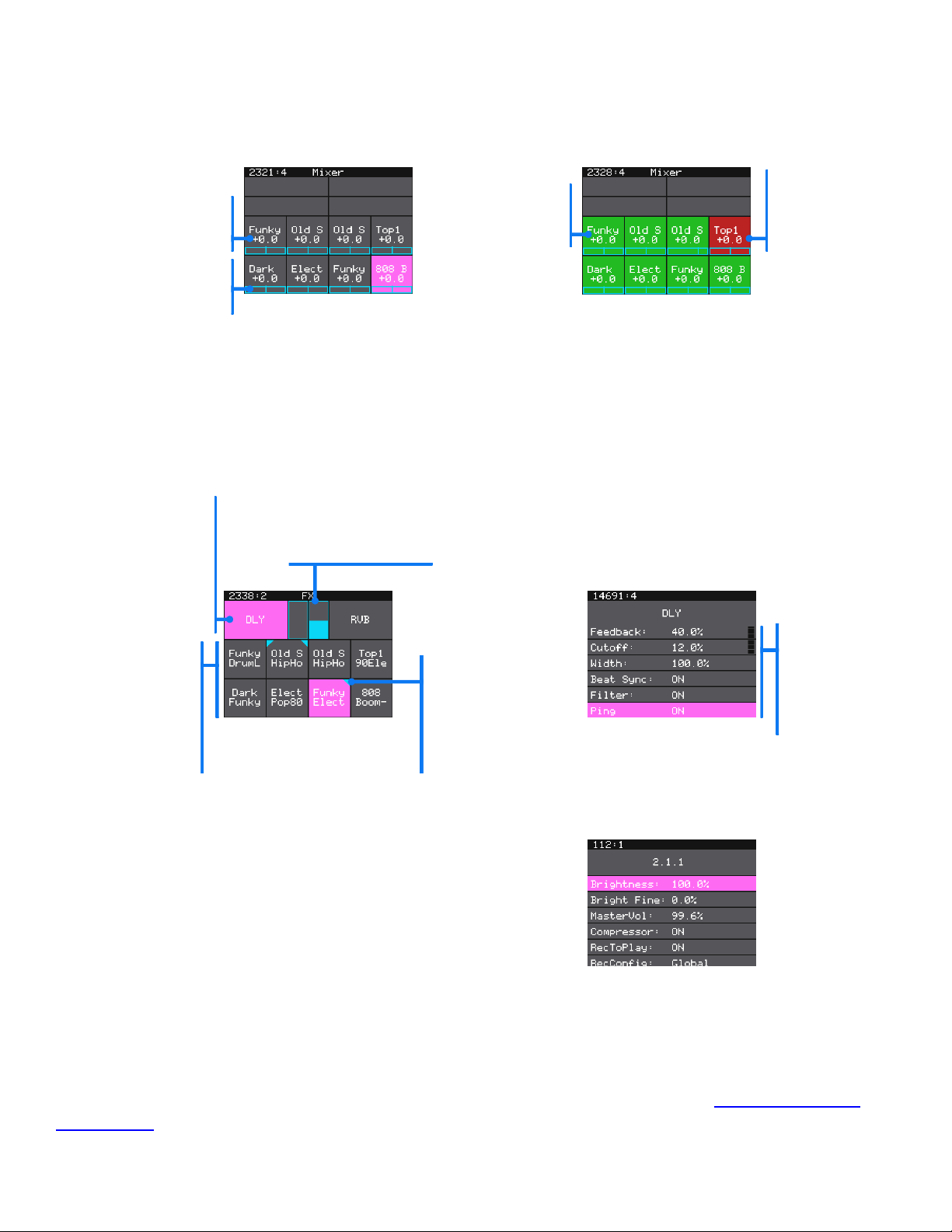

ADJUST THE EFFECTS

Push the HOME button twice to access the Effects screen. Here you can adjust the effect

send for each pad to each effect.

ADJUST THE MASTER VOLUME

1. Push the Tools button to open the Tools screen.

2. Turn the top knob to select the MasterVol parameter.

3. Turn the bottom knob to adjust the volume.

LEARN MORE

Find How To Videos, the full User Manual and a support community at 1010music.com/

microdocs. Login to the support page to gain access to rmware downloads.

CONTROL THE MIX

Push the Home button to access the Mixer screen. Here you can adjust the level and pan for

each pad. Push the Right Arrow button to switch to Mute mode.

Mixer

LEVEL

Turn the top

knob to adjust.

PAN

Turn the bottom

knob to adjust. Mixer - Mute

Mode

PAD

Touch to

toggle mute

state.

MUTED

PAD

Red pads

are

muted.
