23zero ABS HARDSHELL Manuale utente
YOWIE
ABS HARDSHELL
ROOF TOP TENT
USER MANUAL
YOWIE USER MANUAL
Thank you for purchasing a 23 ZERO Roof Top Tent
Congratulations on the purchase of 23ZERO’s YOWIE Hardshell Roof Top Tent. We strive to
provide you with the ultimate camping experience. The YOWIE Tent mounts directly to a roof rack,
tub rack or aftermarket roof bars. It opens and is fully setup in seconds. As well as our innovative
LST fabric, this hardshell tent is made with durable materials and high-quality fabrics that provide
excellent water and wind protection.
Note: During set up and rst use, some aluminium swarf may be present inside the roof top tent.
We make every possible attempt to expel all aluminium swarf, however, with vibrations caused
by logistics some residual may dislodge and reappear. It is advised to remove and clean these
during rst set up.
1
CONTENTS
Hardware & Accessories
Safety & Warnings 2
3
Fitting to roof rack 4
Ladder adjustment
Warranty
5
12
Before installing your 23Zero Roof Top Tent please ensure you are aware and understand the
following:
• Your vehicle’s maximum roof load rating.
• Your roof rack’s maximum load rating including off-road capacity.
The maximum amount of weight you can safely add to a vehicle’s roof / cargo area differs according
to make and type of vehicle including aftermarket additions such as roof racks / bars.
Note: Roof rack off-road limits are immensely different to normal road use load ratings. If
in doubt, please contact your vehicle manufacturer and roof rack manufacturer / supplier
for specied loading capacity of your vehicle and roof rack.
Not all factory roof racks or aftermarket roof bars can safely accommodate roof top tent models.
The responsibility of tting this roof top tent to rated roof racks or roof bars lays with the purchaser.
PLEASE READ ALL INSTRUCTIONS PRIOR TO INSTALLING
IMPORTANT
Opening & Set up 6
Closing & Pack up 9
Mounting rail dimensions 13
2

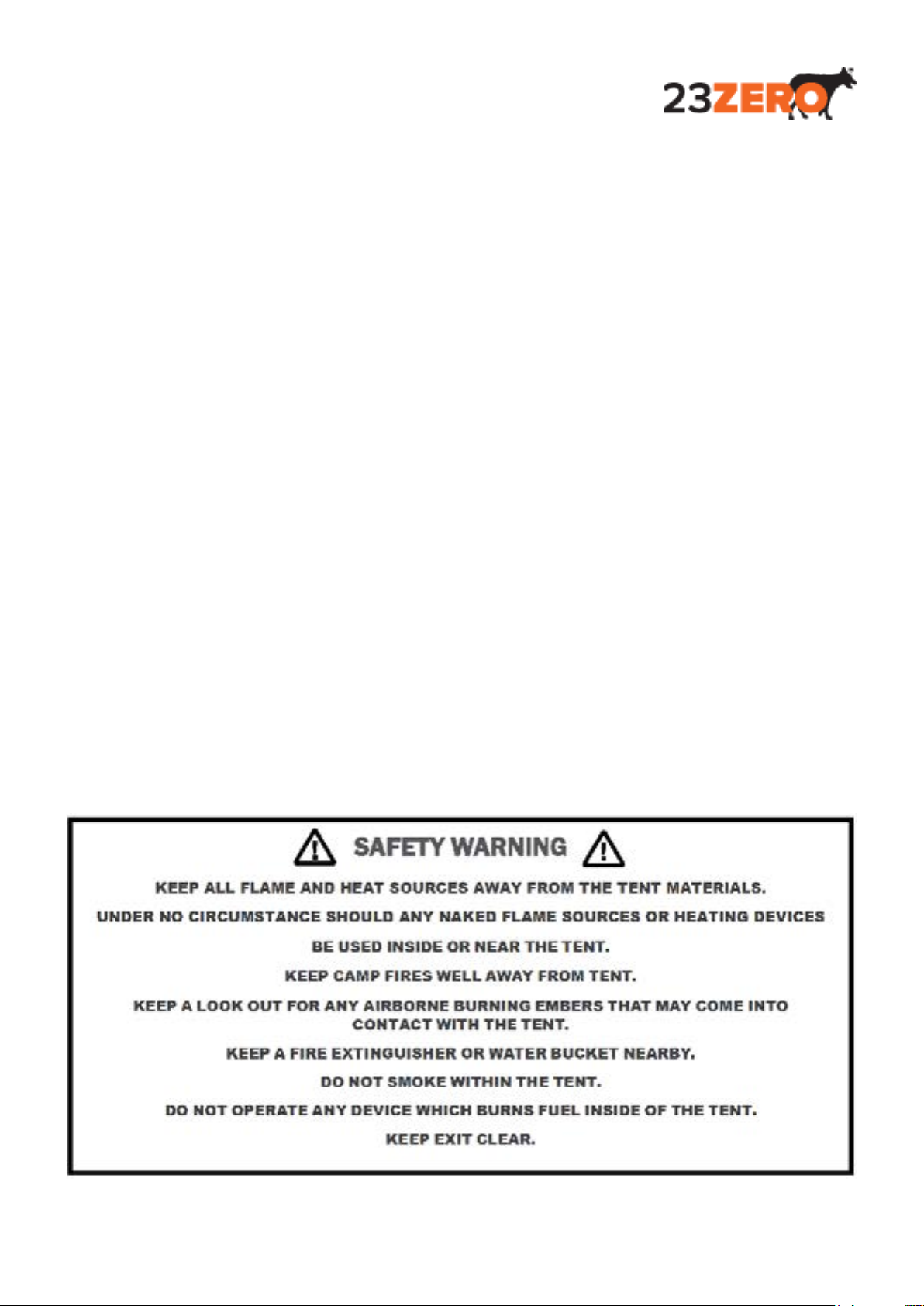

Safety & Warnings
Improper installation or use of the YOWIE roof top tent may result in serious injury or death.
Follow these installation instructions carefully to ensure proper installation to vehicle and safe use
of the roof top tent.
Note: Alterations and / or inclusions such as roof racks and roof top tents applied to the vehicle
roof may affect vehicle handling and characteristics.
The manufacturer (23ZERO) disclaims all responsibility in case of accidents and / or damage due
to installation of a roof top tent to an underrated roof rack, improper use, improper maintenance
or checking the tightness of the brackets regarding the installation of the roof rack system.
Inspections: Roof top tents have many moving parts, so maintenance checks are always advised.
During trips regularly check that all nuts and bolts attaching the roof top tent to the vehicle as well
as hinges and locks are tight and in good repair.
Ladder: For your safety and protection, ensure correct placement and angle of ladder.
Recommended ladder placement is a 4:1 ratio or approx. 75°.
Ladder height may need to be adjusted depending on vehicle height, see “Ladder Adjustment”
DO NOT CLIMB ON LADDER UNTIL CORRECT ANGLE IS ACHIEVED
23Zero - The wholesaler / manufacturer shall not be liable for special, indirect incidental or
consequential damages.
YOWIE USER MANUAL
3
Hardware & Accessories
YOWIE USER MANUAL
The YOWIE Hardshell roof top tent includes a mounting kit with everything required to mount
the roof top tent to most roof or tub racks .
Note: Some platform style roof racks have platforms which are wider than the supplied
mounting plate. 23ZERO have wider mounting plates available for this scenario.
Please visit www.23zero.com.au.
4
Fitting to roof rack
The YOWIE roof top tent must be tted to roof racks with hinges facing left hand side of vehicle
(AUS passenger side). It will open over the right hand side (AUS driver’s side). Clamp 4 corners
using 8 x 55mm M8 bolts, 8 slide plates & 4 x mounting plate supplied.
Lift roof top tent on top of the vehicle’s roof rack (minimum 4-person lift).
Important: Ensure the YOWIE is closed and locked in position..
Fit 8 x 55mm M8 bolts into 8 x slide plates and slide each into bottom mounting rail. Position these
so there are 2 sets of bolts in each corner of the tent. Lift / tilt the roof top tent to allow the inner
bolts to cross over onto the inside of the roof bars, See pic below.
YOWIE USER MANUAL
Inspect the position of the roof top tent to ensure it will open in the desired position.
Place a mounting plate under the roof bar whilst locating the bolts and hand tighten Nylok nut.
Repeat for all 4 corners. Double check the tent’s position as desired and tighten all nuts securely
with 13mm spanner. Insert end caps into the ends of the mounting rails, this may require light taps
with a hammer.
IMPORTANT: Before using the YOWIE, all bolts / fastners used to mount the tent to vehicle
or trailer must be re-checked for tightness and good repair including factory tted mounting
rail bolts under the mattress (top nut in diagram above). Lift mattress to check.
Inspections: Roof top tents have many moving parts so maintenance checks are always advised.
During trips regularly check that all the above xings are tight and in good repair.
5
For your safety and protection, ensure correct placement and angle of ladder. See diagrams
below. Recommended ladder placement is a 4:1 ratio or approx. 70° to 75°.
NOTE: Under no circumstances should anyone be inside the roof top tent if the ladder is
not locked and secured at the correct angle.
The ladder may need to be adjusted to achieve the correct angle depending on the height of your
setup. If shortening is required, the adjustment must be done from the top.
Ensure the ladder is fully extended and all rungs are locked in place. Press the rst set of locking
buttons (second rung from the top) and allow the ladder to compress until a gap of approx. 85mm
is achieved between rung 1 & 2.
Note: The ladder will only lock in the downward position.
Swing in the bottom of the ladder until it supports the weight of the roof top tent. If the angle of the
ladder is between 70° and 75°, the adjustment is complete.
Ladder adjustment
NOTE: When height adjusted, the ladder will only lock in the downward position.
If further adjustment is required, repeat the above steps by continuing the sequence by depressing
the next set of locking buttons.
If further shortening is required press the second set of locking buttons (third rung from the top).
This will close the 85mm gap until rung 1 & 2 are now touching. Swing in the bottom of the ladder
until it supports the weight of the roof top tent. If the angle of the ladder is between 70° and 75°,
this adjustment is complete.
YOWIE USER MANUAL
6
Opening & Set up
YOWIE USER MANUAL
1. Locate locking straps. Press cam to release tension, lift lock and unhook strap.
Repeat all 4 corners.
2. Lift ABS lid until gas struts takeover.
Lower pack up assisting shock cord and attach to retainer on each corner of baseboard.
3. Release ladder strap and extend ladder fully.
Using ladder as a lever, pull down & out to unfold inner baseboard.
7
YOWIE USER MANUAL
4. IMPORTANT: Set and secure ladder before proceeding. See “Ladder adjustment” - page 5
5. Release canopy hoop trigger locks to extend canopy hoop. Lock to x. Repeat other side.
3. Attach y to canopy pole via hook & loop wrap and to tent body via hook & loop side strip.
Repeat for both sides.
Opening & Set up
8
YOWIE USER MANUAL
3. Locate window stay pole holes on baseboard and insert window stay poles.
Flex pole and feed hook end through eyelet on window canopy. Repeat both sides.
TIP: This can be done through windows from inside tent.
Opening & Set up
9
Closing & Pack up
YOWIE USER MANUAL
1. Bedding can be left in the YOWIE. Before closing, fold all bedding and stow neatly against
back wall.
2. Remove all window stay rods and stow in supplied bag at the rear of the tent.
IMPORTANT: Do not leave these on counter-levered baseboard.
Bedding will stow here when closed
NOTE: The amount of bedding left in tent may affect closure. If tent is not folding and closing
smoothly, bedding may be too bulky and must be removed. Forcing closure may put undue
pressure on components and cause failure which will not be covered by warranty.
3. Separate y from canopy hoop and tent body by releasing hook & loop wrap and hook &
loop strip. Repeat for both sides.
Release canopy pole trigger locks and compress canopy pole.
IMPORTANT! Fly must be separated from canopy pole and tent body before attempting to fold.
If not separated, tent will not fold smoothly. Do not force closure!
NOTE: Failure to do this will put stress on components and stitching which will not be covered
by warranty
