DT821 TECHNICAL MANUAL
VULCAN 5-inch TFT Module
Apartment Intercom System
2-wire Series
2 EASY
-2-

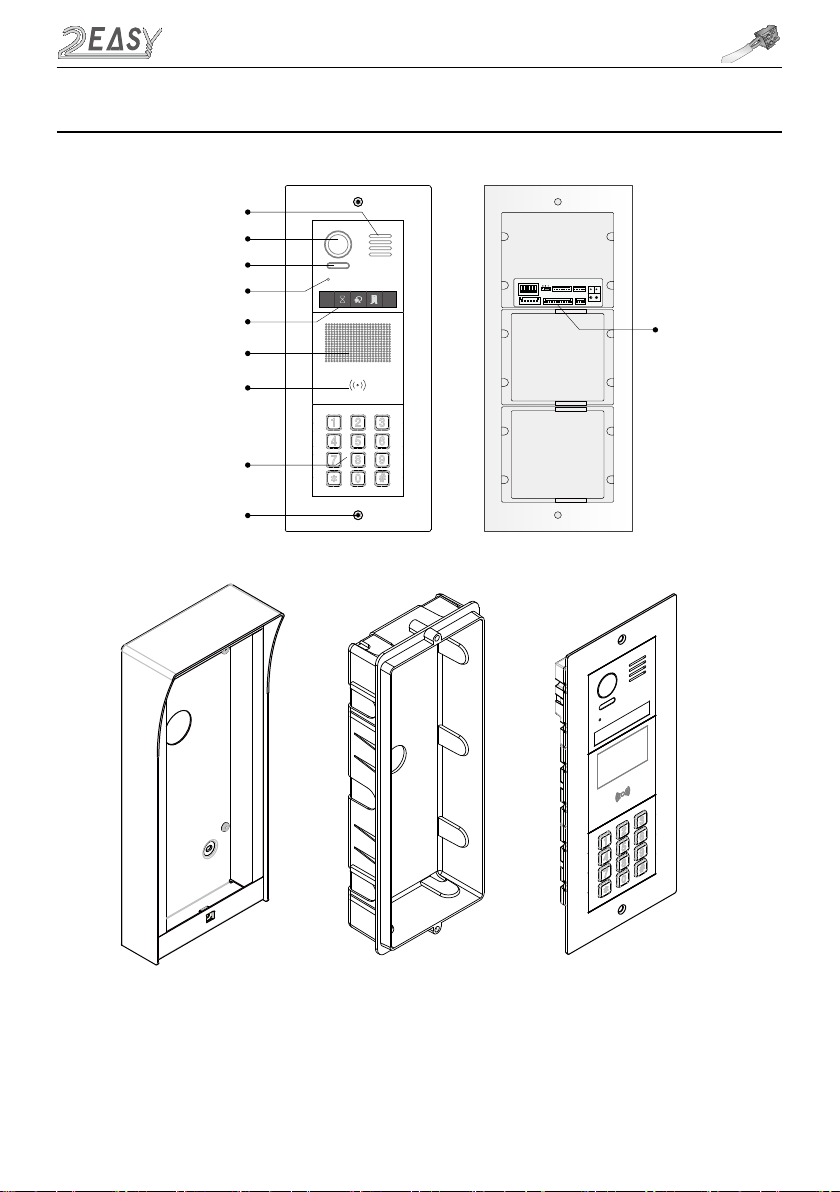

1. Parts and Functions
L1 L2
1 2 3 4 5 6
ON DIP
Fisheye Lens
Speaker
Night View LED
Card Reader
Dot-matrix Display
Status Indicator
Microphone
Screw Hole
MK Module
Connection
Port
A B
Door Station
Flush mount wall boxSurface mount box
INSTALLATION GUIDE
2 EASY
-3-

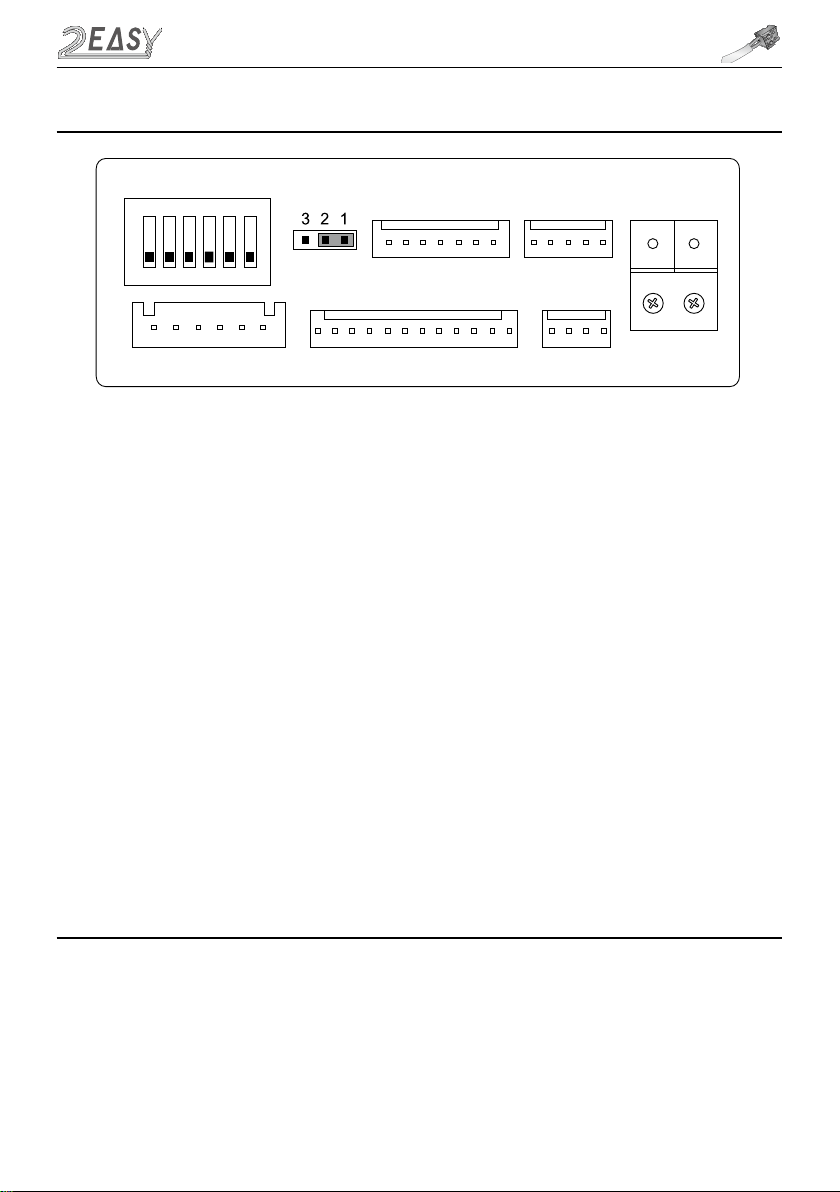

2. Terminal Description
• +12V: 12VDC power output
• LK-: power ground
• LK+: relay common contact
• NO.: relay normally open contact
• EB+: exit button positive
• EB-: exit button negative
• JP-LK: electronic lock type setting
• SET :DIPswitchesforsystemcongurations
• CN/KMB: additional bell button connection port
• CN/T-COIL: reserved
• CN/FUN: Mechanical keypad module or TFT display module connection port
• CN/WGN: Card reader module connection port
• Bus(L1,L2): no-polarity bus line,connect to PC7(power supply)
CN-LK
JP-LK
LK-
+12V
LK+
NO
EB-
EB+
SET
12V
TX1
RX1
GND
RX3
TX3
GND
5CL
GND
5DA
RST
INT
GND
12V
CLK
DAT
STR
C2
C1
CTR
GND
GND
VIO
POW
WG0
WG1
GND
12V
CN/KMB CN/T-COIL
CN/FUN CN/WGN
L1 L2
1 2 3 4 5 6
ON DIP
3. Specication
Power supply: 24Vdc(supplied by PC7)
Camera:1/2.7’’sheyecamera,170owide angle
Power Consumption: 1W standby
5W working
Card Reader: Support 125KHz and 13.56MHz unencrypted RFID tag
Unlock Power output: 12Vdc,250mA
INSTALLATION GUIDE
2 EASY
-4-
4. Mounting
INSTALLATION GUIDE
Flush mounting
Surface mounting
1 2 34
Cut a hole and install the wall box Final result
Use the screws to fasten the panel
Connect and plug bus line connector with cable
1 2 34
Unlock timing: 1~99s
Working temperature: - 20ºC ~ +55ºC
Wiring: 2 wires (no-polarity)
Dimension: H316×W133×D48mm(3-Modules)
H232×W133×D48mm(2-Modules)
2 EASY
-5-
5. Connection Diagram
INSTALLATION GUIDE
Code=
1
OFF ON
OFF ON
DBC4A
A B C D
DBC4A
A B C D
Impedance
switch
Impedance
switch
Code=
3
Code=
2
Code=
4
Code=28
Code=30
Code=29
Code=31
2 EASY
-6-
VD MODULE
(1) DIP Switches Settings
There are 6 DIP- switches on the rear of door station. Allswitchescanbemodied
either before or after installation, but restarting the power is needed whenever
the switches havebeenmodied
ON(1)
=
OFF(0)
=
ON
ON
ON
123456
• DIP-1 and DIP-2 are for door station ID setting.When multiple door stations are
installed,therstdoorstationis00 (default); the second door station address is 01: DIP-2
is On; the third door station address is 10: DIP-1 is On, the fourth door station address is
11: DIP-1 and DIP-2 are On
• DIP-3 is obsolete
6. VD Module
Note: Key A and key B can not be seen on the panel, they are cryptic.
Normally key A and key B are not active. To activate them, flip DIP switch 6
into On position
Speaker
Camera lens
Night view LED
MIC
Invisible key A
Status indicator
Talk indicator
Unlock indicator
Invisible key B
2 EASY
-7-
Remember to power Off and power On the door station and then flip
DIP-6 On to perform following settings:
1.Press Key A, Unlock indicator turns on with double beep sound
2.Press Key A again to set Unlocking Mode to Normally Open or Normally
Closed.
Normally Open: Status indicator blinks once with beep sound
Normally Closed: Status indicator blinks twice with double beep sound

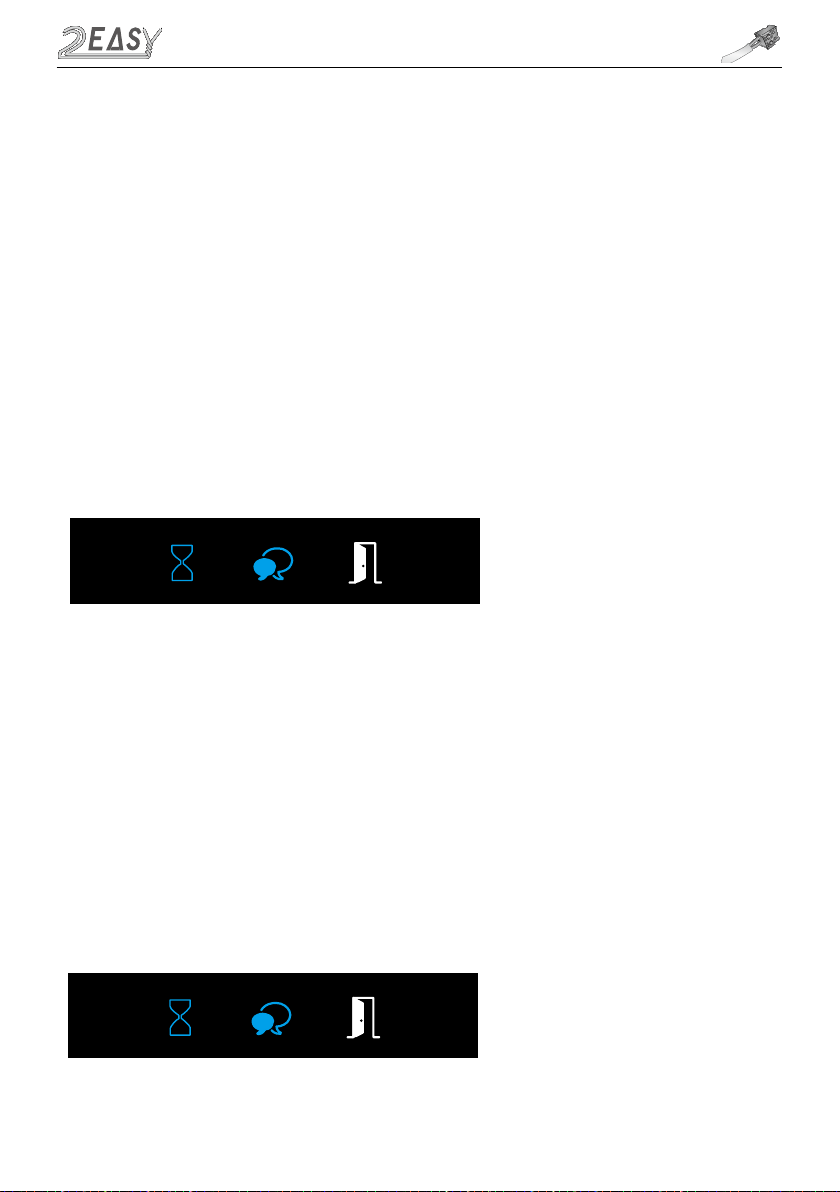

If door station has TFT module connected, the info will be visible on the screen
• Unlocking Mode Setting
(2)Settings via Invisible Key A and B
• Dip-4 is obsolete
• DIP-5 is for unlocking time setting. Off (0)is default setting, and the default time is
1second.IfsetOn (1),theunlocktimeis5seconds
• DIP-6 is for activating invisible key A and key B. Power Off the door station and then
power it On. Flip DIP-6 into On position and keys A and B will be activated. Remember
to flip Off after programming finished
VD MODULE
2 EASY
-8-
1. Press Key A, the Unlock indicator turns on with double beep sound
2. Press and hold Key B to enter the Unlocking Time Setting, single beep sound
and the Status indicator start blinking one time per second. Every flash of Status
Indicator increase unlocking time by 1 second
• Unlocking Time Setting
VD MODULE
For example, if Status indicator blinked four times, the unlocking time is 4
seconds
1. Press and hold Key Afor 3 seconds to enter the Ringtone Option Mode,
the Status indicator turns on and the current ringtone will be played.
(2)Press Key A again to play next tune;
(3)Press Key B to quit.
• Ringtone Setting
2 EASY
-9-
VD MODULE
When the door station with Camera Module is in standby.
(1)Press Key B to enter Tune Volume Setting, the Talk indicator turns on,at the
same time, play the tune at current volume;
(2)Press Key A to increase/decrease the volume;
(3)Press B to exit.
If TFT Module is connected, the current Volume will be displayed on screen.
• Tune Volume Setting
(1)During conversation, press Key B and hold on for 3 seconds to enter the Talk
Volume Setting, The Talk indicator turns on with the warning sound of BP+,BP;
(2)Press Key A to increase/decrease the volume.
(3)Press Key B to exit.
• Talk Volume Setting
2 EASY
-10-
VD MODULE
B). Please know that the Bit-6 switch must be set to ON, then power
up to carry on the following settings.
When the door station with Camera Module is in standby.
(1)Press Key A, the Talk indicator and Status indicator turns on with the warn-
ing sound of BP+, BP;
(2)Press Key A again to enter the Camera N/P Standard Switch setting. (P
Standard: the Status indicator blinks for one time with the warning sound of
BP+; N Standard: the Status indicator blinks for twice with the warning sound of
BP, BP).
• Camera N / P Standard Switch
When the door station with Camera Module is in standby.
(1)Press Key A, the Talk indicator and Status indicator turns on with the warn-
ing sound of BP+, BP;
(2)Press Key B to enter the Enable/Disable Image Zoom Mode setting. (Enable
Image Zoom Mode: the Talk indicator blinks for one time with the warning sound
of BP+; Disable Image Zoom Mode: the Talk indicator blinks for twice with the
warning sound of BP, BP).
* If enable image zoom mode, when the monitor being called, the image will be displayed on full
screen for 5 seconds, then switch to Zoom image.
• Enable/Disable Image Zoom Mode
