OfﬁceConnect® Remote 612

ADSL Router (3C612)

Quick Start Guide

English

3Com Corporation

5400 Bayfront Plaza

Santa Clara, California 95052-8145

means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com

Corporation.

3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation

on the part of 3Com Corporation to provide notiﬁcation of such revision or change.

3Com Corporation provides this documentation without warranty of any kind, either implied or expressed, including, but not limited

to, the implied warranties of merchantability and ﬁtness for a particular purpose. 3Com may make improvements or changes in the

product(s) and/or the program(s) described in this documentation at any time.

UNITED STATES GOVERNMENT LEGENDS:

If you are a United States government agency, then this documentation and the software described herein are provided to you subject

to the following:

United States Government Legend: All technical data and computer software is commercial in nature and developed solely at private

expense. Software is delivered as Commercial Computer Software as deﬁned in DFARS 252.227-7014 (June 1995) or as a commercial

item as deﬁned in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license

for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14

(June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program

or documentation contained in, or delivered to you in conjunction with this Quick Start Guide.

Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other

countries.

3Com and OfﬁceConnect are registered trademarks of 3Com Corporation. The 3Com logo is a trademark of 3Com Corporation. All other

company and product names may be trademarks of their respective companies.

Unpack the contents of your package, and ensure that it includes

the following items:

•AC/DC Power Adapter

•LAN (Ethernet) cable, RJ-45/RJ-45 (CAT-5)

•ADSL cable, RJ-11/RJ-11

•Rubber feet (4)

Congratulations on choosing the 3Com®OfﬁceConnect®Remote

612 ADSL Router, your ADSL (Asymmetric Digital Subscriber

Line) broadband access solution.

The OfﬁceConnect Remote 612 ADSL Router allows one or more

networked computers to connect to the Internet or a remote LAN

(Local Area Network). Once connected, local users can access the

Internet over 100 times faster than using a dial-up connection.

Setting up the OfﬁceConnect Remote 612 ADSL Router is a three-

step process:

1) Unpacking and positioning the OfﬁceConnect Remote 612

ADSL Router

2) Running the Installation Procedure

3) Conﬁguring the OfﬁceConnect Remote 612 ADSL Router

This guide describes how to install and conﬁgure the

OfﬁceConnect Remote 612 ADSL Router for shared Internet

access. To set up your OfﬁceConnect Remote 612 ADSL Router,

you must have the following:

•An Internet Service Provider (ISP) account.

•ADSL Service already installed at your location, with an

available ADSL wall jack.

•A computer (PC) with a CD-ROM drive, Ethernet connectivity

and TCP/IP software. (Note: TCP/IP is automatically included

with Windows 2000, ME, 98, 95, and NT.)

•A Web Browser, such as Microsoft Internet Explorer (4.0 or

later) or Netscape Navigator (4.0 or later), installed on your

computer.

Introduction

Before You

Begin

Package

Contents

DHCP: (Dynamic Host

Configuration Protocol):

Dynamic IP addressing is the

type of addressing scheme

most often used by Internet

Service Providers (ISPs), and

is also the type that is preva-

lent in many existing

corporate networks.

The OfficeConnect Remote

612 ADSL Router, which can

act as a DHCP server, is opti-

mized for use with dynamic,

rather than static, IP address-

ing.

For most users, it is most

likely that your computer or

computers are already set up

for dynamic IP addressing. By

default, the router assigns IP

addresses dynamically to

each attached computer.

Before you run the installation procedure, each computer must be

properly set up with TCP/IP and optimized for use with dynamic

IP addressing.

Checking for Dynamic or Static IP Addressing

•From the Start Menu, select Settings, and then Control Panel.

Windows 95, 98 or NT:

Double-click the Network icon. From the Conﬁguration tab of

the Network window, select TCP/IP for the Ethernet Network

Interface Card (NIC) that will be associated with your router.

For Windows NT: Click the Protocols tab on the Network win-

dow, and then select TCP/IP. Click Properties. Click the IP

Address tab on the TCP/IP Properties window.

Windows 2000:

Double-click the Network and Dial-up Connections icon, then

double-click the Local Area Connection icon. Click Properties

on the Local Area Connection Status window and then select

Internet Protocol (TCP/IP) from the list of components shown

on the General tab of the Local Area Connection Properties win-

dow. Click the General tab on the Internet Protocol (TCP/IP)

Properties window.

•If Obtain an IP address automatically (Windows 95, 98, 2000) or

Obtain an IP address from a DHCP server (Windows NT) is

selected, your computer has a dynamic IP address.

•If Specify an IP address is selected, your computer has a static

IP address.

•Click Cancel to exit the window, and then click Cancel again on

the remaining windows until you get back to the Control Panel.

When positioning your OfﬁceConnect Remote 612 ADSL Router,

make sure of the following:

•Unit is out of direct sunlight and away from sources of heat.

•Cabling is away from power lines, ﬂuorescent lighting ﬁxtures,

and sources of electrical noise such as radios, transmitters, and

ampliﬁers.

•Water or moisture cannot enter the case of the unit.

•Air ﬂow around the unit and through the vents in the side and

back of the case is not restricted. A minimum of 1 in. (2.54 cm)

clearance is recommended.

Positioning

the Router

Optimizing

Your

Computer

The following illustration (Fig. 1) shows the connector cabling

and the locations of the Reset button and the PC/Hub Switch for

the OfﬁceConnect Remote 612 ADSL Router:

As part of the installation procedure on the following pages, you

will perform the following steps:

1. Connect the DSL cable.

Connect the DSL cable to the ADSL wall jack and the other end

to the ADSL port of your OfﬁceConnect Remote 612 ADSL

Router.

2. Connect the power adapter.

Connect the cable from the power adapter to the Power inlet on

the rear panel of the unit. Connect the other end of the power

cord into a surge-protected electrical outlet.

3. Connect the LAN cable.

Connect one end of the LAN cable to the Ethernet port of your

computer and the other end to the Ethernet port on the rear

panel of the OfﬁceConnect Remote 612 ADSL Router. If you are

connecting the Ethernet port to a PC, the PC/HUB switch should

be “in”, when you connect to a hub it should be “out”.

Connect

Cables

Reset Button PC/Hub Switch

LAN Connection

DSL Connection

Power

Connection

Figure 1

3. Setup Summary

This screen relates a summary of the

installation settings you selected. If

you need to make changes, click Back

to step back through the previous

screens. Otherwise, click Next.

The necessary ﬁles are now being

copied to your PC.

2. Choose installation location

The Setup Wizard prompts you to

select the folder location for the

installation. In most cases, the prede-

ﬁned default location will work just

ﬁne. Use the Browse button if you

want to change the default path for

the ﬁles that will be copied onto your

PC. When you are ready to proceed,

click Next.

Click Next again in the screen setting

up Program folder entries.

1. Select Activity

The ﬁrst screen (Fig. 2) lets you select

the Installation procedure, run the

Diagnostics, or view the online User’s

Guide.

The Installation procedure is selected

by default. Click Next, and click Next

again at the Welcome screen.

Insert the Installation CD into the CD-ROM drive of your com-

puter. The CD should display the screen shown below (Fig. 2).

If the CD does not autoplay, select Start>Run and type

d:\setup.exe (where d: is the letter of your CD-ROM drive).

Installation

Procedure

Figure 2

Figure 3

Figure 4

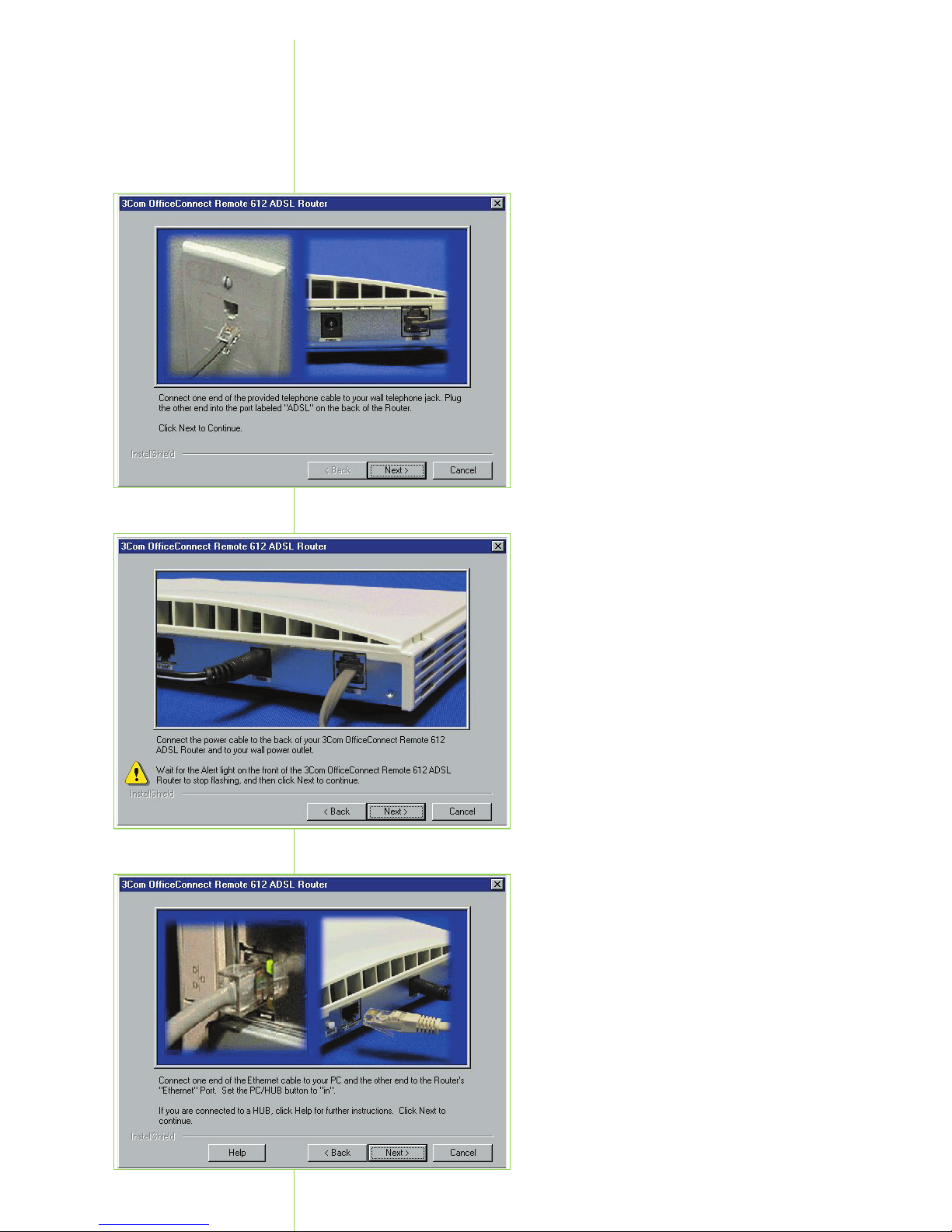

4. Connect the DSL Cable

Connect the DSL cable to the ADSL

wall jack and the other end to the DSL

port of your OfﬁceConnect Remote

612 ADSL Router.

Click Next.

Figure 5

Figure 6

Figure 7

Installation

Procedure

Cont’d

5. Connect the Power Adapter

Connect the cable from the power

adapter to the Power inlet on the rear

panel of the unit. Connect the other

end of the power cord into a surge-

protected electrical outlet.

Wait for the Alert light on the front of

the Router to stop ﬂashing, then click

Next.

6. Connect the Ethernet cable

Connect one end of the Ethernet cable

to the Ethernet port of your computer

and the other end to the Ethernet port

on the rear panel of the OfﬁceConnect

Remote 612 ADSL Router. As you are

connecting the Ethernet port to a PC,

the PC/HUB switch should be “in”.

Click Next.

10. Verifying the Connection

After the computer has rebooted, you

will be presented with the screen

shown in Figure 9. Click Next to start

the veriﬁcation process for your

Router. This ensures that your PC can

communicate properly with your

Router. If there is an error, follow the

on-screen prompts to ﬁx the problem.

When the PC has successfully commu-

nicated with your Router, click on

Next to proceed.

11. Initial Logon

On your ﬁrst connection with the Router, you

will be prompted to enter a User Name. At

the screen shown in Figure 10a, enter admin

as the User Name, and leave the Password box

blank. Click OK.

At the next screen shown in Figure 10b, enter

a password twice, and click Modify Settings.

Your Router is now password

protected. You will need this

conﬁguration changes to the

Router.

Figure 10b

9. Restart your computer.

Remove all CDs and disks from their

drives and click Finish. When the sys-

tem has restarted, the installation will

continue.

Figure 8

Figure 9

Figure 10a

Installation

Procedure

Cont’d

The system will launch your browser

and take you through a couple of con-

ﬁguration screens, shown in Figure

11a and 11b, to set up your Internet

connection information.

Your ISP will provide you with the

information necessary to complete the

Internet Connection screen.

When you see the screen shown in

Figure 11b, showing that both the

ADSL Line and the Internet

Connection are Up, you are ready to

use the Router for Internet Access.

If you need to connect additional

users, proceed to the next section,

Connecting multiple Users.

After the initial setup of the unit, you

can access Router Diagnostics,

Uninstall, the User’s Guide and the

User Manager from the Program

Menu, as shown in Figure 12 (your

system may look slightly different).

The Uninstall option lets you remove

all ﬁles from your computer.

Conﬁgure

the Router

Figure 12

Figure 11a

Figure 11b

Restarting the OfﬁceConnect Remote 612 ADSL Router:

To restart the OfﬁceConnect Remote 612, use the Restart/Restore

Section in the Advanced Menu in the User Manager.

Restoring Factory Default Settings:

To reset the Router to the factory default settings, disconnect the

Ethernet cable and then press and hold the Reset button, shown

in Figure 1. While holding in the Reset button, unplug the power

from the back of the Router and then plug it back in. Hold the

Reset button in for approximately 15 seconds (the Alert light on

the front of the Router should be green). Alternately, you can use

the Restart/Restore Section in the Advanced Menu in the User

Manager.

Connecting an additional hub:

After you have ﬁnished the conﬁguration of your OfﬁceConnect

Remote 612, you can connect an Ethernet hub to add up to 40

users, which is the maximum supported by the OfﬁceConnect

Remote 612.

An example of an eight-user connection is shown below (Fig 13),

using a 3Com OfﬁceConnect Ethernet Hub 8.

1. Verify network conﬁguration.

Check with your network administrator that the built-in DHCP

server will not cause conﬂicts on the network.

2. Connect the LAN cable.

Connect one end of the LAN cable to

a port of the ethernet hub and the

other end to the Ethernet port on the

rear panel of the Router.

3. Uplink port conﬁguration

Set the PC/HUB switch to “Out”when

you are connecting a hub. Check the

documentation of the hub you are

using for the conﬁguration of the

uplink port on the hub, if the hub has

one.

Connecting

multiple

users

Restart and

Restore

OfficeConnect Remote 612

ADSL Router

OfficeConnect

Ethernet Hub 8

Ethernet cable

10-18 VDC

0•8A MAX

MDI/MDIX 8 7 6 5 4 3 2 1

Figure 13

Altri manuali per OfficeConnect 3C612

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali 3Com Router di rete

3Com

3Com Router 3012 Manuale operativo

3Com

3Com OfficeConnect 3CP4144 Manuale utente

3Com

3Com -1623 Manuale utente

3Com

3Com OfficeConnect 3CP4144 Istruzioni per l'installazione

3Com

3Com OfficeConnect Ethernet Hub 16C Manuale utente

3Com

3Com OfficeConnect 3C840 Istruzioni per l'installazione e il funzionamento

3Com

3Com 3CWE820A Manuale utente

3Com

3Com Router 3012 Manuale di istruzioni

3Com

3Com SuperStack II Manuale utente

3Com

3Com OfficeConnect 3CRWDR200A-75 Manuale utente

3Com

3Com OfficeConnect 3CR414492 Manuale utente

3Com

3Com Router 3032 Manuale utente

3Com

3Com OfficeConnect 3CRWDR200A-75 Manuale utente

3Com

3Com Router 3030 Manuale di istruzioni

3Com

3Com Router 5000 Series Manuale utente

3Com

3Com OfficeConnect 1600 Manuale utente

3Com

3Com WL-602 Manuale utente

3Com

3Com 3C410012A - OfficeConnect Remote 531 Access... Manuale utente

3Com

3Com Router 3000 Series Manuale utente

3Com

3Com 3C13701 Manuale utente

3Com

3Com OfficeConnect Remote 812 Manuale utente

3Com

3Com Router 3012 Manuale di istruzioni

3Com

3Com 3C13618 Manuale operativo

3Com

3Com NJ225 - IntelliJack FX-SC Switch Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
