IMPORTANT
OWNERS MANUAL & INSTALLATION GUIDE
BOTTLE FILLER
ALL SERVICE TO BE PERFORMED BY AUTHORIZED SERVICE PERSON
IMPORTANT! INSTALLER PLEASE NOTE.
Bottle Fillers and Fountains are among the most hassle free to install
on the market today. To insure that these models are installed correctly,
PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE
WITH PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES.
After installation, leave these instructions with the units for future reference.

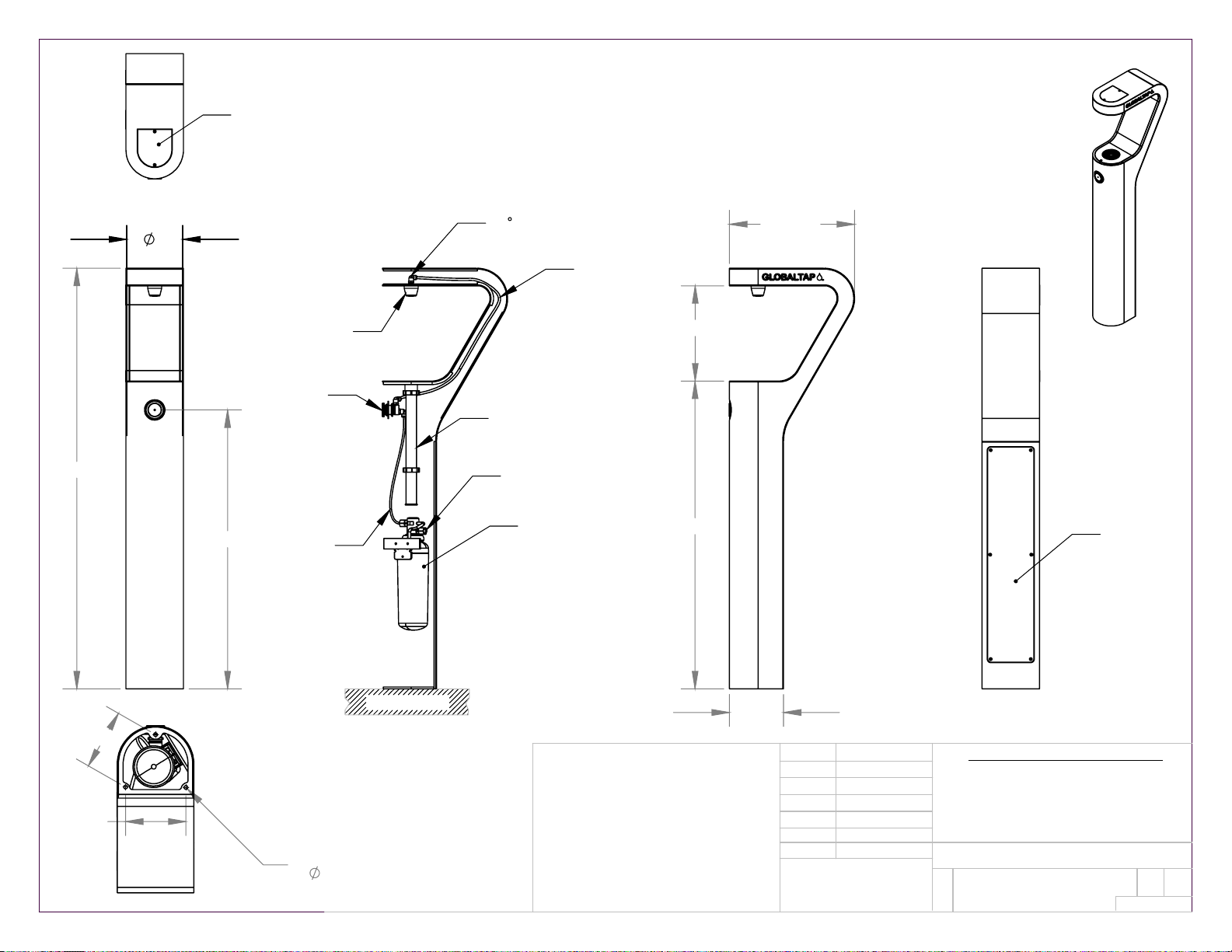

GT 1000
The grounding of electrical equipment such as telephone, computers, etc., to water line a
common procedure. This grounding may be in the building or may occur away from the
building. This grounding can cause electrical feedback into a fountain, creating an electrolysis
which causes a metallic taste or an increase in the metal content of the water. This condition
is avoidable by using the proper materials as indicated. Any drain fitting provided by the installer
should be made of plastic to electrically isolate the fountain from the building’s plumbing system.
Revision A-0

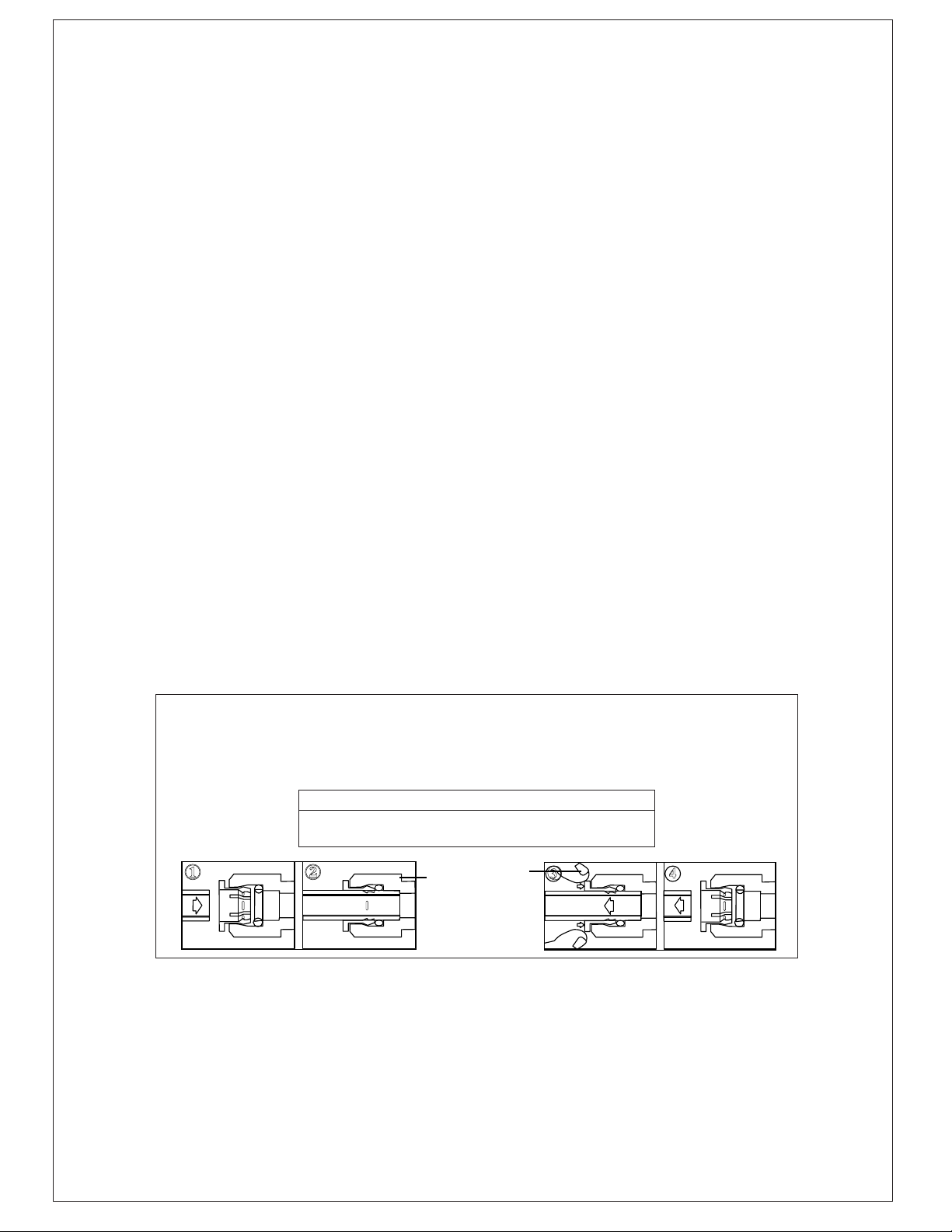

PARTS LIST:1 GT1000 Bottle Filler, 1 Filter Cartridge (Optional), 1 Plastic drain elbow, 1 Torx driver.RECOMMENDED TOOLS:Level, Drill, 3/8” Drive w/ socket set, Slip joint pliers.REQUIRED PARTS:3/8” bolts (FOR WOOD,STEEL OR CONCRETE NOT SUPPLIED). A 1-1/4” trap must be used afterwaste bend. 3/8” tubing(TO BE USED FOR WATER SUPPLY INLET).PRODUCT INSTALLATION:When installing this product, local, state or federal codes should be adhered to.1. These units are to be mounted on a smooth, flat, finished surface with adequate support structure.2. Install shut-off valve on water supply. (Not Supplied).3. Install unit using 3/8” minimum screws or bolts. (Not Supplied)4. Connect water supply and waste pipe. Water connection and drain must comply with local codes.5. Turn on water supply and check all connections for leaks.CAUTION: This unit is rated for inlet water pressure of 20-105 PSI. A pressure reducing regulator should be usedif the inlet water supply exceeds 105 PSI. Any damage caused by reason of connecting this product to supply linepressures higher than 105PSI and lower than 20PSI is the responsibility of the installers.6. Water supply 3/8” O.D. Plastic pex tubing.7. Waste is 1-1/4” IPS. Contractors to supply waste trap and service stop valve in accordance with local code.8. Connecting line to be made of unplated copper and should be thoroughly flushed to remove all foreign matterbefore being connected to unit. This unit is manufactured in such a manner that it does not in any way cause taste,odor, color, or sediment problems.REPLACEMENT FILTER CARTRIDGECartridge: 3MFF101 Cartridge, Manufactured by 3M Purification, Inc.Call 800-832-7383 to reorder cartridges.Using Push-In FittingTo Attach TubingPush tubing in as far as it will go. Tubing must be inserted past o-ring and hit backstop. Pull tube to ensure it is secure.To Release TubingPush in grey collet to release tubing. With colletheld, pull tubing straight out.BackstopColletCAUTIONTo reduce the risk associated with property damage due to water leakage: Ensure all tubing and fittings are secure and free of leaks.CLEANING:
The cleaning of units should be done with a non acid bathroom cleaner .
WARRANTY:
All units come with a 2 year manufactures warranty on all steel, 1 year on all internal parts.
Use Replacement Cartridge 3MFF101 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53. Capacity 6000 Gallons (22,712 Liters) Contaminant Reduction Determined by NSF testing. Chlorine Taste and Odor 1.9 mg/L 2.0 mg/L ± 10% 97.3% 0.05 mg/L N/A ≥ 50% J-00074328 Nominal Particulate Class I, , ≥0.5 to < 1.0 µm 5,966,667 pts/mL At least 10,000 particles/mL 99.9% 5517 pts/ml N/A ≥85% J-00037739 Benzene 0.014 mg/L 0.015 mg/L ± 10% 96.4% 0.005 mg/L 0.005 mg/L N/A J-00074324 Cyst* 122,500 cysts/L Minimum 50,000 cysts/L 99.99% <1 cyst/L N/A ≥99.95% J-00037737 Lead pH @6.5 0.148 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00074321 Lead pH @8.5 0.153 mg/L 0.15 mg/L ± 10% >99.3% 0.001 mg/L 0.010 mg/L N/A J-00074322 P-Dichlorobenzene 0.235 mg/L 0.225 mg/L ± 10% 99.7% 0.0005 mg/L 0.075 mg/L N/A J-00074326 Toxaphene 0.015 mg/L 0.015 mg/L ± 10% 93.1% 0.001 mg/L 0.003 mg/L N/A J-00074327 * Based on the use of Cryptosporidium parvum oocysts. Service Flow 2.5 gpm (9.46 lpm) Water Supply Potable Water Water Pressure 30 -125 psi (207 – 862 kPa) Water Temperature 40º F - 100º F (4.4º C - 38º C) It is essential that the manufacturer’s recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised. See Installation Manual for Warranty information. While the testing was performed under standard laboratory conditions, actual performance may vary. Replacement Cartridge: 3MFF101 For estimated costs of replacement elements please call 1-800-222-7880 or visit our website at www.3Mpurification.com Systems certified for cyst reduction may be used on disinfected water that may contain filterable cystsEPA Establishment Number 070595-CT-001 Parts and service available from: 3 400 Research Parkway Meriden, CT 06450, U.S.A. Tel (800) 222-7880 3M is a trademark of 3M Company. (203) 237-5541 © 2010 3M Company. All rights reserved. Fax (203) 238-8701 NSF is a trademark of NSF International www.3Mpurification.com INSTR2213 0410 System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction of substances listed below.
