3S N3072 Manuale utente

N3072 Dome Network Camera 2 Megapixel + H.264

- 2 -

Vari-Focal Lens

TABLE OF CONTENT

INTRODUCTION .......................................................................................................................................................................... 5

FEATURES.......................................................................................................................................................................................... 5

PACKAGE CONTENTS............................................................................................................................................................................6

SYSTEM REQUIREMENTS ............................................................................................................................................................ 7

VIEW OF N3072 DOME NETWORK CAMERA ............................................................................................................................... 8

Outer View ................................................................................................................................................................................8

Inner View .................................................................................................................................................................................8

MAKING CONNECTIONS ............................................................................................................................................................. 9

POWER ...........................................................................................................................................................................................10

LAN ............................................................................................................................................................................................... 11

EXTERNAL I/O.................................................................................................................................................................................. 12

HARDWARE INSTALLATION....................................................................................................................................................... 13

MOUNTING ..................................................................................................................................................................................... 13

FACTORY RESET ................................................................................................................................................................................ 17

GETTING STARTED.............................................................................................................................................................................18

SOFTWARE INSTALLATION ........................................................................................................................................................ 19

READY TO USE .......................................................................................................................................................................... 21

ACCESS TO THE IP CAMERA................................................................................................................................................................. 21

VIEW OF CAMERA MAIN PAGE ................................................................................................................................................. 23

LIVE VIEW .......................................................................................................................................................................................23

3Svision Logo...........................................................................................................................................................................23

Product Name ......................................................................................................................................................................... 24

Mode ....................................................................................................................................................................................... 24

Language................................................................................................................................................................................. 25

Video Format ..........................................................................................................................................................................26

View Size ................................................................................................................................................................................. 27

Streaming................................................................................................................................................................................ 28

Color ........................................................................................................................................................................................ 29

Brightness............................................................................................................................................................................................... 30

Contrast .................................................................................................................................................................................................. 30

Saturation............................................................................................................................................................................................... 30

Set to default .......................................................................................................................................................................................... 30

Alert.........................................................................................................................................................................................31

Alert Message .........................................................................................................................................................................32

Alert Message Text ................................................................................................................................................................................. 32

Disable.................................................................................................................................................................................................... 33

Alert Snapshot ........................................................................................................................................................................................ 33

Clear ....................................................................................................................................................................................................... 33

PTZ Control Panel ....................................................................................................................................................................34

Camera Direction.................................................................................................................................................................................... 35

PTZ Device .............................................................................................................................................................................................. 35

Camera Speed......................................................................................................................................................................................... 36

Zoom....................................................................................................................................................................................................... 36

Focus....................................................................................................................................................................................................... 36

Aux.......................................................................................................................................................................................................... 36

Preset...................................................................................................................................................................................................... 36

Tour......................................................................................................................................................................................................... 38

Shortcuts ................................................................................................................................................................................. 39

+ZOOM IN ............................................................................................................................................................................................... 40

-ZOOM OUT ............................................................................................................................................................................................ 41

Original Size............................................................................................................................................................................................ 41

N3072 Dome Network Camera 2 Megapixel + H.264

- 3 -

Vari-Focal Lens

Full Screen............................................................................................................................................................................................... 42

Jitter Time............................................................................................................................................................................................... 43

Record..................................................................................................................................................................................................... 44

Snapshot................................................................................................................................................................................................. 45

Version.................................................................................................................................................................................................... 45

Shortcut Bar ............................................................................................................................................................................ 46

Microphone ............................................................................................................................................................................................ 46

Buzzer ..................................................................................................................................................................................................... 46

Path ........................................................................................................................................................................................................ 47

Shortcut Bar Message............................................................................................................................................................................. 50

SETTING USER PREFERENCES............................................................................................................................................................... 51

Basic Setting............................................................................................................................................................................52

System .................................................................................................................................................................................................... 52

System Setting................................................................................................................................................................................... 52

System Log ........................................................................................................................................................................................ 53

Video/Image........................................................................................................................................................................................... 54

Video................................................................................................................................................................................................. 54

PreProc/Overlay ................................................................................................................................................................................ 55

Sensor ............................................................................................................................................................................................... 57

Audio ...................................................................................................................................................................................................... 59

User ........................................................................................................................................................................................................ 60

PTZ.......................................................................................................................................................................................................... 61

Network.................................................................................................................................................................................................. 64

Network Setting ................................................................................................................................................................................ 64

Services ............................................................................................................................................................................................. 65

Stream Setting................................................................................................................................................................................... 66

PPPoE Setting (Dial-up Networking Setting)...................................................................................................................................... 67

DDNS (Dynamic Domain Name Server)............................................................................................................................................. 69

UPnP (Universal Plug and Play) ......................................................................................................................................................... 70

SMTP (Mail Server Setting)................................................................................................................................................................ 73

Samba ............................................................................................................................................................................................... 74

Notification ....................................................................................................................................................................................... 75

Multicast ........................................................................................................................................................................................... 76

Date/Time .............................................................................................................................................................................................. 77

IP Filter ................................................................................................................................................................................................... 78

Storage ................................................................................................................................................................................................... 79

Application Setting .................................................................................................................................................................. 81

Event....................................................................................................................................................................................................... 81

Event ................................................................................................................................................................................................. 82

Trigger ............................................................................................................................................................................................... 85

Event Servers (Upload Server) ........................................................................................................................................................... 87

Recording List ......................................................................................................................................................................................... 89

Motion Detection.................................................................................................................................................................................... 90

Blind Detection ....................................................................................................................................................................................... 91

Privacy Mask........................................................................................................................................................................................... 92

Firmware upgrade .................................................................................................................................................................................. 94

Factory Default ....................................................................................................................................................................................... 97

Reboot .................................................................................................................................................................................................. 100

N3072 Dome Network Camera 2 Megapixel + H.264

- 4 -

Vari-Focal Lens

APPENDIX .............................................................................................................................................................................. 101

CHANGE THE INTERNET EXPLORER SETTINGS ........................................................................................................................................ 101

SET UP THE ROUTER SETTING WITH IP CAMERA .................................................................................................................................... 102

DDNS APPLICATION........................................................................................................................................................................103

How to apply and setup the DDNS service? ..........................................................................................................................103

How to check if the DDNS service is successful?.................................................................................................................... 108

MOBILE APPLICATION ......................................................................................................................................................................109

Symbain System ....................................................................................................................................................................113

iPhone System .......................................................................................................................................................................116

SUPPORT THE CELLULAR /MOBILE PHONE LIST ....................................................................................................................................121

MULTICAST APPLICATION..................................................................................................................................................................122

H264 (Main) .......................................................................................................................................................................... 124

H264 (Sub).............................................................................................................................................................................125

Motion JPEG .......................................................................................................................................................................... 126

TROUBLESHOOTING AND FAQS..........................................................................................................................................................129

N3072 Dome Network Camera 2 Megapixel + H.264

- 5 -

Vari-Focal Lens

Introduction

N3072 is a H.264 Dome Network Camera. Unlike traditional CCTV, N3072 is built in the Web

Server and Camera to provide users with a mechanism for the security or remote monitoring

applications, and it can deliver dual video streams simultaneously (Motion JPEG and H.264),

allowing for optimization in image quality and bandwidth.

It offers the many application functions such as two-way audio, DDNS, samba, FTP, Mail,

Multicast, motion detection, privacy mask, event management and multi-level passwords for

meeting user variety level of security needs.

It is easy to install, convenient to operate, and provide the infrared LED application for Night

environment.

Features

N3072 can operate smoothly without the need to install additional software or hardware. All

you need is a PC that is equipped with IE browser (6.0 or above) and connect the Internet

Camera to the network to monitor the pre-set places remotely. N3072 can provide you with

protection of your personal, home, and property security.

 2 Megapixel 1/3” CMOS Sensor in High Resolution

 Vari-Focal Lens

 H.264/MJPEG Dual Codec & Streaming simultaneously

 3-Axis Mechanical Design for Ceiling Installation

 Up to UXGA (1600x1200@15fps) / WXGA (1280x720@30fps)

 Digital I/O for External Sensor and Alarm

 Mechanical ICR

 Built-in IR Illuminator

 3D Noise Reduction

 2 Way Audio Support

 3GPP Support

 Micro SD Card Support

 IP68 Water and Vandal Proof

 PoE Power Over Ethernet IEEE802.3af (Option)

N3072 Dome Network Camera 2 Megapixel + H.264

- 6 -

Vari-Focal Lens

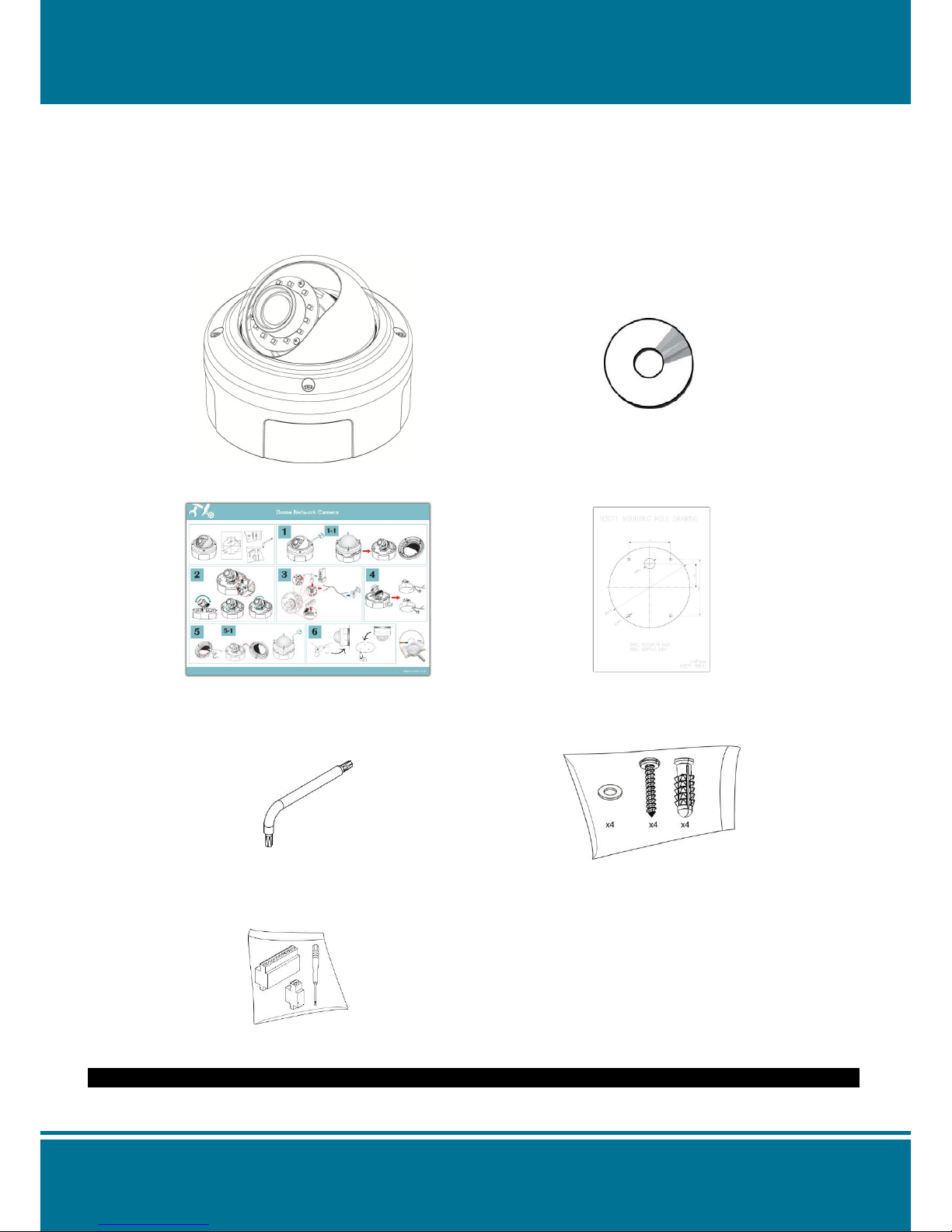

Package Contents

After unpacking, check that if all the following items have been included:

 N3072 Dome Network Camera

 Installation CD (Manual & Software)

 Installation Guide

 Mounting position sheet

 A hexagonal wrench

 Screw Pack

 Connector Pack

Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work.

N3072 Dome Network Camera 2 Megapixel + H.264

- 7 -

Vari-Focal Lens

System Requirements

Before installing N3072 Dome Network Camera, please make sure your system has the

following recommended minimum hardware requirements.

Internet Environment

Ethernet 10/100M Ethernet

Monitor System Requirements

OS support Microsoft Windows 2000, XP, Vista, Windows 7

Browser support Internet Explorer 6.x or later, Chrome, Firefox, Safari

Hardware CPU: Pentium 4 2.4 GHz or later

Memory: 512 MB (1G MB recommended)

VGA card resolution: 1024x768 or higher

N3072 Dome Network Camera 2 Megapixel + H.264

- 8 -

Vari-Focal Lens

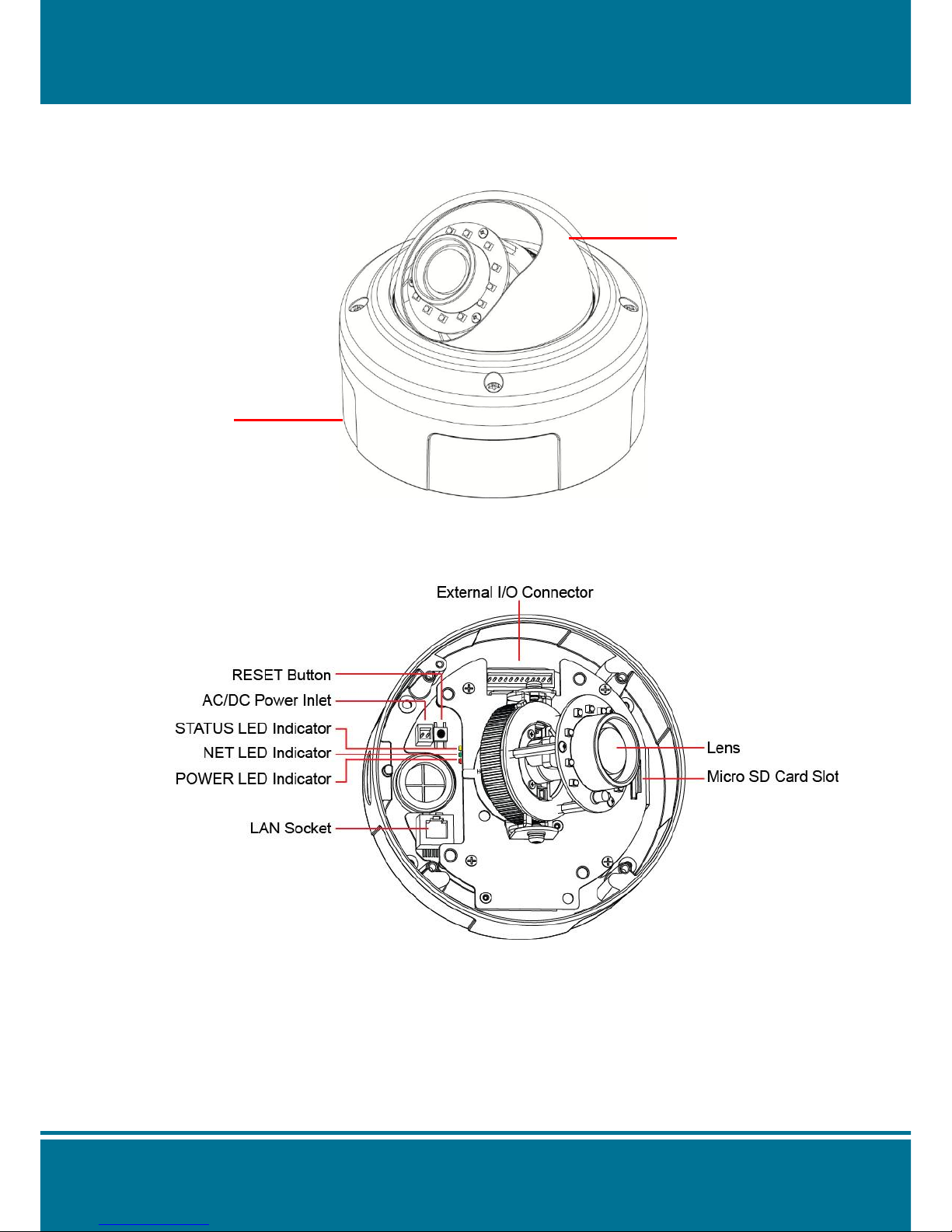

View of N3072 Dome Network Camera

Outer View

Inner View

Mask

Pedestal

N3072 Dome Network Camera 2 Megapixel + H.264

- 9 -

Vari-Focal Lens

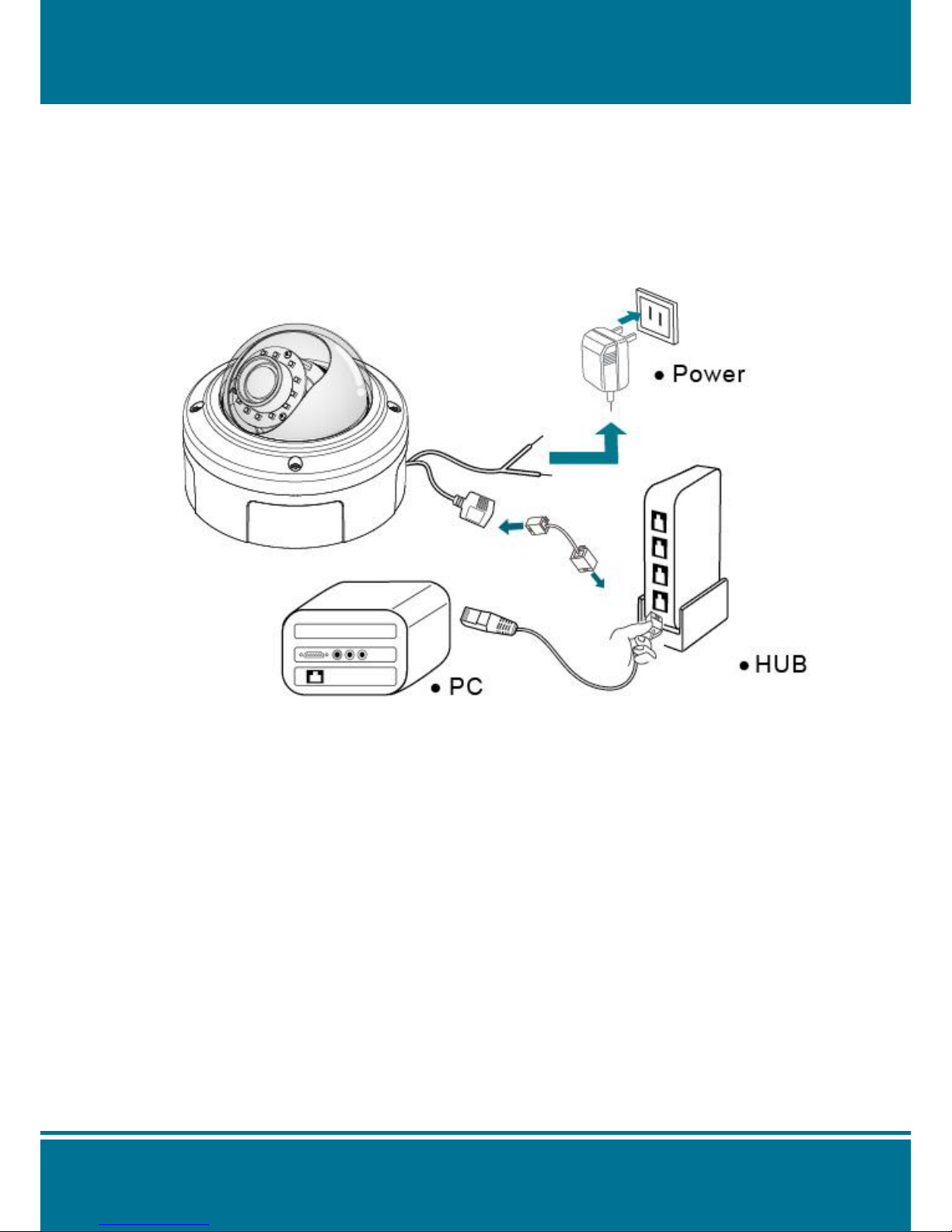

Making Connections

Before you connect your N3072, please make sure your PC has the LAN port available for

connect to the network.

Follow these instructions to connect the N3072 into your PC and LAN Port.

Power Connect to DC12V power.

LAN Connect to 10/100 RJ45 network.

N3072 Dome Network Camera 2 Megapixel + H.264

- 10 -

Vari-Focal Lens

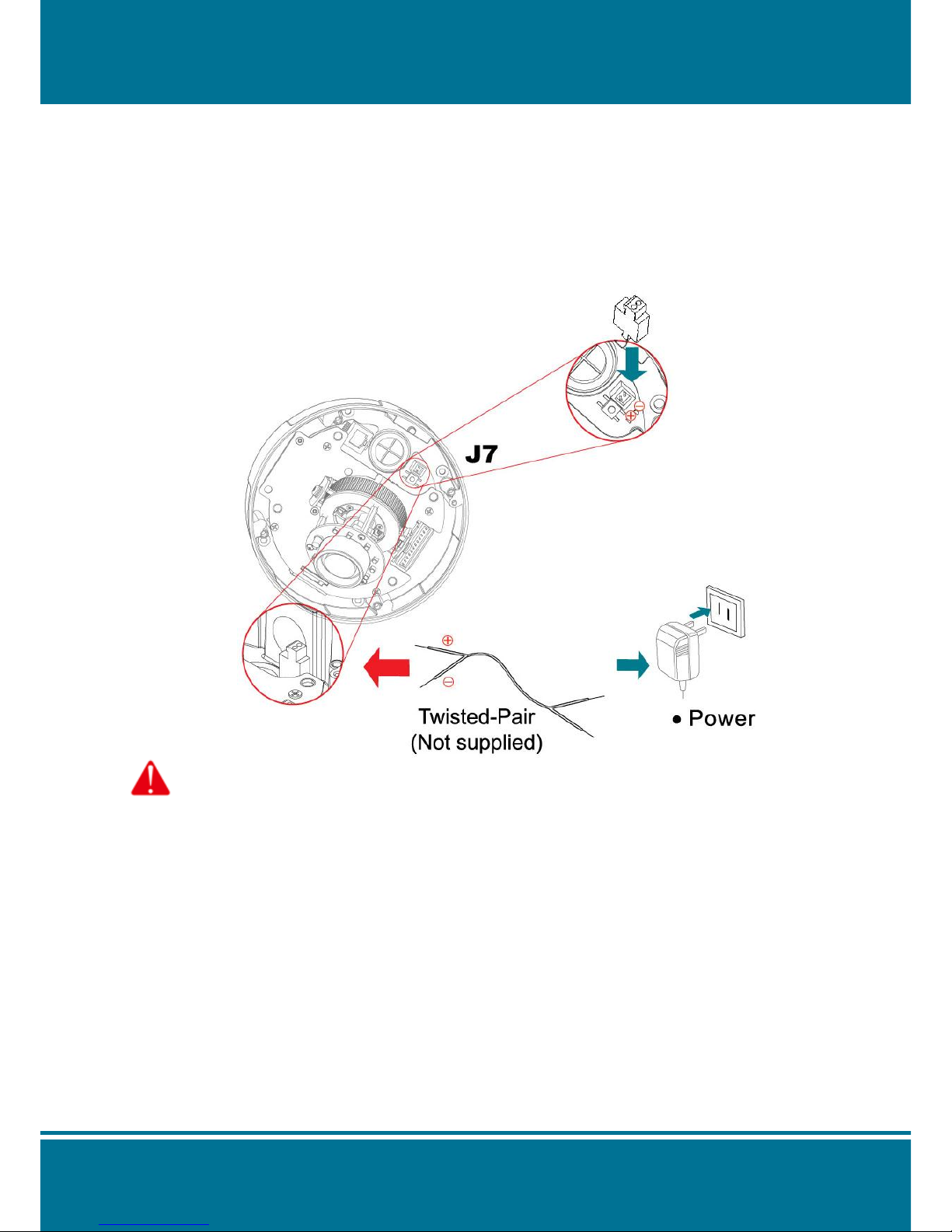

Power

Please connect N3072 Dome Network Camera with your power adaptor directly using the

Twisted-Pair (not supplied) after plug the supplied 2pin connector as shown.

Attention: Please be aware of connection of positive and negative electrode. Any wrong connection will

damage the camera.

Indice

Altri manuali 3S Telecamera di sicurezza

3S N3031 Manuale utente

3S N6076 Manuale utente

3S n8072 Manuale utente

3S N5071 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
