A.O. Smith EES - 120 Manuale utente

Innovation has a name.

EES

Electrical residential /

light commercial water heater

EES - 6/15/20/30/40/52/66/80/120

Vertical electric water heater for residential / light commercial

applications • One or two replaceable Incoloy-sheathed elements

(depending on the model) • Each element is provided with an

independent control thermostat (adjustable: 43 - 77 °C) • Secondary

protection is provided by a high-limit thermostat with manual

reset • PermaGlas® Ultra Coat™ second-generation glass coating

technology to prevent corrosion • Replaceable magnesium anode

• Optional ancillaries: Unvented kits • Destrati cation pump kit

• Powered anodes • Time controller • Alternate kW loadings

EES

Technical specications

Electrical data

Input kW 2.0 2.0 2.0 3.0 3.0 3.0 3.0 3.0 3.0

Current A 8 8 8 8 8 8 8 8 8

Elements - 1 1 1 2 2 2 2 2 2

Power supply VAC/Hz 230 Vac (-15/+10%)/50 Hz (+/-1HZ)

Draw-off capacity

Storage capacity l 25 55 75 115 155 190 250 300 450

Max. temperature setting °C 77 77 77 77 77 77 77 77 77

30 min. ∆T=44°C l 41 70 89 136 174 208 265 313 456

60 min. ∆T=44°C l 61 90 109 165 204 237 294 342 485

90 min. ∆T=44°C l 81 109 128 195 233 266 324 371 515

120 min. ∆T=44°C l 100 129 148 224 262 296 353 401 544

Continuous ∆T=44°C l/h 39 39 39 59 59 59 59 59 59

Heating-up time ∆T=44°C min. 38 84 115 118 159 194 256 307 460

30 min. ∆T=50°C l 36 62 78 120 153 183 233 275 401

60 min. ∆T=50°C l 54 79 96 146 179 209 259 301 427

90 min. ∆T=50°C l 71 96 113 171 205 234 285 327 453

120 min. ∆T=50°C l 88 113 130 197 231 260 311 353 479

Continuous ∆T=50°C l/h 34 34 34 52 52 52 52 52 52

Heating-up time ∆T=50°C min. 44 96 131 134 180 221 291 349 523

30 min. ∆T=55°C l 33 56 71 109 139 166 212 250 365

60 min. ∆T=55°C l 49 72 87 132 163 190 235 274 388

90 min. ∆T=55°C l 64 87 103 156 186 213 259 297 412

120 min. ∆T=55°C l 80 103 118 179 210 237 282 321 135

Continuous ∆T=55°C l/h 31 31 31 47 47 47 47 47 47

Heating-up time ∆T=55°C min. 48 106 144 147 198 243 320 384 576

General

Anodes - 1

Maximum working pressure bar 8

Maximum weight kg 38 76 102 151 198 238 314 380 575

Shipping data

Weight empty kg 13 21 27 36 43 48 64 80 125

Weight incl. packaging kg 14 23 30 42 49 55 72 90 137

Width packaging mm 420 420 520 580 580 580 620 680 770

Height packaging mm 430 870 870 1000 1190 1440 1600 1620 1710

Depth packaging mm 420 420 520 650 650 650 680 740 840

EES 6

EES 15

EES 20

EES 30

EES 40

EES 52

EES 66

EES 80

EES 120

EES 6-20 EES 30-120

Vented

Unvented

EES 6-20 EES 30-120

EES

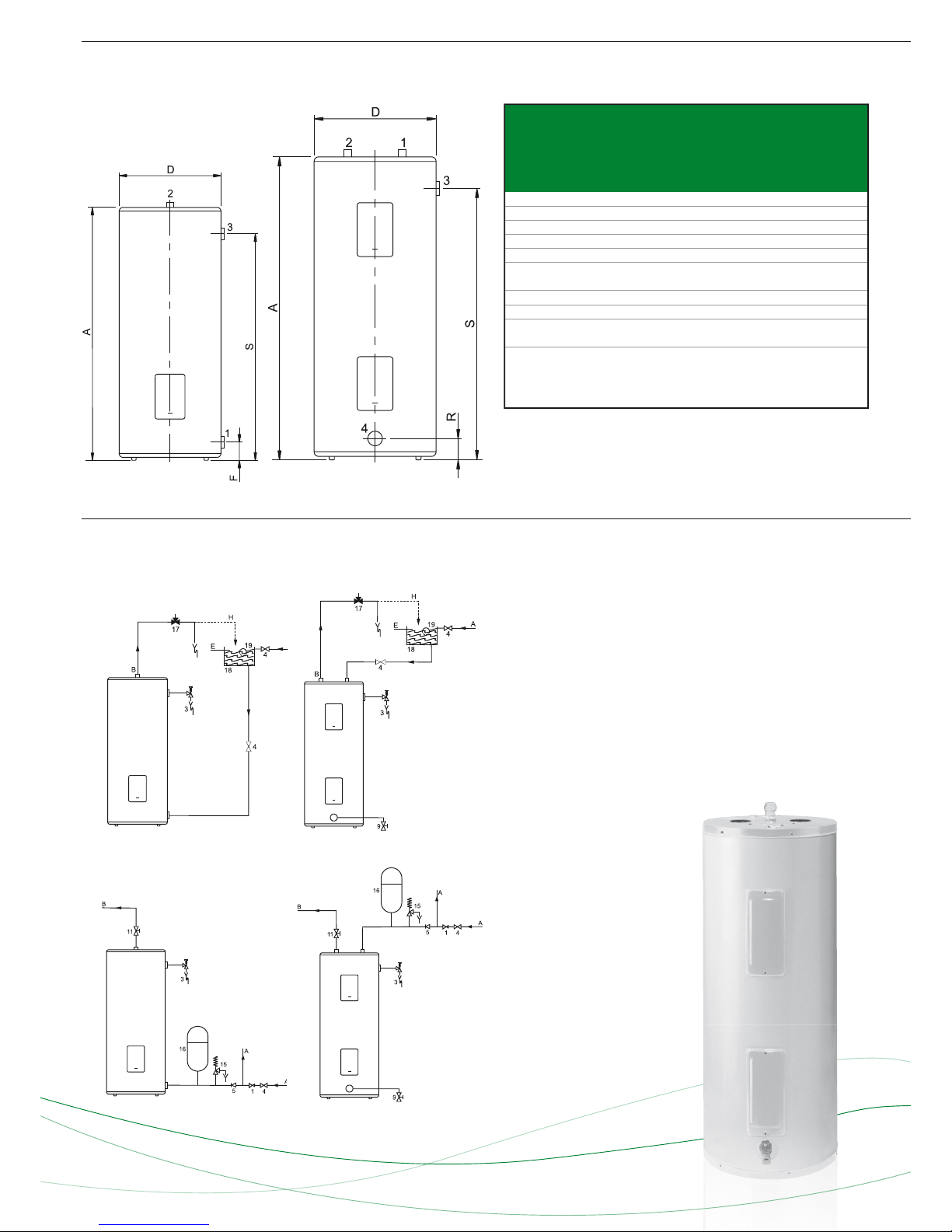

Dimensions

EES

Installation diagrams

A 400 825 820 930 1110 1370 1530 1540 1620

D 360 360 460 520 520 520 560 610 710

F 75 75 75 930 1110 1370 1530 1540 1620

R - - 100 110 110 110 110 110 110

S 270 700 680 730 970 1210 1360 1330 1385

1 Cold water 3/4-14 NPT

2 Hot water 3/4-14 NPT

3 T&P valve 3/4-14 NPT

4 Tank drain valve 3/4-14 NPT

(n/a for EES 6/15/20)

Dimensions in mm. All EES water heaters receive a  ve years

warranty on the tank and one year on parts.

EES 6

EES 15

EES 20

EES 30

EES 40

EES 52

EES 66

EES 80

EES 120

1 Pressure reducing valve

3 T&P valve

4 Stop valve

5 Non-return valve

9 Drain valve

11 Isolating valve

15 Expansion relief valve

16 Expansion vessel

17 Three way valve

18 Water tank

19 Float valve

A Cold water

B Hot water

E Overﬂow pipe

H Expansion vent pipe

A.O. Smith unvented system

kits utilise combination valves.

Further installation and

connection details can be

found in the Installation &

Commissioning Manual.

www.aosmithinternational.com

Data subject to change INT/0808/EES/01

Terms and conditions apply, please refer to our website.

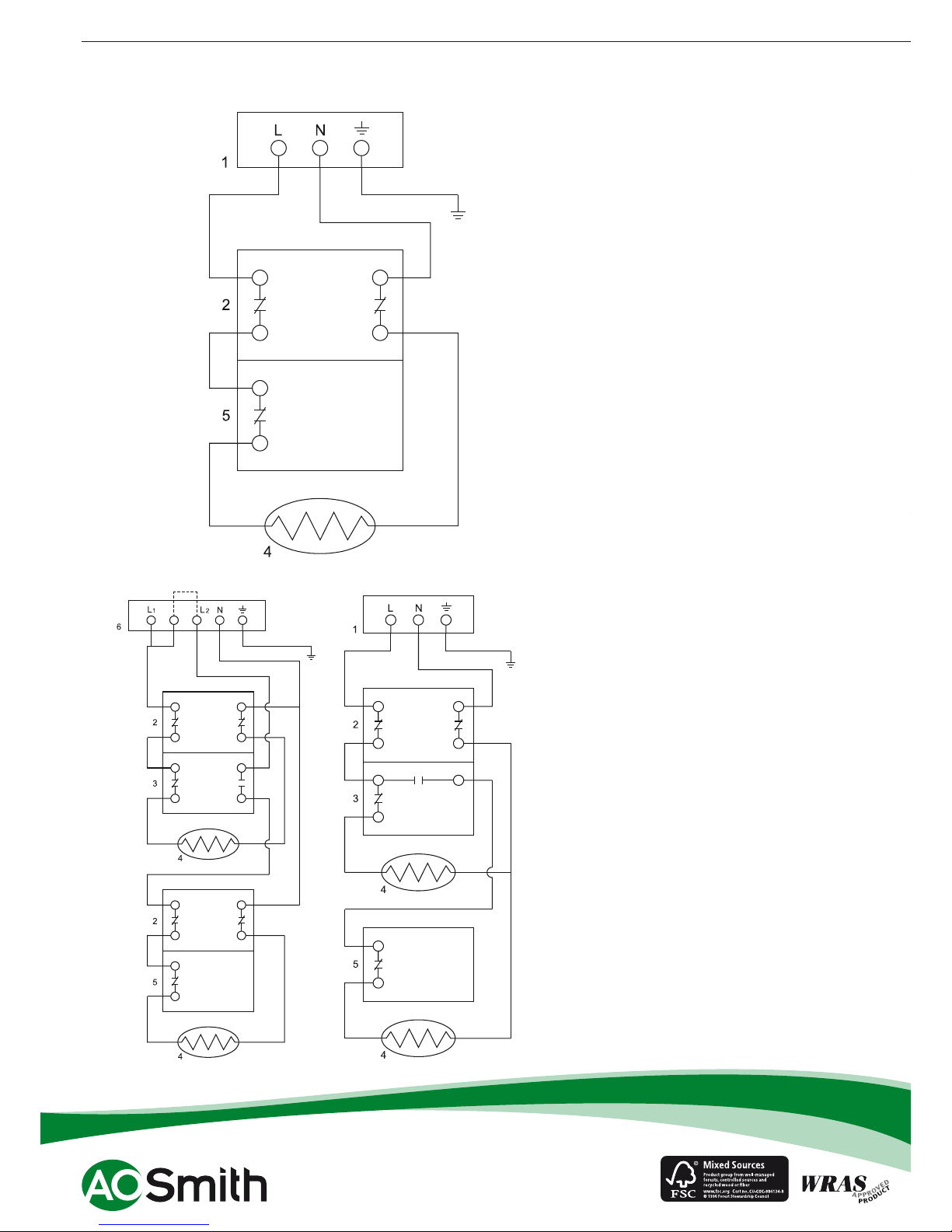

1 Standard electrical supply

2 Safety thermostat

3 Control thermostat with

selector switch

4 Heating elements

5 Control themostat

6 Off peak electrical supply

For the parts numbers of components

please refer to the “Maintenance and

accessories” chapter.

EES

Electrical diagrams

EES 6-20

EES 30-120
