A.O. Smith VF VB 1000 Guida

ECO/OUTLET PROBE

212892-000

INLET TEMP PROBE

212882-000

PRINTED0308 212802-002

A.O. Smith Water Heater Parts Fulfillment • phone: 1-800-433-2545 • www.hotwater.com

JACKET/FRAME ASSEMBLY

SEE PAGE 2

CONTROL PANEL

SEE PAGE 6

COMBUSTION CHAMBER ASSEMBLY

SEE PAGE 3

GAS TRAIN ASSEMBLY

SEE PAGE 5

BY-PASS

SEE PAGE 6

COPPER BOILERS FOR HYDRONIC

HEATING & HOT WATER SUPPLY

VF MODELS VB/VW 500, 750, 1000

SERIES100/101

COMMERCIALGASSERVICEPARTSLIST

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068

www.hotwater.com • 1-800-433-2545

COMMERCIAL POWER BURNER BOILER

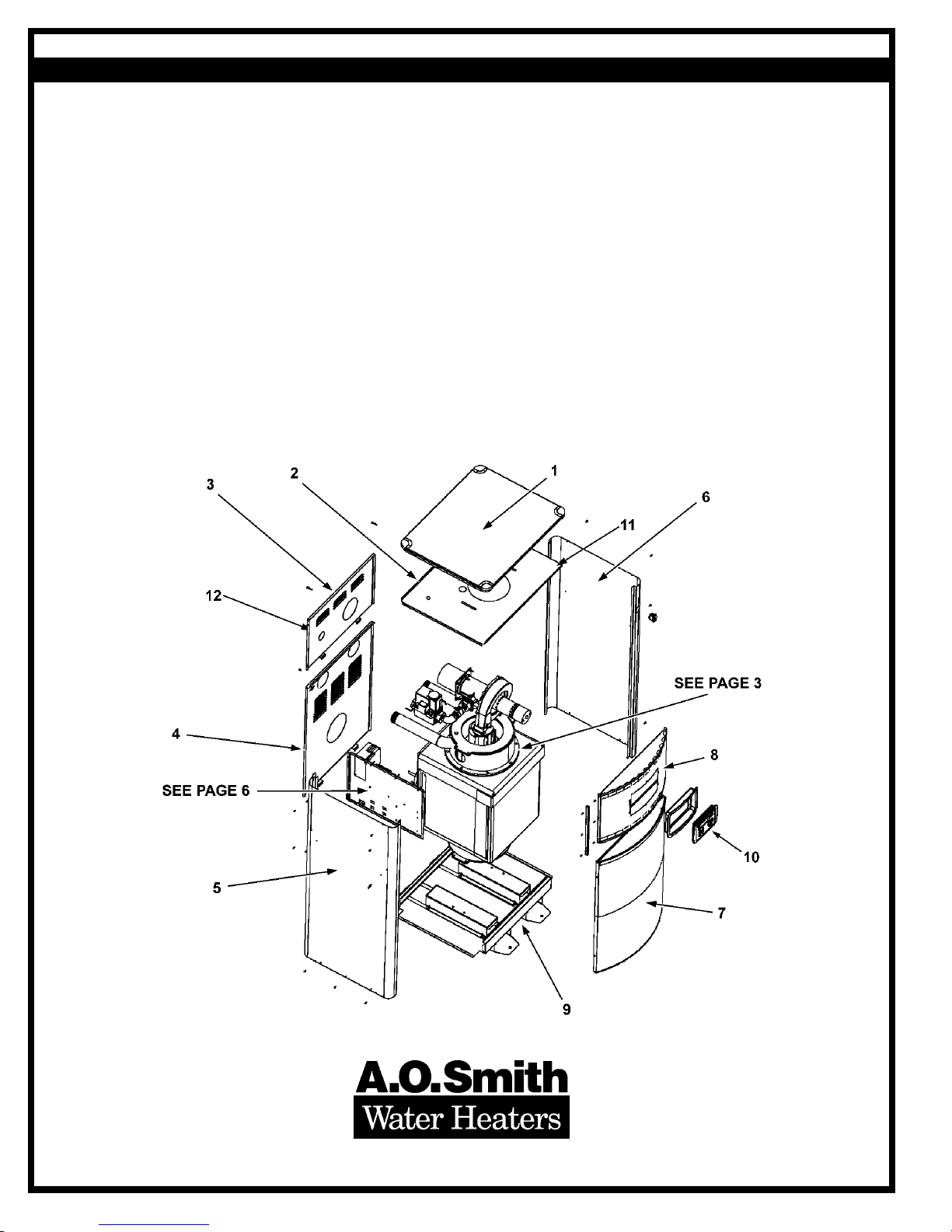

JACKET/FRAMEASSEMBLY

Item Description VB/VW 500 VB/VW 750 VB/VW 1000

1 ..............Top/Corner Assembly ..........................................Call our Parts Fulfillment Department for replacement if neccessary.

2 ..............Plate .....................................................................Call our Parts Fulfillment Department for replacement if neccessary.

3 ..............Upper Back Panel ................................................Call our Parts Fulfillment Department for replacement if neccessary.

4 ..............Lower Back Panel ................................................Call our Parts Fulfillment Department for replacement if neccessary.

5 ..............Left Side Panel.....................................................Call our Parts Fulfillment Department for replacement if neccessary.

6 ..............Right Side Panel ..................................................Call our Parts Fulfillment Department for replacement if neccessary.

7 ..............Lower Curved Door Assembly.............................Call our Parts Fulfillment Department for replacement if neccessary.

8 ..............Upper Curved Door Assembly.............................Call our Parts Fulfillment Department for replacement if neccessary.

9 ..............Base Assembly ....................................................Call our Parts Fulfillment Department for replacement if neccessary.

10.............UIM (User Interface Module) ............................................211762-000.................. 211762-000 ................211762-000

11.............100VA Transformer ..........................................................210449-000.................. 210449-000 ................210449-000

12.............Alarm Bell (Optional Not Shown).....................................211472-000.................. 211472-000 ................211472-000

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 2 of 8 212802-002

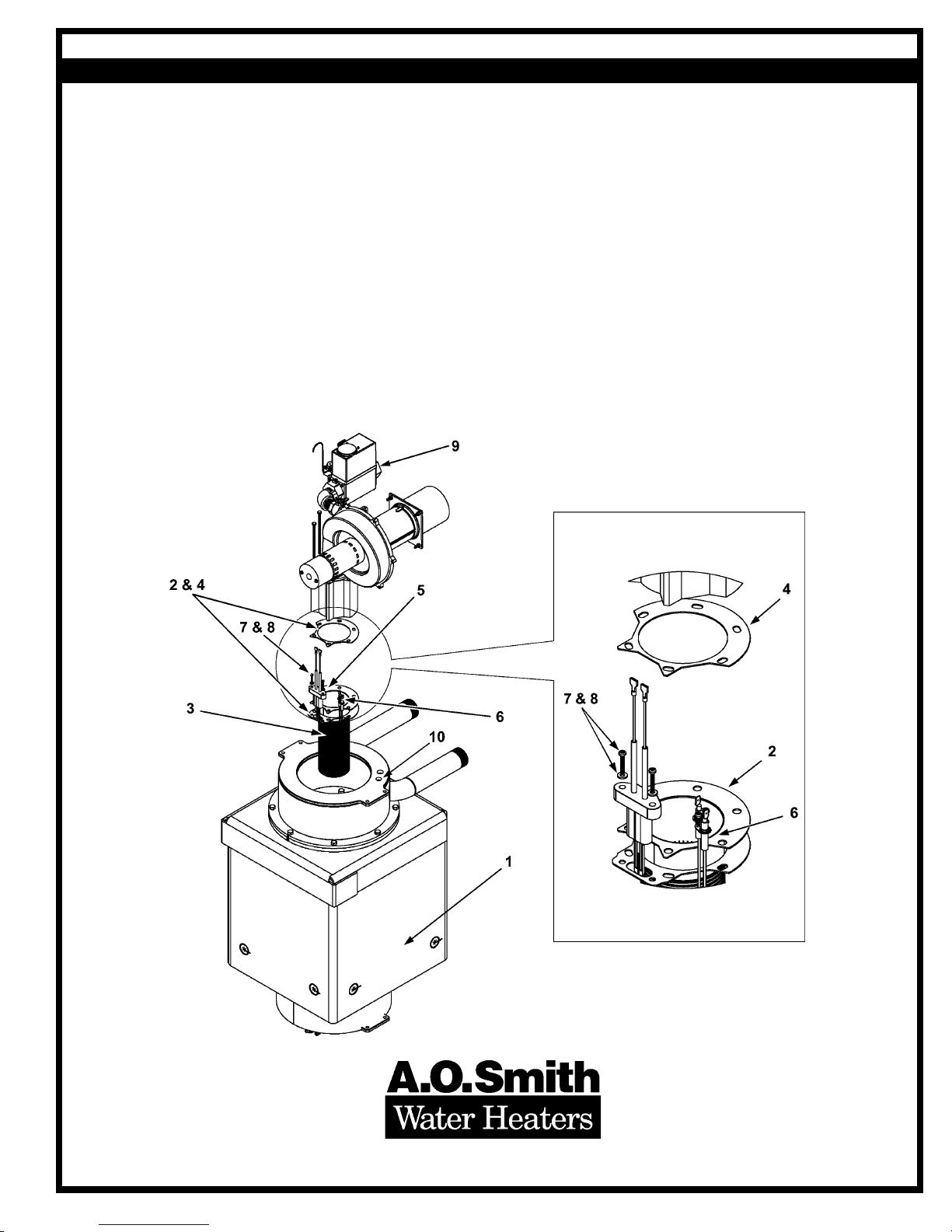

COMBUSTION CHAMBER ASSEMBLY PARTS LIST

Item Description VB/VW 500 VB/VW 750 VB/VW 1000

1 .............Heat Exchanger ASM. .................................................... 9006308005................. 9006309005 ................90006310005

*2 .............Gasket - Burner ...............................................................212837-000 ..................212837-001 ................. 212837-002

3 .............Burner..............................................................................212345-000 ..................212345-001 ................. 212345-002

*4 .............Gasket - Burner ...............................................................212837-000 ..................212837-001 ................. 212837-002

5 .............Igniter.............................................................................. 9004504205 ................ 9004504205.................9004504205

6 .............Sensor - Flame ............................................................... 9005892215................. 9005892215 .................9005892215

7 .............Screw - Machine .....................................................................-----............................... ----- ............................... -----

8 .............Washer - Plain .......................................................................-----............................... ----- ............................... -----

9 ..............Low Gas Switch (Natural) .............................................. 191149-000................. 191149-000 .................191149-000

9 ..............Low Gas Switch (Propane)............................................ 191149-006................. 191149-006 ................. 191149-006

10.............Low Water Cut-off Probe................................................ 212958-000................. 212958-000 .................212958-000

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 3 of 8 212802-002

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 4 of 8 212802-002

BLOWER/GAS TRAINASSEMBLY PARTS LIST

Item Description VB/VW 500 VB/VW 750 VB/VW 1000

1 .............Blower Adapter ................................................................212341-000 ................. 212341-000 ................. 212341-000

*2 .............Adapter Gasket ...............................................................212837-000 ..................212837-001 ................. 212837-002

3 .............Blower Assembly ............................................................. 212340-000 ................. 212340-000 ................. 212340-000

5 .............Venturi - Gas/Air ..............................................................212311-000 ................. 212311-000 ................. 212859-000

7 .............Vent Adapter ...................................................................212339-000 ................. 212339-000 ................. 212339-000

8 .............Bolt - Hex Head Tap ............................................................ - - - - -........................... - - - - - ...........................- - - - -

9..............Nut - Hex, 1/4"-20 UNC ....................................................... - - - - -........................... - - - - -...........................- - - - -

*10 ............Adapter Gasket ...............................................................212837-000 ..................212837-001 ................. 212837-002

11.............Hex Flange/O-Ring Assembly .........................................212325-000 ................. 212325-000 ................. 212325-000

12.............Nipple Pipe 1" NPT.............................................................. - - - - -........................... - - - - -...........................- - - - -

13.............Valve - Butterfly ...............................................................211391-001 ................. 211391-001 ................. 211391-001

14.............Elbow - Street 1".................................................................. - - - - -........................... - - - - - ...........................- - - - -

15.............Valve - Honeywell Modulation Gas .................................212324-000 ................. 212324-000 ................. 212324-000

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 5 of 8 212802-002

CONTROL PANEL ASSEMBLY

Item Description VB 500 VB 750 VB 1000 VW 500 VW 750 VW 1000

1 ....Panel - Control ........................................ - - - - - ........... - - - - - ............- - - - -............ - - - - - ........... - - - - - .............- - - - -

2 ....Sleeve - Metal.....................................210832-000 . 210832-000 ..210832-000.. 210832-000 . 210832-000...210832-000

3 ....Washer - Metal ...................................210207-000 . 210207-000 ..210207-000.. 210207-000 . 210207-000...210207-000

4 ....Board - Power Distribution ................211760-000 . 211760-000 ..211760-000.. 211760-000 . 211760-000...211760-000

5 ....Switch - High Blower Prover ..............212551-000 . 212551-000 ..212551-000.. 212551-000 . 212551-000...212551-000

6 ....Switch - Low Blower Prover ...............212550-001 . 212550-001 ..212550-002.. 212550-000 . 212550-001...212551-002

7 ....Switch - Blocked Flue ....................... 9005686205.9005686205 9005686205 .9005686205.9005686205 . 9005686205

8 ....Drive - Variable Frequency.................212651-000 . 212651-000 ..212651-000.. 212651-000 . 212651-000...212651-000

9 ....120V. Relay .............................................- - - - - ........... - - - - - ............- - - - -....... 211546-000 . 211546-000...211546-000

10...Board - Modulation Control................212785-000 . 212785-000 ..212785-000.. 212785-000 . 212785-000...212785-000

11 ... Low Water Cut-off (Optional Not Shown) . 212958-000 . 212958-000 ..212958-000.. 212958-000 . 212958-000...212958-000

12... VW Wiring Harness Kit (Not Shown) .....212795-000 . 212795-000 ..212795-000.. 212795-000 . 212795-000...212795-000

13... VB Wiring Harness Kit (Not Shown) .....212795-001 . 212795-001 ..212795-001.. 212795-001 . 212795-001...212795-001

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 6 of 8 212802-002

VB/VW BY-PASS PARTS LIST- ALL MODELS

Please update these numbers

Item Description All Models

1....2" x 2" x 2" NPT Brass Tee .................................................................................................................. - - - - -

2....2" Brass Close Nipple........................................................................................................................... - - - - -

3....2" Brass Union...................................................................................................................................... - - - - -

4....2" x 4" Brass Nipple.............................................................................................................................. - - - - -

5....2" Ball Valve ......................................................................................................................................... - - - - -

6....2" x 2" Brass Nipple.............................................................................................................................. - - - - -

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 7 of 8 212802-002

SERVICE FLANGEAND PUMP ASSEMBLY PARTS LIST

Item Description VB 500/750/1000 VW 500/750/1000

1 ..............Flange Kit ................................................................................................... - - - - - ............................... 212894-000

2 ..............Pump .......................................................................................................... - - - - - ............................... 212893-000

3 ..............Gasket Inlet/Outlet................................................................................. 212903-000 .......................... 212903-000

4 ..............2" NPT Service Flange ...............................................................................- - - - - ............................... 212871-002

5 ..............T-Flange ................................................................................................ 212718-000........................... 212718-000

6 ..............Flow Switch ...........................................................................................9005680205 ..........................9005680205

7 ..............Relief Valve:

...............VB Model ............................................................................................... 098883-007................................- - - - -

...............VW Model................................................................................................... - - - - - ............................... 210451-001

8 ..............2" NPT Brass Nipple...................................................................................- - - - - ....................................- - - - -

9 ..............2" NPT Brass Elbow ................................................................................... - - - - - ....................................- - - - -

10.............2" NPT In Service Flange ...................................................................... 212871-001................................- - - - -

11.............2" NPT Service Flange .......................................................................... 212871-000................................- - - - -

A.O. Smith Water Heater Parts Fulfillment

125 Southeast Parkway • Franklin, TN 37068 • 1-800-433-2545 • www.hotwater.com

PRINTED 0308 8 of 8 212802-002

Vent Kit Parts List

Item Description VB/VW 500/750/1000

1 .............Vent Terminal (Horizontal) ......................................................................................................................... 191960

2..............Vent Terminal Inlet Assembly .................................................................................................................... 191965

3..............Coupling - Flex Adapter ............................................................................................................................. 191967

4..............Elbow - 90°................................................................................................................................................. 192032

5..............Pipe - SAF - T 48" ..................................................................................................................................... 192039(1)

6..............Pipe - SAF - T 36" ......................................................................................................................................192039-1

7..............Boot - Tee ................................................................................................................................................... 192034

8..............Pipe - Vent PVC .........................................................................................................................................192035-1

9..............Condensate Drain Cover ........................................................................................................................... 192036

10.............Coupling - PVC .......................................................................................................................................... 191988

11.............Wall Cover Plate....................................................................................................................................... 192111(2)

12.............Vent Terminal (Vertical) ............................................................................................................................. 191777

13.............Cauking - Silicone.....................................................................................................................................191482-1

14.............Support System - Roof Jack ...................................................................................................................... 192076
