A&C GreenEnergy PM10-24 Manuale utente
Wind/Solar Hybrid Controller
PM10-24 (1000W) and PM 20-48 (2000W)
Owner’s Manual
1. Security
IMPORTANT: To prevent bodily injury or property damage, please follow these
instructions precisely. With personal safety as a primary focus in design, this charge
controller has been engineered to function properly and efficiently.
1. Professional installation and guidance is always recommended. Otherwise, please
contact your authorized PowerMax+ agent before installation.
2. Keep the charge controller dry. Do not clean with a wet or damp cloth. This is an
electric device and cannot get wet at all. Prevent any spills on or near the
controller.
3. Keep all children and any person with limited understanding and/or decreased
mental capacity away from the controller.
4. Keep the controller away from direct sunlight or any other heat source.
5. Please check the rated voltages of your wind turbine, solar panel and battery
before connection. Their rated voltages all should be the same.
6. Pay close attention to the connection of your wind turbine, solar panels and
batteries to make sure positive goes to positive and negative goes to negative.
7. Smaller gauge wires should not be used with higher current equipment.
8. Ensure that all component connections are tight and secure.
9. DO NOT TOUCH any bare parts on the controller. The high voltage can cause
lethal shock.
2. General Description
Your PowerMax+ wind/solar hybrid controller is designed to control the wind power
charging battery under constant voltage. In addition, it includes a solar charging control,
which makes it good for wind/solar hybrid application.
At the right side of the controller, there is a manual brake switch. If the switch is turned
to the ‘brake’ position, the wind turbine will be manually stopped.
3. Connection
1. Turn the ‘manual brake’ to the ‘BRAKE’ position, and then connect the output of
the wind generator to the ‘WIND INPUT’ terminals using 10mm2cable.
2. If applicable, connect the output of your solar panel to the ‘SOLAR INPUT’
terminals on the PowerMax+ controller. Positive to positive, negative to negative.
3. Using 10mm2 cables, connect the battery’s positive pole to the positive (+)
‘battery’ terminal on the controller and connect the battery’s negative pole to the
negative (-) ‘battery’ terminal on the controller. The length of the cables should be
no longer than three (3) feet. Tighten the nut on each ‘battery’ terminal by hand.
Do not over tighten.
4. Turn the ‘manual brake’ to the ‘RUN’ position.
All manuals and user guides at all-guides.com
all-guides.com

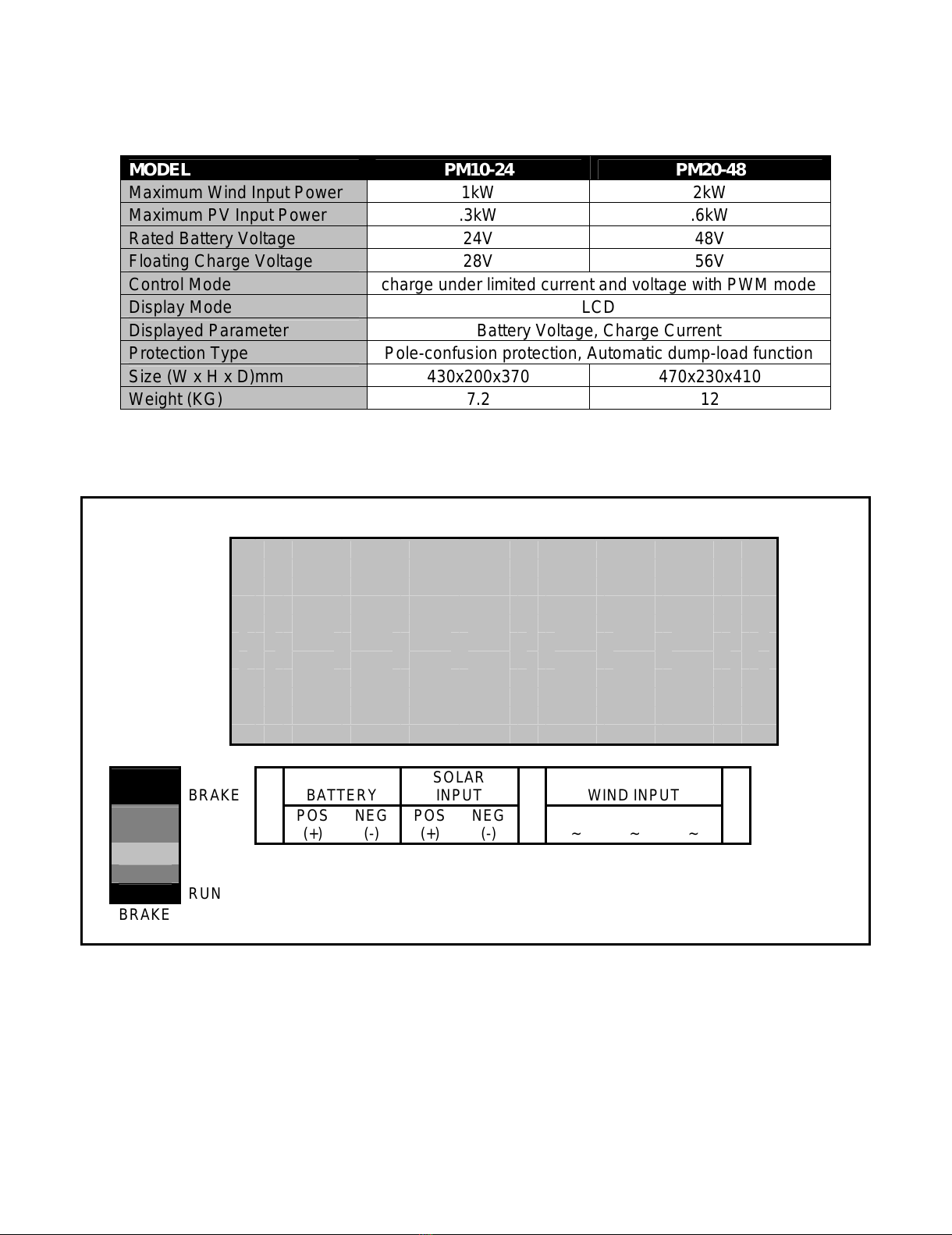

MODEL PM10-24 PM20-48
Maximum Wind Input Power 1kW 2kW
Maximum PV Input Power .3kW .6kW
Rated Battery Voltage 24V 48V
Floating Charge Voltage 28V 56V
Control Mode charge under limited current and voltage with PWM mode
Display Mode LCD
Displayed Parameter Battery Voltage, Charge Current
Protection Type Pole-confusion protection, Automatic dump-load function
Size (W x H x D)mm 430x200x370 470x230x410
Weight (KG) 7.2 12
BRAKE BATTERY
SOLAR
INPUT WIND INPUT
POS
(+) NEG
(-) POS
(+) NEG
(-) ~ ~ ~
RUN
BRAKE
All manuals and user guides at all-guides.com
