From Bicom Systems Wiki
Contents
1 How to use Aastra 9112i with PBXware
■
2 Registering Aastra 9112i
■
2.1 Requirements
■
2.2 Manual Configuration
■
2.3 Auto Provisioning
■
3 Paging
■
4 Glossary
■
How to use Aastra 9112i with PBXware
This "How to" is written as general guide on how to use Aastra 9112i with PBXware using
1.3.1.1095 SIP Aastra 9112i firmware. It covers the most common tasks that are required to
have your Aastra 9112i working efficiently.
Registering Aastra 9112i
Requirements
1. Aastra 9112i firmware.
- Make sure that the device is loaded with 1.3.1.1095 SIP firmware.
2. DHCP server.
- Fully configured and operational DHCP server.
Manual Configuration
UAD Settings
STEP ONE: PBXware IP address.
1. Find out the IP address of the PBXware server.
STEP TWO: Login to PBXware.
1. Open a new browser window and enter the IP address followed by "/admin/index.php" in
order to access the PBXware administration interface login screen.
Example: http://192.168.1.2/admin/index.php
an example with IP address following by "/admin/index.php"
2. Hit "Enter" on your keyboard.
3. Login to PBXware with your e-mail address and password.

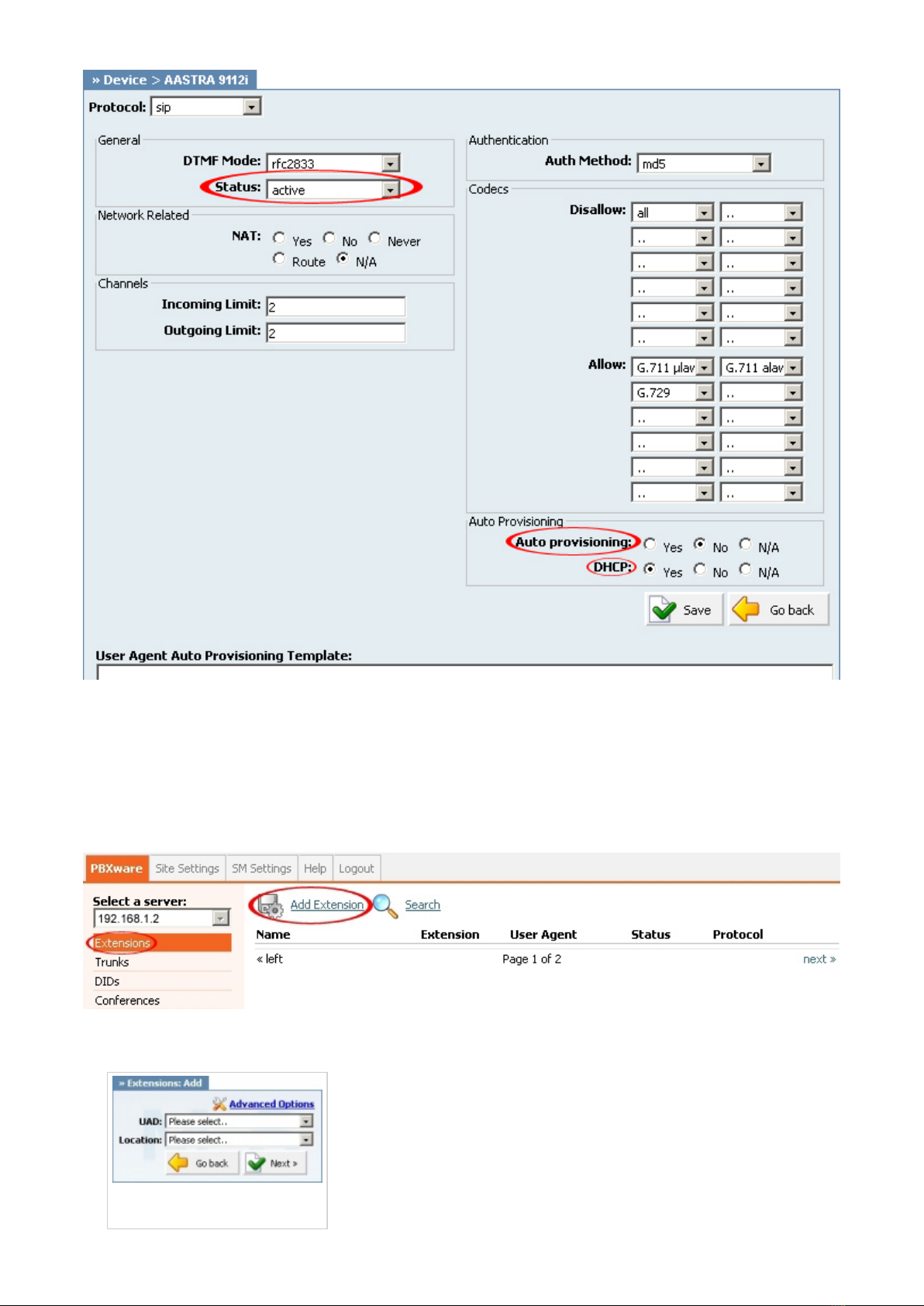

3. Select Aastra 9112i from "UAD" select box.
4. Select Location: "Local" or "Remote".
Note:
-"Local" is for all extensions registered on LAN.
-"Remote" is for all extensions registered from remote networks, WAN, Internet etc.
Creating
Extension/Extensions Add
5. Click on the "Next" button.
STEP TWO: Extension values.
1. Enter values into required field text boxes.
REQUIRED FIELDS:
Name:
Enter a name for the extension being created. Example: John Smith.
E-mail:
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: [email protected].
Creating
Extension/Extensions Add
an example with details filled in
2. Click on the "Save" button.
Creating
Extension/Extensions Edit
an example with details filled in
3. Click on the "Save & E-mail" button. Account details will be sent to the e-mail address
associated with this extension.
OPTIONAL FIELDS:
Extension:
An auto-generated extension number based on the next available sequential number. An
extension value can be changed. Example: 1000.
Username:
Username is auto generated/populated and cannot be changed since it allows the system to use
this value for other important operations.
Secret:
A secret value associated with the UAD is auto-generated in order to allow the UAD to
successfully register with the system. The secret value can be changed.
PIN:
An auto-generated PIN will allow access to voicemail and online self care.
Registering Phone

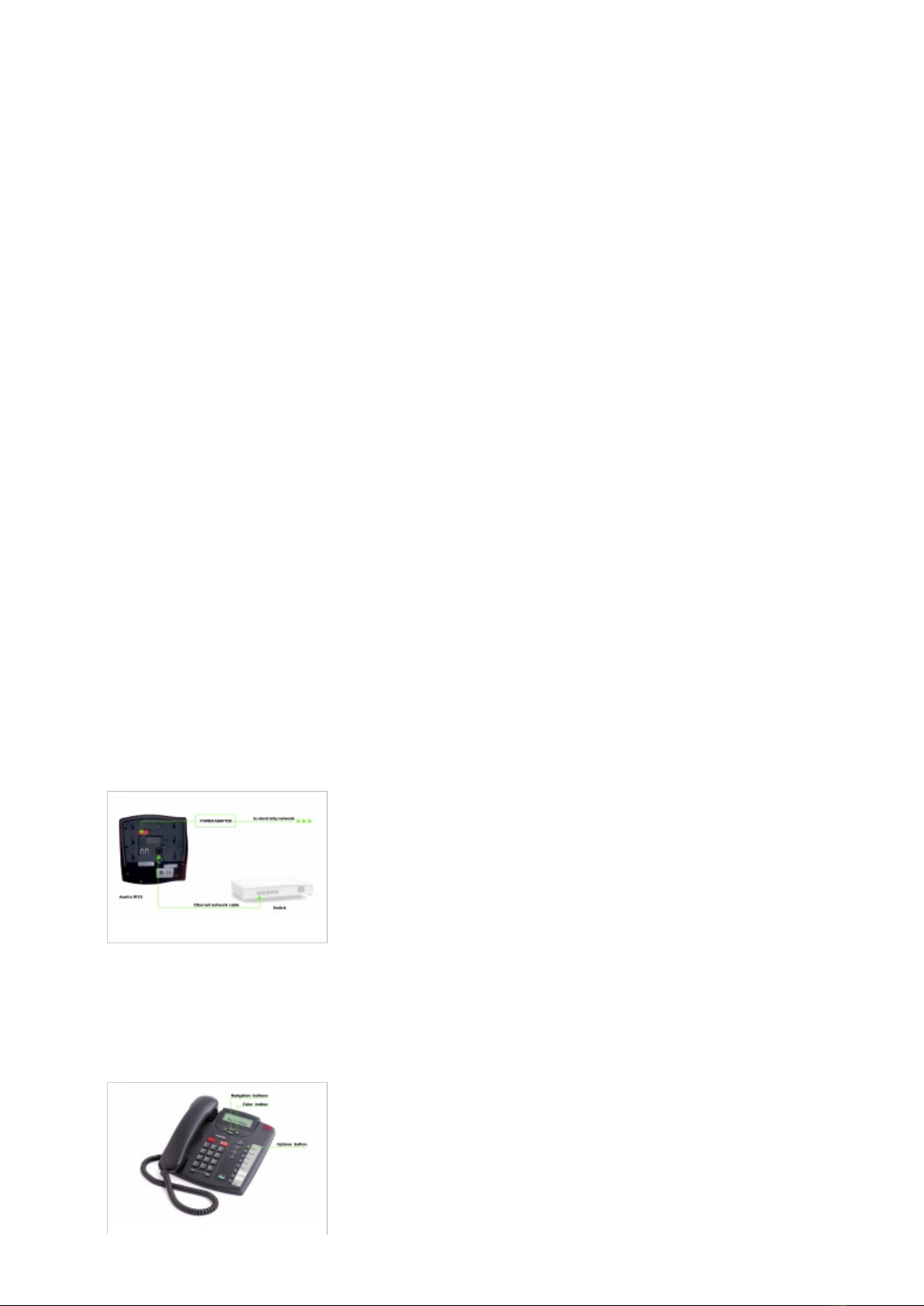

STEP ONE: Electricity and Ethernet.
- Plug the power adapter into a power jack, then connect it to the electricity network.
- Connect the ethernet port to a hub, router or switch as to access LAN.
Registering Phone
After successfully connecting the Aastra 9112i to the electricity and data networks it is time to
register it to PBXware.
'STEP TWO: Aastra 9112i IP address.
Registering Phone
Find out the IP address of Aastra 9112i connected to network.
1. Press the "Options" button.
2. Use the "Navigation" button to navigate down to "Network Settings".
3. Press the "Enter" button.
4. Enter password. Default factory password is "22222".
5. Press the "Enter" button.
6. Use the "Navigation" button to navigate down to "IP Address".
7. Press the "Enter" button.
STEP TWO: Aastra 9112i Web Interface.
1. Open a new browser window and enter the IP address in order to access Aastra 9112i
administration interface.
Example: http://192.168.1.101/
Registering Phone
an example with IP address
2. Hit "Enter" on your keyboard.
STEP THREE: Configuring Aastra 9112i.
1. Click on "Line 1" link.
Registering Phone
2. Enter the following details into the respective fields. REQUIRED FIELDS:
Phone Number
PBXware extension number. Example: 1000
Proxy Server
IP address of PBXware server. Example: 192.168.1.2
Proxy Port
5060
Registrar Server
IP address of PBXware server. Example: 192.168.1.2
Registrat Port
5060
Authentication Name
Usually the same number as for "Phone Number".
Password
The Secret of the extension as received in the e-mail associated with this extension. Example:
3dX3r5
Registering Phone
an example with details filled in
OPTIONAL FIELDS:
Screen Name
Example: John Smith
Caller ID
Example:' John Smith
Other fields
Other "options" or "fields" should be left blank or as is by default, they have no importance for
registering the Aastra 9112i to PBXware.
3. Click on the "Save Settings" button.
4. Click on the "Reset" link.
Registering Phone
5. Click on the "Restart" button to restart Aastra 9112i so that the changes take effect.
- Conclusion: If everything is done as above described you should have successfully registered
your Aastra 9112i to PBXware. Dial *123 to verify registration.
- For further information please contact the manufacturer or check their web site
www.aastra.com.
Auto Provisioning
UAD Settings
STEP ONE: PBXware IP address.
1. Find out the IP address of PBXware server.
STEP TWO: Login into PBXware.
1. Open a new browser window and enter the IP address followed by "/admin/index.php" in
order to access the PBXware administration interface login screen.
Example: http://192.168.1.2/admin/index.php
UAD Settings
an example with IP address following by "/admin/index.php"
2. Hit "Enter" on your keyboard.
3. Login into PBXware with your e-mail address and password.
UAD Settings

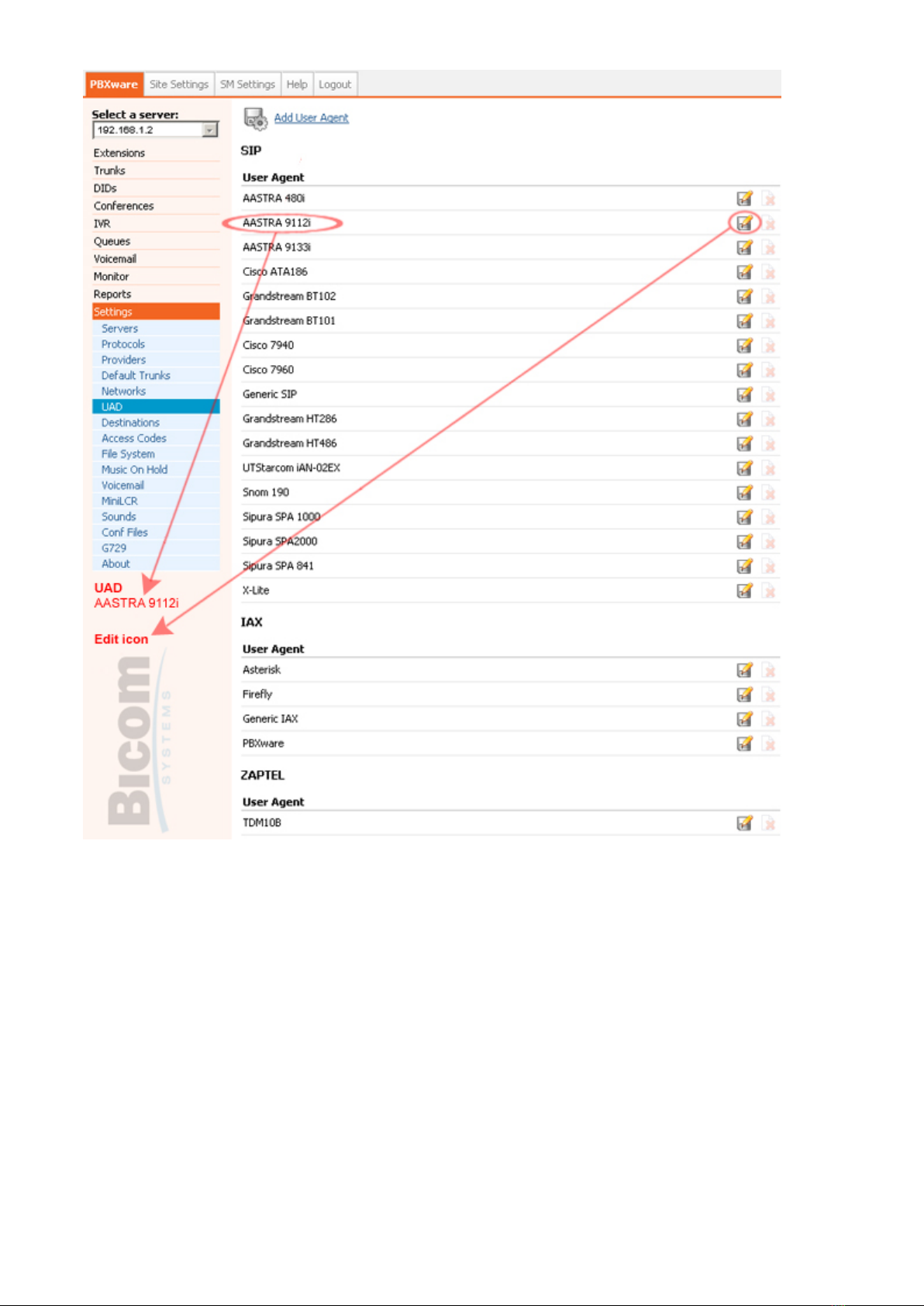

STEP THREE: UAD status.
1. Make sure the UAD is enabled. To check the UAD status navigate to "Settings:UAD", and click
on the "edit" icon corresponding to "Aastra 9112i".
