Thank you for purchasing the Model BE-100HT Headset

Telephone. The BE-100HT is a full featured compact telephone,

designed to provide hands-free operation using a comfortable

lightweight headset. You will experience a greater level of comfort

and convenience with the BE-100HT Headset Telephone than

when using a standard telephone handset for communications

and at the same time keep your hands free to perform other

functions.

Features include:

•Adjustable microphone boom.

•HOLD button.

•Last number REDIAL button.

•FLASH button.

•TONE/PULSE dial switch.

•In-Use LED indicator.

•Ringer Hl/LOW switch.

•Slide volume control.

•Detachable belt clip.

•Nine foot long modular headset cord.

•Seven foot long modular telephone cord.

INTRODUCTION

- 5 -

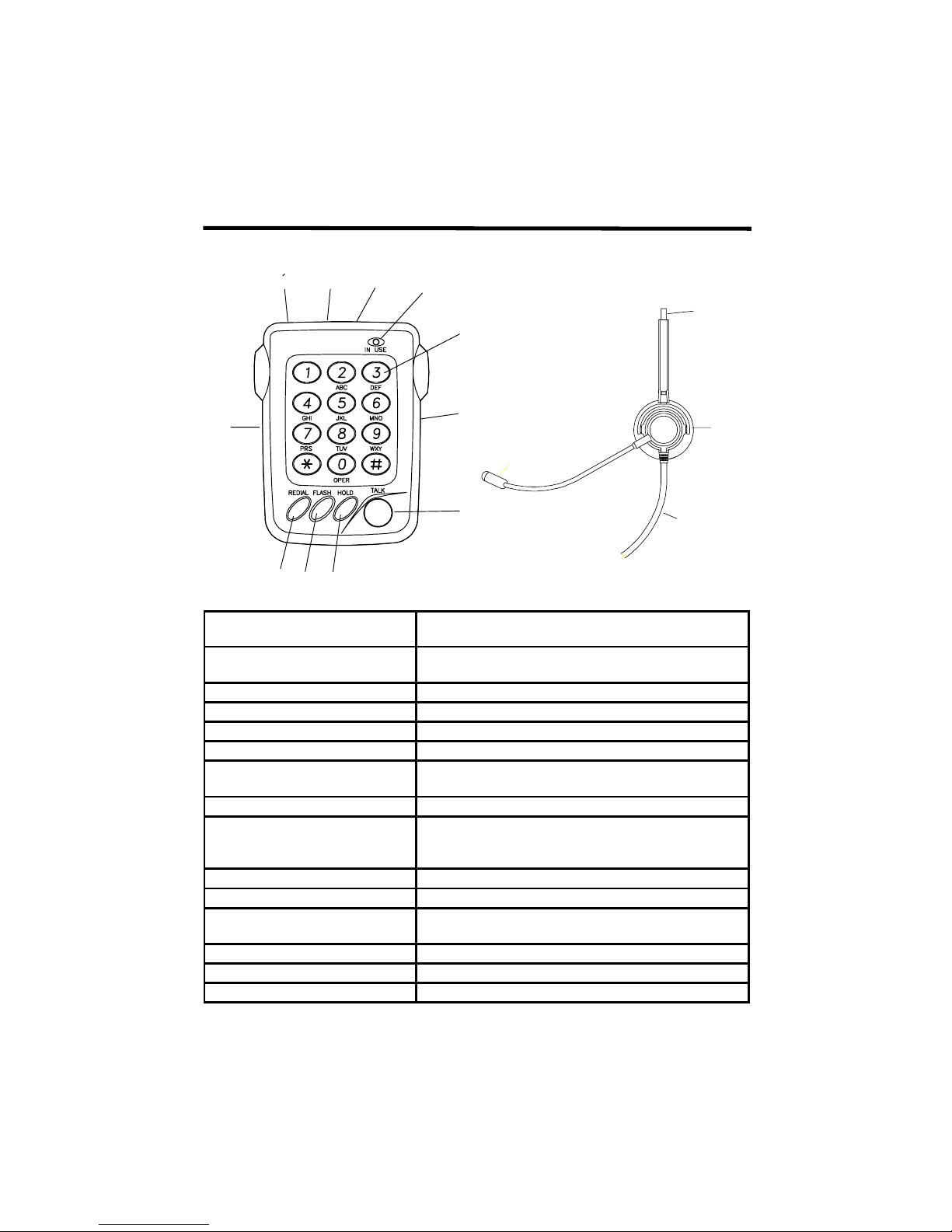

FEATURES AND CONTROLS

1. TELEPHONE LINE JACK Connects incoming telephone line plug from

telephone wall jack.

2. RINGER Hl/LOW SWITCH The HI/LOW switch adjusts the sound level of the

ringer.

3. TONE/PULSE SWITCH Selects either TONE or PULSE dialing.

4. IN-USE LED The IN-USE LED indicates when phone is off hook.

5. DIALING KEY PAD The dialing keys are used to dial outgoing calls.

6. VOLUME CONTROL Adjusts incoming voice sound level.

7. TALK BUTTON Push the TALK button to get dial tone for outgoing

calls, to answer incoming calls, or to hang up.

8. REDIAL BUTTON Press the REDIAL button to dial the last phone

9. FLASH BUTTON Press the FLASH button to answer a call waiting,

or to obtain dial tone when setting up a conference

call.

10. HOLD BUTTON Press the HOLD button to place a call on hold.

11. HEADSET JACK Insert the plug from headset cord into this jack.

12. BOOM MIC Adjustable boom positions microphone for comfort

and voice clarity.

13. HEAD BAND Adjustable head band for comfort.

14. EAR SPEAKER Adjustable for right or left handed use.

15. HEADSET CORD Plugs into jack (11) on BE-100HT Telephone.

Figure 1

1234

8 9 10

- 6 -

An optional belt clip is supplied with your BE-100HT headset

telephone. It can be easily installed or removed as required. See

Figure 2

1. Insert the belt clip mounting tabs into the corresponding

mounting holes located on the rear surface of the BE-100HT.

2. Confirm the belt clip mounting tabs are aligned correctly.

3. Press the belt clip towards the right side of the BE-100HT to

lock the belt clip in place.

FEATURES AND CONTROLS - continued

Figure 2

BELT CLIP

TE LE P H O N E

- 7 -

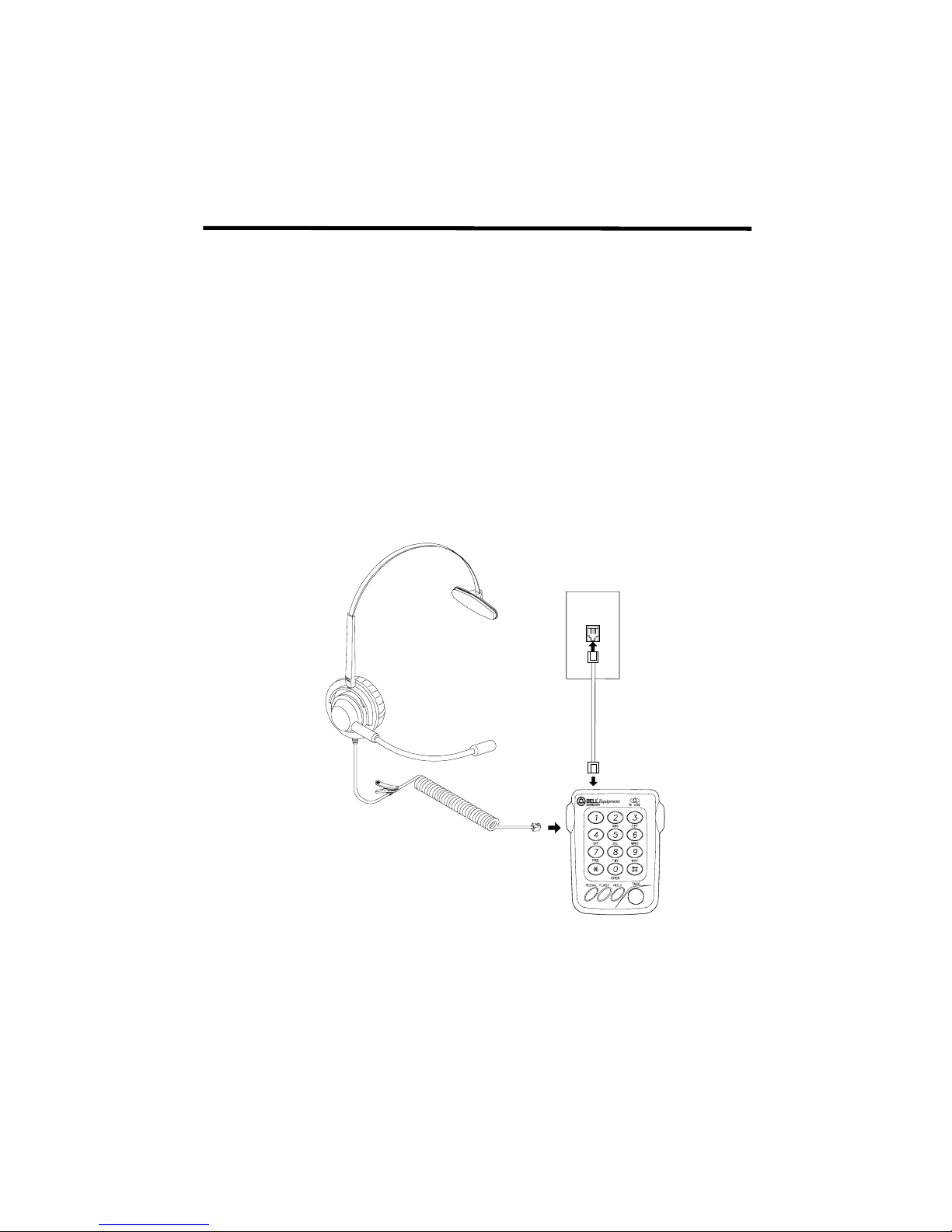

INSTALLING YOUR HEADSET TELEPHONE

The BE-100HT is a complete telephone and can be used in the

same manner as any single line telephone. See Figure 3

1. Insert the plug from the headset cord into the modular jack

marked HEADSET on the left side of the BE-100HT.

2. Plug one end of the supplied telephone line cord into the

modular jack marked LINE on the top side of the BE-100HT.

3. Plug the remaining end of the modular telephone line cord into

any existing RJ-11C modular wall jack.

IMPORTANT: AFTER INSTALLING YOUR BE-100HT

TELEPHONE, IT IS NECESSARY TO WAIT 10 SECONDS FOR

IT TO INITIALIZE PRIOR TO USING IT FOR THE FIRST TIME.

INSTALLATION

Figure 3 RJ-11C

- 8 -

USING THE HEADSET

The BE-100HT is supplied with a high quality microphone to

provide clear voice communications. The boom microphone can

be swiveled to position so the headset can be used on either ear.

See Figure 4

OPERATION

1. Place the headband over

your head with the speaker

on the ear of your

preference.

2. With one hand grasp and

hold the ear cushion.

Carefully pull the boom

microphone down and into

position so that the

microphone is in front or

slightly to the side of your

mouth.

3. The boom that holds the

microphone is flexible. It

can be bent to position the

boom microphone so that it

is approximately 1 inch

from your mouth.

4. Do not twist the

microphone on the end of

the boom as this may

damage the internal wiring.

5. For your safety, use the

clothing clip to secure the

cord to your lapel or collar.

Figure 4

Cushioned

Speaker

Clothing Clip

Modular Plug

Microphone

Stablizer

T-Bar

- 9 -

6. Always leave enough slack in the cord so that you can move

your head freely.

MAKING OUTGOING CALLS

1. Put on the headset and adjust it for your comfort.

2. Adjust boom microphone so that it is about the width of two

fingers from your mouth.

3. Push the TALK button (7), you will hear a dial tone in your

headset speaker and the IN USE LED will light.

4. Adjust the VOLUME control to set the dial tone volume to a

comfortable sound level.

5. Using the dial pad of your BE-100HT, dial the number you want

to call. You will hear the numbers dialing in your headset

speaker.

6. When called party answers, talk normally.

7. After completing your conversation, push the TALK button (7)

to hang up and disconnect the call. The IN USE LED will go

out.

ANSWERING INCOMING CALLS

1. Put on the BE-100HT headset on your head and adjust it for

your comfort.

2. Adjust boom microphone so that it is about the width of two

fingers from your mouth.

OPERATION - continued

- 10 -

3. When you hear an incoming call ringing, push the BE-100HT

TALK button (7). The BE-100HT telephone will answer the call

and the IN USE LED will light.

4. Begin speaking normally into the microphone.

5. After completing your conversation, push the TALK button (7)

to hang up and disconnect the call. The IN USE LED will go

out.

ADJUSTING THE RINGER VOLUME

The volume of the telephone ringer can be adjusted by moving the

ringer switch (2) on the back of the BE-100HT either to the right

LOW or left HI.

TONE/PULSE SWITCH

The BE-100HT can dial outgoing calls using either TONE (DTMF)

or PULSE dialing. In most cases dialing in TONE mode is easier

and faster.

5. Set the TONE/PULSE switch (3) on the back of the BE-100HT

to choose the appropriate method of dialing.

2. If your telephone service only supports pulse dialing, you must

have this switch in the PULSE position.

REDIAL BUTTON

The REDIAL button (8) is used to quickly redial the last number

that was dialed using the dial pad.

OPERATION - continued
