ABB i-bus® EIB

Heating Actuator

6164 U - 500

GJ B000 6151 A0168

for flush-mounted installation

Operating Instructions

only for authorized, skilled electricians

with EIB training

73 - 1 - 6212

26195

NLFGBD EIS

GBContents

Important instructions

Fig. 1 / Overall View

Product Description

Technical Data

Fig.2 / Wiring Diagram

Mounting Instructions

Mounting

Commissioning

Notes

The manufacturer database of ABB is continuously

updated. It stores the latest applications. For relevant

descriptions see the Technical Manual of the ABB

i-bus®EIB and the respective device windows in the

EIBA Tool Software Package ETS2, version 1.1 or higher.

In case you do not have the data base or Technical

Manual, please ask for it by contacting the respective

agency in your country.

All packing materials and devices of ABB have symbols

and approval signs indicating suitability for an

environmentally benign disposal.

Make sure packaging materials and electrical apparatus

and its electronic components are disposed of via

appropriately authorized collecting points or disposal

companies.

GBImportant instructions

When planning and erecting electrical systems the

relevant standards and regulations applicable in

the country where the equipment is set up and

operated must be duly observed.

Work on the 230V mains system and EIB bus must

exclusively be performed by trained electrical

personnel. Laying and connection of the bus line as

well as application devices must be in conformity

with applicable guidelines specified in the EIB Manu-

al of the European Installation Bus Association (EIBA).

Never open the device for repairs or adjustments.

Please observe the „Mounting Instructions“ with

regard to type of mounting and materials required.

If insulated wires of low-voltage leads (eg. bus lines)

and 230-V lines cross or approach each other, a

minimum clearance of 4 mm has to be arranged for

(see manual of Facility System Technology of ZVEI/

ZVEH).

Make sure environmental conditions are adhered to

as called for by safety class and with respect to the

admissible operating temperature (see "Technical

Data").

The devices are to be programmed using ETS2

(version 1.1 or higher)

GBFig. 1 / Overall View

GBProduct Description

Heating actuator 6164 U-500 serves to control heaters

or cooling ceilings via thermo-electric positioners (servo-

drives).

The output has a noiseless „electronic relay“. Up to 5

thermo-electric positioners (servo-drives) (24V AC /

230 V AC, eg. 6164/10-500) can be controlled.

Furthermore, optional ohmic loads (eg. a room lighting

system) up to 230-W absorbed power (in a 230-V AC

system) can be switched.

Potential-free contacts (eg. window contacts) or

conventional switches/pushbuttons can be hooked up

to the two inputs. The interrogation voltage is supplied

via the unit.

Connection to the EIB line is made via two permanently

wired leads and one bus connecting terminal.

The switching behavior can be parameterized using

ETS2 (see Technical Manual of the ABB i-bus®EIB and

individual device windows of the EIBA Tool Software

ETS2, Release 1.1 or higher).

GBTechnical Data

Power Supply via ABB i-bus®EIB

Connections permanent leads with

tin-coated wire ends

stripped 10 mm

1 Bus connection via 2 connecting leads

with bus connector terminal

red/black, 0.8 mm2conductor

cross section

appr. 90 mm long

2 Inputs via connecting leads

E1 (white) and E2 (grey)

as well as reference potential

GND (black), 1 mm2conductor

cross section

approx. 90 mm long

extendable to 10 m max.

1 Output via 2 connecting leads

brown, 0.56 mm2conductor

cross section

appr. 200 mm long

>>>

Inputs 2 separate inputs

for potential-free contacts

Output 24 V AC ... 230 V AC

max. 5 thermo-electric

positioners (servo-drives,

eg. 6164/10)

or in case of ohmic loads

max. 1 A up to +25 °C

operating temperature,

power derating to

max. 0.5 A at +60 °C

operating temperature

Type of Protection IP 20 (acc. to DIN EN 60 529

in built-in state)

Operating

temperature - 25 … + 60 °C

Dimensions 53 x 50 x 24 mm (H x W x D)

Weight 0,08 kg

More information is available with respect to the

technical data listed above. Please consult the current

Technical Manual of the ABB i-bus®EIB as well as

device windows of the ETS2 software.

Technical Data

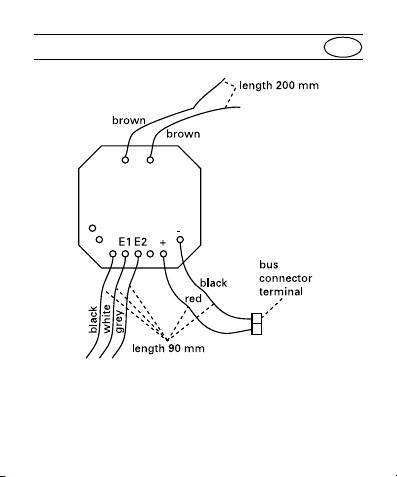

GBFig.2 / Wiring Diagram

EIB

If the physical address has not yet been assigned,

the programming key (Fig. 2) should remain

accessible.

Do not cut in the required 230-V power supply before

all connections have been properly hooked up and

insulated!

The unit can be mounted in a cable duct with two

combined wall and joint boxes (due to separation of

low voltage and 230-V system).

For flush-mounted installation two deep double boxes

or one electronic box (eg. Kaiser make) can be used.

With both installation methods the connecting leads

for the positioner (servo-drive) are run out of the box

via central disk 2527-xx or 1749-xx.

Connection must only be effected via

push-lock

(screwless) box terminals

To adhere to the safety class specified under

„Technical Data“ the connecting terminals have to

be placed inside the mounting boxes.

Mounting Instructions

GBMounting

•Switch off the 230-V mains supply!

• In the event the connecting leads have to be exten-

ded:

– Run these leads (max. 2.5 mm2conductor cross

section) into the interior of the mounting enclosure

to be used (eg. flush-mounted double box).

– Connect these leads to the screwless box

terminals provided for this purpose.

• Hook up the connecting lines of the unit as shown

in the wiring diagram (Fig. 2).

• Unless done earlier, assign the physical address

(see Commissioning).

• Complete mounting work:

The 230-V mains supply must be disconnected!

A special fastening arrangement or mounting

position of the unit is not required.

Place the unit into the mounting box and close off

boxe(s).
