Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

2 ABB

1. Description

Wireless Gateway RER601/603 provides wireless monitoring

and control of field devices via GPRS from a central site or

control center. The devices offer industrial quality connectivity

devices for the IEC 60870 protocol family and can be

connected via digital IO’s and controlled through 2 serial

ports using IEC 60870-5-104 protocol from the SCADA

system. Wireless Gateway RER601/603 exhibits integrated

communication capability and seamless integration to SCADA

systems.

With the Wireless Gateway RER601/603 conventional IEC

60870-101 devices can be attached to a modern TCP/IP

based IEC 60870-5-104 control system. This is made

possible by the protocol conversion from IEC 60870-5-101 to

IEC 60870-104 (and vice versa).

This means that the Wireless Gateway RER601/603 can be

utilized for various industrial applications to maximize the

following benefits:

• Integrated communication solution with built-in IO capability

• Less field visits for operations and maintenance

• Centralized real-time information and thereby timely

corrective action

• Dual field device connection using the same Wireless

Gateway RER601/603 device (Ethernet port can also be

used for local device connectivity. With a separate switch

there can be several Ethernet devices connected)

• Optimizing the cost of communication

• Wireless Gateway RER603 also includes an I/O extension

(8BI/2BO) for additional connectivity

SCADA (ABB MicroSCADA)

IEC-104 M2M Gateway

• Static IP addresses

• Firewall and VPN

TCP/IP

IEC-104 IEC-104

TCP/IP

Wireless Controller REC601/603 Wireless Gateway RER601/603

SPA

IEC-101

ABB IED

ABB load break switches

GPRS

Secure end-to-end VPN tunneling in public network

GUID-5BB3E76A-52DD-4A42-A1EE-122D795C95E6 V1 EN

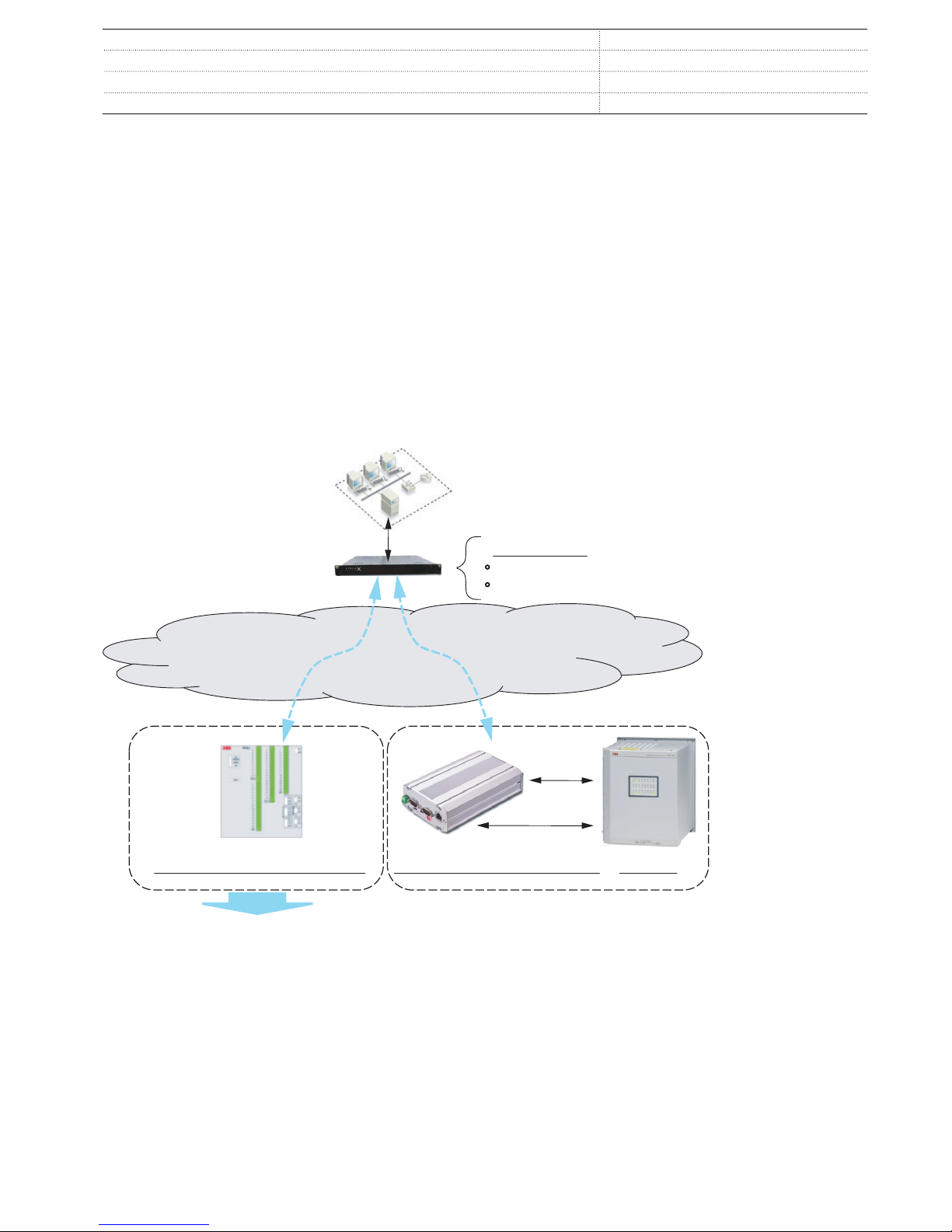

Figure 1. Typical communication system example

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2 Issued: 2014-08-18

Revision: C

ABB 3

2. Applications

The Wireless Gateway RER601/RER 603 can be used in most

feeder automation and wireless substation applications

utilized by utilities to automate their distribution networks in

cooperation with ABB protection relays. Further, the devices

are recommended for usage in unmanned remote substations

and for the monitoring of transformers in distribution

networks, as well as other monitoring and control applications

in various industries.

Or, in other applications where the following specifications

and/or features are needed:

• Redundancy at system level with multiple M2M Gateways

(available as optional accessories)

• Always-on two-way communication based on Ethernet and

wireless (GPRS) network interface technology

• Easy to read LED display for status monitoring

• Integration of existing devices into a modern control system

with field proven products

• Use of the IEC 60870-5-104 event-based communication

instead of polling

• Secure communication maintained with internal VPN and

Firewall

• Mobile operator independent static IP addressing with an

M2M Gateway (available as an accessory)

• Support for Patrol communication status monitoring and

diagnostics application

• Self diagnostics of communication, as well as for the device

itself

• Packet compression for slow-speed links

• Serves as IEC 60870-5-104 to IEC 60870-5-101

communication gateway

• Local IEC 60870-5-101 polling of Class 1 and Class 2

events

• One RS-232 and one RS-232/422/485 port (for IEC

60870-5-101 device). These ports can also be used in a

transparent mode.

• Ultra-high reliability

• Robust aluminium casing design for easy DIN rail mounting

GUID-B0E0CD80-91B5-4437-B5B0-0BB47638EBFD V1 EN

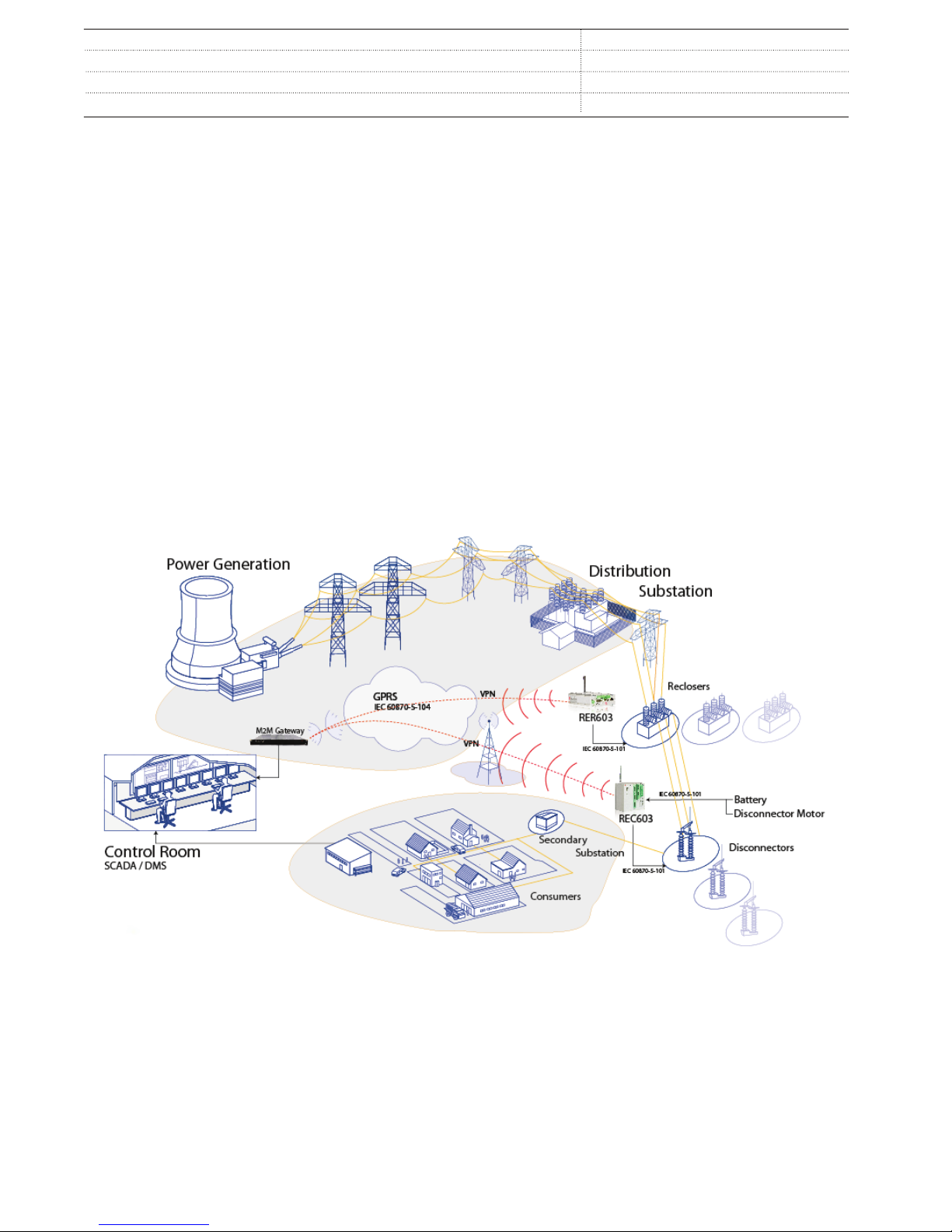

Figure 2. Distribution automation system overview

3. Inputs and outputs / Physical interfaces

The Wireless Gateway RER601/603 are equipped with

numerous communication connection possibilities to manage

control operations that are communicated via the wireless

(GPRS) capabilities of the devices connected to it.

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

4 ABB

Wireless Gateway RER603 has 8 binary inputs for monitoring

and alarms, and 2 binary outputs for control functions.

The Wireless Gateway RER601/603 also has two serial ports

(with DIP switches for serial port hardware configuration

(RS-232 vs. 485 etc.) and an Ethernet connector for

communication and data transfer. Also there is a SIM card

insertion slot with SIM card tray and antenna connector.

The status of the operational system is shown by various

groupings of LED light indicators. More detailed information

can be sourced via the supported WebHMI.

LED panel description

The LED panel of the device contains ten LEDs which are

used to indicate the complete operational status of the

device. The LEDs are numbered from 1 to 10 starting from

the antenna panel side.

1 2 3 4 5

6 7 8 9 10

GUID-14490385-C922-4C82-97F8-0E7B6BAB4652 V1 EN

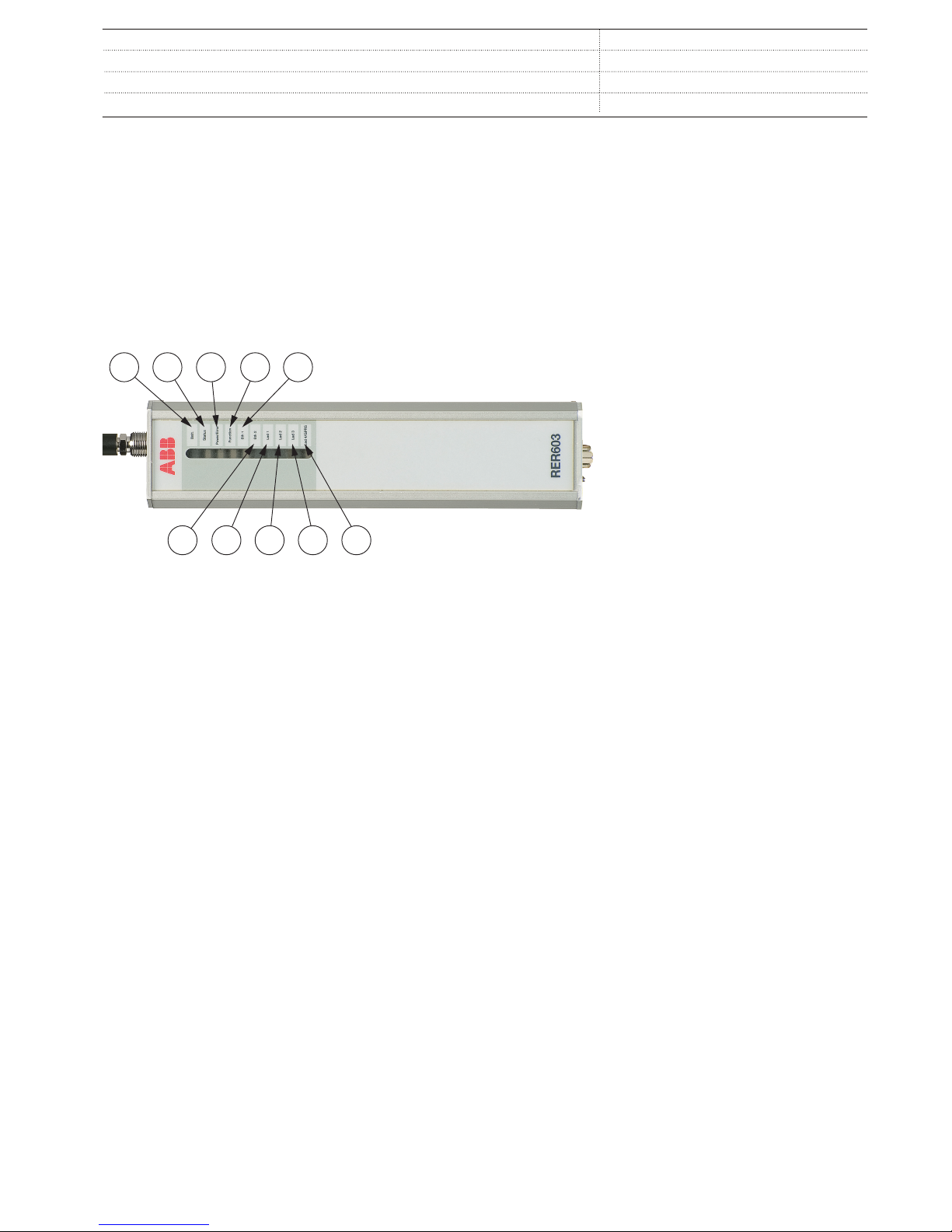

Figure 3. LED description

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

ABB 5

Table 1. Description of available LEDs o the side panel

LED number LED LED status Description

1 Batt. - LED unassigned

2 Status On VPN connection is up

Blinking VPN onnection is starting

Off VPN connection is disabled

3 Power/Error On Operating power is turned on

Off Operating power is turned off

4 Function On Device is starting

Blinking Device is operating normally

Off Device is not operational

5 Eth 1 On Ethernet link is up

Blinking Ethernet link is transferring data

Off Ethernet link is down

6 Eth 2 - LED reserved for future

functionality

7 Led 1 - LED reserved for future

functionality

8 Led 2 - LED reserved for future

functionality

9 Led 3 - LED reserved for future

functionality

10 Led 4/GPRS Blinking GPRS is starting or transferring

data

Off GPRS is inactive

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

6 ABB

Front panel description

1 2 3 4 5 6 7 8

GUID-D7C21EEA-D670-4692-88AC-20EF819C405C V1 EN

Figure 4. Front panel

1 Power supply connector

2 Console serial port (DIP switch selectable application or console port RS1)

3 Power switch

4 Console switch

5 Application serial port (RS2)

6 DIP switches

7 I/O extension (only available for RER603)

8 Ethernet connector

Antenna panel description

Both Wireless Gateways RER601/603 have a SIM card

insertion slot with SIM card tray and antenna connector card

on the antenna panel.

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

ABB 7

GUID-2B929BD8-BF18-4B59-80EE-B54371DDA833 V1 EN

Figure 5. Antenna panel

1 FME connector for an antenna

2 SIM card slot

4. Communication

The Wireless Gateways RER601/603 have wireless

functionality that allows the use of wireless applications within

the customer defined operator’s network. High-speed

wireless data transfer speed can be supported if needed,

however the practical data transfer rates depend on the

subscription details and wireless network capacity and

bandwidth.

Operating within these wireless networks (GPRS/GSM) the

Wireless Gateways RER601/603 may utilize the supported

communication protocols. This offers flexibility in system

design, allowing users to develop solutions for their own

applications with high data availability and reliability. The

devices are designed to withstand the operational

requirements of most secondary substation environments and

offer industrial quality connectivity devices for the IEC 60870

protocol family. The IEC 60870 protocol family is a vendor-

independent communication standard for the power

distribution industry.

Additionally, with the Wireless Gateways RER601/603

conventional IEC 60870-5-101 devices can be attached to a

modern TCP/IP based IEC 60870-5-104 control system.

Ethernet and GPRS/GSM data network interfaces provide a

seamless communication solution for most of the applications.

IEC 60870-5-104 is used to communicate towards a SCADA

via an approved M2M Gateway (available from ABB) over the

available customer chosen GPRS/GSM data network. In the

opposite direction IEC 60870-5-101 can be used to

communicate with the devices in the field via the serial ports.

This communication can also be done using the Ethernet port

and a RJ-45 cable between the controlled device and the

Wireless Gateways RER601/603.

The Wireless Gateways RER601/603 have two application

serial ports. Serial port 1 is configurable to either console or

data mode and supports only RS-232, while serial port 2 is

configurable to multiple serial modes (RS-232/422/485).

Serial port connectors are 9-pin D-sub (male) connectors.

More information is available in the Technical Data section of

this product guide or technical manual available at

www.abb.com/substationautomation.

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

8 ABB

5. Technical data

Table 2. Dimensions

Description Value

Width x Height x Depth 45 x 175 x 108 mm (without antenna)

Table 3. Hardware

Description Value

Processor environment Processor 32 bit RISC

Memory 8 MB FLASH

32 MB SDRAM

Power Power supply 6...26 VDC nominal voltage input

Power consumption 1...5 W

Fuse Automatic resettable

Input protection ESD

Other Sensor Temperature

Internal clock Real time

Approvals CE

Environmental conditions Temperature ranges -40...+70 °C

(operation)

-40...+85 °C

(transport and storage)

Relative humidity 5...85 % RH

Table 4. Software

Description Value

Network protocols PPP, IP, ICMP, UDP, TCP, ARP, DNS, DHCP, FTP, TFTP, HTTP,

POP3, SMTP

Tunneling (VPN) SSH-VPN client (requires M2M Gateway)

L2TP-VPN client (requires M2M Gateway)

SSH client

Management WWW, SSH, Telnet and console FTP, TFTP and HTTP software update

Routing and firewall Static routing, proxy ARP, port forwarding, IP masquerading/NAT,

firewall

Serial device connectivity Device server application (IEC 60870-5-104 GW)

Simultaneous GPRS, CSD and SMS

SMS configuration and status reporting

IEC 60870-5-104 and IEC 60870-5-101 IEC 60870-5-104 over TCP or UDP

IEC 60870-5-101 FT 1.2 framing

Local IEC 60870-5-101 polling

ASDU replacer

Packet compressor

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

ABB 9

Table 5. Physical interfaces

Description Value

I/O interfaces (for Wireless Gateway RER603 only) 8 binary inputs

2 binary outputs

GUID-9E610926-032D-486F-AB59-CFBF3D85396C V1 EN

Figure 6. Front view of RER603 showing the I/O connector pin numbering

Table 6. RER603 I/O connector pins

PIN Symbol Description

1 V+ Vcc out, 50 mA

2 DI_1 Digital input, 0...60V

3 DI_2 Digital input, 0...60V

4 DI_3 Digital input, 0...60V

5 DI_4 Digital input, 0...60V

6 DI_5 Digital input, 0...60V

7 DI_6 Digital input, 0...60V

8 DI_7 Digital input, 0...60V

9 DI_8 Digital input, 0...60V

10 DI_COM Digital inputs referense input

11 DO_1A Digital output pole 1, 0...60V, 50 mA

12 DO_1B Digital output pole 2

13 DO_2A Digital output pole 2, 0...60V, 50 mA

14 DO_2B Digital output pole 2

15 GND GND output

Wireless Gateway 1MRS757424 C

RER601/603

Product version: 1.2

10 ABB

Altri manuali per RER601

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente

RTA

RTA 460MCBC-N2E Scheda tecnica
