ABB Welcome Manuale utente

Door Communication

ABB-Welcome

User Manual

The front door is the gateway between

the outside world and your private living

space. The modern door communication

of ABB-Welcome now opens new

possibilities for both sides – overall comfort,

greater safety and stylistically matching

design. The system harmoniously adapts

to the architecture outdoors. In the

interior area it can be uniformly matched

with light switches and socket outlets.

User Manual ABB-Welcome | 3

4 | User Manual ABB-Welcome

Most welcome.

Intelligence with system.

ABB-Welcome. The new door communication from ABB, the

leading brand with in home technology and innovative solutions

for intelligent building automation. The new product range

ABB-

Welcome

supplements the comprehensive range in a practical

way. It sets new standards as a holistic system. It combines

perfect design, comfort, efficiency and security. Living space

can now be consistently and uniformly designed.

From the light

switch up to door communication. Inside and outside.

User Manual ABB-Welcome | 5

The right solution for every requirement. With the wide range

well-designed products,

optimum door communication can

be made a reality

for all types of buildings.

Without great effort

due to the 2-wire bus technique.

And always with high-quality

materials that are carefully matched.

This makes ABB-Welcome

ideal for use in new buildings as well as the later integration

during the modernization of all types of real estate.

Door to door.

Technology and progress.

6 | User Manual ABB-Welcome

01 ABB-Welcome Video outdoor station

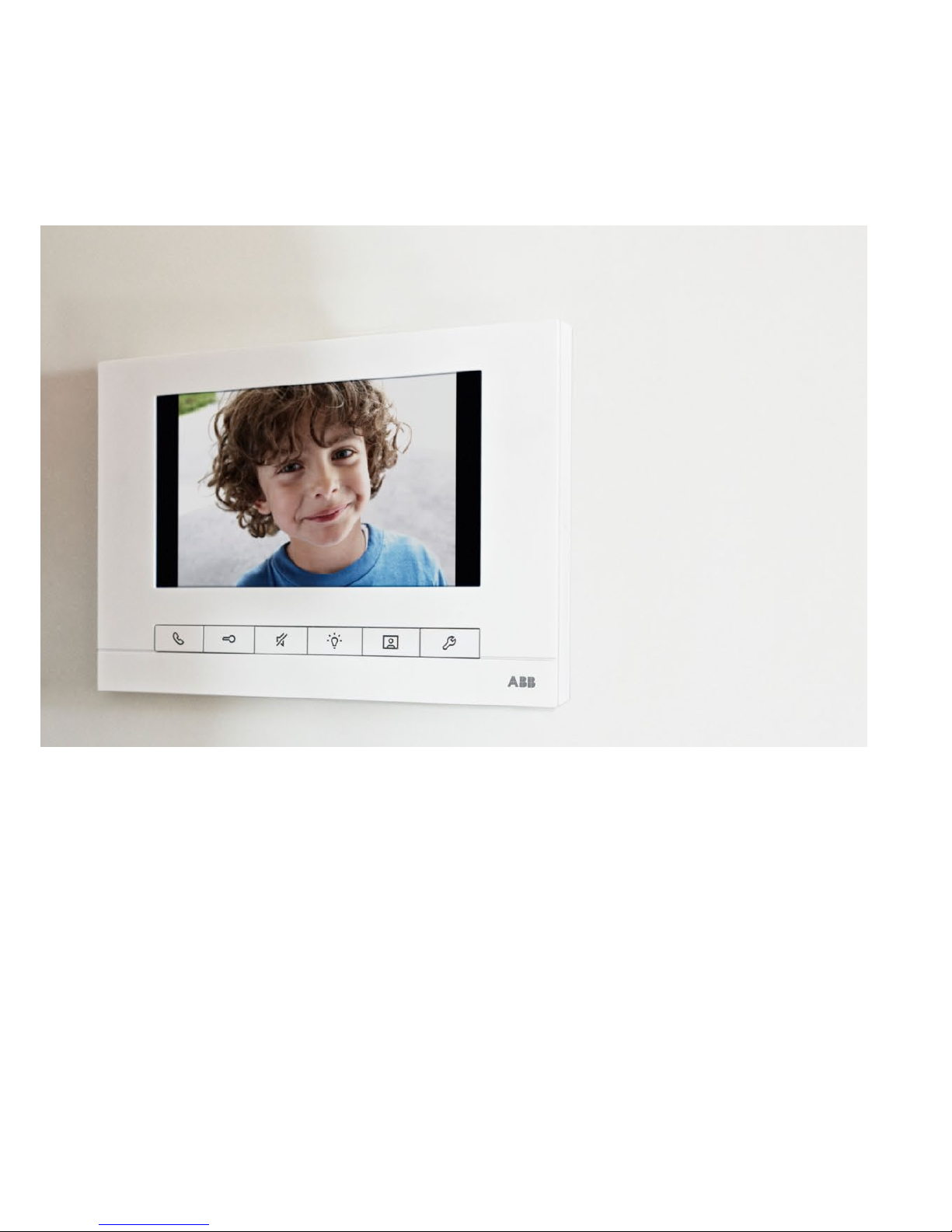

02 ABB-WelcomeTouch

03 ABB-Welcome audio indoor station with handset

04 ABB-Welcome audio indoor station with display

User Manual ABB-Welcome | 7

8 | User Manual ABB-Welcome

01 Examples for typical ABB-Welcome systems 10

02 Planning ABB-Welcome systems 14

03 Installation 30

04 Commissioning 36

05 Operation 42

06 Overview of product range 44

07 Connection diagrams 52

Legend 56

Contents

User Manual ABB-Welcome | 9

Multifamily house, audio Fig. 2

Retrofitting an ABB-Welcome system in a multifamily house

with existing wiring is very easy. Even a plain bell system

can be converted to audio or video. Depending on the local

circumstances, an installation with recourse to a rising mains,

as shown in Figure 2, is recommended. The wires branch off

on each floor where the existing apartments are located –

to where an audio indoor station with handset is mounted.

There the user can answer incoming calls, open the door and

switch on the lights in the stairwell. Also floor call buttons can

be used. These are connected to the indoor station.

One-family house, audio/video Fig. 1

ABB-Welcome systems consist at least of a system controller,

outdoor station and indoor station. In Fig. 1 three indoor

stations are installed in the one house. When a visitor rings

the bell at the ABB-Welcome video outdoor station, the call

can be answered either at the ABB-WelcomeTouch, at the

ABB-Welcome audio indoor station with display or the ABB-

Welcome audio indoor station with handset.

0201

01 One-family house

02 Multifamily house

The ideal system for every building

More is possible. ABB-Welcome systems offer flexible

solutions. Planning is made as simple for you as are installation

or commissioning. The 2-wire bus technique makes possible

the suitable layout – to fully meet the requirements of the user.

10 Examples for typical ABB-Welcome systems | User Manual ABB-Welcome
