There are 2 wheels attached to the front leg support of the Ab Coaster® in order to aid in the moving and
storage of the unit.
Keep stored in a cool, dry place. If placed in long-term storage, you should cover the unit with
a cloth or other material to protect the unit from excessive dust or dirt accumulation.
Maintenance:
Keep unit clean and free of debris. Wipe periodically with cloth to keep track clean.
MOVING AND STORING THE AB COASTER® CTL
RESISTANCE TRAINING (Weights Not Included)
USING ADDED WEIGHT FOR RESISTANCE: There is a weight post underneath the Seat of the
Ab Coaster® CTL for adding weights (not included) for extra resistance during exercise.
CAUTION:
Do not add more than 40 lbs. of weight in total to the post (4 plates of 10 lbs. each). Use safety clip when
adding weights (clip not included). Before adding any weight, ensure that you are able to perform the
exercise with proper form without any additional weight.
Please visit www.AbCoasterClub.com and www.AbCoasterBlog.com
to view video of proper usage of the machine.
WARNING: As with any physical exercise routine, injuries may result from incorrect usage of equipment
or excessive training.
6 7

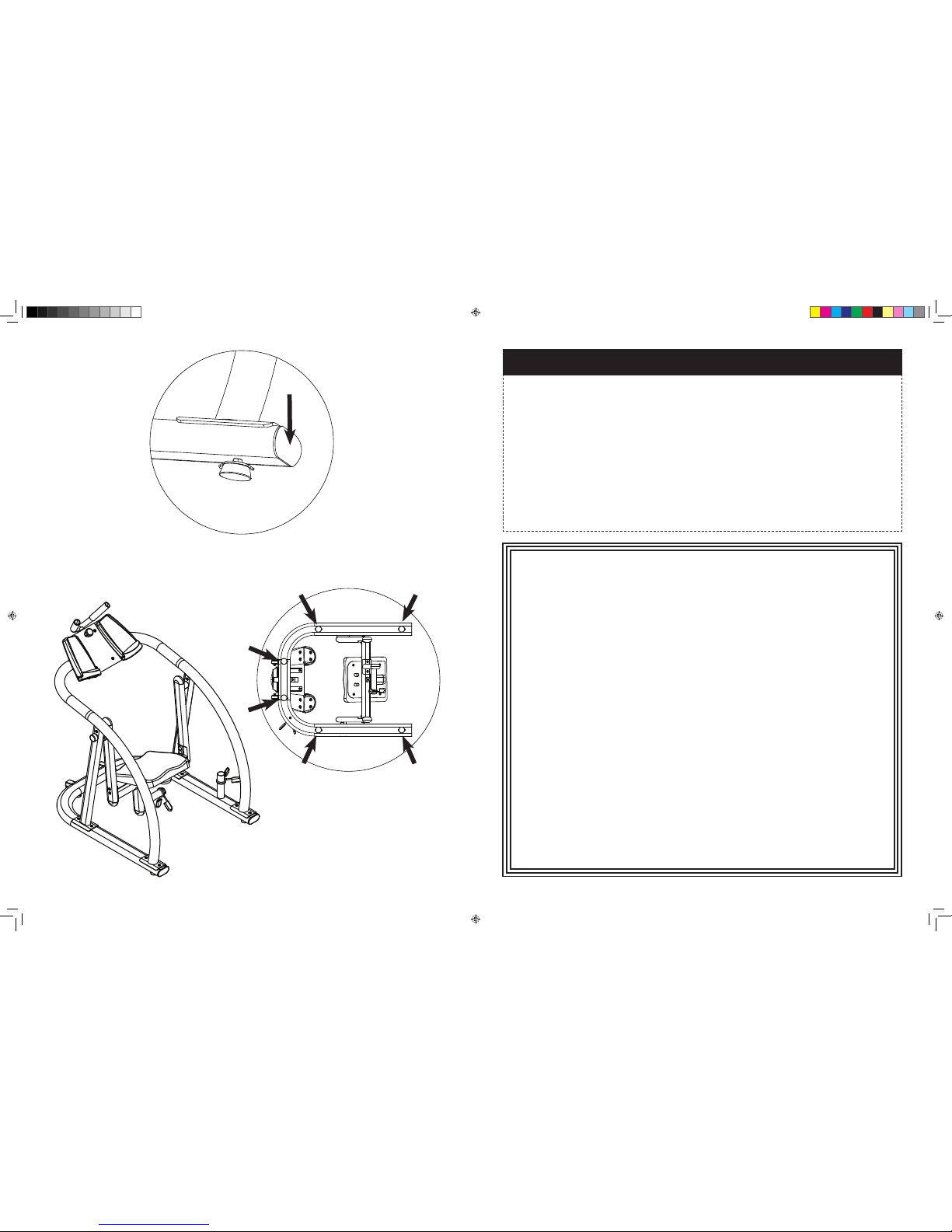

PARTS LIST & VIEW
NO. Part Name Specification QTY (PCS)
01 arm plate support frame 1
02 side frame 2
03 left support frame 1
04 right support frame 1
05 left swing arm 1
06 right swing arm 1
07 knee pad support frame 1
08 knee pad weight post 1
09 knee pad plate 1
10 frame weight post 1
11 base frame 1
12 adjustable U handle 1
13 arm plate assembly 1
14 phillips screw ST4.8*15 4
15 M10xL70 hex screw M10*L70, (15mm thread) 1
16 M10xL55 hex screw M10*L55, (15mm thread) 4
17 M10xL25 hex screw M10*L25, full thread 1
18 M10xL25 hex screw M10*L25, full thread 4
19 M10xL15 hex screw M10*L15, full thread 14
20 M8xL45 hex screw M8*45 (15mm thread) 2
21 M8xL15 hex screw M8*L15, full thread 5
22 M10 nut M10 4
NO. Part Name Specification QTY (PCS)
23 M10 nut white nylon M10 white nylon 4
24 M8 nut white nylon M8 white nylon 2
25 flat washer OD16*ID8*1.5 2
26 flat washer OD30*ID11*T2.5 2
27 spring washer ø10 1
28 clamp match ø45*2.0 th=ubing 2
29 ø38*ø10.5*ø2 1
30 bearing model: 61904Z OD37*ID20*T9 4
31 flat washer OD20*ID11*2.0 4
32 S8 hex screw S8 1
33 S6 hex screw S6 1
34 S17 4mm thickness 1
35 roller bushing ø12.5*ø8*33 2
36 leveler orientation 63*45*3 6
37 ø38 nylon bushing OD38*ID25*H19 2
38 seat swivel bushing ø25*T8 3
39 ø23*37 2
40 weight post end cap match ø45*2.0 tubing 2
41 handle adjustment knob M16*1.5P 1
42 handlebar foam ø38*3*150,match ø32*1.5 tubing 2
43 handlebar end cap matchø32*2.0 tubing 2
44 square end cap match 32*32*1.5 tubing 1
NO. Part Name Specification QTY (PCS)
45 oval end cap match oval100*50*2.0 tubing 2
46 oval tubing match oval 80*40*2.0 tubing 6
47 square tubing ø40*2.0ø32 tubing 1
48 round tubing ø48*25,match ø42 2
49 knee pad 410*380*80 1
50 arm pad L310*W150*H120 2
51 leveler ø50*67,M10 6
52 roller ø47*27,34g 2
53 M10 nut cover match M10 nut 4
54 swing arm cover ø100*37 1
55 swing arm cover ø92*8 1
56 clamp cover 25*10*44 4
57 arc washer ø22*ø8.5*1.5T 4
58 M10xL15 hex screw M10*L15,full thread 14
59 M8xL15 hex screw M8*L15,full thread 4
Weight post
for resistance
training
Weight post
for storage
