Abocom USB Home PhoneLine 1Mbps Network Adapter Manuale utente

USB Home PhoneLine

1Mbps Network Adapter

User’s Guide

M73-APO08-250

REGULATORY STATEMENTS

Part15, Class B

This device complies with Part 15 of FCC rules. Operation

is subject to the following two conditions:

1. This device may not cause harmful interface, and

2. This device must accept any interface received,

including interface that may cause undesired operation.

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there

is no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the distance between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

Changes or modifications not expressly approved by

party responsible for compliance could void the

user the user authority to operate the equipment.

FCC Part 68 Registration

This equipment complies with Part 68 of the FCC Rules.

On the bottom of this equipment is label that contains,

among other information, the FCC registration Number and

Ringer equipment Number (REN) for the equipment. If

requested, this information must be given to the Telephone

Company.

The REN is useful to determine the quantity of devices you

may connect to your telephone line and still have all of

those devices ring when your telephone number is called.

In most, but not all areas, the sum of the REN’s of all

devices connected to one line should not exceed five (5.0).

To be certain of the number of devices you’re local

telephone company to determine the maximum REN for

you’re calling area. If your telephone equipment cause

harm to the telephone network, the Telephone Company

may discontinue your service temporarily. If possible, they

will notify you in advance. But if advance notice isn’t

practical, you will be informed of your right to file a

complaint with the FCC.

Your telephone company may changes in its facilities,

equipment, operations or procedures that could affect the

proper functioning of your equipment. If they do, you will

be notified in advance to given you and opportunity to

maintain uninterrupted telephone service. If you experience

trouble with this telephone equipment, please contact the

following address and phone number for information on

obtaining service or repairs. The telephone company may

ask that your disconnect this equipment from the network

until the problem has been corrected or until you are sure

that the equipment is not malfunctioning. This equipment

may not be used on coin service provide by the telephone

company. Connection to party lines is subject to state tariffs.

INTRODUCTIONS

The USB Home PhoneLine 1Mbps Network

Adapter is fully compatible with the Universal Serial

Bus (USB) functionality built in Windows 98. It

enables the instant connectivity to multiple PCs over

a home's existing telephone lines.

You can share network-enabled printers, transfer files

between computers, play network games, and

moreover - no switches, hubs, or even any additional

cables is needed. The network runs on standard

home-grade-telephone wires just like the ones you

use everyday. Plus, it doesn’t interfere with your

normal phone use.

Features

• Connects to a network using your existing

telephone line -- No additional hubs or network

cables needed

• Working with any PC with a USB port

• Microsoft Windows 98/2000/Millennium

supported

• 1Mbps transfer rate over telephone lines

• External USB network adapter with 1 RJ-11

modular telephone port

• USB cable included – true plug & play

• HomePNA specification 1.1 compliant

• Connects up to 25 devices together on your

home phone network

About Home Phone Networking Technology

The USB Home PhoneLine 1Mbps Network Adapter

utilizes a technology known as Frequency Division

Multiplexing (FDM) which essentially divides the

- 1 -

data travelling over the phone lines into separate

frequencies - one for voice, one for high-bandwidth

net access such as DSL, and one for the network data.

These frequencies can coexist on the same telephone

line without impacting one another.

The 1 Megabit-per-second (one million bits-per-

second) data rate is 18 times that of the fastest analog

modems available, which runs at 56Kbps. Even high-

speed modem, xDSL, and ISDN connections will

perform at full speed on a home network.

Note: Because of the limitations of standard

telephone cables, Home Phone Networking

devices require that your cabling does not

exceed a total length of 500 feet for your

entire network.

System Requirements

 A Pentiumprocessor-based personal computer

166MMX or above.

 At least 16 MB of RAM.

 One USB port well installed and enabled.

 Microsoft Windows 98

Specifications

Network Standard

 HomePNA specification 1.1

 Standard phone wiring

Supported Operating Systems

 Windows 98

 Windows 2000

 Windows Millennium

- 2 -

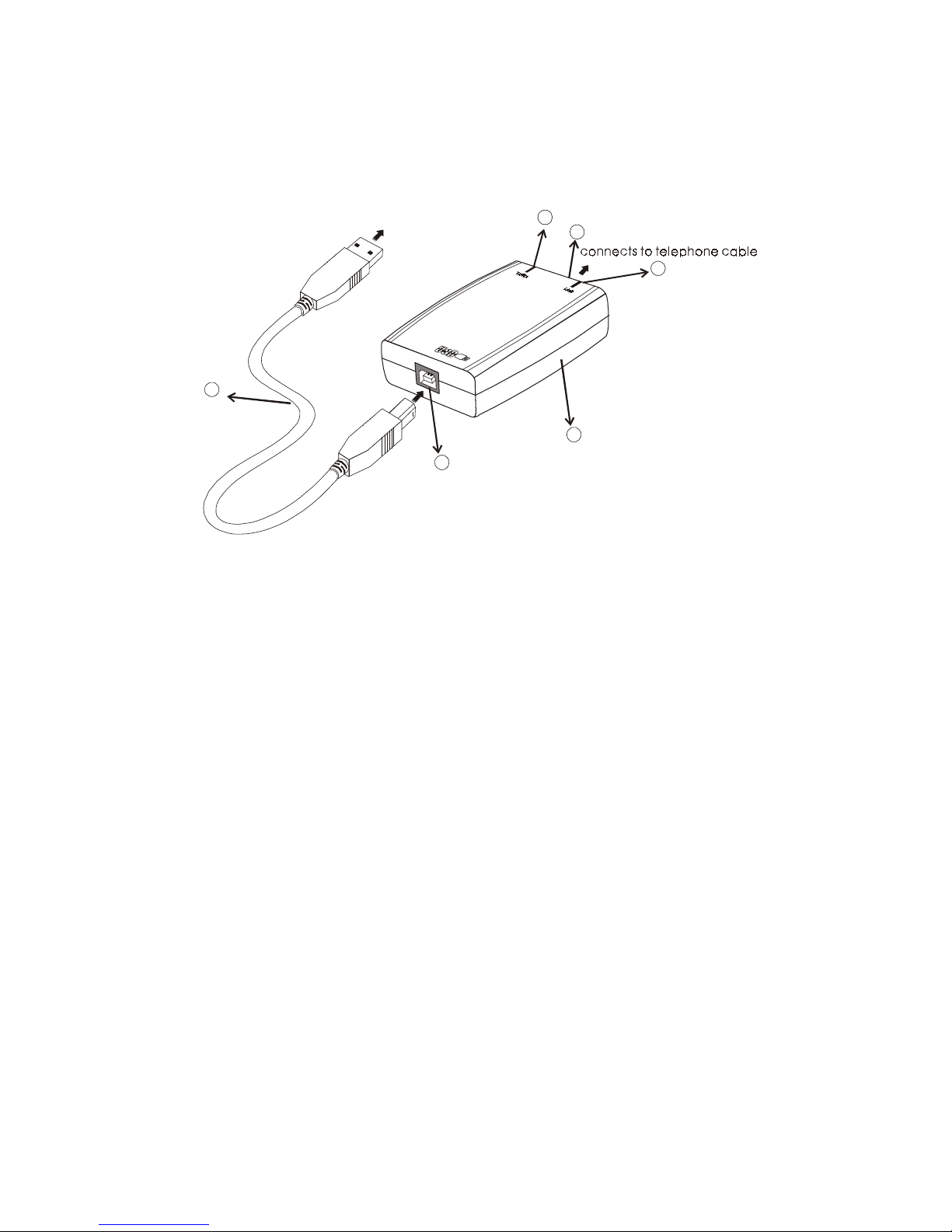

Parts Names and Functions

USB Connection Cable: connects the USB host

port with the USB Home PhoneLine 1Mbps

Network Adapter.

connects to the USB host port

USB-B Port: USB device port.

USB Home PhoneLine 1Mbps Network Adapter

Rx/Tx LED indicator: blinks amber when the

USB Home PhoneLine 1Mbps Network Adapter

is transmitting/receiving data

Link LED indicator: glows green when the USB

Home PhoneLine 1Mbps Network Adapter is well

connected.

RJ-11 port: connects the USB Home PhoneLine

Network Adapter with telephone wire.

- 3 -

HARDWARE INSTALLATION

Precaution

Before the installation, make sure the USB port exists

in your computer and is enabled. To check this, go to

My Computer



Control Panel



System. Open the

Device Manager tab. If the Universal Serial Bus

controller device is found, it means your USB port is

installed and enabled. If not, either no USB port is

installed or the USB bios is not properly enabled. In

this case, consult your computer dealer for USB

support.

Getting Hooked Up

1. Locate the USB host port of your system. Align

the USB connector toward the USB host port,

push evenly and steadily until it is seated.

2. Connect another end of the USB connection

cable to the device port of your USB Home

PhoneLine 1Mbps Network Adapter (i.e. USB B

- 4 -

Port, refer to the section titled “Parts Names and

Functions” for details) until it clicks.

3. Windows 98 will automatically detect the new

hardware device. Perform the following

procedures to install the device driver.

Connecting Telephone Cabling

1. Attach one end of the telephone wire to the USB

Home PhoneLine 1Mbps Network Adapter’s RJ-

11 telephone port.

2. Connect the other end of the wire into a

telephone jack in your wall.

- 5 -

SOFTWARE INSTALLATION (WINDOWS

98)

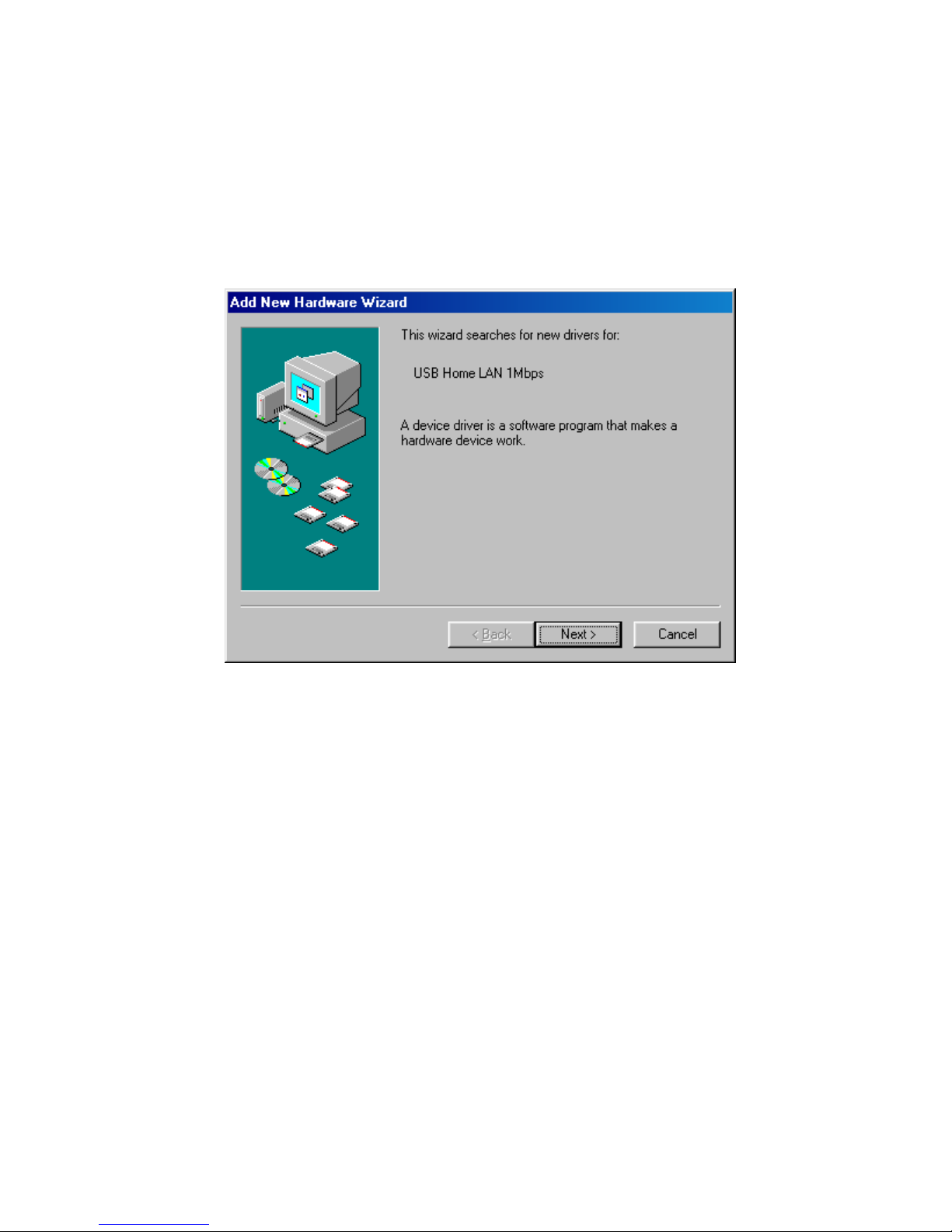

1. Once the USB Home PhoneLine 1M Network

Adapter was connected to your computer,

Windows 98 will automatically detect the new

hardware device as shown below. Click Next.

2. Insert the device driver diskette into your floppy

drive. When Windows prompts you What do

you want Windows to do? Select Search for the

best driver for your device. (Recommended).Click

Next.

3. Follow the on-screen instruction to proceed.

4. The installation program will proceed

automatically.

- 6 -

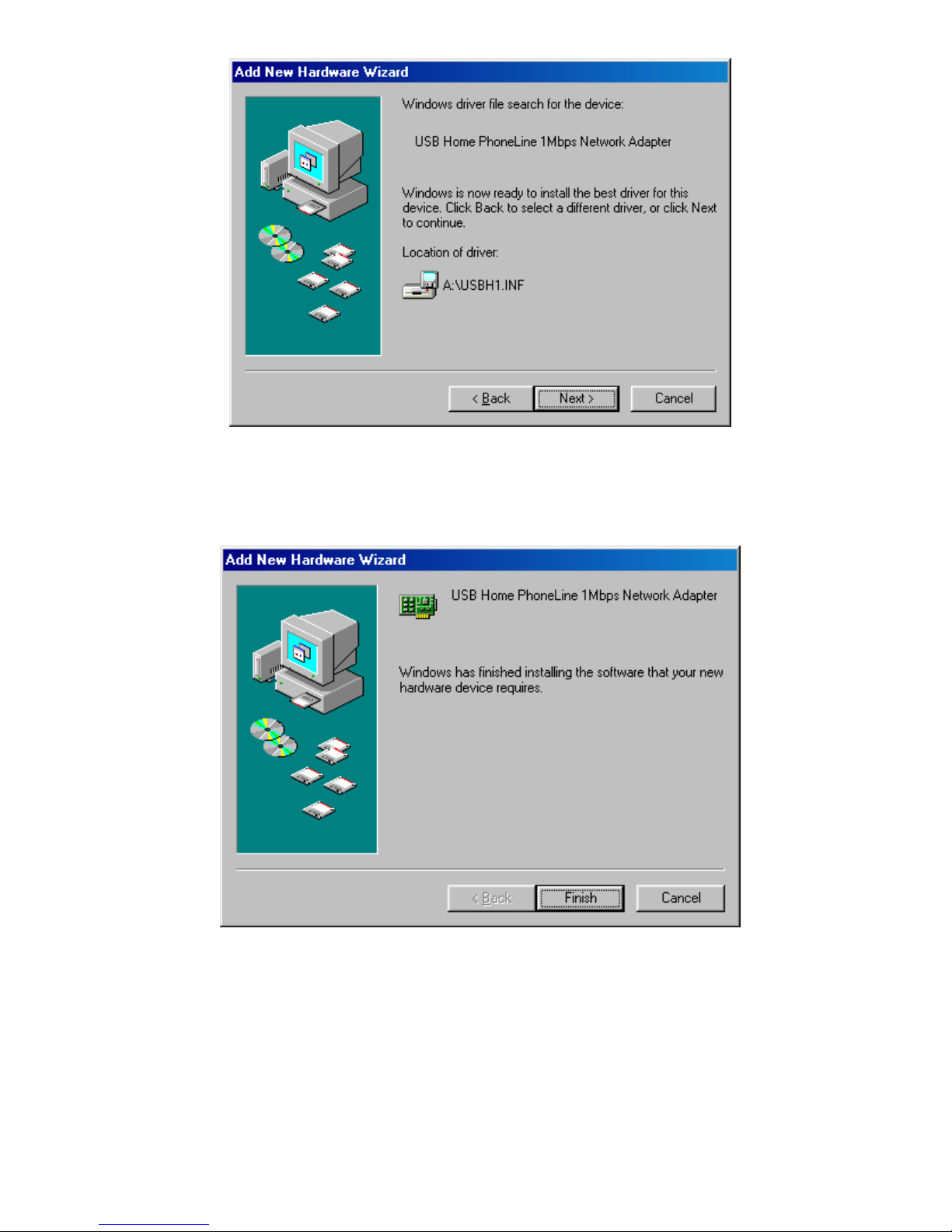

5. Windows will finish copying all the necessary

files to your system. When the following

window appears, click Finish.

6. When asked if you want to restart your computer,

click No

7. Once you are back at the Windows 98 desktop,

click the Start button. Click Settings, then

Control Panel.

- 7 -
