AC Infinity CLOUDLINE AC-FKS4 Manuale utente
USER MANUALUSER MANUAL
CLOUDLINE
AIR FILTRATION SYSTEM
3
WELCOME
Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service.
If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com
and click contact for our contact information.
EMAIL
support@acinfinity.com
WEB
www.acinfinity.com
LOCATION
Los Angeles, CA
4
PRODUCT
Air Filtration System 4
Air Filtration System 6
Air Filtration System 8
MODEL
AC-FKS4
AC-FKS6
AC-FKS8
UPC-A
819137022065
819137021891
819137022072
MANUAL CODE CL2105X1
5
MANUAL INDEX
Manual Index .................................................................................
Key Features .................................................................................
Product Contents ...........................................................................
Installation (Hanging) .....................................................................
Installation (Motor Cap Orientation) ...............................................
Installation (Mounting) ...................................................................
Installation (Filter & Ducting) .........................................................
Powering and Setup ......................................................................
Controller Upgrade ........................................................................
Cleaning ........................................................................................
Programming .................................................................................
FAQ ................................................................................................
Other AC Infinity Products .............................................................
Warranty ........................................................................................
Page 5
Page 6
Page 7
Page 9
Page 14
Page 15
Page 20
Page 25
Page 26
Page 27
Page 29
Page 30
Page 32
Page 33
6

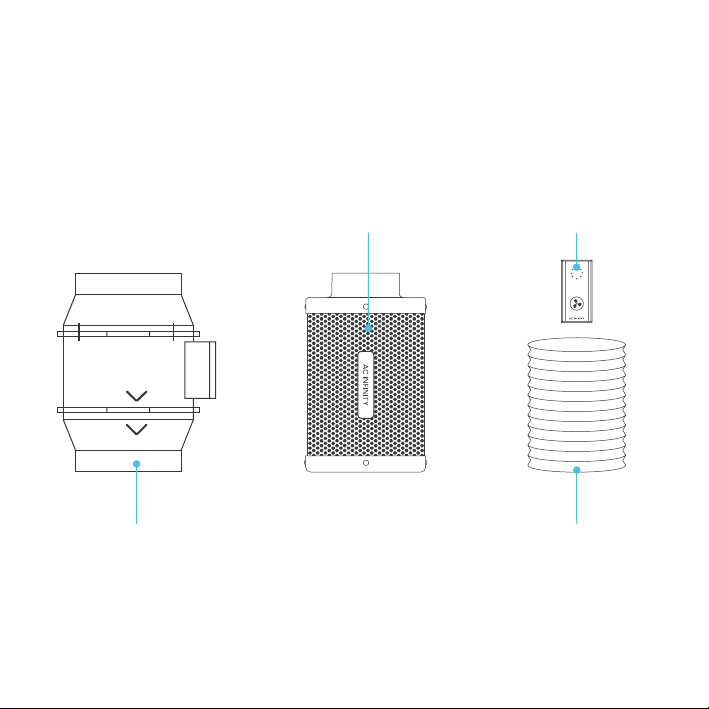

KEY FEATURES
SPEED CONTROLLER
Single button controller
with circular dot display that
enables fan speed control in
ten speeds.
DUAL BALL BEARINGS
The motor contains ball
bearings with a 67,000 hour
lifespan. Enables the fan to be
mounted in any orientation.
IP-44 PROTECTION
The inline duct fan is sealed
to Ingress Protection 44
standards, rated with high
resistance to liquids and dust.
ACTIVATED CARBON
Features RC412 1200+ IAV
Australian charcoal with high
adsorption rate to completely
block odor and scrub the air.
FLEXIBLE DUCTING
The outer layer is made of
dual PVC thermoplastic that
protects the aluminum from
cuts and tears.
REVERSIBLE FLANGES
The flanges can be removed
and placed on the opposite ends
to fully utilize the carbon bed
inside.
7

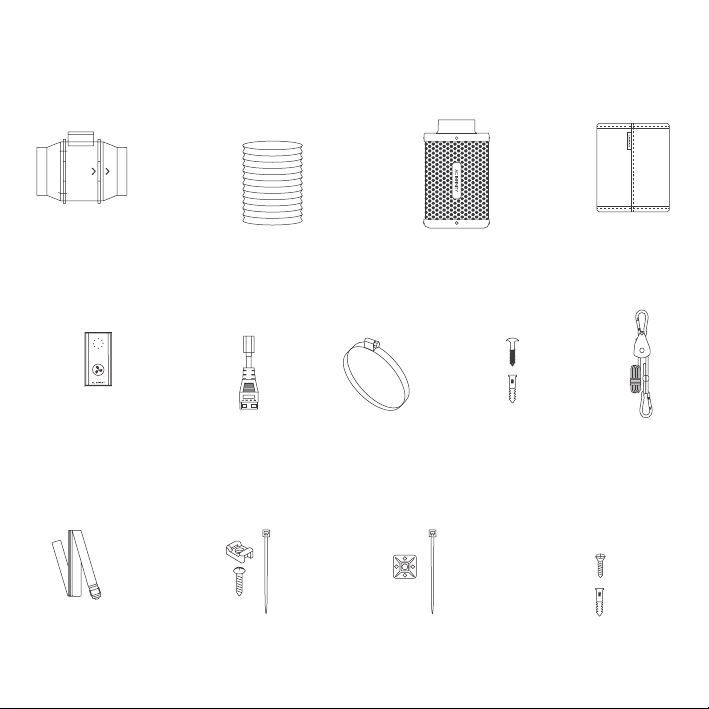

PRODUCT CONTENTS
DUCT FAN
SYSTEM (x1)
SPEED
CONTROLLER (x1)
CARBON
FILTER (x1)
PREFILTER
CLOTH (x2)
FILTER
STRAPS (x2)
DUCT FAN
SCREW SET (x4)
DUCT
CLAMP (x2)
FLEXIBLE
DUCTING (x1)
WOOD SCREWS
(WALL MOUNT) (x1)
ROPE
CLIP (x2)
WIRE
MOUNT (x6)
PROBE
MOUNT (x1)
TYPE-C
ADAPTER (x1)
8

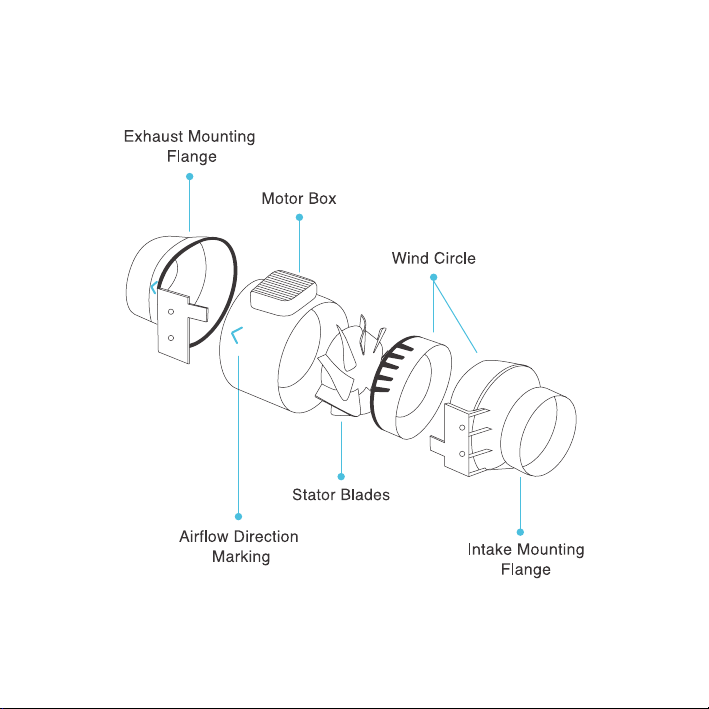

PRODUCT CONTENTS
9
HANGING
INSTALLATION
To use this filter in intake applications, place the filter inside your grow space. Make sure the filter is
connected to your inline duct fan's intake end before completing the installation.
To use this filter in exhaust applications, place the filter outside of your grow space. Make sure the
filter is connected to your inline duct fan's exhaust end before completing the installation.

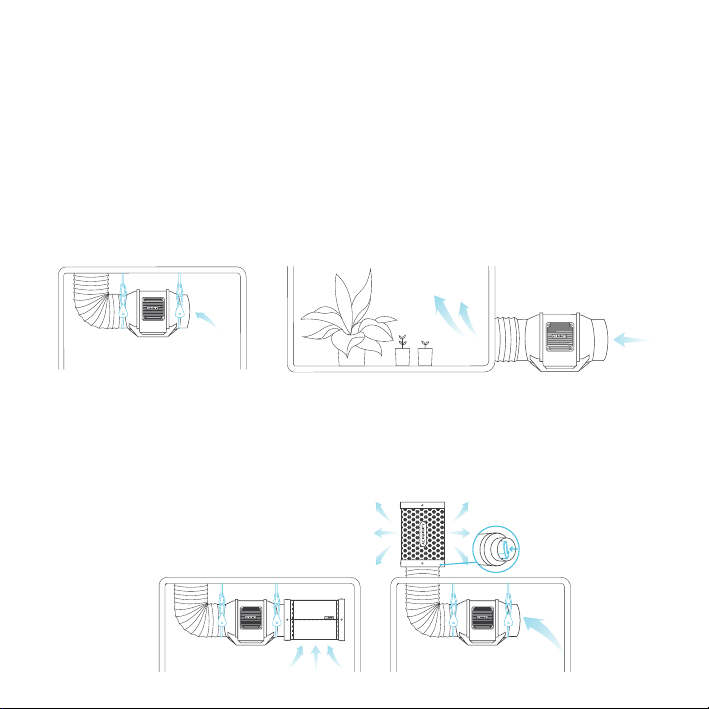

INTAKE AND EXHAUST
This fan can be used as either an intake fan or an exhaust fan in grow rooms and larger grow tents.
To achieve optimal whole space ventilation, the intake fan or opening - if not using a fan - must be
situated at a bottom corner of your grow space. The exhaust fan must be hung (shown below) or
mounted at the highest opposite corner possible.
Make sure the intake fan’s airflow arrow is pointing towards your grow space and the exhaust fan’s
arrow pointing away from your grow space.
10

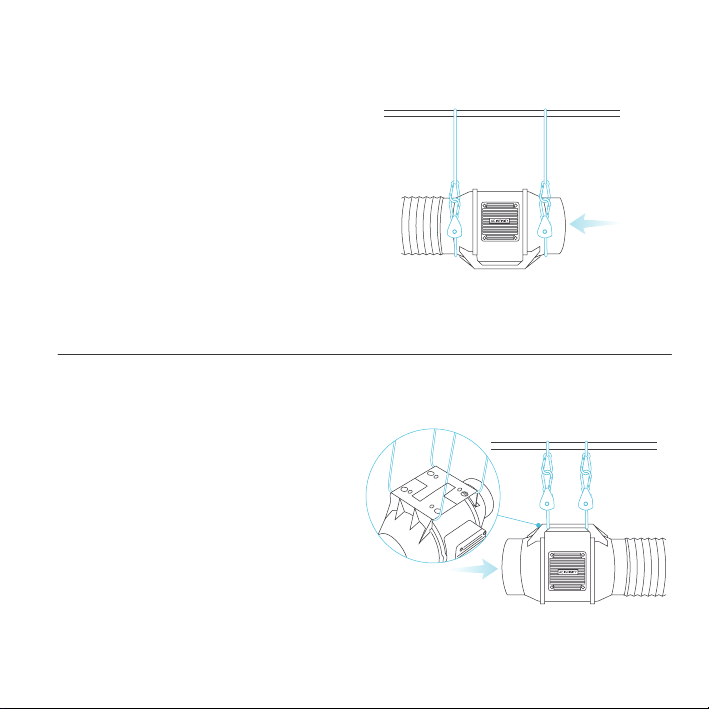

INSTALLATION
Hanging Downward
Loop the two rope hangers around a pole and
the fan's bracket.
Clip the carabiners onto each other. Shorten
the loops as needed.
Make sure the fan's airflow arrow is pointing
towards your desired direction.
Hanging Upward
Loop the two rope hangers around a pole and
clip the carabiners onto each other. Shorten the
loops as needed.
Hang the fan by the duct flanges to secure it.
HANGING - ROPE CLIPS
