DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

[Type text] [Type text] [Type text]

AccuPel DGA-6000

Ultra-HD Video

Generator / Analyzer

USER MANUAL

Version 0.995

Safety Information

• Do not expose the DGA-6000 to rain or moisture. Do not operate the DGA-6000 with the covers

removed.

• Use only the supplied power module. Route power cords so they will not be stepped on or

pinched by anything placed on or against them.

• Keep the DGA-6000 away from wet locations such as bathtubs, sinks, wet basements or

swimming pools.

• Unplug the DGA-6000 before cleaning. Use a damp cloth for cleaning. Do not use cleaning

fluids or aerosols, which could enter the unit and cause damage, fire or electrical shock.

• Do not attempt to service this unit. Never remove the covers. Disconnect it and contact Display

Calibrations, LLC directly for service.

AccuPel is a trademark of Display Calibrations, LLC.

Specifications subject to change without notice.

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

TABLE OF CONTENTS

INTRODUCTION: VERSATILE, ACCURATE, EASY-TO-USE ...........................................................1

FRONT PANEL CONTROLS ......................................................................................................................5

LED INDICATORS .......................................................................................................................................5

OUTPUT SELECTOR..................................................................................................................................... 5

OUTPUT INDICATOR LEDS.........................................................................................................................5

50 HZ /60 HZ SELECTION...........................................................................................................................5

FORMAT SELECTOR ....................................................................................................................................6

FORMAT INDICATOR LEDS........................................................................................................................6

GROUP SELECTOR ......................................................................................................................................6

GROUP INDICATOR LEDS...........................................................................................................................6

PRIOR &NEXT PATTERN SELECTOR BUTTONS ..........................................................................................7

IR REMOTE CONTROL FUNCTIONS ....................................................................................................8

OUTPUT SELECTION ...................................................................................................................................8

SYNC SELECTION........................................................................................................................................8

FORMAT SELECTION ...................................................................................................................................9

PATTERN SELECTION................................................................................................................................ 10

OTHER GENERATOR IR REMOTE CONTROL FUNCTIONS ..........................................................................11

ON SCREEN DISPLAY (OSD) ..................................................................................................................12

OSD MENU SYSTEMS................................................................................................................................12

GENERATOR AND ANALYZER MENUS ......................................................................................................12

MENU NAVIGATION..................................................................................................................................13

GENERATOR PATTERN BAR...................................................................................................................... 13

GENERATOR OSD MENU...........................................................................................................................14

VIDEO ANALYZER....................................................................................................................................19

ANALYZER SOURCE &MONITOR REQUIREMENTS ...................................................................................19

ANALYZER OPERATION ............................................................................................................................19

ANALYZER IR REMOTE CONTROL FUNCTIONS.........................................................................................20

ANALYZER OSD MENU.............................................................................................................................20

ANALYZER PIXELPANE ............................................................................................................................21

ANALYZER INFOPANES ............................................................................................................................22

ANALYZER INFOFRAME TYPES ................................................................................................................24

REAR PANEL I/O........................................................................................................................................25

TEST PATTERN NOTES............................................................................................................................26

COLOR 75 GROUP .....................................................................................................................................26

COLOR 100 GROUP ...................................................................................................................................26

SPECIAL GROUP........................................................................................................................................26

PLUGE GROUP ..........................................................................................................................................27

GRAY SCALE GROUP -LOW-GS, HIGH-GS ..............................................................................................28

GRAY FIELD GROUP .................................................................................................................................28

USING THE 3D CROSSTALK PATTERN.......................................................................................................29

CHARACTERISTICS................................................................................................................................ 30

PICTURE FORMATS (59.94 &60.00 HZ BASED) ........................................................................................ 30

PICTURE FORMATS (50.00 HZ BASED)......................................................................................................31

3D MODE .................................................................................................................................................32

OUTPUT FORMATS....................................................................................................................................32

STANDARD CALIBRATION PATTERNS .......................................................................................................33

VIDEO CONNECTORS,CONTROL INTERFACES,OTHER .............................................................................33

LIMITED WARRANTY..............................................................................................................................34

APPENDIX A USB INTERFACE MANUAL ....................................................................... A-1, A-12

APPENDIX B MOTION PATTERNS MANUAL ................................................................. B-1, B-11

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

Introduction: Versatile, Accurate, Easy-to-Use

The AccuPel DGA-6000 Ultra-HD Video Generator / Analyzer is a professional test equipment device

exclusively for commercial or industrial calibration, testing, and design of HDMI® video displays, sources

and processors. It is not designed or intended for testing computer graphics formats or computer monitors,

or to be embedded in consumer video systems.

Two Independent Test Equipment Devices in a Single Product

The DGA-6000 is a 4K Ultra-HD Video Generator and a 4K Ultra-HD Video Analyzer, and both functions are

HDR and Rec. 2020 compatible. The Generator and Analyzer can be used independently to test video

sources and video displays, or together to test or calibrate video processors. The Video Generator can be

operated from the DGA-6000 front panel, the AccuPel DGA-6 IR Remote Control (included), or the USB

interface that is shared with the Video Analyzer. The Video Analyzer human interface utilizes InfoPanes

(Information Panes) that overlay the Analyzer’s incoming video, which is then displayed on the Analyzer’s

monitor. Analyzer functions are primarily controlled from the DGA-6 Remote Control.

DGA-6000 Ultra and Pro Engineering Option

The DGA-6000 Ultra provides UHD/HD/SD video pattern generation and per-pixel video content analysis

(RGB/YCbCr pixel values with a unique Magnified Pixel Viewport). The Pro Engineering option adds 70

UHD/HD/SD Motion Patterns to the generator that can be used to evaluate displays and video processors,

and additional advanced video analyzer features including live Min/Max/APL metering, Timing

measurements, InfoFrame protocol analysis, and more.

26 Versatile 2D Digital Video Formats with 5 Output Signal Types

The DGA-6000 Ultra generates and analyzes 26 2D digital video formats compliant with CTA-861-F

including 480i/p, 576i/p, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25, 1080p29.97/30,

1080p50/59.94/60, 2160p23.98/24/25, 2160p29.97/30, and 2160p50/59.94/60.

All formats except 2160p50/59.94/60 are available as YCbCr 4:4:4, YCbCr 4:2:2, RGB-Video, and RGB-PC

output signals. The 2160p50/59.94/60 formats are available for YCbCr 4:2:0 output.

33 Additional 3D Digital Video Generator Formats

The DGA-6000 generates 33 additional 3D signal formats. Each 3D signal format is a combination of an

industry-standard 3D structure (Frame Packing, Side-by-Side (Half), or Top-and-Bottom) and a specific

video format (e.g. 1080p24). All 3D formats that industry-conforming 3D display devices are required to

accept are included, plus additional 3D formats used for Blu-ray Disc playback and for cable and satellite

broadcast distribution.

Frame Packing

(8 Formats)

Side-by-Side (Half)

(14 Formats)

Top-and-Bottom

(11 Formats)

1080p23.98/24

1080i59.94/60

1080p23.98/24

720p59.94/60

1080i50

720p59.94/60

720p50

1080p23.98/24

720p50

1080p29.97/30

720p59.94/60

1080p59.94/60

1080p25

720p50

1080p29.97/30

1080p59.94/60

1080p50

1080p29.97/30

1080p25

1080p50

1080p25

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

All DGA-6000 2D test patterns are available in all 33 3D video formats. All 3D formats are available in 10-bit

native (and 8-bit native) YCbCr 4:2:2, and Deep Color (10-bit native) and 8-bit native YCbCr 4:4:4, RGB-

Video, and RGB-PC output modes. A special interactive 3D Crosstalk Measurement Test Pattern is also

included.

Separate High-Precision 10-Bit (30-Bit RGB/YCbCr) & 8-Bit (24-Bit RGB/YCbCr) Signal Values

To provide maximum accuracy, Luma and Chroma values for ITU Rec. 601 (SD), ITU Rec. 709 (HD), and

ITU Rec. 2020 are computed using 64-bit double-precision floating-point math and then rounded to 8-bit and

10-bit values. Separate 10-bit and 8-bit component video values are stored for all 115 standard patterns to

eliminate accuracy errors that could occur when rounding, truncating, or dithering 10-bit output values to

create 8-bit output values. All non-color patterns, including 3D and the optional Motion Patterns, can also be

output as YCbCr green, blue, red, cyan, yellow, or magenta patterns by selecting Gray to Color Conversion

(not available for YCbCr 4:2:0 formats), or by selecting R, G, B channel combinations.

RGB-Video, RGB-PC, and YCbCr 4:4:4 10-bit component video values are output by selecting the 30-bit or

36-bit Deep Color output modes. Users can also select 10-bit or 8-bit YCbCr 4:2:2 (20-bit/16-bit) output.

Maximum Accuracy Direct-Drive Digital (D3)Pattern Generation

For maximum timing accuracy and minimum jitter all video patterns, digital sync, and timing signals are

generated using a low-noise, high-stability, precision crystal oscillator. No format converters or frame buffers

are used to ensure maximum signal timing accuracy.

A custom-programmed pattern and timing generation FPGA directly drives an HDMI digital video output

transmitter with 30-bit and 24-bit RGB/YCbCr video values depending on output signal type. There’s no

digital signal truncation or dithering in the digital video path that would reduce bit-level accuracy.

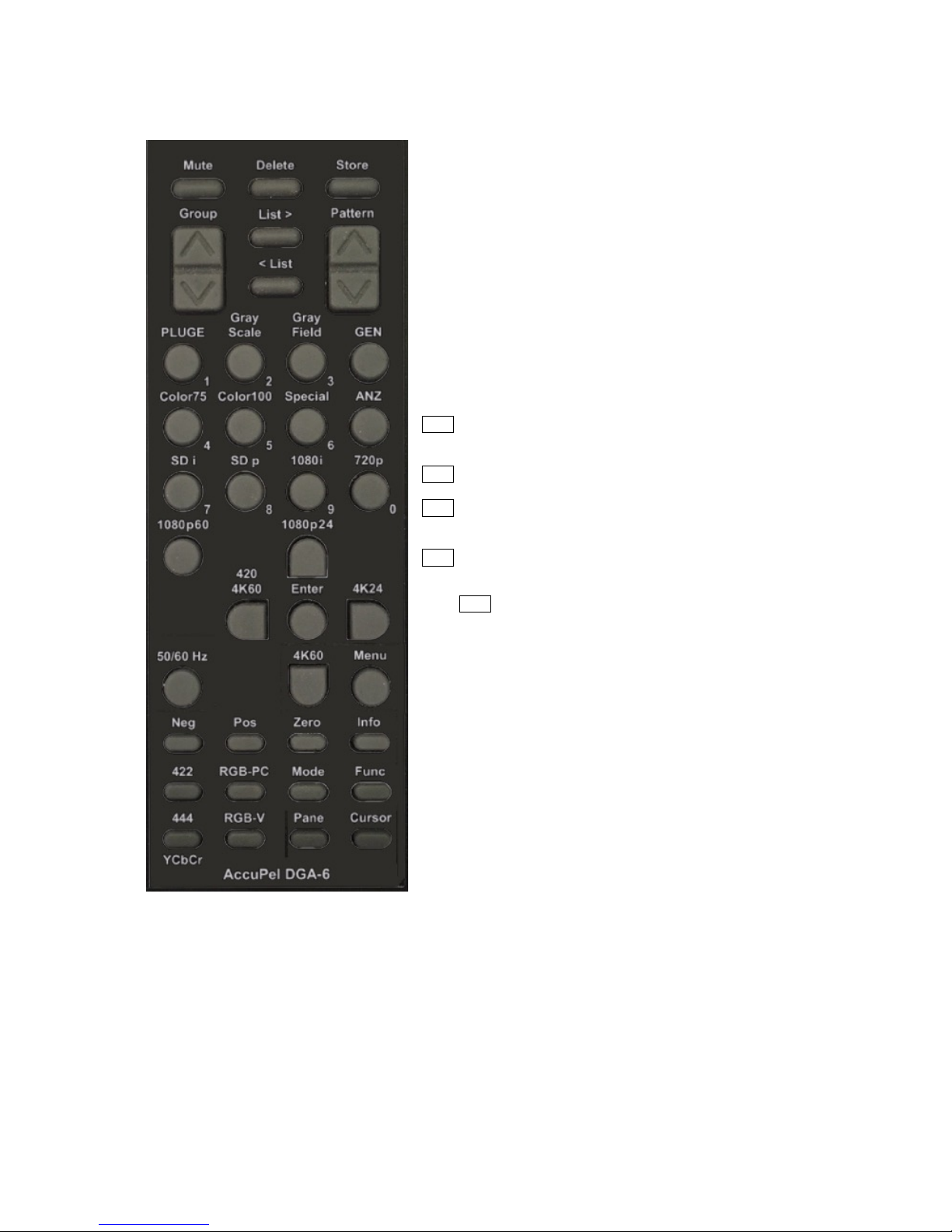

Easy-to-Use Infrared Remote Control

The 41-key, DGA-6 IR remote control provides maximum ease-of-use for standalone Generator operation,

and is the primary user controller for Analyzer functions. Dedicated keys are provided to directly select

Output modes, Format modes, and Pattern Groups. There are also dedicated keys to move forward or

backward through Groups or Patterns. Pattern switching is virtually instantaneous because patterns are

generated in a custom-programmed FPGA, and not loaded into a frame buffer from memory. A user-defined

Pattern List provides another easy way to switch between favorite patterns. Single key pushes will store or

delete up to 10 patterns in the Pattern List, and move forward or backward through the Pattern List.

The IR remote control also provides keys to enter 10-bit, 8-bit, or % user-defined Luma and Color values,

navigate On-Screen-Display (OSD) menus, and operate cursors and all Analyzer features.

OSD Menus

OSD (On-Screen-Display) menus provide access to advanced Generator and Analyzer features including

the ability to select HDR output, select Rec 2020 color-encoding, specify user-defined Luma and Color

values, select window and checkerboard sizes, set output bit-depth, blank individual R/G/B/Y/Cb/Cr output

channels, set power-up default modes, configure the USB interface, select Analyzer functions, and much

more.

USB Control Interface

The USB Control Interface provides full operation of all DGA-6000 functions, including direct selection of

every pattern. Detailed documentation for the USB Interface is included in Appendix A of this manual.

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

Front Panel Controls

LED Indicators

Each time power is applied to the DGA-6000 the PLUGE, Gray Scale, and Gray Field LEDs will

illuminate in sequence for about 15 seconds as the Generator and Analyzer functions are initialized.

The inactive Format LEDs blink once when any valid IR remote control command is received. Any

slowly blinking LED indicates that a special feature mode is active (e.g. Slow Edges).

1 Output Selector

Press and release the Output button to select the type of digital video output produced by the DGA-

6000. Press and release repeatedly to advance directly and more rapidly to the desired Output type.

2 Output Indicator LEDs

YCbCr 444 & YCbCr 422 – YCbCr 4:2:0 signals are selected. *

YCbCr 444 – YCbCr 4:4:4 signals are selected. *

RGB Video – RGB-Video signals are selected. *

YCbCr 422 – YCbCr 4:2:2 signals are selected. *

RGB PC – RGB-PC signals are selected. **

* Y,R,G,B 64-940 (10-bit) or 16-235 (8-bit), black (0%) - reference white (100%)

-7% to 109% total valid range (used in Ramps, High-GS mode, etc.)

Cb,Cr 64-960 (10-bit) or 16-240 (8-bit)

** R,G,B 0-1023 (10-bit) or 0-255 (8-bit), black (0%) - reference white (100%)

3 50 Hz / 60 Hz Selection

Select 50(25) Hz modes by pressing and holding the Format button for about 1 second. When the 50

Hz LED illuminates release the Format button. The 50 Hz / 60 Hz modes will alternate once per

second if the Format button is held longer. The 60 Hz LED is illuminated for 59.94 and 60 Hz formats

(selectable in the OSD menu), as well as 23.98/24 Hz and 29.97/30 Hz formats.

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

4 Format Selector

Press and release the Format button to change the video format in the following order - 1080i, 720p,

SD i, SD p, 1080p60(50), 1080p24(25), and a UHD (e.g. 2160p) user-selectable format (if its frame

rate matches the 50/60 Hz selection). Press and release repeatedly to advance directly and more

rapidly to the desired Format.

SD i (SD p) is the standard-definition interlaced (progressive) format - 480i(p) in the 60 Hz mode and

576i(p) in the 50 Hz mode.

The UHD format (e.g. 2160p24) can be selected in the Generator Misc or Defaults sub-menu to

produce 2160p24, 2160p30, 2160p60, 2160p25, 2160p50, and also 1080p30. Formats can also be

selected directly using the IR remote control or the USB interface.

5 Format Indicator LEDs

The SD i LED indicates 480i when the 480i/p LED is illuminated, and 576i when the 576i/p LED is

illuminated. Similarly, the SD p LED indicates 480p and 576p.

The 1080p LED and one other Format LED (60/50 or 24/25) will be illuminated simultaneously to

indicate a 1080p frame rate (60/50/24/25). The 1080p LED and UHD LED will be illuminated

simultaneously to indicate UHD formats (or 1080p30).

6 Group Selector

The Group button selects a group of patterns. Repeatedly pressing and releasing the Group button

circulates through the pattern groups.

Press and hold the Group Button when the Gray Scale (GS) LED is illuminated to cycle from GS to

Low-GS to High-GS and back to the GS group.

7 Group Indicator LEDs

Color 75 - 16 calibration patterns that include color bars and primary, complementary, and gray color

windows and color fields at 75% signal levels. User-defined color values and window sizes can be

specified in the OSD User/Color menu.

Color 100 - 16 calibration patterns that include color bars and primary, complementary, and gray

color windows and color fields at 100% signal levels. User-defined color values and window sizes can

be specified in the OSD User/Color menu.

Special - 14 patterns for calibrating or evaluating overscan, horizontal and vertical size, geometry,

convergence, contrast, sharpness, banding, and detail enhancement. User-defined checkerboard

luma values and checkerboard sizes can be specified in the Generator User/Checkerboard sub-

menu. The Pro Option’s Motion Patterns also appear in this group with their own operating menu.

PLUGE - 12 patterns for adjusting black-level, contrast, and color temperature.

Gray Scale – 3 Groups of 14 patterns each for measuring and adjusting linearity, color temperature,

gamma, and grayscale tracking. The GS default group includes 14 patterns with 0%-100% luma

values in 10% increments. The Low-GS group includes 14 patterns with 0% to 10% luma values in

1% increments, and the High-GS group includes 14 patterns with 100% to 109% luma values in 0.9%

increments. User-defined window (checkerboard) luma values and window (checkerboard) sizes can

also be specified in the Generator User sub-menus.

Gray Field - 15 patterns for measuring and adjusting full-field uniformity, color temperature, gamma,

and grayscale tracking using full-field patterns. User-defined full-field luma values can be specified in

the Generator User/Field sub-menu.

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

Gray Scale Window & Gray Field Values

When the Gray Scale window or Gray Field patterns are changed (from the front panel or the IR

remote control) the PLUGE, Color 75, Color 100, and Special LEDs temporarily produce a binary

code that represents the luma value of the window or field. The binary code persists for about 1

second and will then disappear.

The LED binary display is for the benefit of users connected to devices other than displays. The OSD

Pattern Information Bar also provides a direct on-screen text display of the window or field luma

value.

Window/Field

% Luma Value

(Low-GS) (High-GS)

PLUGE

LED

Binary Code

Bit 3

Color 75

LED

Binary Code

Bit 2

Color 100

LED

Binary Code

Bit 1

Special

LED

Binary Code

Bit 0

10 (1) (100.9)

20 (2) (101.8)

30 (3) (102.7)

40 (4) (103.6)

50 (5) (104.5)

60 (6) (105.4)

70 (7) (106.3)

80 (8) (107.2)

90 (9) (108.1)

100 (10) (109.0)

8 Prior & Next Pattern Selector Buttons

Selects the next or prior pattern in the current pattern group.

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

IR Remote Control Functions

The AccuPel DGA-6 IR (Infrared) Remote Control provides selection of all calibration patterns, signal

settings, and analyzer functions of the AccuPel DGA-6000. It is also used to navigate and select settings in

the DGA-6000 On-Screen Display (OSD) menus.

The DGA-6000 inactive Format LEDs flash each time a valid IR remote control command is received. A

slowly blinking LED indicates that a special feature mode is active (e.g. Slow Edges).

Output Selection

Directly select the Output type for digital video signals.

YCbCr 444 - Selects YCbCr 4:4:4 digital video signals. *

YCbCr 422 - Selects YCbCr 4:2:2 digital video signals. *

RGB-V - Selects RGB-Video digital video signals. *

RGB-PC - Selects RGB-PC digital video signals. **

* Y,R,G,B 64-940 (10-bit) or 16-235 (8-bit),

black (0%) - reference white (100%) ,

-7% to 109% total valid range (used in Ramps,

High-GS mode, etc.)

Cb,Cr 64-960 (10-bit) or 16-240 (8-bit)

** R,G,B 0-1023 (10-bit) or 0-255 (8-bit),

black (0%) - reference white (100%)

Sync Selection

Pos, Neg, Zero –Used with Generator Sync/Position sub-

menu item to increment, decrement, and reset (zero) the

Hsync and Vsync positions.

Note: HV sync polarity for digital signals is set according to the

CTA-861-F standard. But the digital HV sync polarity can be

overridden in the Generator Output 2 sub-menu.

DGA-6000 ULTRA-HD VIDEO GENERATOR / ANALYZER USER MANUAL

Format Selection

50/60 Hz – Selects 50/25 Hz or 60/30/24 Hz

(59.94/29.97/23.98 Hz) generator formats. The selected mode

is displayed on the front panel Format LEDs.

SD i – Selects 480i (59.94 Hz) or 576i (50 Hz) signals.

SD p – Selects 480p (59.94 Hz) or 576p (50 Hz) signals.

1080i – Selects 1080i59.94, 1080i60, or 1080i50 signals.

720p – Selects 720p59.94, 720p60, or 1080i50 signals.

1080p60 – Selects 1080p59.94, 1080p60, or 1080p50 signals.

GEN 1080p24 – Selects 1080p23.98, 1080p24, or 1080p25

signals.

GEN 4K24 – Selects 2160p23.98 or 2160p24 signals.

GEN 4K60 420 – Selects 2160p59.94 or 2160p60 or 2160p50

YCbCr 4:2:0 signals.

GEN 4K60 – Reserved for future use.

Note: GEN means press the GEN key first and then release

before pressing the desired format key.

Note: North American standard formats are based on 59.94 Hz

(60/1.001 Hz), which is the power-up default state of the DGA-

6000. You may select 59.94 or 60.00 Hz HD formats in the

Generator menu. The 59.94 mode produces the 23.98p and

29.97p formats (more precisely they are 24/1.001 and

30/1.001 respectively).

Note: 1080p formats are indicated on the DGA-6000 front

panel by illuminating the 1080p LED and the 60/50 or 24/25

LED. 2160p formats (and 1080p30) are indicated by

illuminating the 1080p LED and UHD LED.

Indice

Altri manuali AccuPel Invertitore

AccuPel

AccuPel HDG-4000 Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
