EX-G048D
1x3 DVI Splitter with 1-port over CAT5
User Manual
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 1 of 8
Safety and Notice
The EX-G048D 1x3 DVI Splitter with 1-port over CAT5 has been tested for
conformance to safety regulations and requirements, and has been certified for international
use. However, like all electronic equipments, EX-G048D should be used with care. Please
read and follow the safety instructions to protect yourself from possible injury and to minimize
the risk of damage to the unit.
zFollow all instructions and warnings marked on this unit.
zDo not attempt to service this unit yourself, except where explained in this manual.
zProvide proper ventilation and air circulation and do not use near water.
zKeep objects that might damage the device and assure that the placement of this unit is
on a stable surface.
zUse only the power adapter and power cords and connection cables designed for this unit.
zDo not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 2of 8

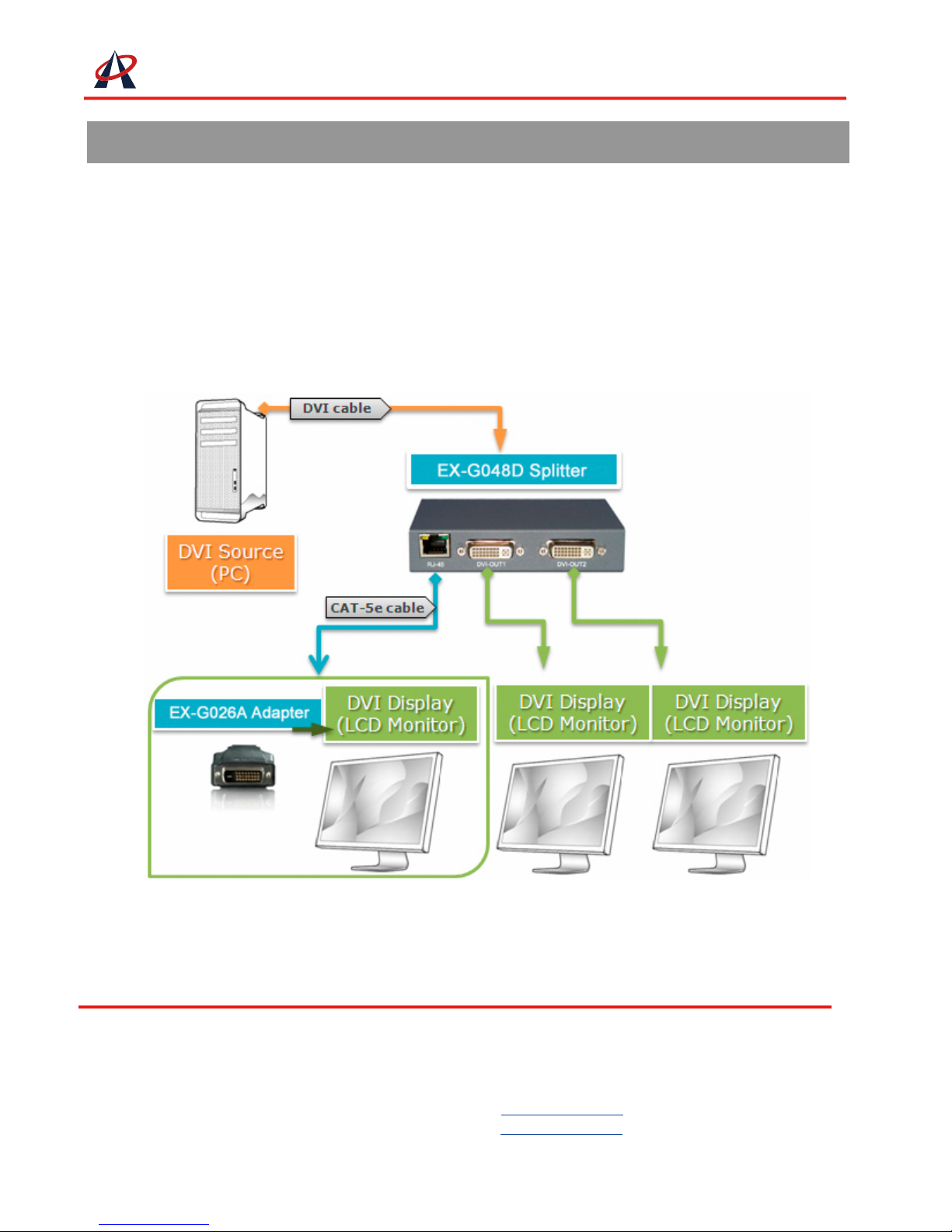

Introduction
The EX-G048D receives and reconstructs (equalizing & re-clocking) a DVI signal and
distributes it to two identical DVI outputs and one RJ45 output. With the DVI over CAT5e
Mini-Extender (EX-G026A), the third output can carry DVI signal through CAT5e cable over
30m / 100ft at 1024x768. The DVI splitter can be perfectly cascaded with one another in order
to obtain more DVI outputs (at least 6 tiers). Each output can be turned on/off individually
through an IR remote control. It will also process (read & store) the EDID information sent over
the Data Display Channel (DDC).
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 3of 8
Features
zConnects a DVI video source to 3 DVI compatible displays
zPerfectly acts as a DVI extender with the DVI over CAT5 Mini-Extender (EX-G026A)
zExtends DVI signal by low cost CAT5e cable up to 30m / 100ft
zStackable, 6 devices stacked can support up to 13 outputs
zIR remote control allows switching outputs (optional)
zReads and remembers the EDID of displays
zOnce stacked/cascaded, machine IDs can be assigned
zMaintain highest video resolution (1600x1200)
zSupport DDWG standard for DVI compliant monitors
zCan be modified EQ with two modes
Package Content
z1x EX-G048D
z1x EX-G026A DVI over CAT5e Mini-Extender
z1x 5V DC power adapter
z1x User Manual
z1x Remote control (optional)
Technical Specifications
zInput connector: 1x DVI-I
zOutput connector: 2x DVI-I & 1x RJ45
zMaximum Resolution: 1600 x 1200
zLEDs:1x Green (ID) & 1x Red (Power)
zDIP switch: 2
zPower Supply: 5V DC
zDimensions: 120mm x 95mm x 23mm (4.7"x3.7"x0.9") (L x W x H)
zWeight: 280g (9.8oz)
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 4of 8

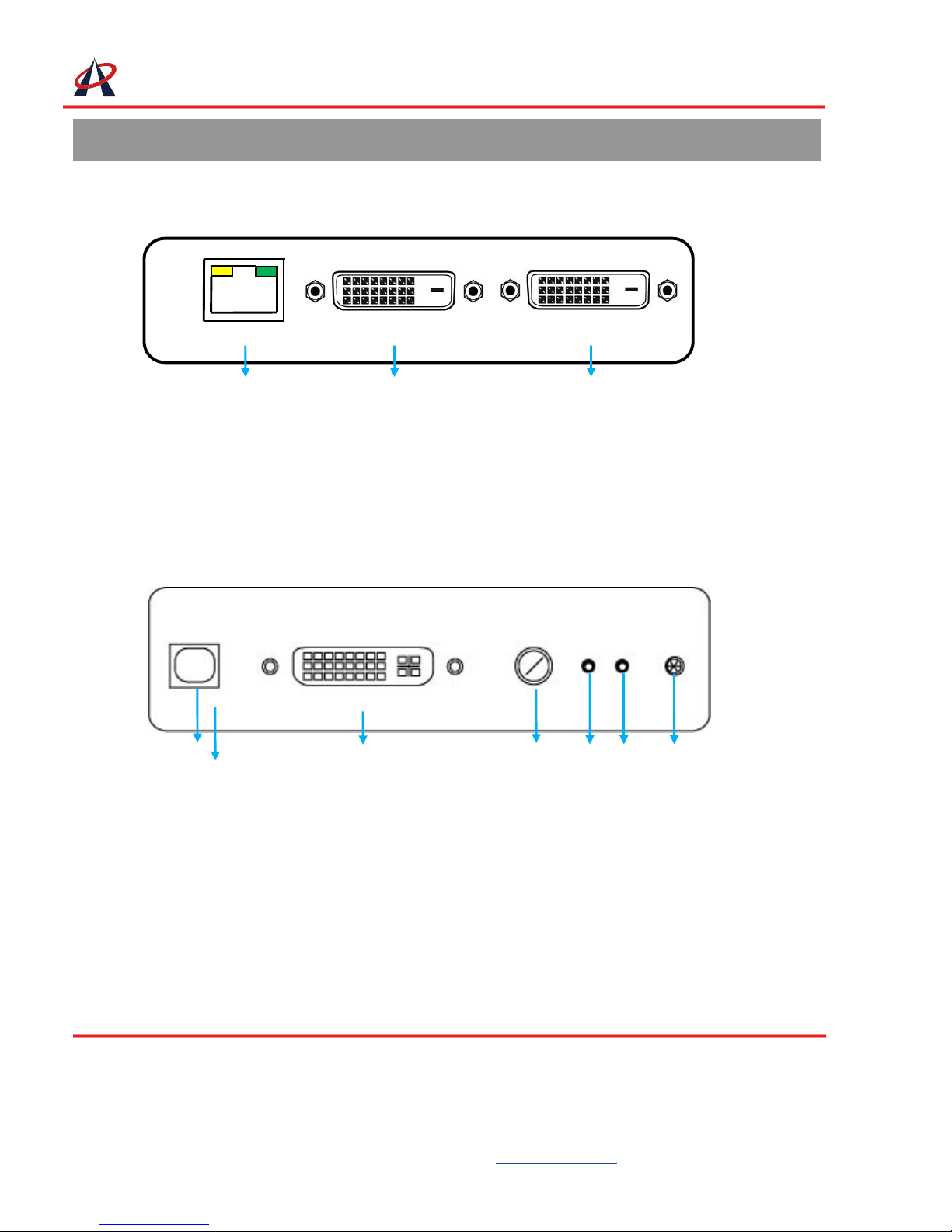

Panel Descriptions
Front View
1. Plug in a CAT5e cable here
2. Connect a DVI display here.
3. Connect a DVI display here.
Rear Panel
4. 5V DC
5. Connect a device equipped with DVI output (such as a PC) here.
6. Rotary switch- Assign an ID (0-7) for the device while cascading. For example, you can
set rotary switch at 1 for the first EX-G048D and 2 for the second EX-G048D. Please
ignore the rotary switch when only single EX-G048D exists.
7. Green LED- lights when the EX-G048A is selected.
8. Red LED- lights when power on.
9. Infrared Receiver
DVI-IN
RJ45 DVI-IN1 DVI-IN2
1 2
3
4 5
6
7
8
9
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 5of 8

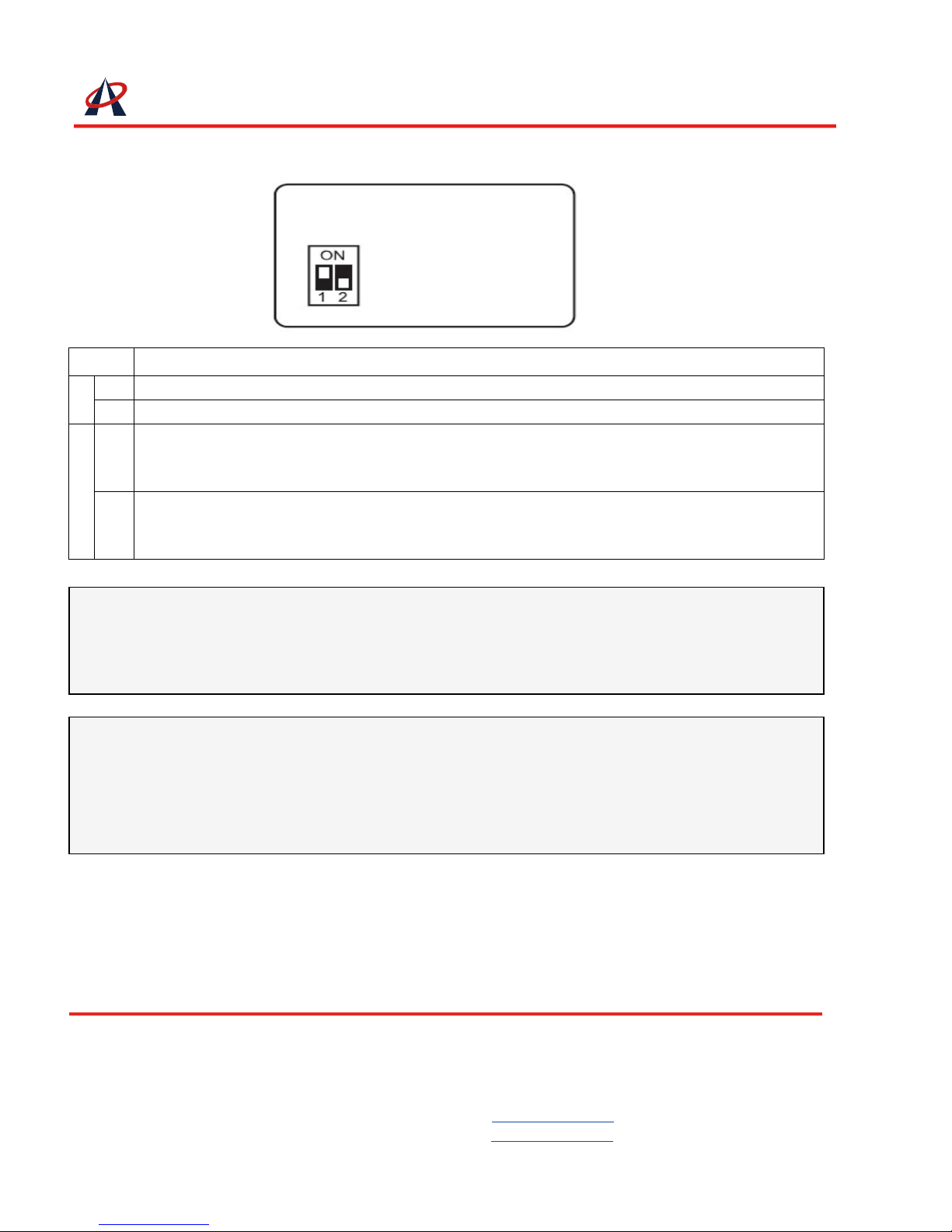

Bottom Panel
Mode
On Open EQ. Less noise but more power consumption.
1
Off Close EQ.
On Writing default EDID.
*Set the DIP switch at on and plug in power cord. The green LED will light after the writing process is
completed.
2
Off Record EDID of the connected display via DVI-OUT1
*Plug in DVI cable first from the display and then plug in power cord. The recording process will be
initiated and the green LED lights. The green LED will turn off after the reading process is completed.
Warning!! Don’t plug in DVI source while the EX-G048D is writing default
EDID or recording EDID from displays. This will cause damage to the EDID
in the flash memory.
If you cannot boot your computer from the connected EX-G048D due to
the damaged EDID in the EX-G048D, please proceed the “Writing default
EDID” and then “Recording EDID of the connected display”. This will
enforce the EX-G048D to write the EDID from display.
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 6of 8

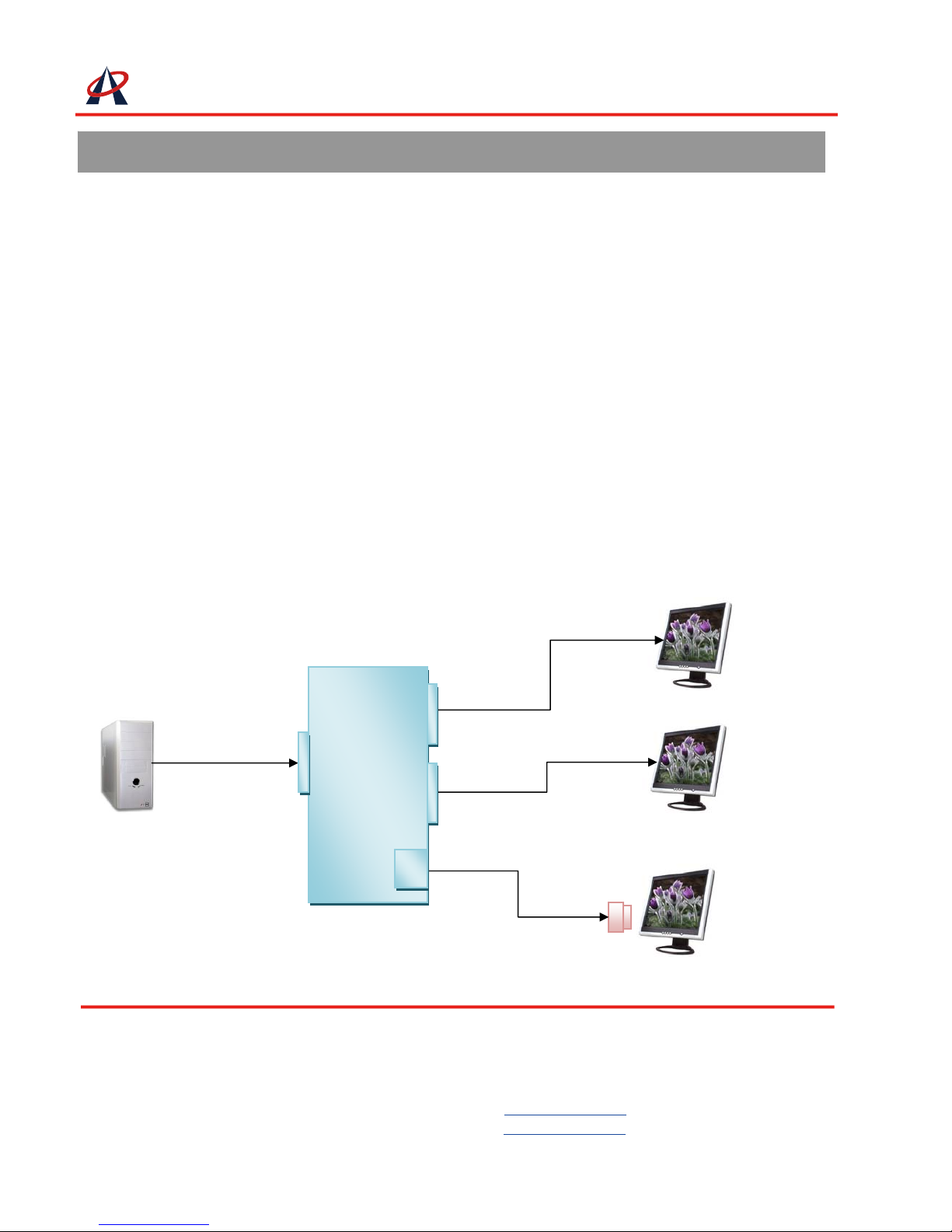

Hardware Installation
zWe suggest you connect the monitor with the lowest resolution support to the DVI-OUT
1. (e.g. Suppose monitor A might support a maximum resolution of 1920 x 1200, monitor B
supports a maximum resolution of 1280 x 1024 and monitor C supports a maximum
resolution of 1024 x 768, please connect monitor C to DVI-OUT 1).
zUnless you would like to use the default universal EDID, please set DIP switch 2 at off
position, which allows the EX-G048D to read the first monitor’s EDID.
1. Connect a monitor, a projector or other displays with DVI inputs by a male-to-male DVI
cable to EX-G048D DVI-OUT 1.
2. Connect the second display to the DVI-OUT 2.
3. Connect the third display by 1 CAT5e cable and the DVI over CAT5e Mini-Extender
(EX-G026A) through RJ45 connectors on both sides.
4. Plug 5V DC power adapter into power jack.
5. Connect a PC or other devices with DVI outputs to DVI Splitter DVI-IN.
DVI-OUT2Æ
DVI-OUT1Æ
RJ-45Æ
DVI-INÆDVI cable
CAT5e cable
DVI cable
DVI cable
DVI over CAT5
Mini-Extender
ACE PLUS CORP.
Headquarters :
9F-2., No. 190 Sec. 2 Jung Shing Rd.,Hsin-dian,
Taipei, Taiwan 231
TEL: +886-2-2912-4201
FAX: +886-2-2912-3164
Website: www.ace-plus.com
www.ace-plus.tw
Page 7of 8
Limited Warranty
The SELLER warrants the EX-G048D 1x3 DVI Splitter with 1-port over CAT5 to be free
from defects in the material and workmanship for 1 year from the date of purchase from the
SELLER or an authorized dealer. Should this product fail to be in good working order within 1
year warranty period, The SELLER, at its option, repair or replace the unit, provided that the
unit has not been subjected to accident, disaster, abuse or any unauthorized modifications
including static discharge and power surges.
Unit that fails under conditions other than those covered will be repaired at the current
price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days
from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to
insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a
unit be accepted without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose,
all of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables are limited to a 30 day
warranty and cable must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate.
However, The SELLER assumes no responsibility for any inaccuracies that may be contained
in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or
consequential damages resulting from any defect or omission in this manual, even if advised
of the possibility of such damages. Also, the technical information contained herein regarding
the EX-G048D features and specifications is subject to change without further notice.
