System Tour
Your computer’s front panel consists of the following:

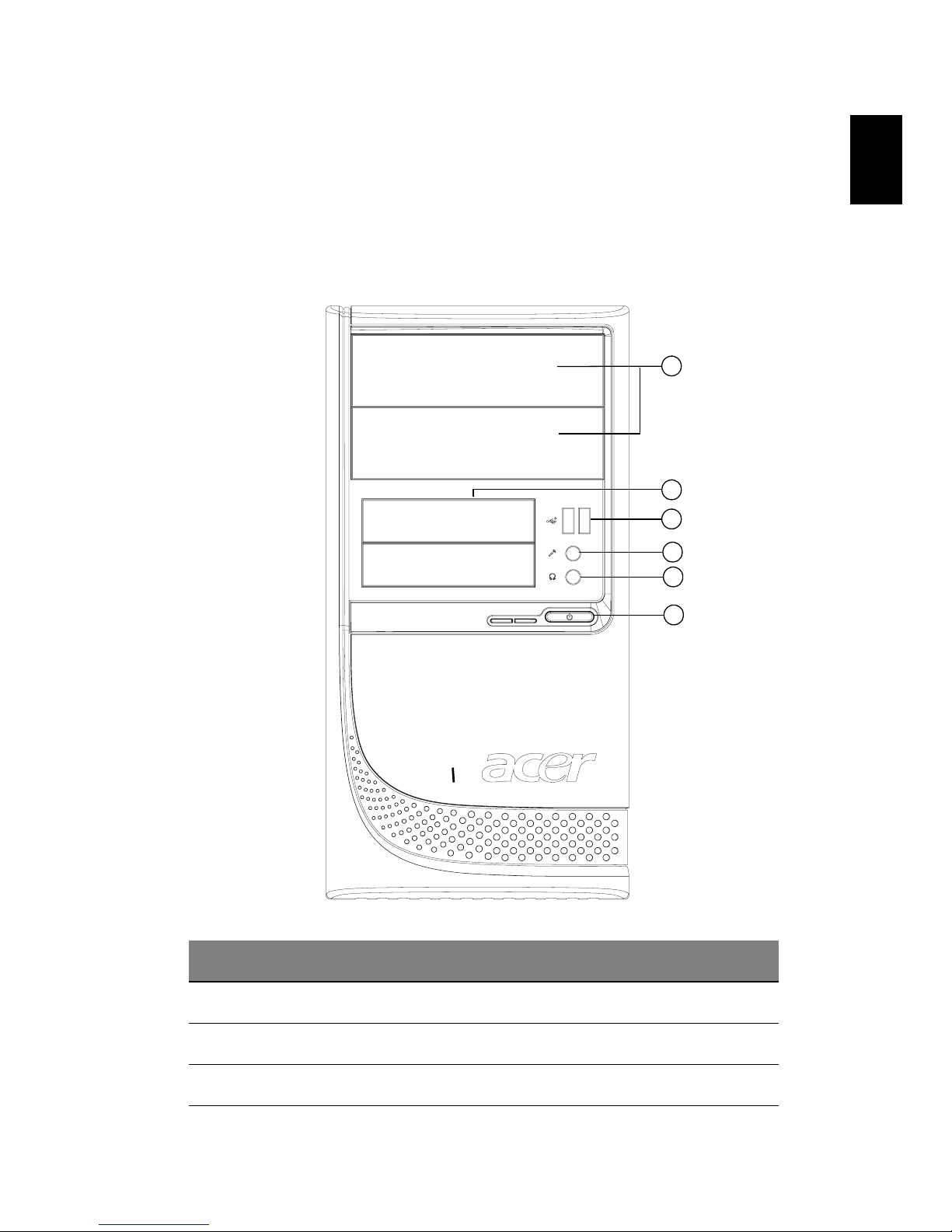

Front panel
No. Description No. Description
1 Optical Drive 2 Floppy Drive
3 USB Ports 4 Microphone Jack
5 Speaker or Headphone Jack 6 Power Button
1
3
4
5
6
2
System Tour2
English

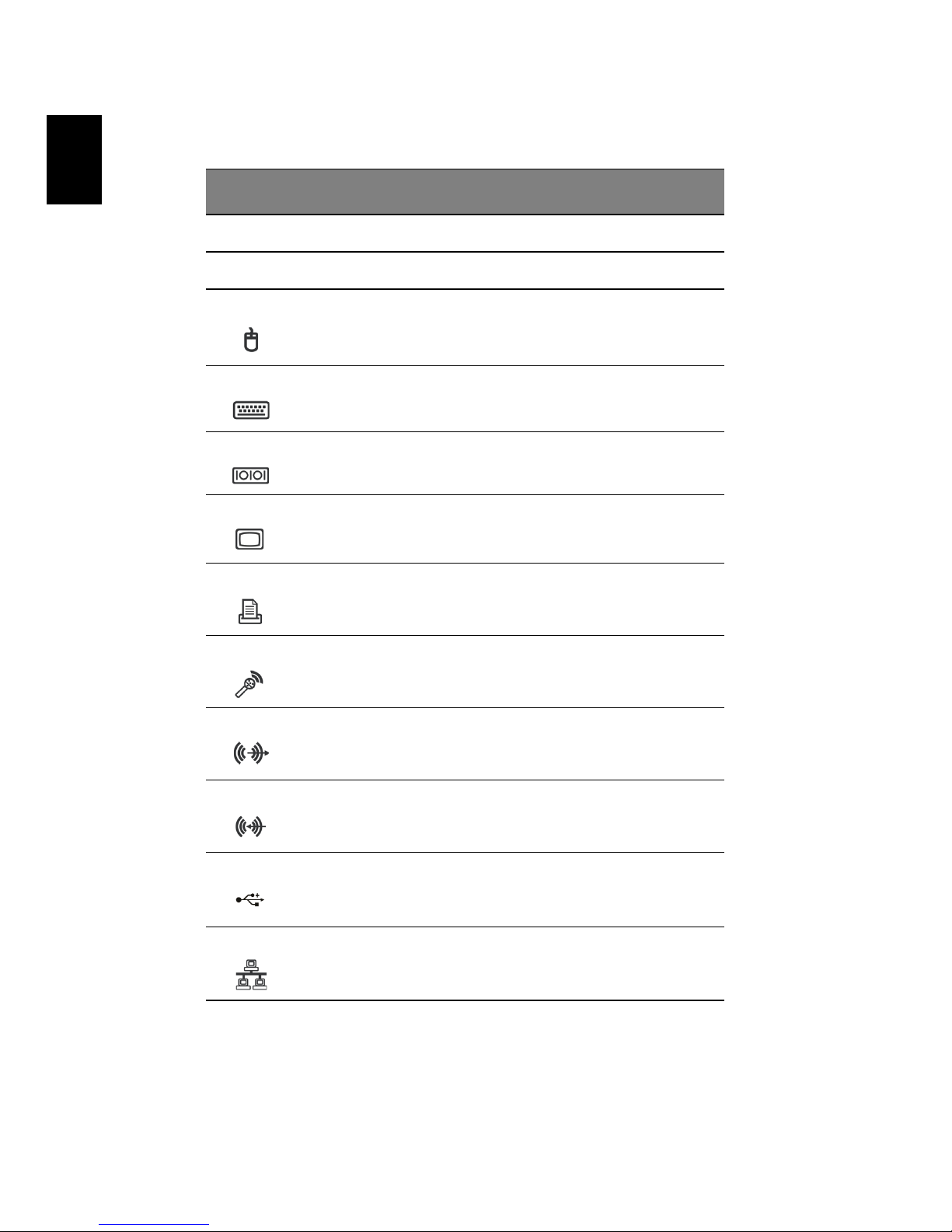

Rear panel
Icon Description
Power cord socket
Voltage Selector Switch
PS/2 Mouse Port
PS/2 Keyboard Port
Serial Port
Monitor Connector
Parallel Port
Microphone-in jack
Audio-out Jack
Audio-in Jack
USB Ports
LAN Port
3
English
System Features
Your computer features:
Performance
• Intel® Pentium® 4/Celeron® CPU
• DDR System Memory, 2 DIMM Slots, expandable to 2GB
• Power management function
• 3.5 inch floppy drive
• CD-ROM, DVD-ROM, CD-RW (52X/24X), DVD/CD-RW combo or
DVD writer
• High-capacity, Enhanced-IDE drive
• Support USB 2.0 high performance peripherals
Multimedia
• 3D quality audio system via onboard audio controller
• Audio-in/Line-in, Audio-out/Line-out, Headphone out and external
Microphone in jacks
Note: the system has two Microphone-in Jacks (front and rear)
However, you can not use both of them at the same time. By
default, you system enables your microphone-in jack in front and
disables the one at the back.
Connectivity
• Two PS/2 ports for keyboard and mouse
• One serial port
• One Parallel port
• One VGA port
• USB 2.0 ports
• High speed V.92, 56K fax/Data modem (optional)
• 10Base-T/100Base-TX Ethernet Network
System Tour4
English
System peripherals
The Aspire S Series computer consists the system itself, and system
peripherals, like a mouse, a keyboard and a set of speakers (optional).
This section provides a brief description of basic system peripherals.

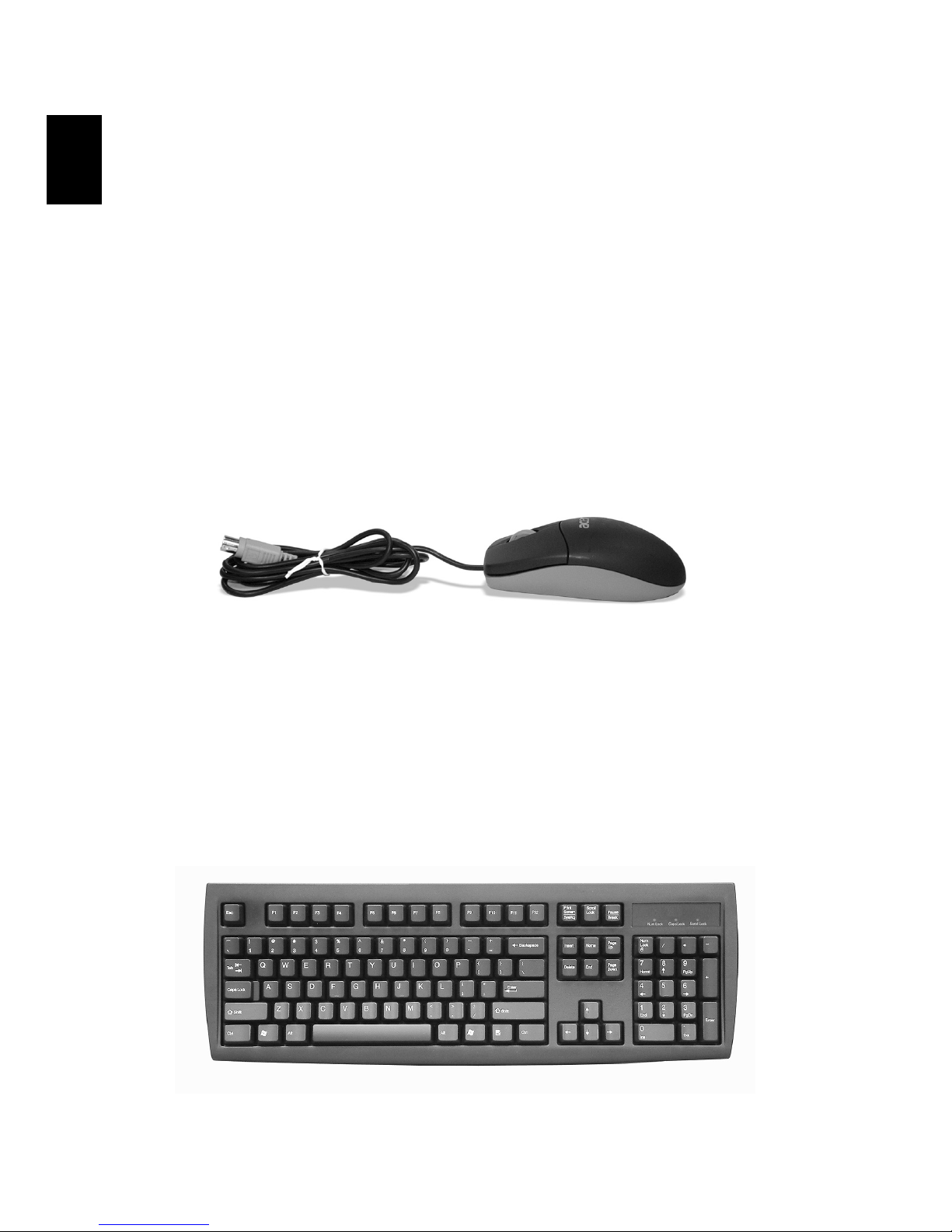

Mouse(PS/2 or USB, manufacturing option)
The included mouse is a standard two-button wheel mouse. Connect
the mouse to the PS/2 mouse port or USB port on the back panel of the
system.
Keyboard(PS/2 or USB, manufacturing option)
Connect the keyboard to the PS/2 keyboard port or USB port on the
back panel of the system.
5
English

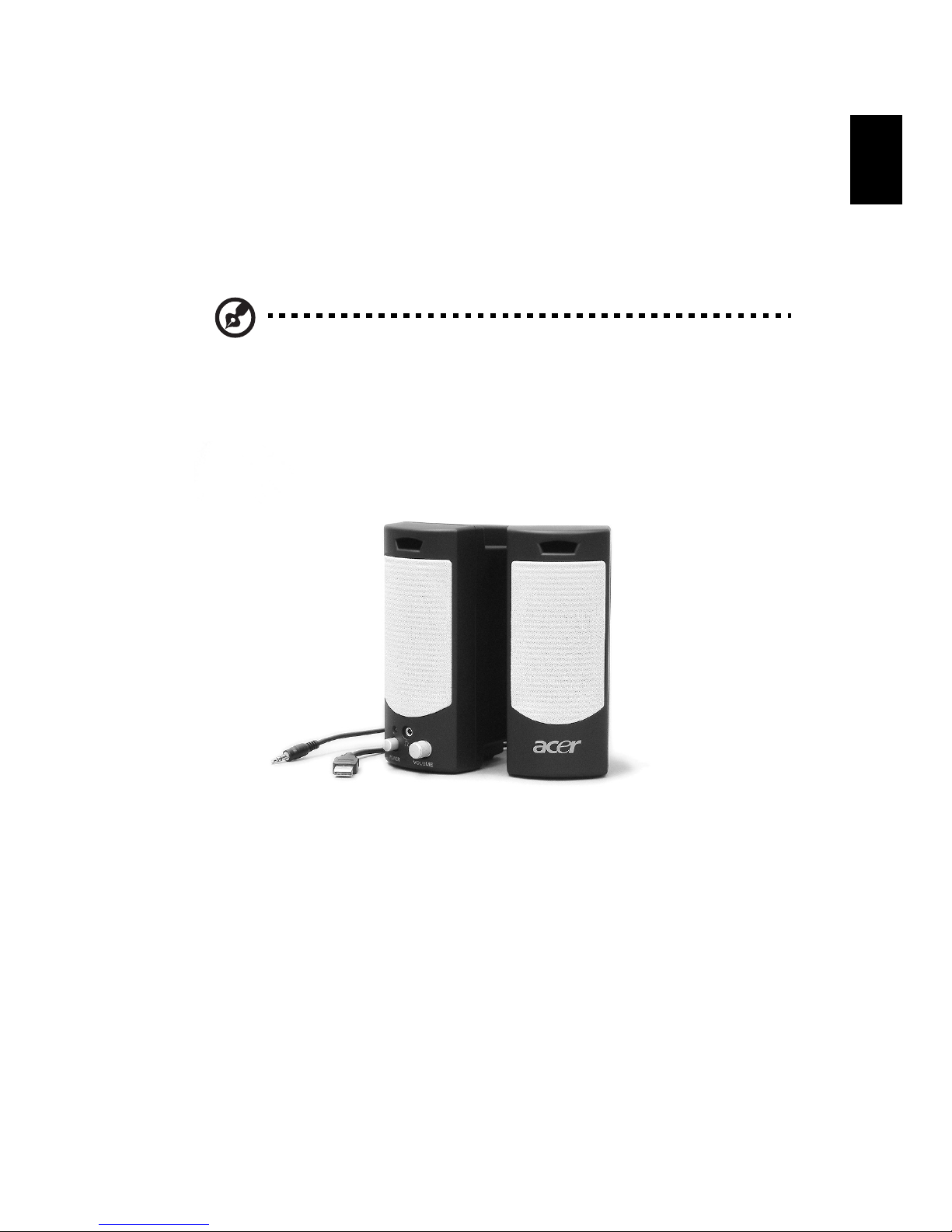

Speakers
For systems bundled with speakers, before powering on the system,
connect the speaker cable to the audio out (external speaker) port on
the back panel of the system.
For more detailed information about the speakers, please refer to the
included operating instructions.
Note: speakers are optional and the appearance might be
different depending on the actual product.
System Tour6
English
System upgrade
You can expand your Aspire S Series system quickly and easily by
adding components. You can also upgrade the components of your
Aspire S Series system.
Open the computer
Before removing any panels or covers, please make sure to shut off the
computer and unplug the power cord from the outlet.
• Remove the two screws on the side panel.
• Slide the panel back and off.
Set up new components
You can only use components compatible with Aspire S Series
computers. Before you choose new components, please ask your
authorized Acer dealer whether the part will operate within your
Aspire S Series system.
In order to ensure proper setup and installation, please consult the
instructions provided with your new components.
Probable upgrades are:
- Upgrade to High Capacity HDD
- Expand high-level memory
- Upgrade from a CD-ROM drive to CD-RW, DVD-ROM, DVD/CD-
RW combo, or DVD writer
- Install additional interface cards in empty PCI slots e.g., PCI
fax/modem card
