Acer Predator PO5-600s Manuale utente

Table of Contents -

Predator PO5-600s

User’s Guide

Desktop Computer Covers:

Tower models

This revision: June 2019 V1.1

Important

This manual contains proprietary information that is protected by

subject to change without notice. Images provided herein are for

reference only and may contain information or features that do not

apply to your computer. Acer Group shall not be liable for technical

or editorial errors or omissions contained in thismanual.

Table of Contents -

Table of Contents

1. UPGRADING YOUR COMPUTER...............5

Installation precautions

..............................5

ESD precautions

..........................................5

Required tools

..............................................5

Pre-installation instructions

....................6

Post-installation instructions

..................6

System Upgrade

...........................................7

Removing the left side system cover

....7

Installing the left side system cover

......8

Removing the right side system cover

Installing the right side system cover

.10

Hard drives

.................................................. 11

Removing the 3.5-inch hard drives

.....11

Installing the 3.5-inch hard drives

.......15

Memory

........................................................ 18

Memory configuration guidelines

.......18

Removing a memory module

................19

Installing a memory module

.................21

Graphic board

............................................. 24

Removing the Graphic board

................24

Installing the Graphic board

..................26

M.2 SSD module

......................................... 28

Removing the M.2 SSD module

............28

Installing the M.2 SSD module

.............29

ODD drives

................................................... 30

Open ODD door.

.......................................30

2PREDATORSENSE.................................. 32

PredatorSense features

............................ 32

-Upgrading your Computer

Upgrading your Computer

In this section, you will find:

•Instructions on how to replace a hardware component

Upgrading your Computer -

1. UPGRADING YOUR COMPUTER

Installation precautions

Before you install any computer component, we recommend

that you read the following sections. These sections contain

important ESD precautions along with pre-installation and

post-installation instructions.

ESD precautions

Electrostatic discharge (ESD) can damage your processor,

disk drives, expansion boards, and other components.

Always observe the following precautions before you install a

computer component:

1. Do not remove a component from its protective

packaging until you are ready to install it.

2. Wear a wrist grounding strap and attach it to a metal

part of the computer before handling components. If a

wrist strap is not available, maintain contact with the

computer throughout any procedure requiring ESD

protection.

Required tools

In performing the component replacement process, you will

need the following tools:

•Philips screwdriver

•Hex screwdriver

•Flat screwdriver

•Scissors

Note

The screws for the different components vary in size. During the

disassembly process, group the screws with their corresponding

components to avoid mismatches when putting back the components.

-Upgrading your Computer

Pre-installation instructions

Always observe the following before you install any

component:

1. Make sure that the ODD and card reader slot is empty.

2. Turn off the power to the computer and all peripherals.

3. Unplug the power cord from the computer.

4. Unplug the network cable and all connected peripheral

devices from the computer.

5. Place the computer on a flat, steady surface.

6. Open your computer according to the instructions on

removing the left side system cover on page 7 and

removing the right side system cover on page 9.

7. See the following sections for specific instructions on

the component you wish to install.

Post-installation instructions

Observe the following after installing a computer component:

1. See to it that the components are installed according to

the step-by- step instructions in their respective

sections.

2. Replace any expansion boards or peripherals that you

removed earlier.

3. Replace the system covers. See Installing the left side

system cover on page 8 and installing the right side

system cover on page 10.

4. Connect the necessary cables.

5. Turn on your computer.

Warning

Not turning off the computer properly before you start installing the

components may cause serious damage. Do not attempt the

procedures described in the following sections unless you are a

qualified service technician.

Upgrading your Computer -

System Upgrade

Removing the left side system cover

1. Before you proceed, make sure that you have turned

off your computer and all peripherals connected to it.

Read the Pre- installation instructions on page 6.

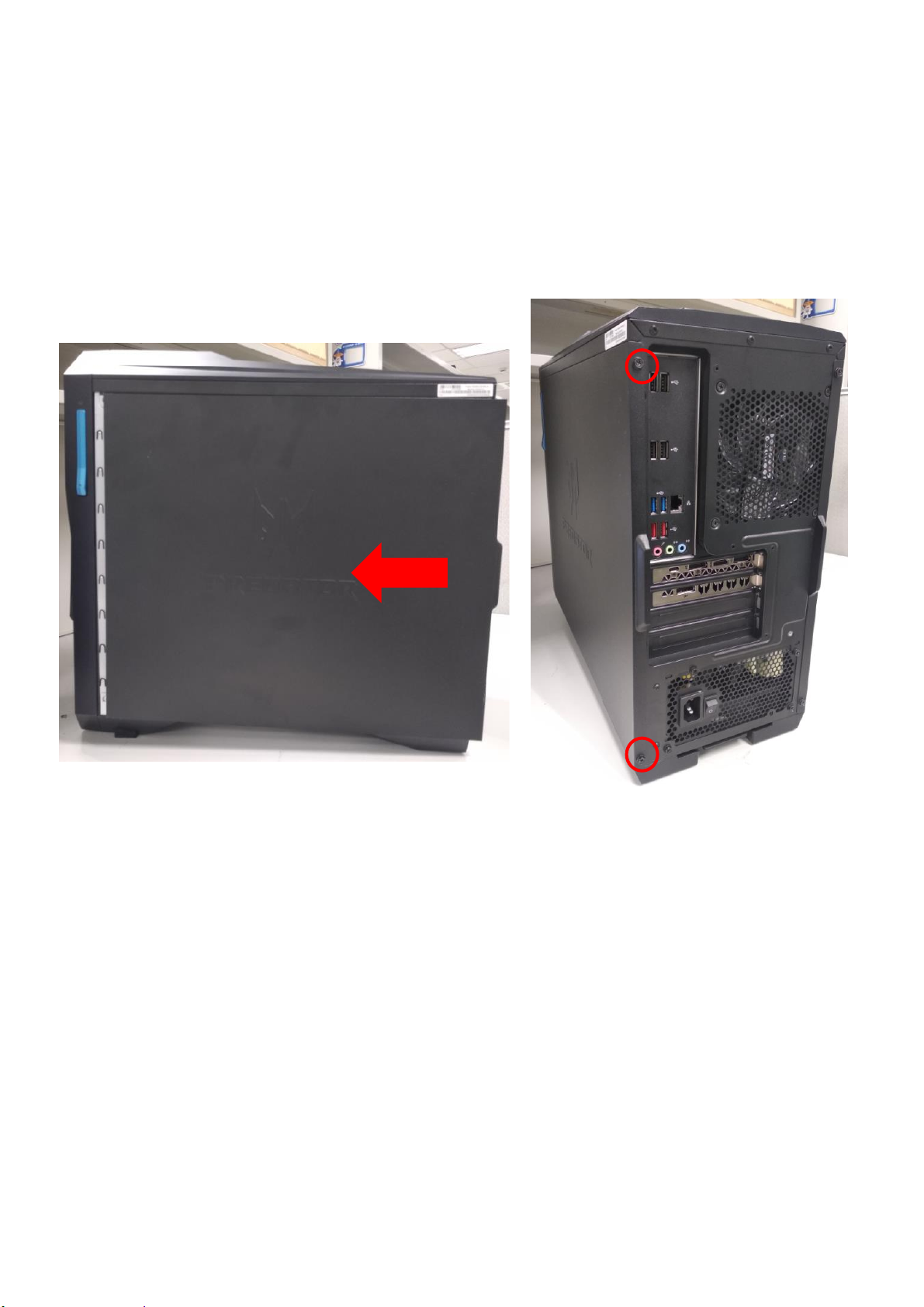

2. Remove the two screws that secure the system cover

to the computer.

3. Slide the cover toward the back of the computer and

pull away from the side of the computer.

4. Set the cover aside for re-installation later.

-Upgrading your Computer

Installing the left side system cover

1. Align the cover to the sides of the computer and slide

the cover toward the front of the computer.

2. Secure the cover with two screws.

3. Observe the Post-installation instructions on page 6.

Upgrading your Computer -

Removing the right side system cover

1. Before you proceed, make sure that you have turned

off your computer and all peripherals connected to it.

Read the Pre- installation instructions on page 6.

2. Remove the two screws that secure the system cover

to the computer.

3. Slide the cover toward the back of the computer and

pull away from the side of the computer.

4. Set the cover aside for re-installation later.

-Upgrading your Computer

Installing the right side system cover

1. Align the cover to the sides of the computer and slide

the cover toward the front of the computer.

2. Secure the cover with two screws.

3. Observe the Post-installation instructions on page 6.
