Aspire 3630/TravelMate 2430 Series

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on Aspire 3630 service guide.

Date Chapter Updates

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

Chapter 1 1

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Microprocessor

TIntel®Pentium®M processor 735A (2MB L2 cache, 1.70 GHz, 400 MHz FSB)

TIntel®Celeron®M processor 370/380/390 (1 MB L2 cache, 1.50/1.60/1.70 GHz, 400 MHz FSB)

TSiS®M661MX/963L/302ELV (LVDS) chipset

Memory

T256 MB/512 MB or 1 GB of DDR 333 SDRAM standard, upgradeable to 2 GB with dual so DIMM

modules

T512 KB flash ROM BIOS for models employing Intel®Celeron®M processor; 2 MB flash ROM

BIOS for models employing Intel®Pentium®processor

Data storage

T40/60/80 GB ATA/100 hard disk

TDVD-Dual or Combo drive

Display and graphics

TColor Thin-Film Transistor (TFT) LCD displaying at

-- 15” XGA (1024 X 768)

-- 15.4” WXGA (1280 X 800)

-- 15.4” WXGA Acer CrystalBrite (1280 X 800)

TSiSM661MX integrated 3D graphics with up to 64 MB of VRAM, supporting Microsoft®DirectX®

7.0 and dual independent display support

TMPEG-2/DVD hardware-assisted capability

TAcer CinemaVisionTM video technology (Acer Arcade)

TAcer ClearVisionTM video optimization technology (Acer Arcade)

Communication

TModem: 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready

TLAN: 10/100 Mbps Fast Ethernet; Wake-on-LAN ready

TWLAN (optional): MINI PCI®802.11b/g dual-band connection, supporting Acer SignalUpTM

wireless technology (manufacturing option)

TWPAN: Bluetooth®

Audio

TAudio system with two built-in speakers

TMS-Sound compatible

System Introduction

Chapter 1

2Aspire 3630

Input devices

T88-/89-key keyboard, 2.7 mm (minimum) key travel, international language support

TTouchpad with 4-way integrated scroll button

T12 function keys, four cursor keys, two Windows®keys, hotkey controls, embedded numeric

keypad

TSix easy-launch buttoms: Empowering key, email, Internet, WLAN, Bluetooth®, user-

programmable button

I/O interface

TThree USB 2.0 ports

TEthernet (RJ-45) port

TModem (RJ-11) port

TExternal display (VGA) port

TMicrophone/line-in jack

THeadphones/speaker/line-out port

TType II PC Card slot

TDC-in jack for AC adaptor

I/O interface

TTemperature:

TOperating: 5 C to 35 C

TNon-operating: -20 C to 65 C

THumidity (non-condensing):

TOperating: 20% to 80%

TNon-operating: 20% to 80%

°°

Chapter 1 3

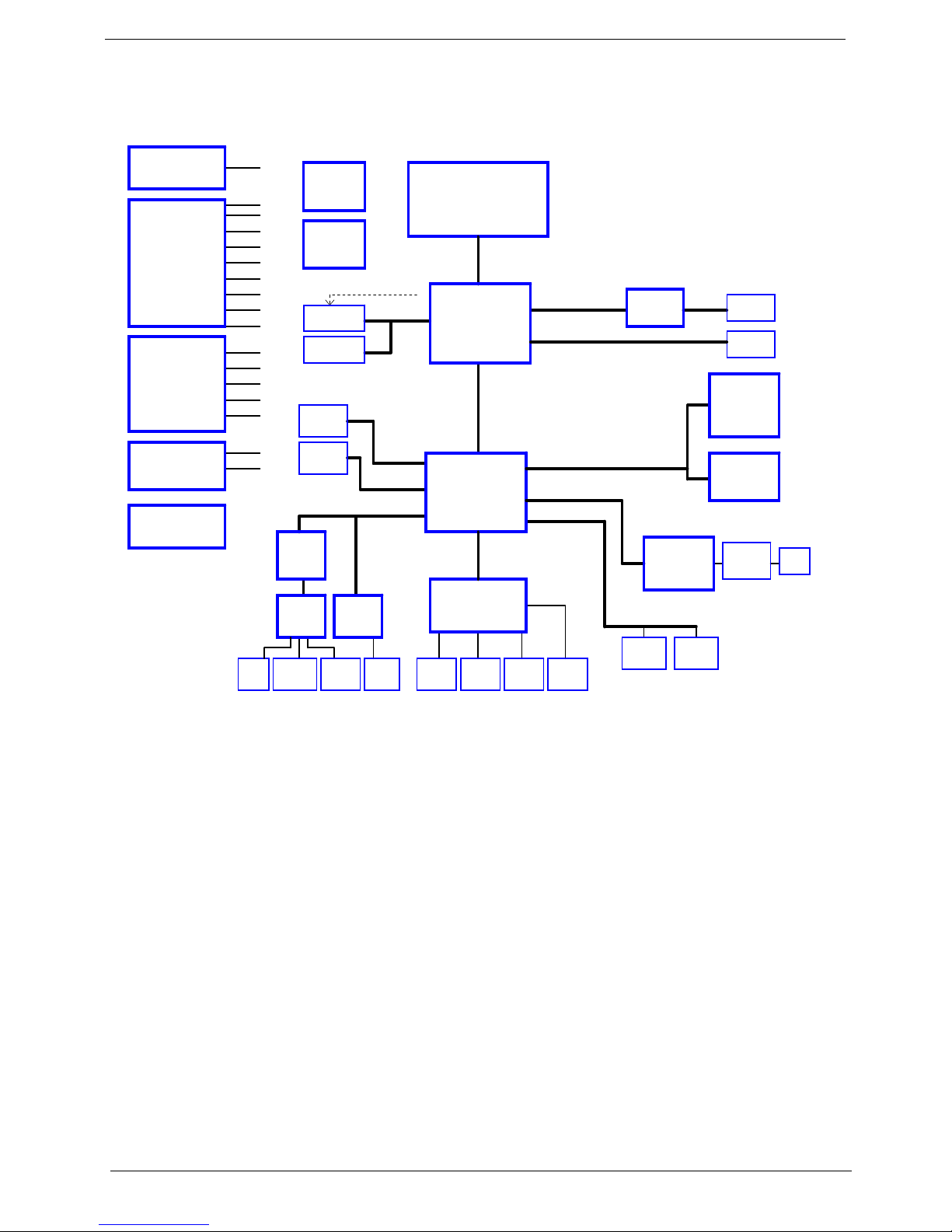

System Block Diagram

INTEL Mobile_479 CPU

266/333MHZ DDR

ATA 66/100

AC97

CLOCK GEN

Reltek

CPU

DDR-SODIMM1

DDR-SODIMM2

IDE-ODD

IDE-HDD

ATA 66/100

MODEM

RJ11

952023CG

CLK_SDRAM0~5,

CLK_SDRAM0~5#

LINE OUT

SIS M661MX

HUB I/F 66(266)MHZ

Touchpad

KBC(97551)

Keyboard

CELERON-M

CB1410

PCI BUS 33MHZ

RJ45

ENE

10/100 LAN

USB1,2,3

USB 2.0

Wireless LAN

SYSTEM 3

USB PORT

MINI-PCI

REALTEK

AMP

SPEAKERMIC IN

MDC 1.5

HOST BUS 400MHZ

LPC 33MHZ

PCMCIA

RTL8201CP

TRANSFORMER

ICS

3.3V/5V/12V

2.5VSUS/+2.5/VTT

ZL6

PCI ROUTING TABLE

REQ1# / GNT1#

REQ0# / GNT0#

IDSEL

AD22

AD17

INTERUPT

INTB# , INTC#

INTD#

DEVICE

MINI-PCI

TI 1410A

NS0013

FLASH FAN

CPU CORE

+3.3V

5V_S5

+2.5V

3V_S5

2.5VSUS

5VPCU

5VSUS

3VSUS

3VPCU

+5V

VCC_CORE

RGB

LVDS

MINI-USB

USB4

MAX9755

+12V

+1.8V

BATTERY CHARGER

1.8V_S5

SMDDR_VTERM

MVREF_DM

VTT

MVREF_DM

+1.8V/1.8V_S5

SMDDR_VTERM

5VPCU/3V_ALWAYS

3V_S5/5V_S5

3VSUS/5VSUS

SiS 963L

CRT

LVDS

SiS 302ELV

+5V

+3.3V

+3.3V +3.3V

+3.3V +5V

+3.3V

+5V

+3.3V

5VSUS 3VSUS

+2.5V

+1.25V

+3.3V

VCC_CORE

+5V

MII PHY

Page:23

Page:24

Page:25

Page:26

DDR CLOCK

BUFFER

ICS97322

+2.5V

Page:13

Page:11,12

Page:18

Page:11,12

Page:19

Page:20 Page:19 Page:21

Page:8,9,10

Page:4,5,6,7

Page:2,3

VTT

Page:17 Page:17

Page:17

Page:15

Page:16

Page:6

Page:14

4Aspire 3630

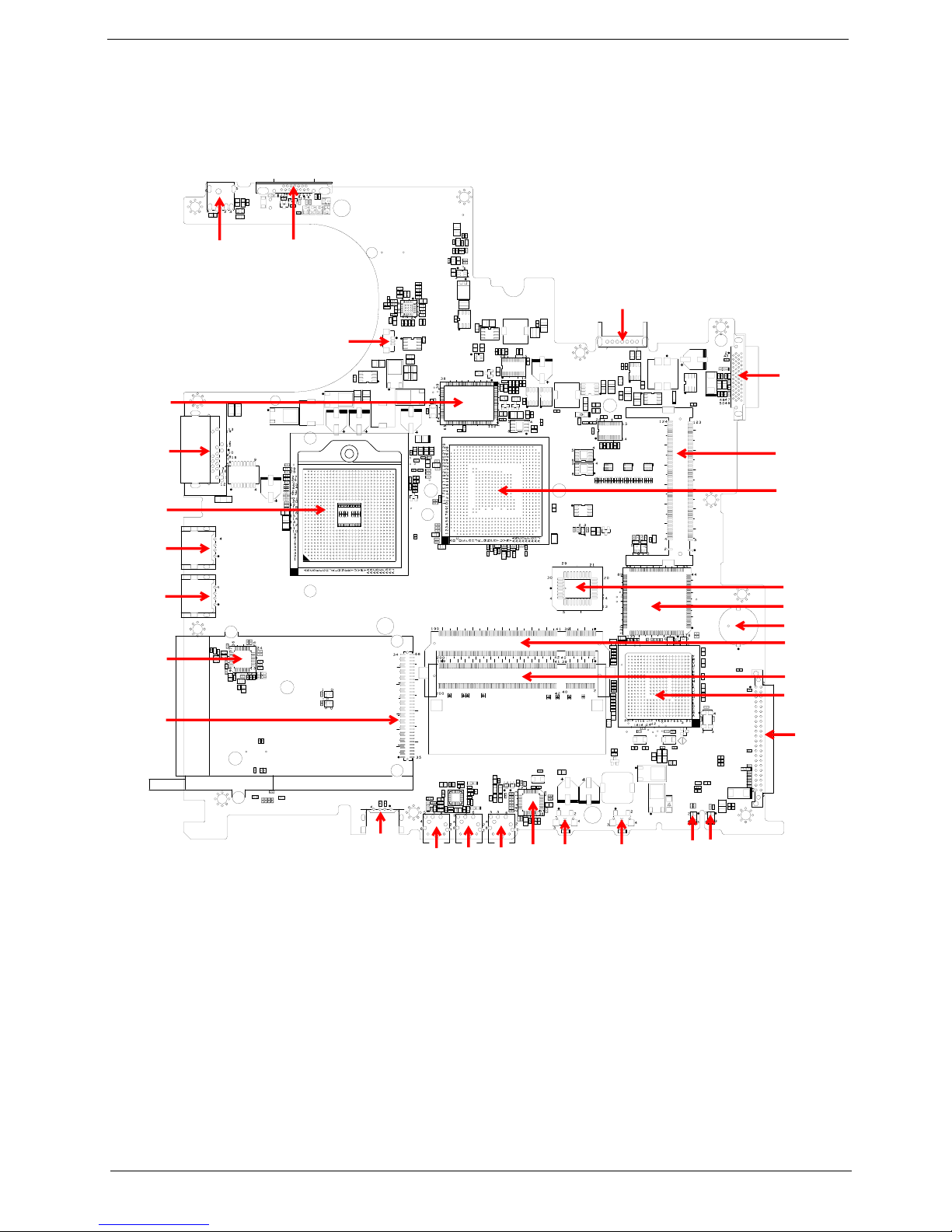

Board Layout

Top View

13 Power Jack 14 CRT Connector

15 Battery Connector 16 ODD Connector

17 302ELV LVDS Encoder 18 RJ45 & RJ11 Connector

19 MINI PCI 20 Northbridge M760GX

21 CPU Socket 22 USB Connector

23 USB Connector 24 BIOS ROM

25 EC PC97551 26 RTC Battery

27 DDR SO-DIMM Socket1 28 LAN PHY RTL8201CP

29 DDR SO-DIMM Socket2 30 Southbridge 963L

[13] [14]

[15]

[16]

[17]

[18] [19]

[20]

[21]

[22]

[23] [24]

[25]

[26]

[27]

[28]

[29]

[30]

[31] [32]

[33] [34] [36] [37] [38] [39][40]

[35]

[42]

[41]

Chapter 1 5

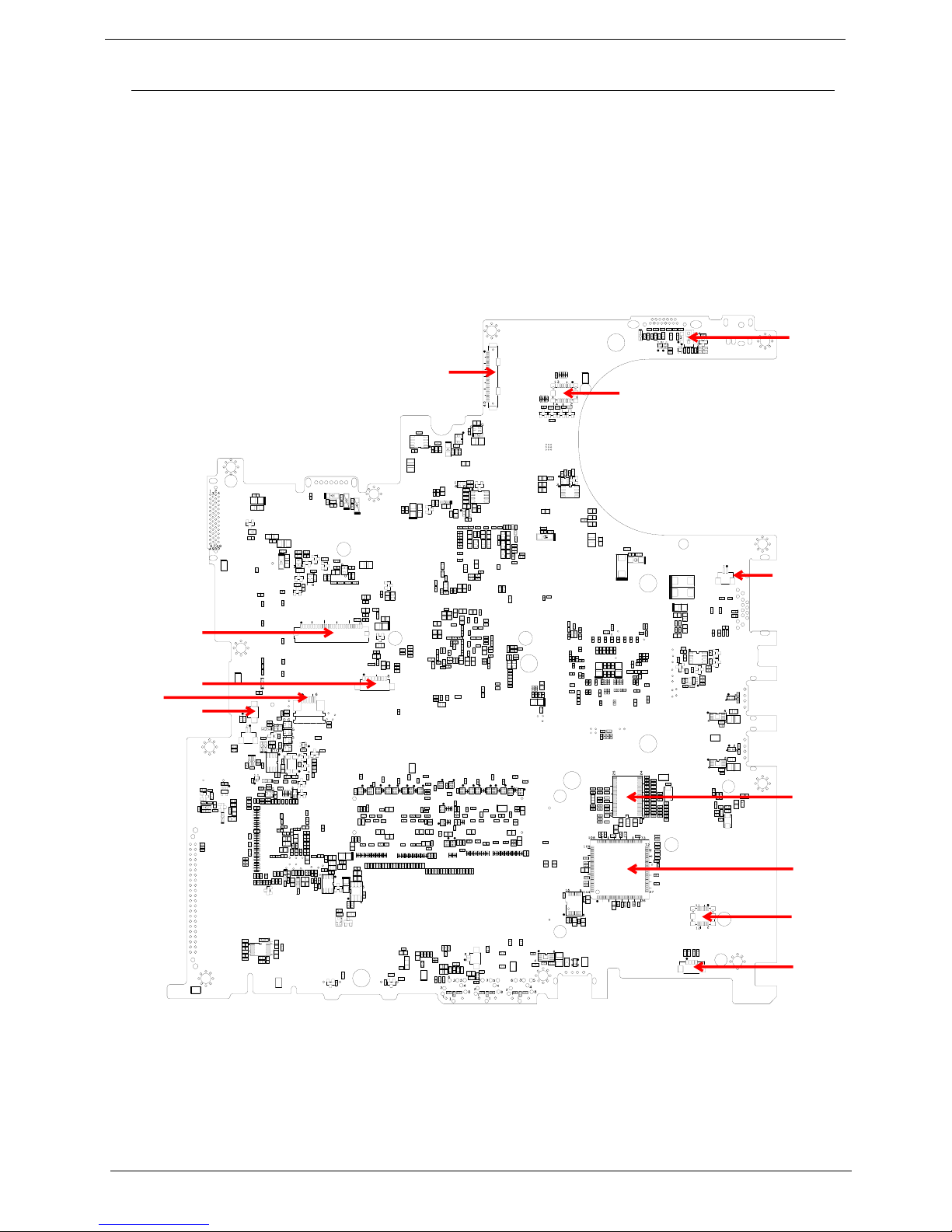

Bottom View

31 PCMCIA Connector 32 HDD Connector

33 USB Connector 34 LineOut Jack

35 Microphone Jack 36 LineIn Jack

37 WLAN Button 38 Bluetooth button

39 Battery LED 40 Power LED

41 Audio Codec ALC203 42 FAN Connector

1 Lid Switch 2 Panel Connector

3 LED Board Connector 4 Modem Connector

[01]

[02]

[03]

[04]

[05]

[06]

[07] [08]

[09]

[10]

[11]

[12]
