Extensa 5635/5635Z/5235 Series Quick Guide
Original Issue: 04/2009
Extensa 5635/5635Z/5235 Series Notebook PC
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.
3
First things first
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the Just for Starters... poster helps you get started with setting up your
computer.
The Extensa Series Generic User Guide contains useful information applying to
all models in the Extensa product series. It covers basic topics such as using the
keyboard and audio, etc. Please understand that due to its nature, the Generic
User Guide as well as the AcerSystem User Guide mentioned below will
occasionally refer to functions or features which are only contained in certain
models of the series, but not necessarily in the model you purchased. Such
instances are marked in the text with language such as "only for certain
models".
The Quick Guide introduces you to the basic features and functions of your new
computer. For more on how your computer can help you to be more productive,
please refer to the AcerSystem User Guide. This guide contains detailed
information on such subjects as system utilities, data recovery, expansion
options and troubleshooting. In addition it contains warranty information and
the general regulations and safety notices for your notebook. It is available in
Portable Document Format (PDF) and comes preloaded on your notebook.
Follow these steps to access it:
1 Click on Start, All Programs, AcerSystem.
2 Click on AcerSystem User Guide.
Note: Viewing the file requires Adobe Reader. If Adobe Reader is not
installed on your computer, clicking on AcerSystem User Guide will run the
Adobe Reader setup program first. Follow the instructions on the screen to
complete the installation. For instructions on how to use Adobe Reader,
access the Help and Support menu.
4
English
Your Acer notebook tour
After setting up your computer as illustrated in the Just for Starters... poster,
let us show you around your new Acer notebook.

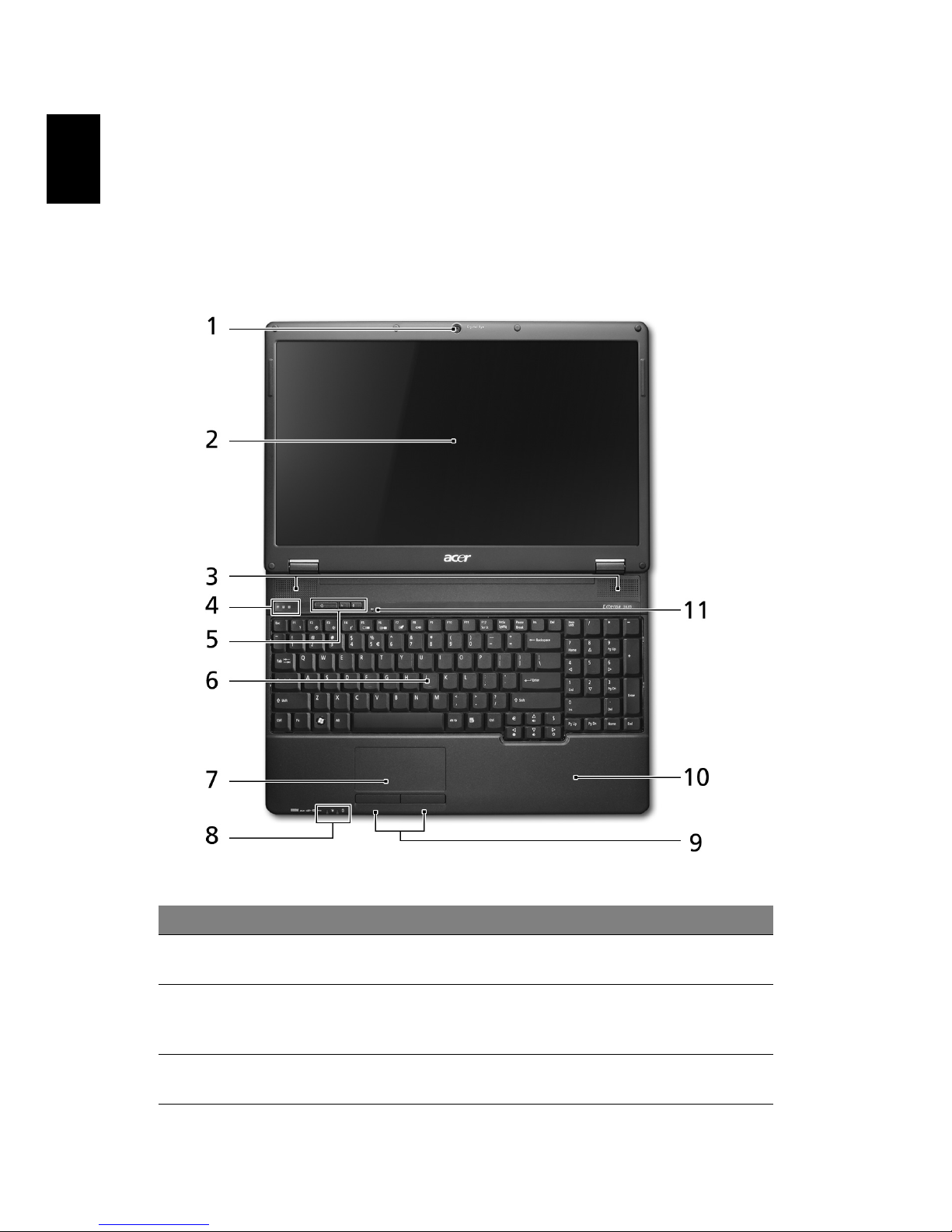

Top view
#Icon Item Description
1 Acer Crystal Eye
webcam
Web camera for video communication.
(only for certain models)
2 Display screen Also called Liquid-Crystal Display (LCD),
displays computer output (Configuration
may vary by models).
3 Speakers Front left , center and front right
speakers deliver stereo audio output.
5
English
1. The front panel indicators are visible even when the computer cover is closed
up.
4 HDD Indicates when the hard disk drive is
active.
Num Lock Lights up when Num Lock is activated.
Caps Lock Lights up when Caps Lock is activated.
5 Power button Turns the computer on and off.
Wireless LAN
communication
button/indicator
Enables/disables the wireless LAN
function. Indicates the status of wireless
LAN communication.
Bluetooth
communication
button/indicator
Enables/disables the Bluetooth function.
Indicates the status of Bluetooth
communication. (only for certain models)
6 Keyboard For entering data into your computer.
7 Touchpad Touch-sensitive pointing device which
functions like a computer mouse.
8Power1Indicates the computer's power status.
Battery1Indicates the computer's battery status.
1. Charging: The light shows amber when
the battery is charging.
2. Fully charged: The light shows blue
when in AC mode.
9 Click buttons
(left and right)
The left and right buttons function like
the left and right mouse buttons.
10 Palmrest Comfortable support area for your hands
when you use the computer.
11 Microphone Internal microphone for sound recording.
#Icon Item Description
6
English
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer's controls like screen brightness and volume output.
To activate hotkeys, press and hold the <Fn> key before pressing the other key
in the hotkey combination.
Hotkey Icon Function Description
<Fn> + <F1> Hotkey help Displays help on hotkeys.
<Fn> + <F2> System property Starts System Property for displaying system
information.
<Fn> + <F3> Power options Starts Power Options for power
management.
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the display
screen, external monitor (if connected) and
both.
<Fn> + <F6> Screen blank Turns the display screen backlight off to save
power. Press any key to return.
<Fn> + <F7> Touchpad toggle Turns the internal touchpad on and off.
<Fn> + <F8> Speaker toggle Turns the speakers on and off.
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness down Decreases the screen brightness.
<Fn> + < > Volume up Increases the sound volume.
<Fn> + < > Volume down Decreases the sound volume.
7
English

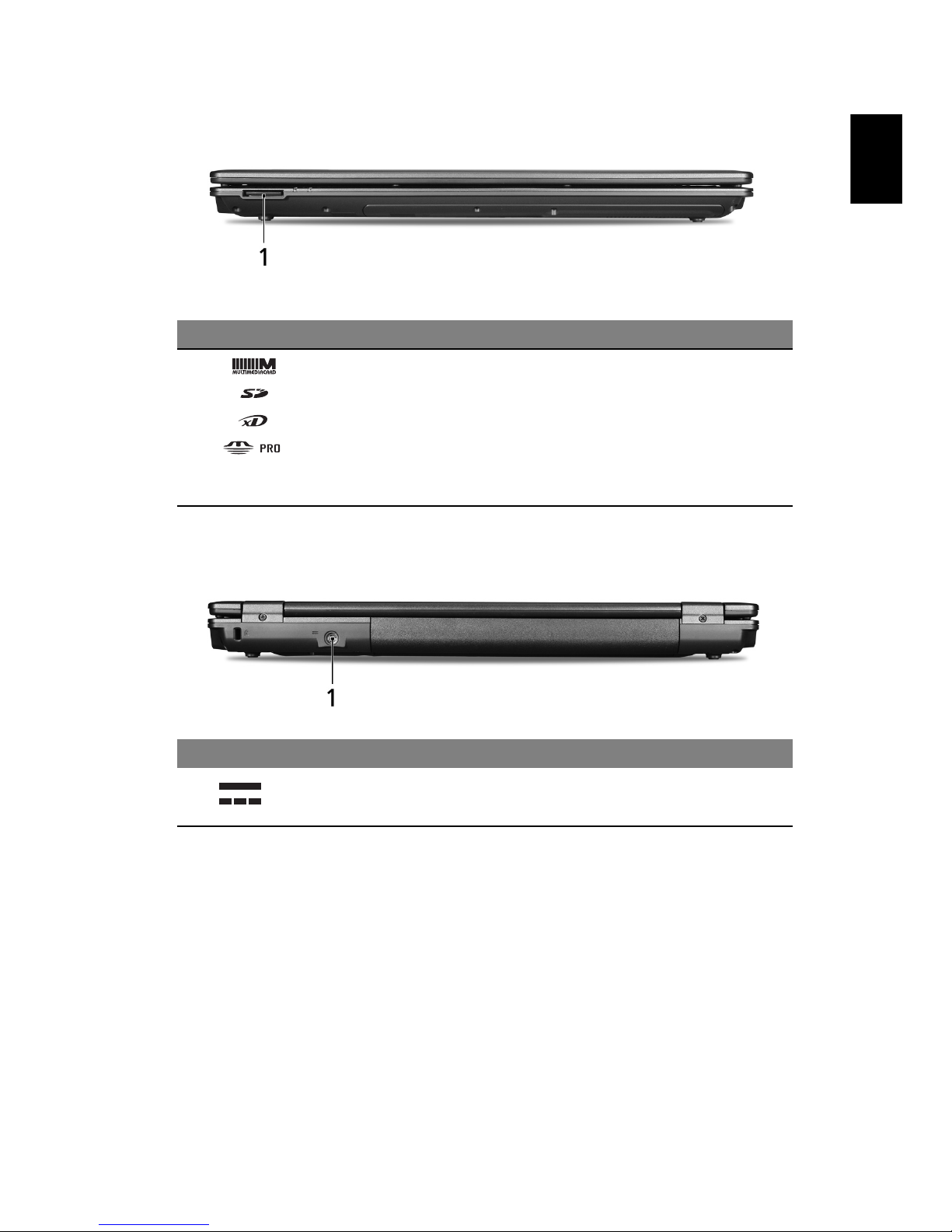

Closed front view
Rear view
#Icon Item Description
1 5-in-1 card reader Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory
Stick (MS), Memory Stick PRO (MS
PRO), xD-Picture Card (xD).
Note: Push to remove/install the
card. Only one card can operate at
any given time.
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
8
English

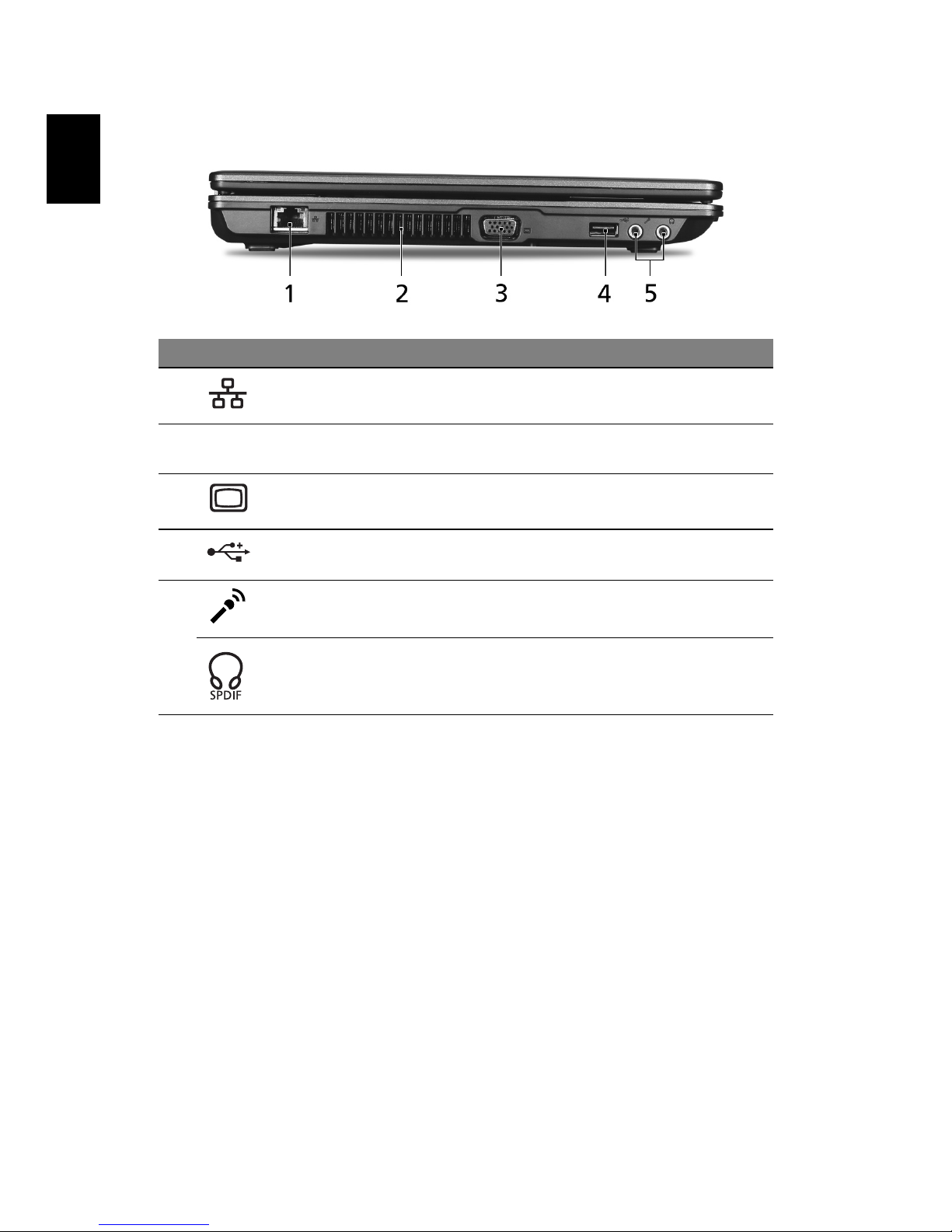

Left view
#Icon Item Description
1 Ethernet (RJ-45) port Connects to an Ethernet 10/100/
1000-based network.
2 Ventilation slots Enable the computer to stay cool,
even after prolonged use.
3 External display
(VGA) port
Connects to a display device (e.g.,
external monitor, LCD projector).
4 USB 2.0 port Connects to USB 2.0 devices (e.g.,
USB mouse, USB camera).
5Microphone-in jack Accepts inputs from external
microphones.
Headphones/speaker/
line-out jack
Connects to audio line-out devices
(e.g., speakers, headphones).
9
English
Right view

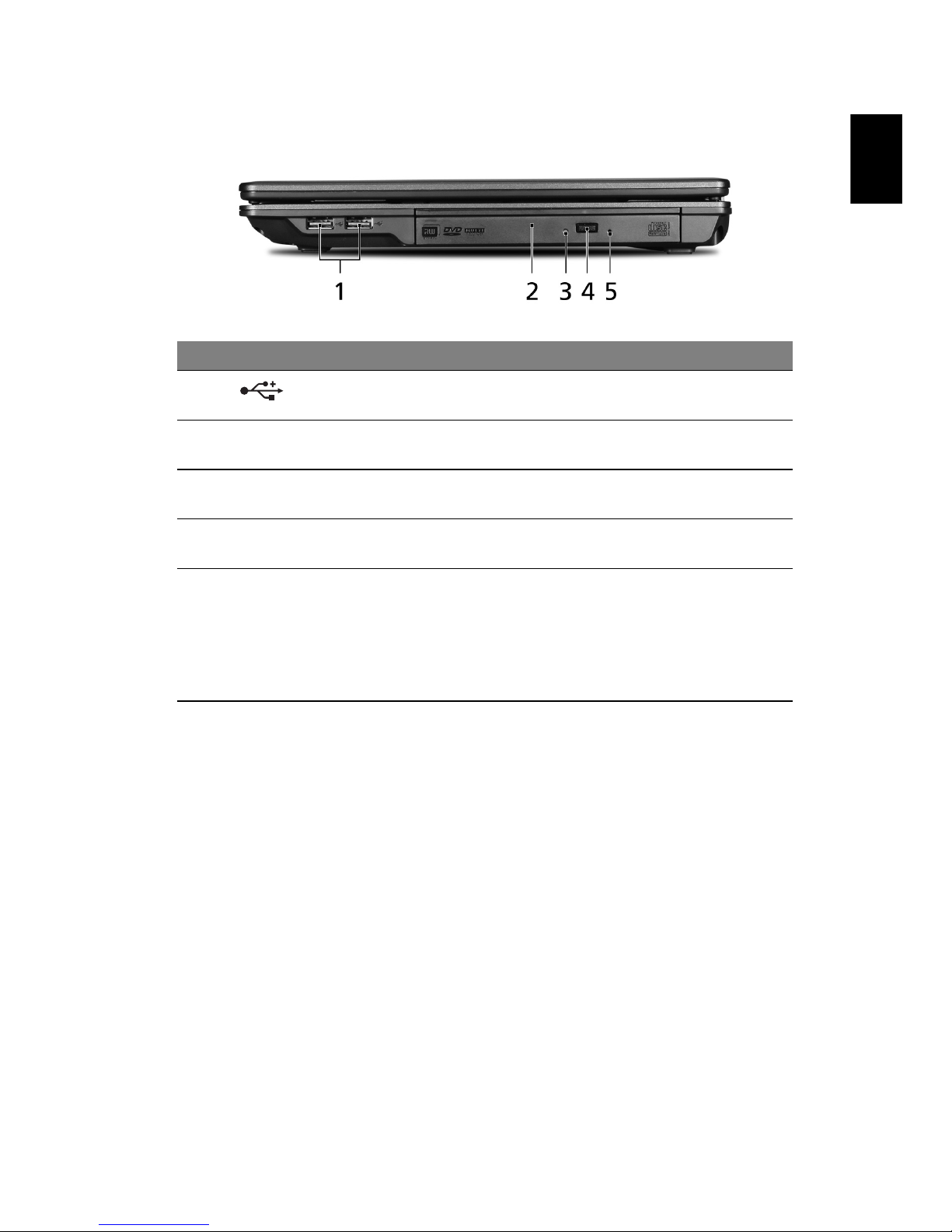

#Icon Item Description
1 USB 2.0 port Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
2 Optical drive Internal optical drive; accepts CDs or
DVDs.
3 Optical disk access
indicator
Lights up when the optical drive is
active.
4 Optical drive eject
button
Ejects the optical disk from the drive.
5 Emergency eject
hole
Ejects the optical drive tray when the
computer is turned off.
Note: Insert a paper clip to the
emergency eject hole to eject the
optical drive tray when the computer
is off.
10
English

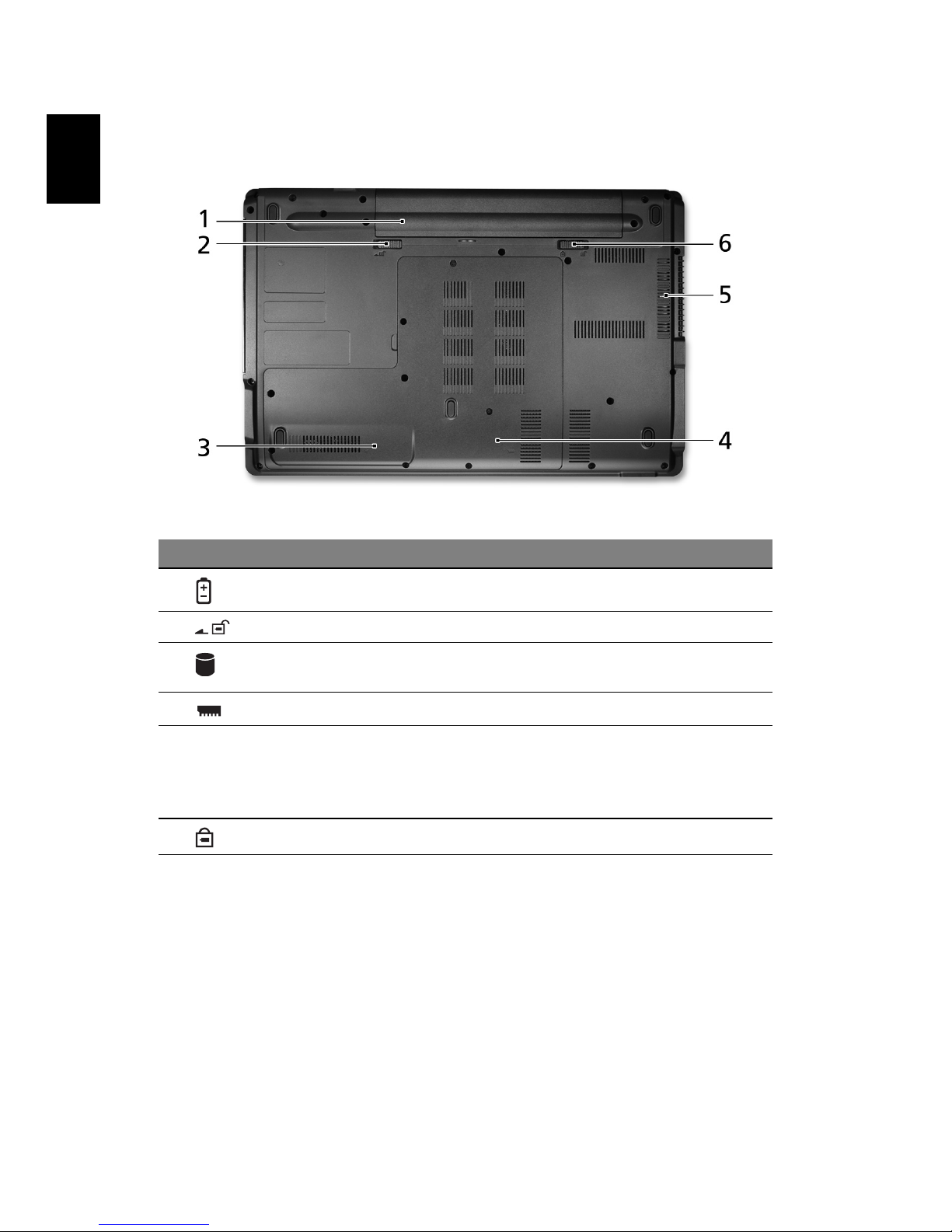

Base view
#Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery release latch Releases the battery for removal.
3 Hard disk bay Houses the computer's hard disk (secured
with screws).
4 Memory compartment Houses the computer's main memory.
5 Ventilation slots and
cooling fan
Enable the computer to stay cool, even
after prolonged use.
Note: Do not cover or obstruct the
opening of the fan.
6 Battery lock Locks the battery in position.
