Acer AL708 Manuale utente

Contents

Precautions………………………………………………………………3

Package Contents………………………………………………………..3

Installation Instructions

Monitor Installation……………………………………….……..4

Monitor Packing…………………………………………………4

Viewing Angle Adjustment……………………………………...4

Connecting……………………………………………………….5

Adjusting Display Setting………………………………………………..6

Troubleshooting………………………………………………………….9

General Specifications………………………………………………….10

PRECAUTIONS

zDo not place the monitor near or over a radiator or heat vents. Do not place the

monitor in a badly ventilated room.

zSlots and openings on the back or top of the cabinet are provided for ventilation.

They must not be blocked or covered.

zDo not write on the screen or touch the screen with a sharp object. You will

permanently scratch the LCD panel.

zUnplug this monitor from the wall outlet before cleaning. Please use a soft, lint-free

cloth to clean the monitor housing. Stubborn stains may be removed with a cloth

lightly dampened with a mild detergent solution. Do not spray liquid directly onto

the display screen. Liquid could drip inside the display and cause electrical shock.

zDo not attempt to service the monitor yourself; opening or removing covers can

expose you dangerous voltages and other hazards. Please contact qualified service

personnel for servicing if the problems of your monitor cannot be solved by

“Troubleshooting”section.

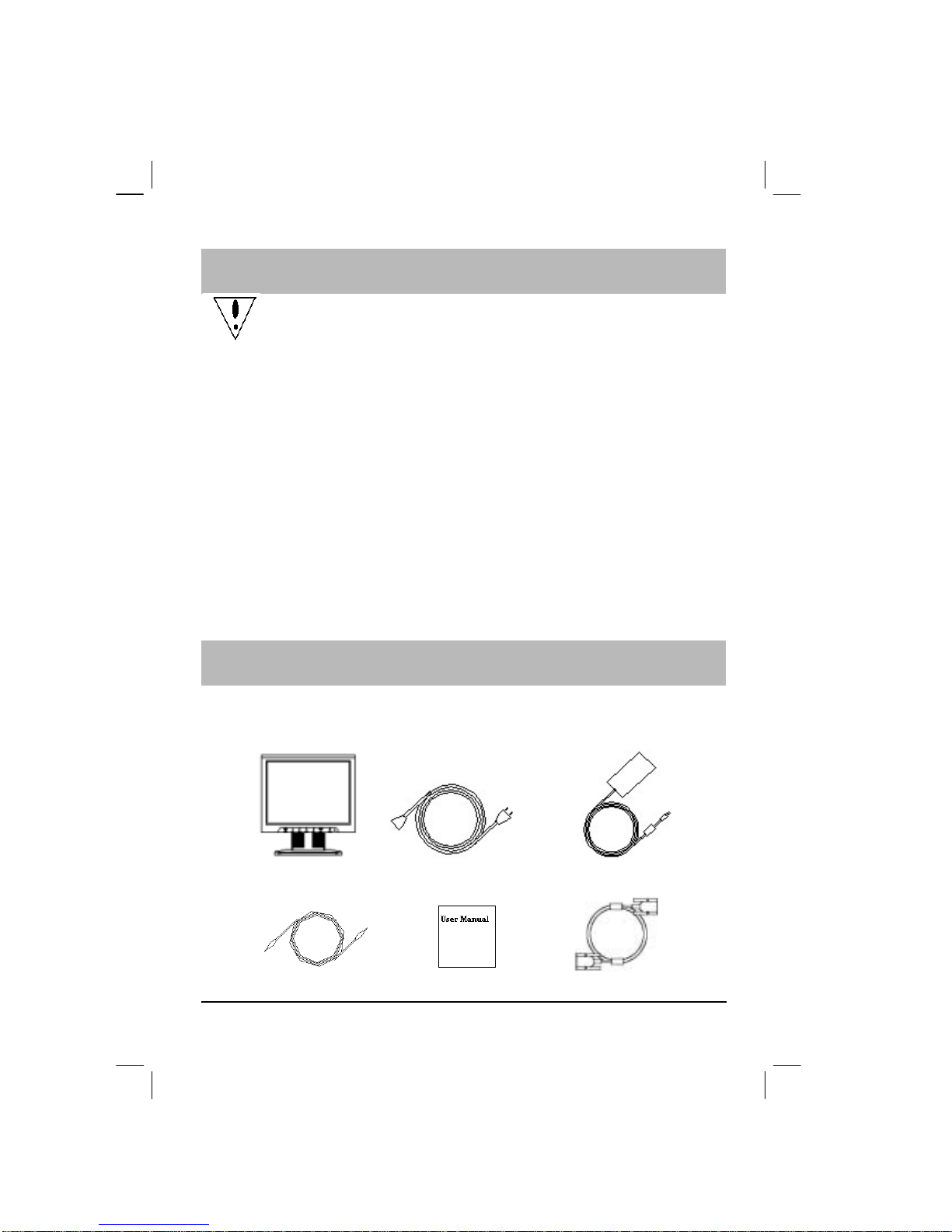

Package Contents

LCD Monitor Power Cord Power Adapter

Audio Cable User Manual VGA Cable

Installation Instructions

Monitor Installation:

Monitor Packing:

Important

Before you start, make sure there is a clean, flat surface where you can place the display

once it’s removed from the stand. To protect the screen, place a towel or cloth on the

surface.

Viewing Angle Adjustment:

You are able to adjust the monitor’s angle from -5°á20°.

Caution:

1. Position the display on top of the

display.

1.Pull the display slightly up and away from the stand.

Make sure that the computer and monitor’s power are both

turned off.

This device must be operated with the original power supply

part number: LSE9901B1250 of Li-Shing International

.Connect the stand into the neck

of display along the track.

Connecting:

1.Power Cord & Power Adapter: Plug one end of the power adapter to the DC power

connector on the backside of the monitor. Plug one end

of the power cord into the power adapter and the other

end into a properly grounded electrical outlet.

2.VGA Cable (Signal cable): Connect one end of signal cable to monitor and connect the

other side of signal cable to the VGA output of the

graphics card on the computer and tighten the

thumbscrews on connector.

WARNING: The shape of the D-Sub 15 pin plug of VGA cable is trapezoid.

Make sure it is properly connected to the computer and none of the

pins are bent or pushed in.

3.Audio cable: Connect one end of the audio cable to the audio input of LCD monitor

and the other end to your computer.

Power On:

First, power-on monitor,then power-oncomputer. After the computer is running, the LED

on the power button should be green. Allow about 10 seconds for the video signal to

appear. If the power LED is not green or you do not see a video signal, check the

connections

Adjusting Display Settings

1 2 3 4 5 6 7

External Controls

1OSD Menu Press to view the OSD.

Press again to exit.

2ARROW

OSD active: Press to select or adjust OSD

options

OSD inactive: Press 2 once, then ð,ç, to adjust

the brightness or ,to adjust

the contrast.

3ARROW

OSD active: Press to select or adjust OSD

options

OSD inactive: Press 3 once, then ð,çto adjust

the brightness or ,to adjust

the contrast.

4ARROW

OSD active: Press to select or adjust OSD

options

OSD inactive: Press 4 once, then ð,çto switch

the mute or ,to adjust the

volume.

5ARROW

OSD active: Press to select or adjust OSD

options

OSD inactive: Press 5 once, then ð,çto switch

the mute or ,to adjust the

volume.

6SELECT/ AUTO

OSD active: Press to enter a selection in OSD

OSD inactive: Press to automatically optimize

your display’s position, clock,

phase.

7POWER Power OFF/ON ; Green: ON Orange: Sleep

OSD Options:

áPlease refer to “ External Controls” on Page 5.

To adjust the OSD settings:

1. Press the OSD Menu button, the OSD menu open.

2. Use the ð,çbuttons to highlight a control, then press the SELECT/AUTO to

enter

3. Use the ð,ç, , buttons to adjust the control to the desired level.

4. When you have finished making all selections, press the OSD button to exit the OSD.

( or the adjustment can be auto saved after 45 seconds.)

OSD MENU:

zBrightness & Contrast Adjustment

zTracking Adjustment

rightness:

djust the brightness of the display.

ontrast:

djust the difference between the

ight and dark areas.

LOCK:

djust to minimize any vertical

ars or stripes visible on the screen

ackground. The horizontal screen

ize will also change.

HASE:

djust to remove any horizontal

istortion, and clear or sharpen the

mage of characters.

zPosition Adjustment

zColor Adjustment

zOther

-Position:

djust the vertical position of

he picture.

-Position:

djust the horizontal position

f the picture.

here are four items for color

djustment:

300K: Bluish white

500K: Reddish white

ser defined:

ed, Green, Blue. Adjust to set

our own color level.

ANGUAGE:

ulti- Language selection

SD POSITION:

djust the OSD window position

n the screen.

NFORMATION:

“

ON”When changing screen

esolution setting( for example:

orizontal/ vertical refresh rate),

isplay information is briefly

hown on the screen and vice

ersa.

ESET: Recall to factory settings.

Troubleshooting

Problem & Question Possible Solutions

Power LED is not ON

àCheck if the power switch is in the

ON position

àPower Cord should be connected.

No Picture

àCheck if the power switch is in the

ON position

àPower Cord should be connected.

àMake sure the video cable is securely

connected to the back of the monitor

and the computer.

àMove the mouse or press any key on

the keyboard to bring the monitorout

of active off mode.

Picture has color defects àSee ¼color adjustment½to adjust

RGB color or select color

temperature.

Picture bounces or a wave pattern

is present in the picture

àMove electrical devices that may

cause electrical interference.

àInspect the monitor’s video cable

and make sure that none of the pins

are bent.

Image is not sized or centered properly

àPress select/auto key to

automatically optimize your

display’s position.

àSee ¼Position adjustment½

áCaution

Do not attempt to service the monitor yourself or open the computer yourself.

Please refer all servicing to qualified service personnel if the problems cannot

be solved by ¼Troubleshooting½

General Specifications

Item Specification

LCD Panel

Display 17-inch Flat panel active-matrix TFT LCD

Max resolution SXGA 1280×1024 pixels

Pixel Pitch 0.264 mm

Color 16.7M

Brightness 250 Cd/m2

Contrast Ratio 350:1

Response Time Tr= 10 ms , Tf = 20 ms

View Angel of Horizontal 150C

View Angel of Vertical 125C

External Controls

Power Button ON/ OFF

Control Buttons Menu ,ð,ç, , , Select/Auto

OSD Function

Brightness Contrast Brightness, Contrast

Color Color temperature

Position H-Position, V-Position

Tracking Clock, Phase

Other OSD Position, Language

Video Interface

Video Analog 0.7V

Sync TTL°/±

Plug & Play DDC2B

Power

Power Source 100~240V AC, 50/60 Hz

Power consumption of

normal operation < 50W

Power consumption of

active off operation < 3W

Dimension and Weight

Dimension°W×H×D±408 ×418 ×183 mm

Weight°Net/ Gross±5.1 Kg/ 7.2 Kg
