Acer MATE Manuale utente

Air Monitor MATE

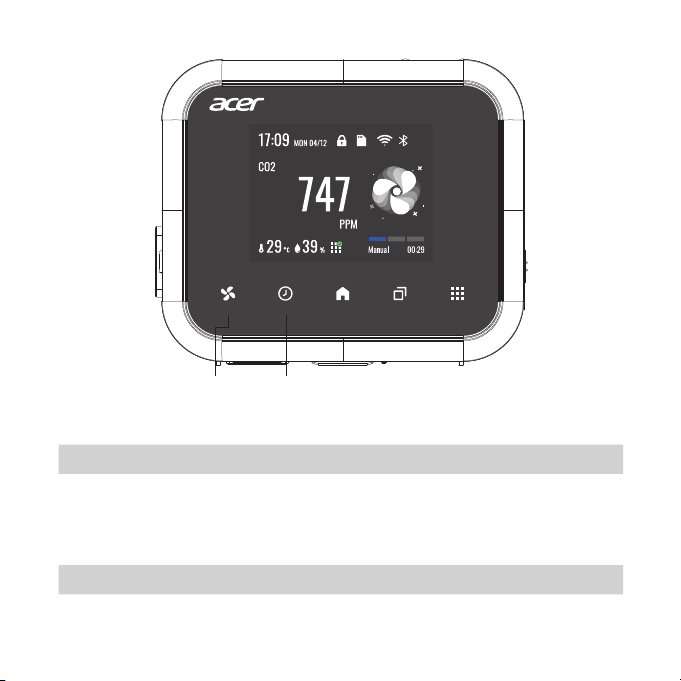

Fan Speed Timer

Fan Speed

Short Touch: Manual Speed 1 > Manual Speed 2 > Manual Speed 3 > Automatic Control

Long Touch: Stop

When switching to manual speed, the timer will be set to 30 minutes by default.

After 30 minutes, the controller will switch to automatic mode.

Timer

In manual mode, each press on the button corresponds to 1hr increment. Once the time

exceeds 6hr, the decide would be in always on mode, and the device would display 24hr.

Touch Button Description-I

Main Page

Switch Button

Setting Button

Sub Pages

Switch Button

Sub Page Switch Button

Press the button to display detailed information

related to the Main page.

Setting Button

In the settings page, press the button to

switch and configure options.

Main Page Switch Button

There are 5 main pages. Press this button to switch main page sequentially.

Default Main Page > Sensor Page > Ventilation Equipment Page > Settings > About

Touch Button Description-II

Phoneix

Connectors

Coin Battery

for clock

Stand Temperature &

Humidity Sensor

Phoneix Connectors

※NO1-NO3 can be used for controlling fan speed in order. Only one of NO1-NO3 can be

switched on at a time.

※NO4 can be used to turn on a relay switch for further controlling a dehumidifier,

compressor, or valve.

※AO: Analog Output

GND

A+B-A+B-1 2

GND

DCin

DCout

1 2 3 4 AO

Normal Open Slave Ain PowerMaster

Switch for

touch lock

RS485 120ohm

MODBUS ID: A0-AF

USB Type C

Power Connnector

Screw hole for

Wall Mount Plate

Dip switch

LORA Version

ON: Turn on LORA communication and turn off RS485 slave function.

Ambient

Light Sensor

Wi-Fi

Green LED

Wi-Fi

Red LED

Wi-Fi

Reset

Wi-Fi Status Red Green

Waiting for provisioning ON OFF

Connecting to access point OFF Slow flashing

Connecting to cloud server OFF Fast flashing

Connected to cloud server OFF ON

Communication Error to Sensor Slow flashing Slow flashing

Description of Wi-Fi LED Light

※Wi-Fi Reset: Long press reset button to switch Wi-Fi to provision waiting mode.

Set up cloud connection and connect to ventilation equipment

※Launch Acer Air Monitor Pro APP

※Click "+" to add Acer AMM Smart Environmental Monitor and Controller. Follow the steps

indicated on APP to complete the settings.

※To connect to a ventilation equipment, please click an AMM device then click "+" to select an

equipment. Follow the steps indicated on APP to complete the settings.

<Notice> Scan right QR Code to download the APP.

Air Monitor Pro

INDOOR

IAQ

Air Monitor Pro

INDOOR

IAQ

58 AMM012

Air Quality: Moderate

2021/03/09 16:34:11

Dry contact RS485

AUTO

IAQ

Filter in good condition The Filter needs to be replaced

OFF

ANALYSIS CONTROL SETTINGOVERVIEW

Ventilator/Purier

Schedule

Sun Mon Tue Wed Thu Fri Sat

Automatic Mode

OFF

ANALYSIS CONTROL SETTINGOVERVIEW

Ventilator/Purier

Schedule

Sun Mon Tue Wed Thu Fri Sat

Automatic Mode

Apply

啟動設備

01:00

02:00

03:00

04:00

05:00

06:00

07:00

08:00

09:00

10:00

Sun Mon Tu e Wed Thu Fri Sat

Schedule setting

※Click a AMM device, click Control, then click "Ventilator/Purifier".

※Click "Schedule"

※On schedule setting page,

click on the table column corresponding to each hour to turn it on or off.

When the schedule control is enabled, AMM will switch to automatic control mode over time.

When the schedule is set to ON, the automatic control is started.

When the schedule is set to OFF, it turns to the off mode.

SETTINGCONTROL

Ventilator/Purier

Schedule

Sun Mon Tue Wed Thu Fri Sat

Automatic Mode

AOFF

ＭODE TIMER

Schedule

預約設備啟動時間

Automatic rule setting

AMM自動規則設定

SETTINGCONTROL

智慧空氣品質偵測器

INDOOR

Air Monitor Pro

58 智慧空氣品質偵測器

信號強度: -93dB

2021-03-09 16:34:11

溫度

濕度

揮發物質

0.23

PM10

照度

二氧化碳

3000

甲醛

0.01

PM2.5

尚未配對

請輸入認證號碼

此號碼會顯示在AMM面板

Air Monitor Pro

58 Air Monitor Pro

RSSI: -93dB

2021-03-09 16:34:11

Temp.

Himi.

TVOC

0.23

PM10

illum

CO2

830

HCHO

0.01

PM2.5

尚未配對

Please turn on Bluetooth on your smartphone.

The 4-digit number will disappear after 5 seconds automatically. Please complete the pairing

process in time.

Bluetooth Remote Control

※Launch APP

※Click manual icon then click "Scan Bluetooth air

quality broadcasts"

※Select the AMM that has strongest signal. The LCD display on

the corresponding AMM device will show a 4-digit number.

※Input the 4-digit number on APP to complete paring process,

and then you can perform remote control functions.

Air Monitor Pro

Device Center

App Settings

Map View

Account

Scan Bluetooth air quality broadcasts

About this app

Product Introduction

Knowledge Center

58 AMM012

Air Quality: Moderate

2021/03/09 16:34:11

Dry contact RS485

AUTO

IAQ

Filter in good condition The Filter needs to be replaced

Please contact business window for LORA relative functions.

LORA Conguration

※Please login the cloud account into LoRa Master device for setting the connection.

※Once the setting is completed, you can use the APP to access the AMM.

Air Monitor Pro

IAQ

Air Monitor Pro

成功連線

後方WiFi燈號為綠燈

裝置名稱

AMM010
