AceWav ACW EHC8 Manuale utente
Congratulations on purchasing ACW EHC8/16/24_ACW EHCS4_ACW EHP4/8/12. Follow these
installation and configuration instructions to get started. Use the web interface for easiest
configuration. If you need assistance, please contact Acewav at support@acewav.tv or visit
www.acewav.tv.
Enable the video distribution effortlessly
Quick Start
ACW EHC8/16/24_ACW EHCS4_ACW EHP4/8/12
ASI OUT
MGM T
DATA
STATU S
POWER
RESET
Digital HD Encoder
Digital HD Encoder
*The product appearence is subject to the actual product you receive.
Please use the checklist to ensure that your order is complete:
Base unit × 1 Power cord × 1 Quick start guide × 1
Unpacking

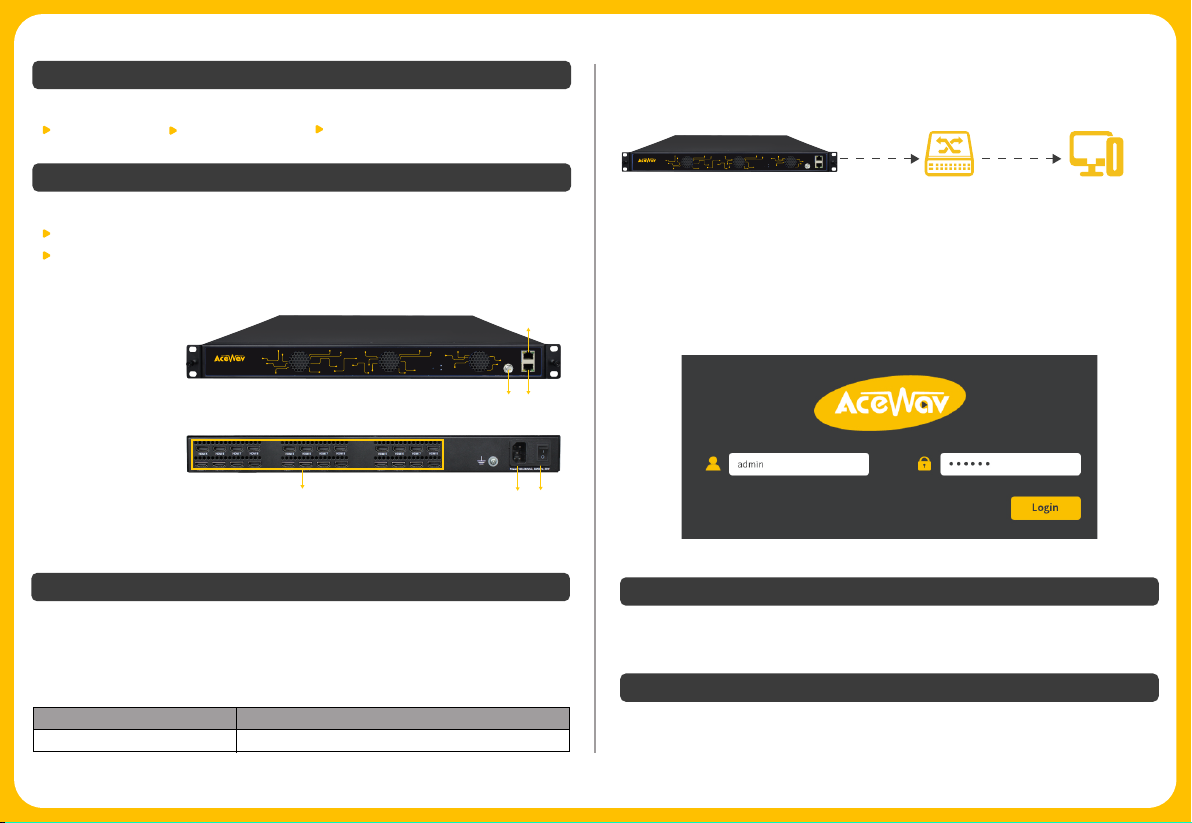

Rack Mounting and Cable Connecting
The built-in Ethernet port has a corresponding default IP address.
Launching Web Interface
The images shown here are for reference only. Actual product may look different.
Specifications are subject to change without advanced notice.
Documentation
Notice
Device Ethernet Port IP Address/Subnet Mask
192.168.1.10/255.255.255.0
MGMT
1. ASI output 2. DATA 3. MGMT
Front panel
4. HDMI 5. Power: AC 100~240V, 50-60Hz
Rear panel
6. Switch ON/OFF
The user manual can be obtained by emailing Acewav Sales team or Acewav Procare team.
Change the IP address and subnet mask of management computer, making it in the
same network with the device.
Before beginning, please make sure that you have the following items:
The unit mounted in the rack with power supply
One computer for configuring the network connection
Please confirm that air intake and air exhaust of the unit will not be obstructed in
the rack.
Connect your management computer to the MGMT port on the device. Plug the
power cord to the power supply connector and then turn on the power switch.
Launch the web browser on the PC. Enter default IP address (http://192.168.1.10)
of the product in the browser address bar to connect with the unit. Input default
user name “admin” and password “admin” to log in to the unit. The log in tab
is displayed as below:
*Note: ACW EHC24 panel for your reference.
*Note: In actual application, please avoid connecting MGMT port and DATA port to the same switch.
ASI OUT
MGMT
DATA
STATUS
POWER
RESET
Digital HD Encoder
ASIOUT
MGMT
DATA
STATUS
POWER
RESET
Digital HD Encoder
3
1 2
456
Switch Management
Computer
