ACME CB-16FC Manuale utente

CB-16FC

User Manual

Please read the instruction carefully before use

CONTENTS

1. Safety Instruction ................................................................................................... 2

2. Technical Specification ........................................................................................... 3

3. How To Set The Unit ............................................................................................... 4

3.1 Control Panel.................................................................................................... 4

3.2 Main Function .................................................................................................. 5

4. How To Control The Unit ...................................................................................... 10

4.1 Master/Slave Built In Preprogrammed Function............................................. 11

4.2 DMX Controller............................................................................................... 11

4.3 DMX 512 Configuration .................................................................................. 12

4.4 DMX512 Connection ...................................................................................... 19

5. Troubleshooting ................................................................................................... 20

6. Fixture Cleaning ................................................................................................... 21

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure

that they also receive this instruction booklet.

Unpack and check carefully there is no transportation damage before using the unit.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

The unit is for indoor use only. Use only in a dry location.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces. Be sure that no ventilation slots are blocked.

Disconnect main power before replacement or servicing.

Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only, but always

by taking its base.

Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is higher

than this.

Unit surface temperature may reach up to 85℃. DO NOT touch the housing bare-hand during its

operation. Turn off the power and allow about 15 minutes for the unit to cool down before

replacing or serving.

In the event of serious operating problem, stop using the unit immediately. Never try to repair

the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center. Always use the same type

spare parts.

DO NOT touch any wire during operation as high voltage might be causing electric shock.

Please read this instruction carefully which includes important

information about the installation, usage and maintenance.

Warning:

To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

DO NOT open the unit within five minutes after switching off.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Caution:

There are no user serviceable parts inside the unit. Do not open the housing or attempt any

repairs yourself. In the unlikely event your unit may require service, please contact your nearest

dealer.

Installation:

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is

firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to

which you are attaching the unit is secure and is able to support a weight of 10 times of the

unit’s weight. Also always use a safety cable that can hold 12 times of the weight of the unit

when installing the fixture.

The equipment must be fixed by the professionals. And it must be fixed at a place where is out of

the touch of people and has no one pass by or under it.

2. Technical Specification

◇Outstanding color mixing effect

◇Various chase modes and strobe effects

◇LED can be controlled pixel by pixel

◇DMX Channel: 1 / 3 / 4 / 7 / 8 / 16 / 32 / 67 Channel

◇Control Mode: DMX, Master /Slave, Stand-alone, Sound Active

◇Power Voltage:AC 100V~240V, 50/60Hz

◇Power Consumption: 163W

◇Light Source: 16 x 8W RGBW LED

◇Beam Angle: 45°

◇

Weight: 6.3Kgs

◇

Dimension: 1005 X 110 X 159mm

110

159

1005

3. How To Set The Unit

3.1 Control Panel

12345678

1.POWER IN:

Connect the main power supply.

2.DMX IN:

For DMX512 link, use 3-pin XLR cable to link the unit and the DMX controller.

3.LED:

DMX On DMX input present

MASTER On Master Mode

SLAVE On Slave Mode

SOUND Flashing Sound activation

4.Button:

MENU To select the programming functions

DOWN To go backward in the selected functions

UP To go forward in the selected functions

ENTER To confirm the selected functions

5.Display:

To show the various menus and the selected functions.

6. MIC: To receive music for sound active.

7.POWER OUT:

Connect the main power supply to the next unit.

8.DMX OUT:

For DMX512 link, use 3-pin XLR cable to link the next unit and output DMX signal.

3.2 Main Function

To select any of the given functions, press the MENU button up to when the required one is

showing on the display. Select the function by ENTER button and the display will blink. Use the

DOWN/UP button to change the mode. Once the required mode has been selected, press the

ENTER button to setup, to go back to the functions without any change press the MENU button

again. Hold and press the MENU button about one second or wait for one minute to exit the menu

mode.

The main functions are showing below:

DMXAddress

Channel Mode

Show Mode

Slave Mode

Master Slave

Blackout Mode

Last state

Sound State

Sound Sense

Led

Display Inversion

AutoTest

Fixture Hours

Software Version

Reset

FixtureTemperature

Сolor Mode

Dimmer Speed

White Balnce

DMX 512 Address Setting

Press the MENU button up to when the is shown on the display. Pressing ENTER button

and the display will blink. Use DOWN and UP button to change the value. Once the mode has

been selected, press the ENTER button to setup, to go back to the functions without any change

press the MENU button again. Hold and press the MENU button about one second or wait for one

minute to exit the menu mode.

Channel Mode

Press the MENU button to show on the display. Press the ENTER button and the display

will blink. Use the DOWN and UP button to select the 1ch, 3ch,4ch,7ch,8ch,16ch,32ch or 67ch.

Once the mode has been selected, press the ENTER button to setup, to go back to the functions

without any change press the MENU button again. Hold and press the MENU button about one

second or wait for one minute to exit the menu mode.

Show Mode

Press the MENU button up to when the is shown on the display. Pressing the ENTER

button. Use DOWN and UP button to select the (Show 0) …… (Show 12)

mode.Once the mode has been selected, press the ENTER button to setup, to go back to the

functions without any change press the MENU button again. Hold and press the MENU button

about one second or wait for one minute to exit the menu mode.

Slave Mode

Press the MENU button up to when the is shown on the display. Pressing the ENTER

button. Use DOWN and UP button to select the (slave 1), (Slave 2) or

(master) mode.Once the mode has been selected, press the ENTER button to setup, to

go back to the functions without any change press the MENU button again. Hold and press the

MENU button about one second or wait for one minute to exit the menu mode.

Color Mode

Press the MENU button up to when the is shown on the display. Pressing the ENTER

button. Use DOWN and UP button to select the (Color 1) …… (Color 32)

mode.Once the mode has been selected, press the ENTER button to setup, to go back to the

functions without any change press the MENU button again. Hold and press the MENU button

about one second or wait for one minute to exit the menu mode.

Dimmer Speed

Press the MENU button up to when the is shown on the display. Pressing the ENTER

button. Use DOWN and UP button to select the (Fast) or (Smooth). Once

the mode has been selected, press the ENTER button to setup, to go back to the functions without

any change press the MENU button again. Hold and press the MENU button about one second or

wait for one minute to exit the menu mode.

Sound State

Press the MENU button up to when the is shown on the display. Pressing ENTER button,

Use DOWN and UP button to select the (sound on) or (sound off).Once the

mode has been selected, press the ENTER button to setup, to go back to the functions without any

change press the MENU button again. Hold and press the MENU button about one second or wait

for one minute to exit the menu mode.

Sound Sense

Press the MENU button to show on the display. Press the ENTER button and the display

will blink. Use the DOWN and UP button to adjust the value from (0) to

(100), Once the mode has been selected, press the ENTER button to setup, to go back to the

functions without any change press the MENU button again. Hold and press the MENU button

about one second or wait for one minute to exit the menu mode.

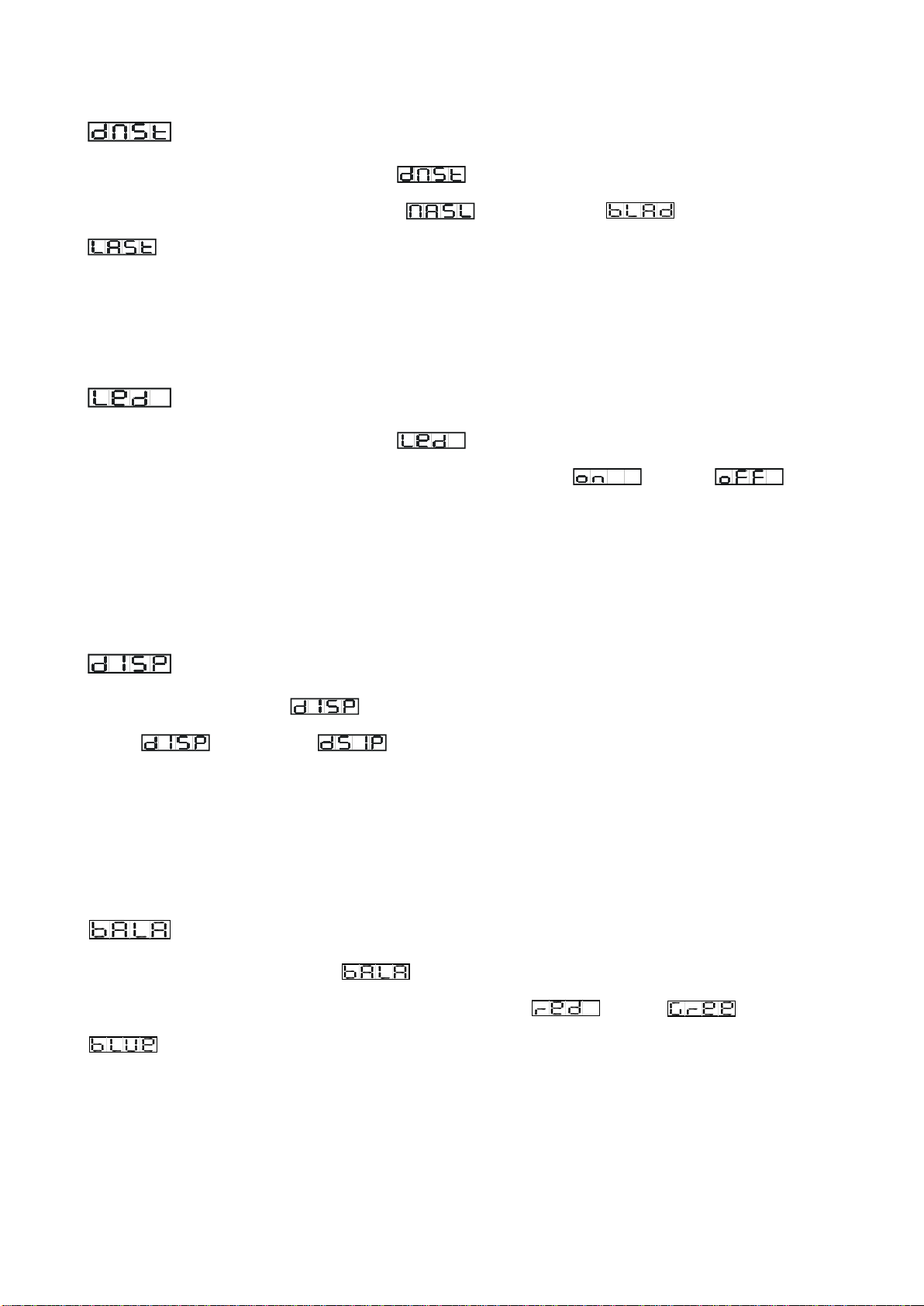

DMX State

Press the MENU button up to when the is shown on the display. Pressing ENTER button,

Use DOWN and UP button to select the (master slave), (blackout mode) or

(last state). Once the mode has been selected, press the ENTER button to setup, to go

back to the functions without any change press the MENU button again. Hold and press the MENU

button about one second or wait for one minute to exit the menu mode.

LED

Press the MENU button up to when the is shown on the display. Pressing ENTER button

and the display will blink. Use DOWN and UP button to select (On) or (Off),

Once the mode has been selected, press the ENTER button to setup, to go back to the functions

without any change press the MENU button again. Hold and press the MENU button about one

second or wait for one minute to exit the menu mode.

Display Inversion

Press MENU button until is blinking on the display. Use the DOWN and UP button to

select (normal) or (inverse), Once the mode has been selected, press the

ENTER button to setup, to go back to the functions without any change press the MENU button

again. Hold and press the MENU button about one second or wait for one minute to exit the menu

mode.

White Balance

Press the MENU button to show on the display. Press the ENTER button and the display

will blink. Use the DOWN and UP button to select (Red), (Green) or

(Blue). And adjust the value from 125 to 255, Once the mode has been selected, press

the ENTER button to setup, to go back to the functions without any change press the MENU

button again. Hold and press the MENU button about one second or wait for one minute to exit

the menu mode.
