ACME TV LIGHT PANEL 2000 Manuale utente

CONTENTS

1. Safety Introductions....................................................................................... 2

2. Technical Specifications ................................................................................. 4

3. How To Set The Unit....................................................................................... 6

3.1 Control Panel ........................................................................................... 6

3.2 The Plate for Barn Door Installation ......................................................... 7

3.3 Main Function.......................................................................................... 7

4. How To Control The Unit.............................................................................. 13

4.1 Primary/Secondary Function ................................................................. 13

4.2 DMX Controller ...................................................................................... 14

4.3. DMX512 Configuration.......................................................................... 14

4.4. DMX512 Connections ........................................................................... 17

5. Troubleshooting........................................................................................... 18

6. Fixture Cleaning........................................................................................... 18

1. Safety Introductions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure

that they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer

will not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before using the

unit.

This product is for indoor use only. Use only in a dry location.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head

only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not

operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off

the mains power immediately.

Please read the instruction carefully which includes important information

about the installation, usage and maintenance.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

Disconnect mains power before fuse replacement or servicing.

Replace fuse only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs

yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Avoid direct eye exposure to the light source while the product is on.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have the

damaged parts replaced by an authorized technician at once.

Installation:

The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid

vibration and slipping off during operation. Ensure that the trussing or area of installation must be

able to hold 10 times the weight without any deformation. Always install a safety cable that can

hold at least 12 times the weight of the fixture when installing.

DO install and operate by qualified operator. It must be installed in a place where there is out of

the reach of people.

2. Technical Specifications

Power Voltage:

AC 100~240V, 50/60Hz

Power Consumption:

210W

Light Source:

480pcs CW+480pcs WW LED

Color Temperature:

3200±150K~5600±250K

Beam Angle:

110°

Control:

DMX Channel: 2/3A/3B/4/5/6 channels

Control Mode: DMX512, RDM, Primary/Secondary, Art-Net

Firmware Upgrade: Update via DMX link

Construction:

Display: LCD display

Data In/Out: 5-pin XLR

Power In/Out: Power Connector in

Protection Rating: IP20

Optical:

CRI: VW≥94

CQS: VW≥94

TLCI: VW≥95

Features:

With outstanding floodlight and soft light

TV LIGHT PANEL 2000 is widely applied to photographic studio, TV station, conference room,

shopping mall

Access to buttery

Dimensions/Weight:

668x147.5x491.4mm, 13kgs

26.3"x5.8"x19.3"in, 28.7lbs

550

668

127.5

147.5

491.4

Photometric Diagram:

3. How To Set The Unit

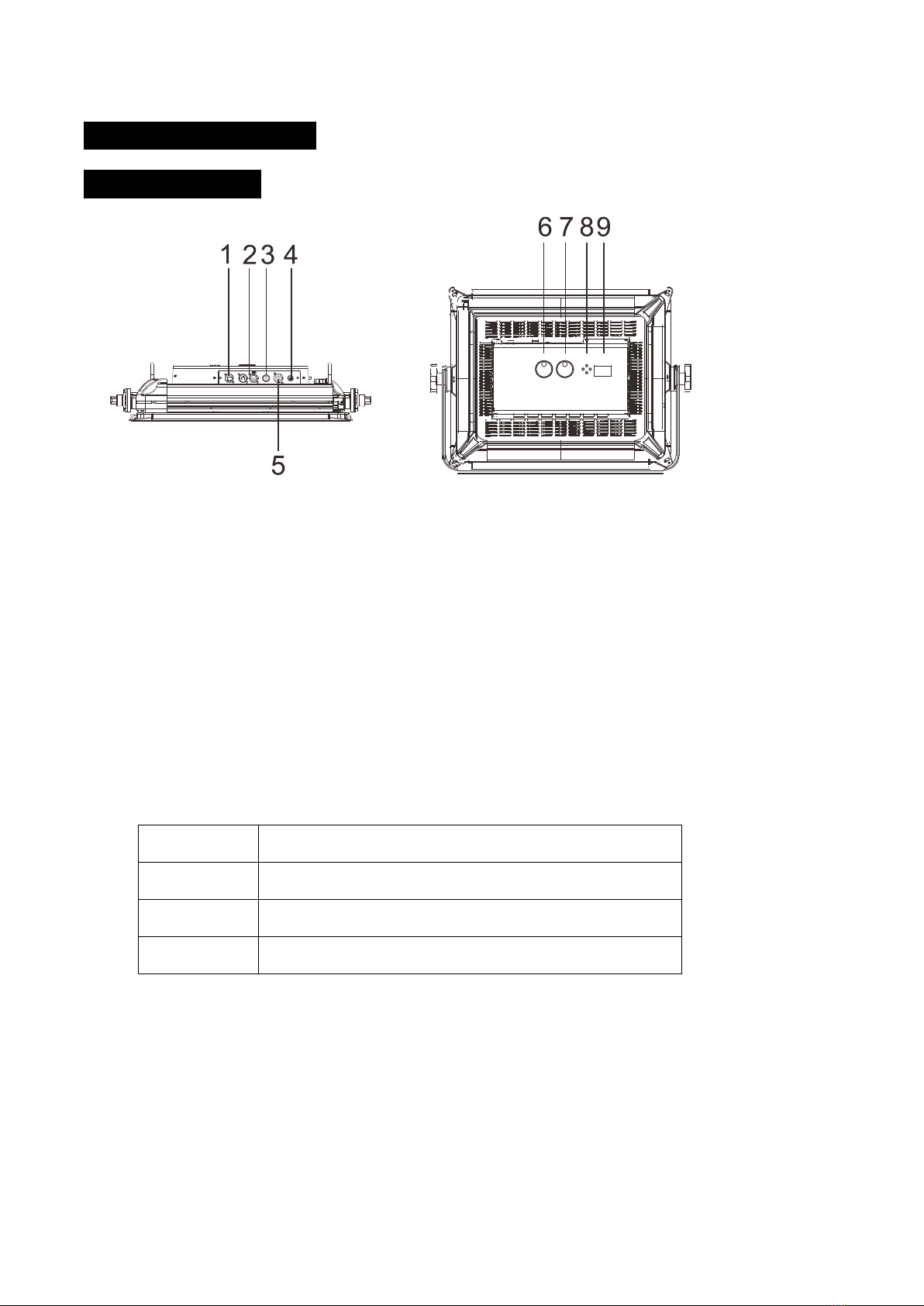

3.1 Control Panel

1. ETHERNET: Transfers fixture’s information to a main controller

2. DMX IN/OUT : For DMX512 link, use 5-pin XLR cable to link the unit to a DMX controller or the

next unit and input/output DMX signal

3. BATTERY(DC 48V): Connects to external battery

4. FUSE(T 5A): To protect the unit from damage of over current

5. MAINS IN: Connects to mains supply power

6. Color Temperature Knob: Adjust the color temperature

7. Dimmer Knob: Adjust the dimmer

8. Button:

MENU To select the programming functions

UP To go backward in the selected functions

DOWN To go forward in the selected functions

ENTER To confirm the selected functions

9. Display: Shows the various menus and the selected functions

3.2 The Plate for Barn Door Installation

At first, please push the barn door by hand.

Screw

Secondly, please put the Barn Door into the unit, to fasten the screws of the slot, then finish the

barn door installation.

3.3 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by pressing the ENTER button.

Use the UP/DOWN button to choose the submenu, press the ENTER button to store and

automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to

exit menu mode.

The main functions are shown below:

DMX Setting

Select the DMX Setting, press the ENTER button to confirm. Use the UP and DOWN button to

select DMX Address, Art-Net Setup or Channel Mode.

DMX Address

Select the DMX Address, press the ENTER button to confirm, the display will show the present

address. Use the UP and DOWN button to select 1to 512, press the ENTER button to store. Press

the MENU button back to the last menu or idling 30 seconds to exit menu mode.

Art-Net Setup

Select the Art-Net Setup, press the ENTER button to confirm. Use the UP and DOWN button to

select the EtherNet IP Setup or ArtNet Port Setup,press the ENTER button to store. Press the

MENU button back to the last menu or idling 30 seconds to exit menu mode.

Channel Mode

Select the Channel Mode, press the ENTER button to confirm, the display will show the present

channel mode. Use the UP and DOWN button to select 2 CH, 3A CH, 3B CH, 4 CH, 5 CH or 6 CH,

press the ENTER button to store. Press the MENU button back to the last menu or idling 30

seconds to exit menu mode.

Dimmer Speed

Select the Dimmer Speed, press the ENTER button to confirm, use the UP and DOWN button to

select the Smooth or Fast, press the ENTER button to store. Press the MENU button back to the

last menu or idling 30 seconds to exit menu mode.

Dimmer Curve Setting

Select Dimmer Curve Setting, press the ENTER button to confirm. Use the DOWN/UP button to

select the Linear Curve, Sq. Law Curve, Invert Sq. Law Curve or S Curve, press the ENTER button

to store. Press the MENU button back to the last menu or idling 30 seconds to exit menu mode.
