GB Introduction
Thank you for purchasing ACME gaming wheel. Please read this manual carefully FIRST, before using
the device.
For your convenience, record the complete model number and the date you received the product
together with your purchase receipt and attach it to the warranty and service information. Retain
them in the event warranty service is required. If you found this product faulty or damaged due to
quality problems, please return it to our repair department or the agency where you bought it.
Package contents
• RS racing wheel
• Foot pedals
• Table clamp and screw
• Drivers CD
• User‘s manual + warranty pages inside
Features and specification
• 2 axes, a D-Pad and 12 separate action buttons
• Built-in motors let you feel every inch of the road for maximum control
• Digital mode and Analog mode are interchangeable
• Works with Windows-based PC: Windows2000/XP/Vista/7™
• Auto-calibration function(DRIVER installation is required)
• 180° wheel rotation
5
GB
• Powerful function for driver settings
• Spring-loaded pedals for acceleration and brakes create a driving experience
• 7 big and durable suction cups make the wheel xed in place and easy to operate
• 2.0 m wheel cable and 1.6 m pedal cable
• Working current is lower than 170mA
Buttons layout
Front Buttons
Mode-LED
D-pad
Power LED
Acceleration (ACC) (Y+)Brake(Y-)
6
GB
Ports
Port for Pedal Cable USB cable
Assembly
Play on the desk or table

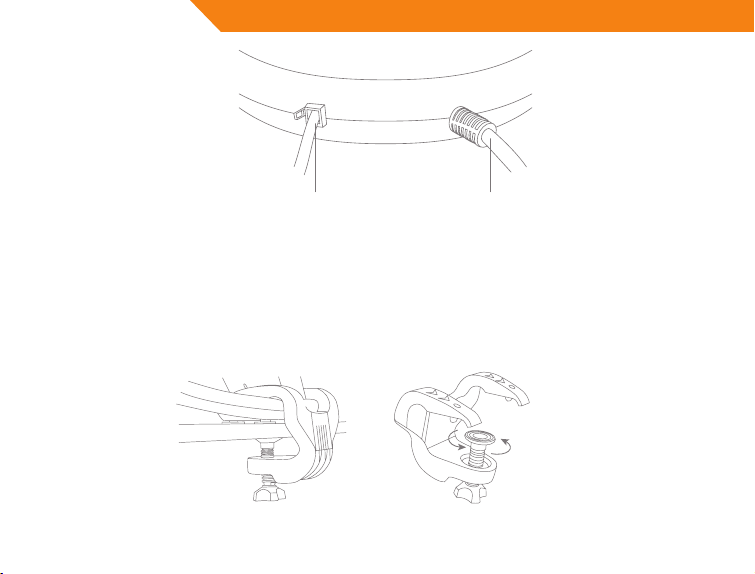

Step 1. Place the wheel in acomfortable driving position (on a desk or table) and press the base unit
down rmly on the surface. (See Figure 1)
Step 2. Turn the clamp screw until the base is rmly connected. (See Figure 2):
Figure 1 Figure 2
7
GB
Driver installation and settings
Driver Installation
• Connect the wheel to the PC. Put the CD into the CD-ROM drive. Your PC will detect the driver
automatically. Follow on- screen prompts to complete the installation. A shortcut will be created
on the desktop when installation is done (see Picture 2 as below). Users can simply click this icon
to test and set up
Picture 2
• Double click the shortcut “ACME RS Racing Wheel” to enter game controllers (see picture 3 as
below)
Picture 3
8
GB
Product Test
• TestInterface
Clickthe“Test”buonasseenintheabovePicture3.Enterthewheeltestinterfaceasbelow(see
Picture4)totestaxisandbuons.
Picture 4
Driver Function Test
• You can set the original dead zone for wheel direction (X axis), gas (Y+ axis), brake (Y-axis) as
below. (see picture 5“Dead Zone setup”)
• Wheel sensitivity can be adjusted from low to high in dierent degrees as below. (see Picture 5
9
GB
“sensitivity setup”)
• Wheel acceleration, brake and key 1 to key 12 is interchangeable (key mapping). (See Picture 5
“KeyMap setup”as below.)
• When driver is installed, default is set the rst time you press the MODE button. There is no need
for a manual calibration.
Note: The rst time you press the wheel MODE button, please do not press any other buttons

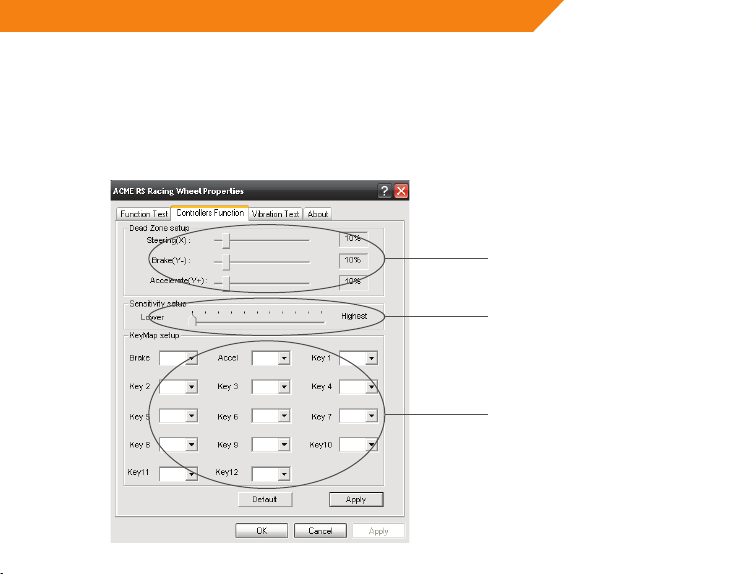

Picture 5
Sensivityadjustment
KeyMapSet-up
DeadZoneSet-up
10
GB
Vibration Test
• Vibration strength can be adjusted to dierent degrees as below. (See Picture 6 “vibration
strength”)
• Motor test methods (See Picture 6)
Picture 6
Mothor test methods
Vibration strength
