KDS 6190

1U rack mount LCD keyboard drawer

Installation Guide

KDS6190,1U19”rackmountmonitorkeyboarddrawer

© Copyright 2009 Acnodes, Inc.

All rights reserved. Product description and product specifications

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

KDS 6190

1U rack mount LCD keyboard drawer

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

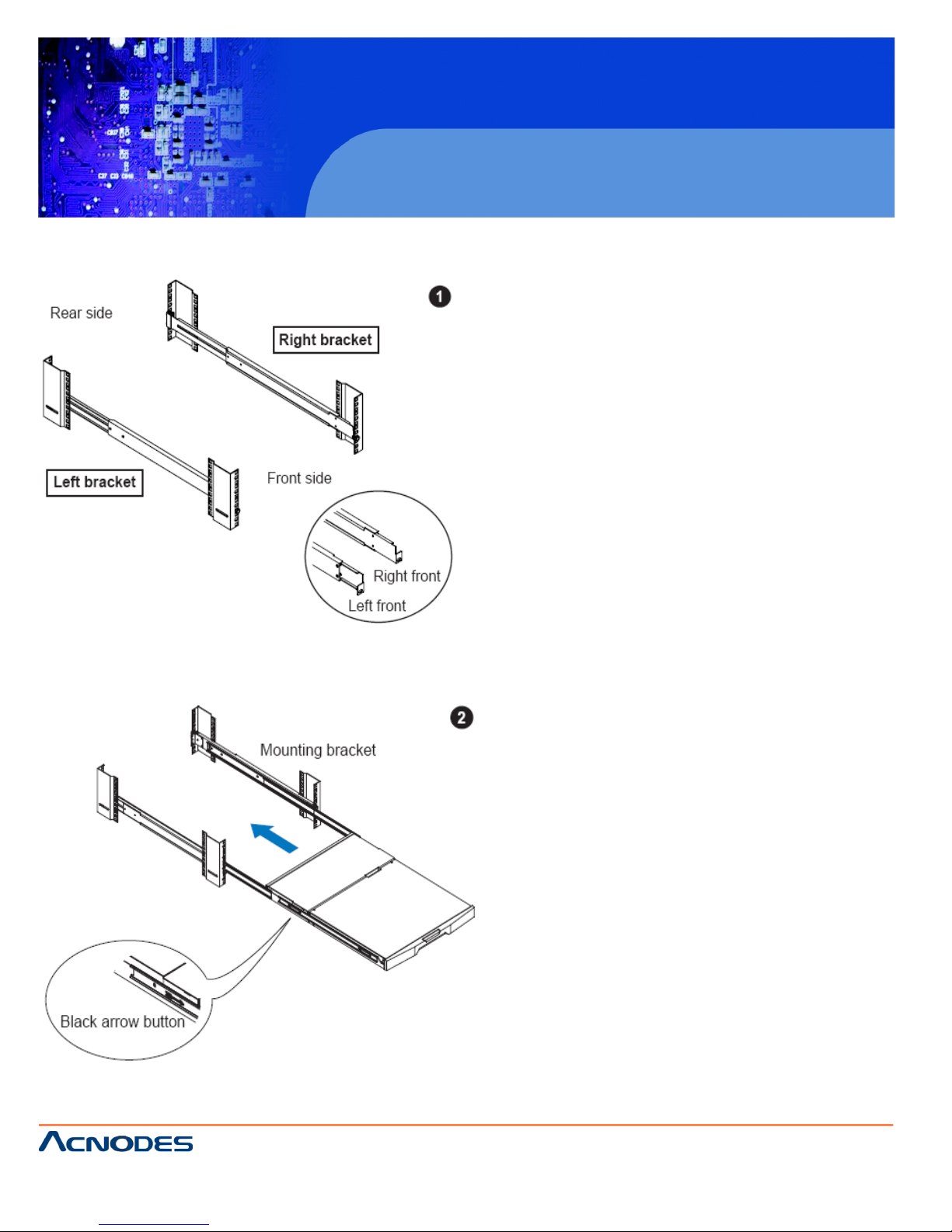

Attach the left and right mounting bracket to rack 19"

mounting rails.

Adjust the rear mounting bracket to fit your rack.

M6 screw and cup washer x 6 piece included.

Caution : Leaving the screws slightly loose, until

you complete the installation in step 4

Pick up the LCDkeyboard drawer.

Insert the LCD keyboard drawer into the mounting bracket.

Pull and hold the left & right black arrow buttons on the rails.

Return the LCD keyboard drawer to park position

1.5 How toInstall “One Man” Installation Slides intorack

5

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

© Copyright 2009 Acnodes, Inc.

All rights reserved. Product description and product specifications

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

KDS 6190

1U rack mount LCD keyboard drawer

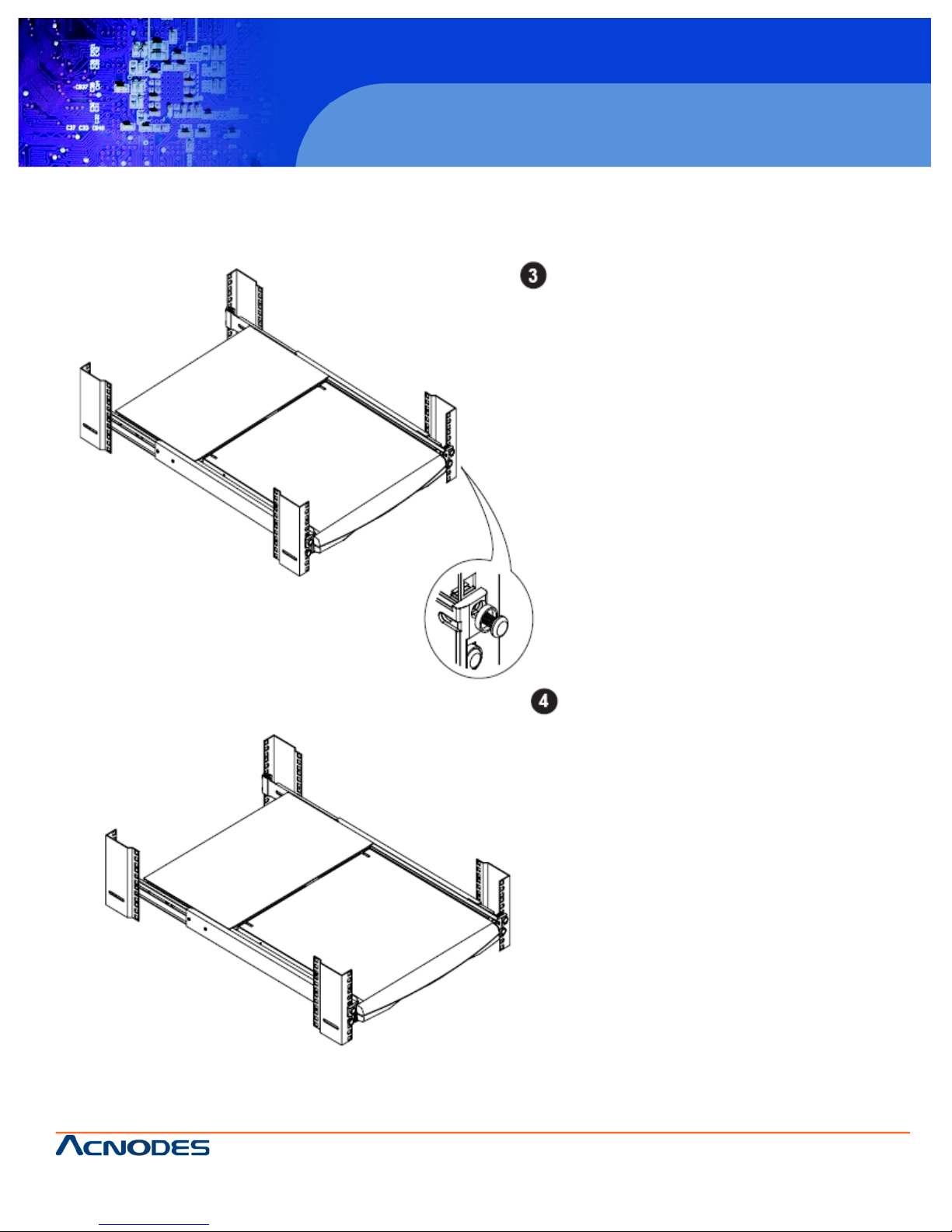

Attach front left and right mounting ears of the LCD

keyboard drawer to vertical mounting rails.

? M6 screw and cup washer x 2 pcs included.

Complete the installation

? Tighten all 8 piece of M6 screwto complete the installation

1.6 How to Install “One Man” Installation Slides

6

© Copyright 2009 Acnodes, Inc.

All rights reserved. Product description and product specifications

are subject to change without notice. For latest product information,

please visit Acnodes’ web site at www.acnodes.com.

KDS 6190

1U rack mount LCD keyboard drawer

661 Brea Canyon Rd., Suite 3

Walnut, CA 91789

tel: 909.598.7388, fax: 909.598.0218, www.acnodes.com

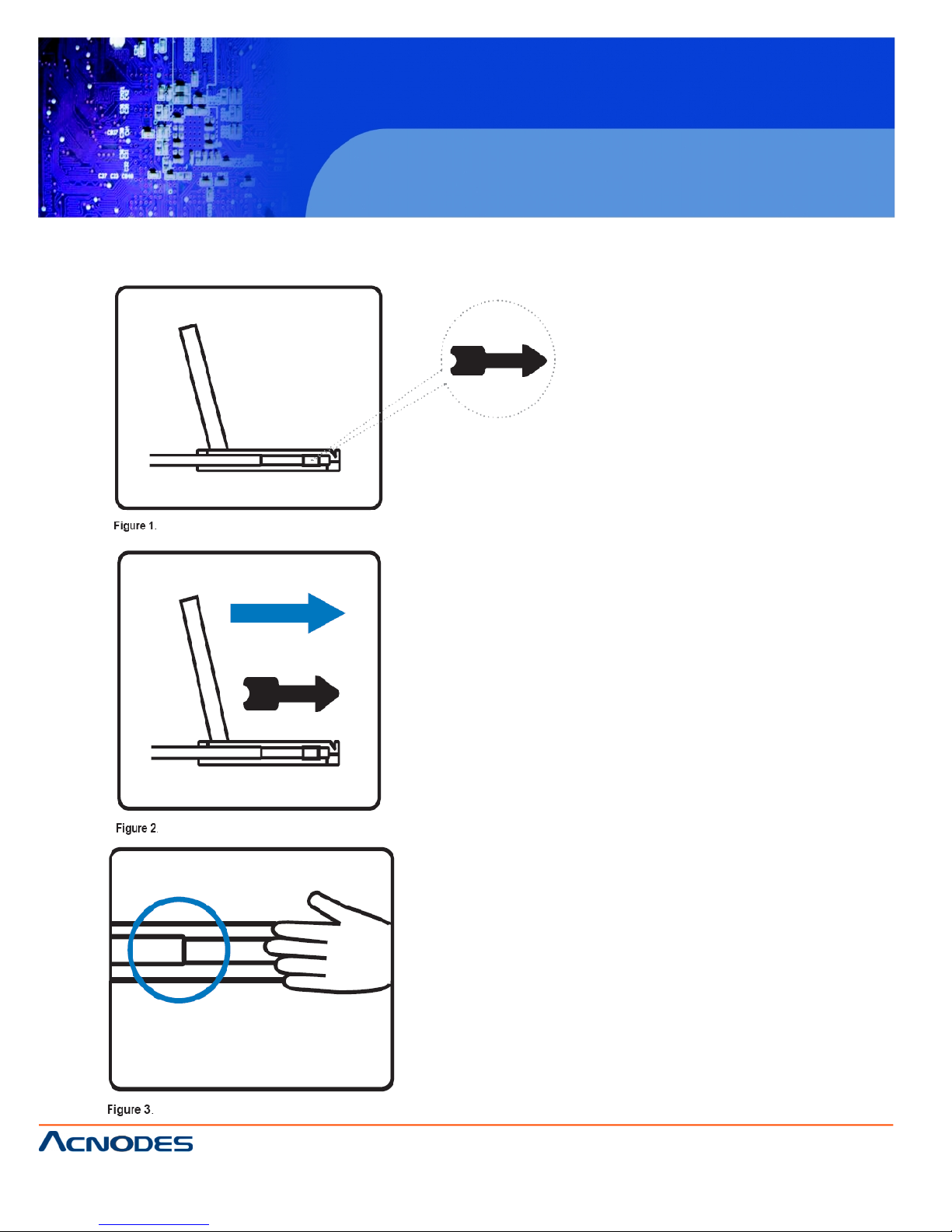

?Ablack arrow release button is

located on the outside of each

slide. (shown in Figure 1).

Pull and hold the black arrow button on

either side of the LCD keyboard drawer to

unlock. (shown in Figure 2).

? Push the LCD keyboard drawer into

the rack. (shown in Figure 3).

Caution : Keep your fingers away from

the slide stop

1.7 How to Use the Slides

7
