Chapter 1 Getting Started

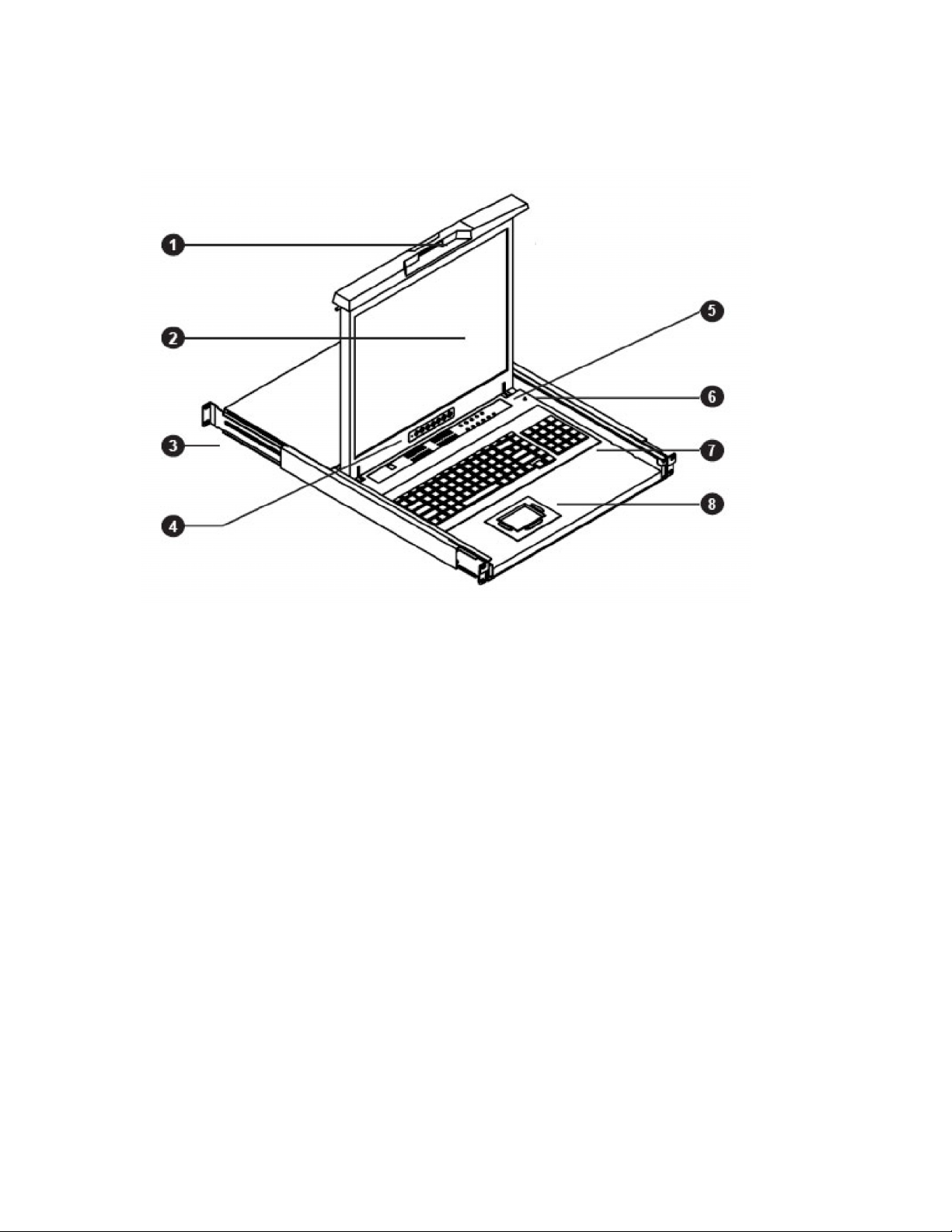

1.1 Diagram....................................................................................1
1.2 How to install “One-Man” installation slides into rack...2
1.3 Howto install “One Man” installation slides....................3
1.4 Howtouserails......................................................................4
Index

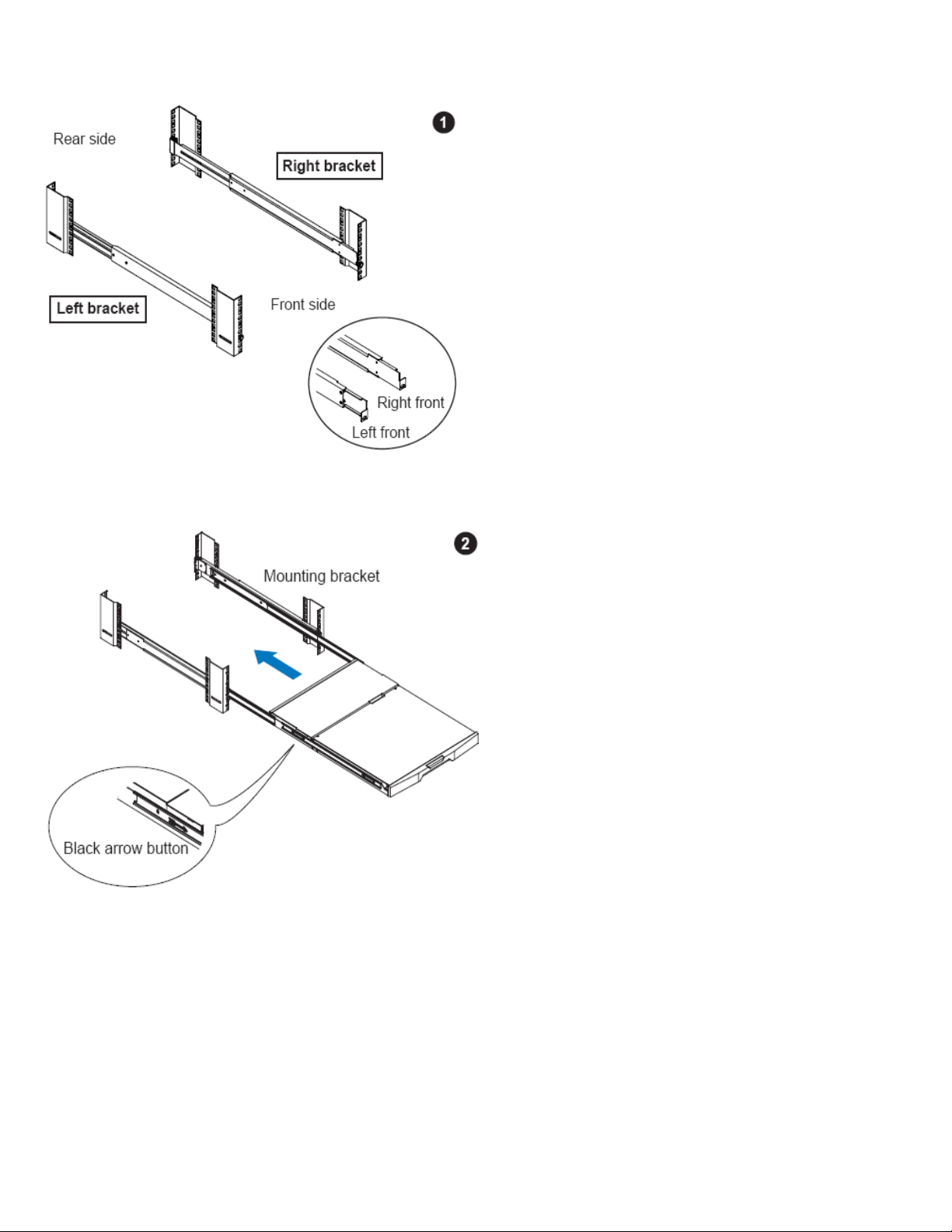

Attach the left and right mounting bracket to rack 19"
mounting rails.
Adjust the rear mounting bracket to fit your rack.
M6 screwand cup washer x 6 piece included.
Caution : Leaving the screws slightly loose, until
you complete the installation in step 4

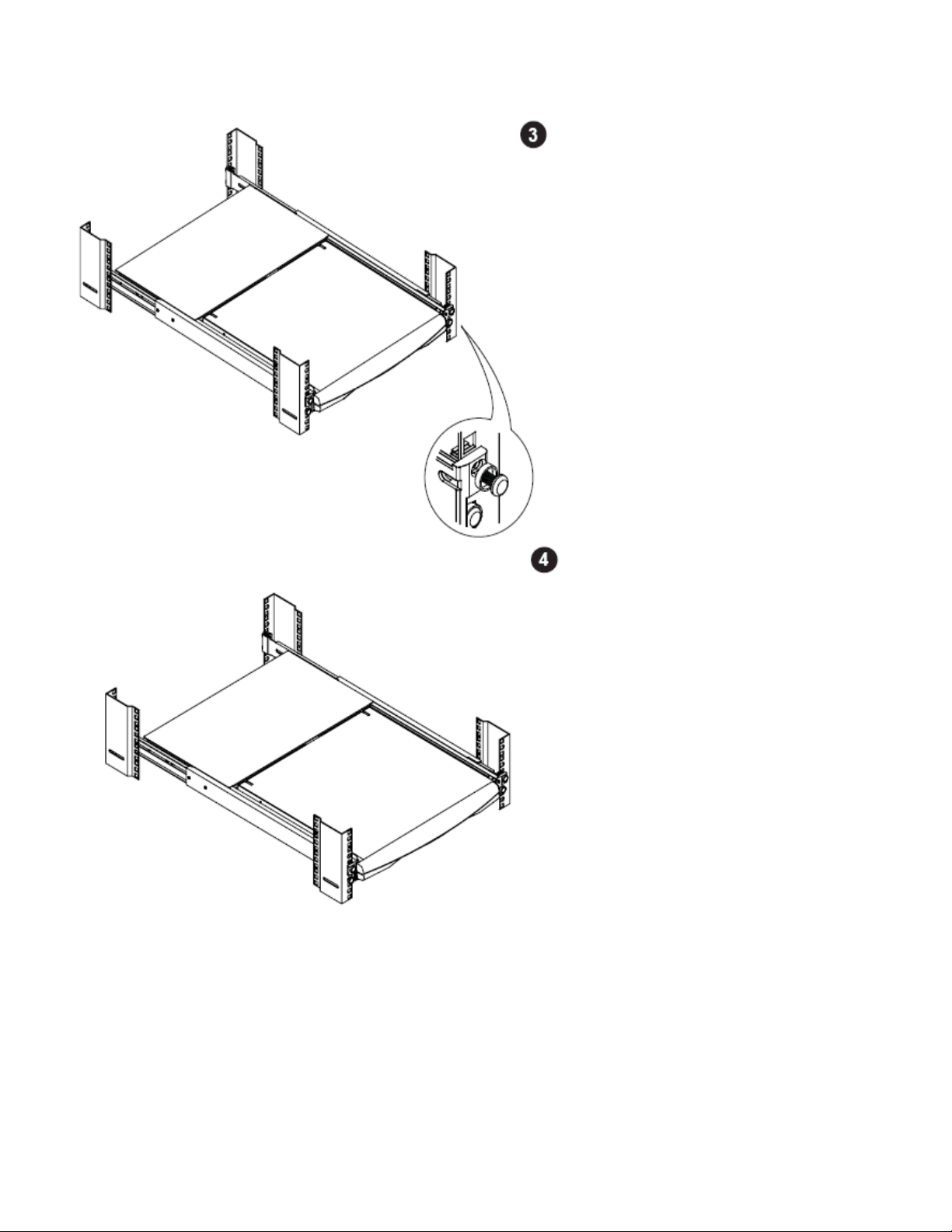

Pick up the LCDkeyboard drawer.
Insert the LCD keyboard drawer into the mounting bracket.
Pull and hold the left & right black arrow buttons on the rails.
Return the LCD keyboard drawer to park position
1.2 How to Install “One Man” Installation Slides into rack
2

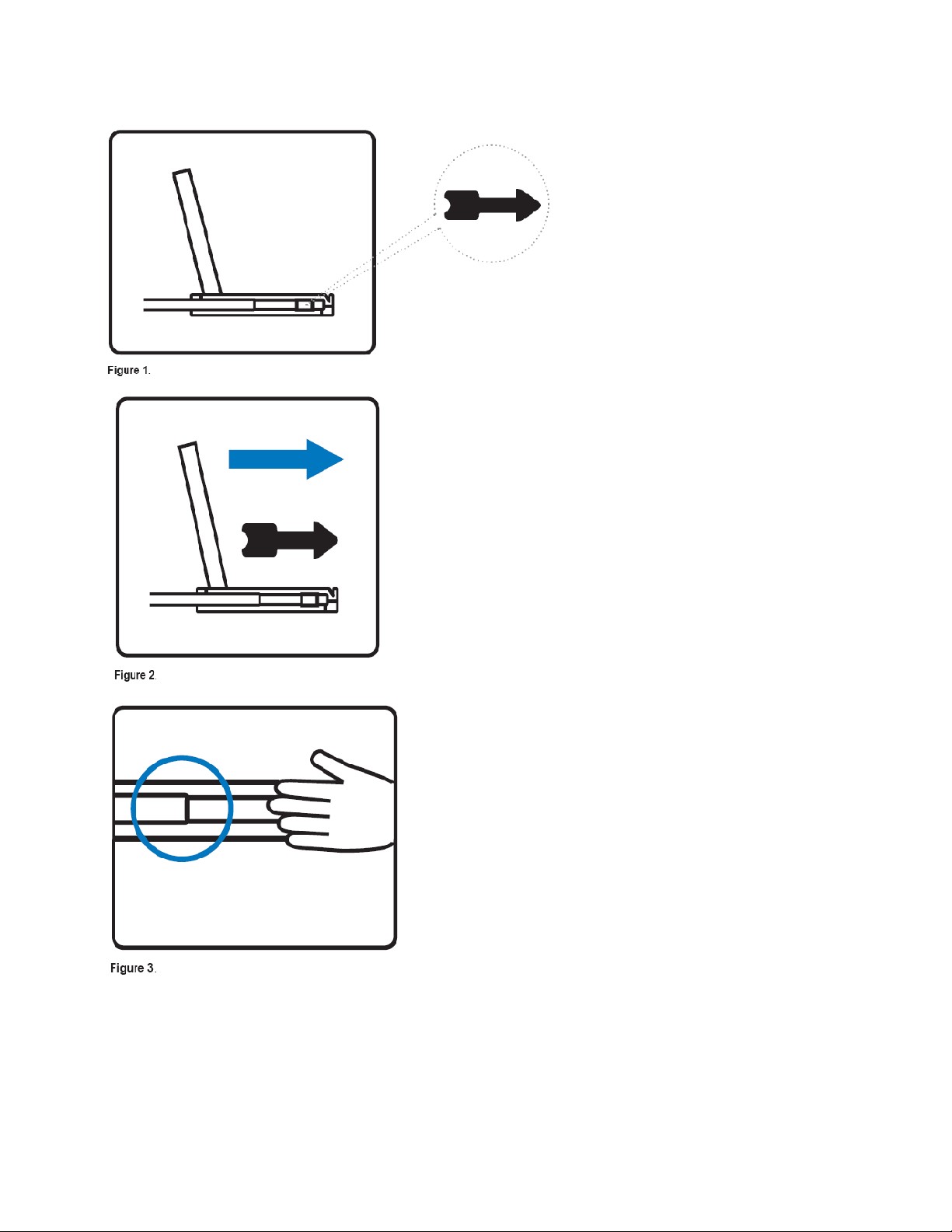

?Ablack arrow release button is
located on the outside of each
slide. (shown in Figure 1).
Pull and hold the black arrow button on
either side of the LCD keyboard drawer to
unlock. (shown in Figure 2).
? Push the LCD keyboard drawer into
the rack. (shown in Figure 3).
Caution : Keep your fingers away from
the slide stop
1.4 How to Use the Slides
4
