ACT ACTPRO PRODUCT RANGE Manuale utente

The above diagram is valid only

for clock-and-data type readers.

ACT1050 Pin and Proximity

Reader (Entry)

ACT1030 Proximity

Reader (Exit)

Wire both readers in parallel but leave

the SENSE line on the Exit reader unconnected.

Controller

Sense

Clock

Data

+5v

Red Led

Grn Led

Card/Prox Reader

2 31

5 64

8 97

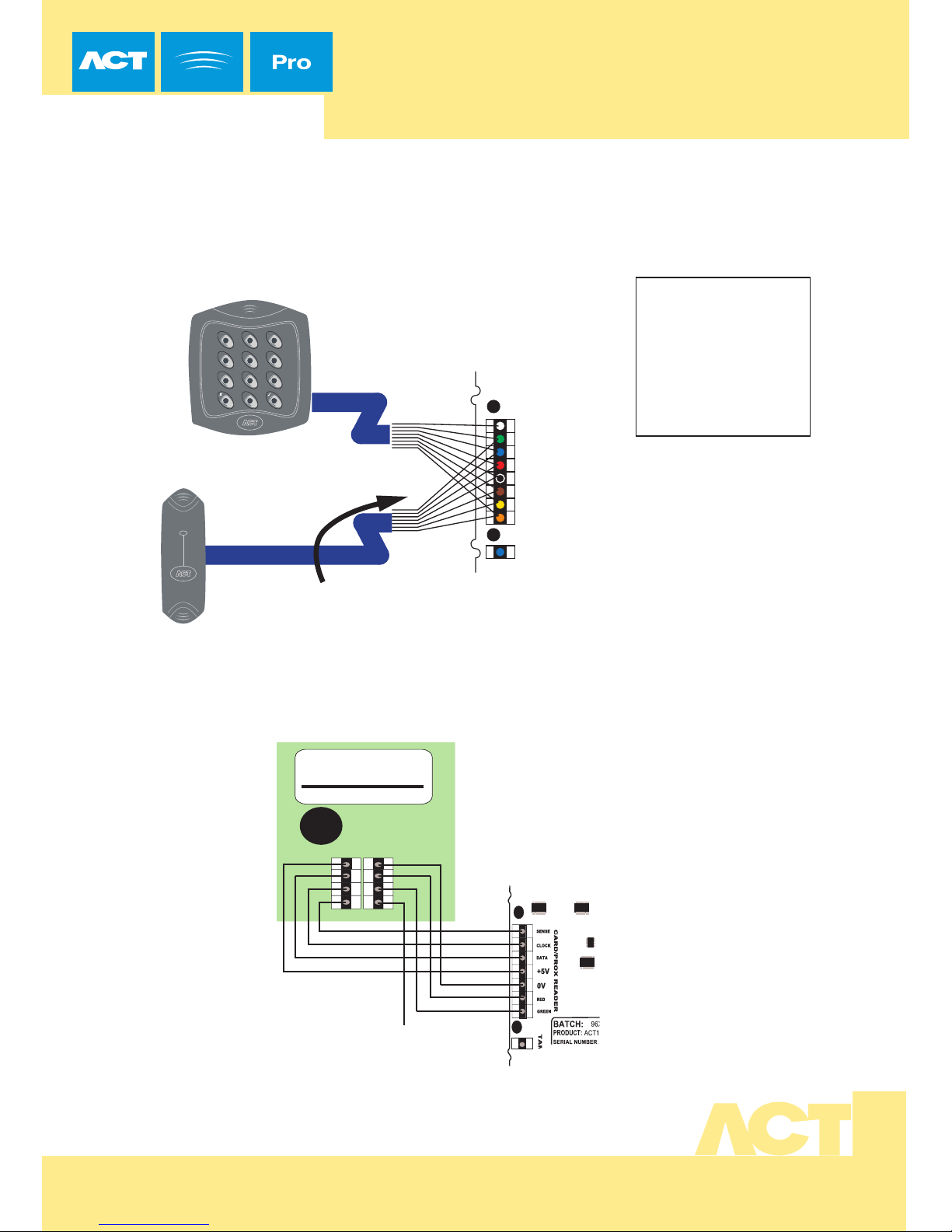

Wiring for Entry/Exit Readers

White

Green

Blue

Red

Black

Brown

Yellow

Orange

Sense

Clock / Data1

Data / Data 0

+5v

Red Led

Grn Led

(Buzzer Ctrl)

Wiring for Clock and Data / Wiegand Reader

The +5V reader supply on ACT controllers is normally rated

at 100mA. Typically this is sufficient to power 2 ACT readers.

Note however that readers from other manufacturers may need

to be powered separately if their current requirements exceed

this or if they require 12V.

The standard wiring colours for

ACTPro Proximity and Pin readers

is shown above. Readers

should be a maximum of 30m

from the controller when powered

from +5V and a maximum of 100m

when powered from +12V.

OMRON

5A 250VAC

5A 30VDC

OMRON

1A 125VAC

1A 30VDC

5-12V dc

0 1 2 3 4 5 6 7 8 9

B A T C H:

P R O DUC T :

S E R IA L NU MB ER :

02X X-1

AC T P ro R E V 1.3

00X XX X

Data / D0

Clock / D1

Sense

R ed L E D

G rn L E D

B uzz C trl

Internal buzzer is

activated by applying

0V to Buzz Ctrl

Rear view of ACTPro 1040/1050/1060

connected to the ACT2000/1000/DS100

ACTPro Product Range

1030/1040/1050/1060

For Wiegand readers .

Wire both readers in parallel but connect D0

line of the exit reader into the SENSE line on

the controller,leave the SENSE line on the

Exit reader unconnected.

U nit 8 Tallaght B usines s Centre, W hitestown, T allaght, Dublin 24, Ireland.

Telephone: 353 1 462 2585. Telefax: 353 1 462 2587. E-m ail: sales @ accesscontrol.ie W eb: www.access control.ie
