IP Indoor High Speed Dome

CAM-6510

Ver. 090318

Quick Installation Guide

1 Getting Started

1.1 PACKAGE CONTENTS

CAM-6510 Warranty Card

Software CD Power & A/V Cable

LAN/WANCable PowerAdaptor

5.4” Transparent Cover Decoration Ring / Fixing Plate

1

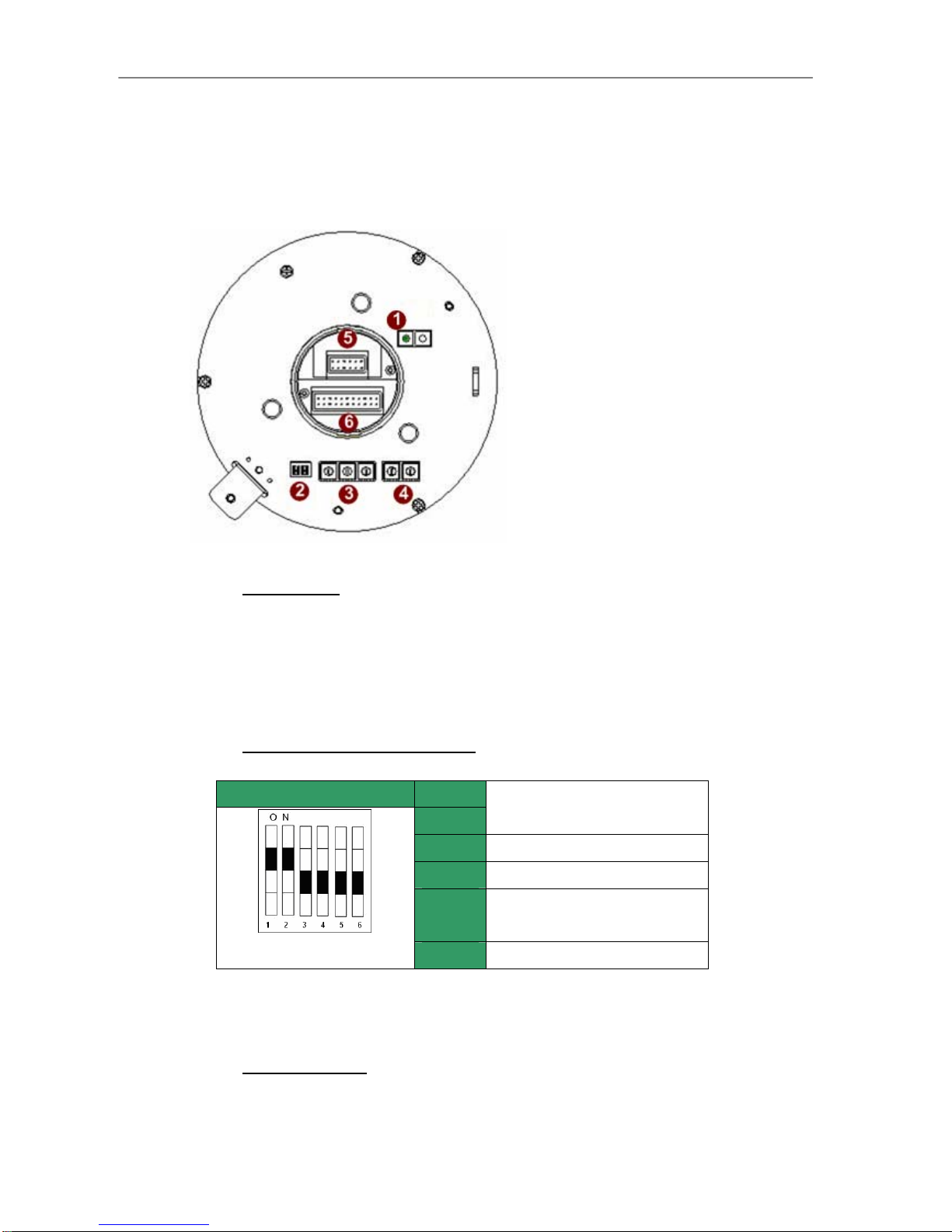

1.2 PHYSICAL DESCRIPTION

Indoor High Speed Dome Bottom

1. Reset Button

Step 1: Switch off IP device by disconnecting the power cable

Step 2: Press and continue to hold the Reset Button. Reconnect the power cable while

continuing to hold the reset button.

Step 3: Keep holding the reset button depressed around 6 seconds, release the reset

button. The unit will start up with factory default settings.

2. Communication Switch Setting

The table below shows the function of each pin within the Communication Switch.

Communication Switch Pin 1

Pin 2 RS-232 Setting (Reserved)

Pin 3 Termination

Pin 4 Line Lock

Pin 5 System Initialization (for

upgrade)

Pin 6 Reserved

RS-232 is reserved for internal use only; The Pin 3 and Pin 4, they are used for

termination and Link Lock adjustment respectively. The Pin 5 is mainly used for

return to factory default of camera setting.

3. Dome ID Setting

Use the switch to change your speed dome ID by turning the arrow to the desired

number respectively. For instance, if the speed dome ID is 123, the ID switch

should be set as below:

centesimal decimal single digit

NOTE: If controlling through an ACTi decoder via analog

means such as a keyboard or DVR, no two speed domes

should be given the same ID or communication conflict may

occur. When controlled only through Ethernet and software

(without the use of an ACTi hardware decoder), the dome ID

setting may be neglected.

NOTE: The number “0” should locate upwards as shown in

above diagram for correct switch definition.

4. Dome Control Protocol

Protocol is a specific set of rules, procdures used for data communications. Basing

on the protocol of your management software that you are going to use. Use the

switch to set your dome control protocol and the baud rate. Refer to table below

and turn the arrow to choose a protocol for your speed dome.

Switch No. Protocol Baud Rate

01 Pelco D 2400

02 Pelco P 4800

07 DSCP 9600

11 Pelco D 4800

12 Pelco D 9600

13 Pelco P 2400

14 Pelco P 9600

Select protocol: Pelco D, with switch no. 01 and baud rate 2400, for instance, the

ID switch should be set as below:

decimal single digit

5. 16 Pin Connector for LAN/WAN

The LAN/WAN cable (shown as the figure below) is shipped with IP high speed

dome. Please find it in the accessory bag.

6. 22 Pin Connector

A 50cm data cable (shown as the figure below) is shipped with IP high speed

dome. Please find it in the accessory bag.

Power Input

PIN NAME DESCRIPTION

1 AC24V AC 24V of Power Input

2 E-GND E-Ground Pin of Power Input

3 AC24V AC 24V of Power Input

7. Cable Wiring

Users may meed to do cable wiring when connecting alarm input and output

devices. The table follows will illustrate the way to wire cords into the connector

housing(shown in the flgures below).

The alarm pins are serviceable for connecting alarm input and output devices, such

as alarm sensors, sirens or flashing light with the surveillance system. The table

shown as follows lists the definition of alarm pins on the 22-pin connector.

1.3 Mounting the IP High Speed Dome

Generally, there are three kinds of ceiling mounting methods: surface mount, in-ceiling mount, and

mounting with straight tube. The surface mounting kit is shipped with IP high speed dome. For more

detailed information, please refer to Appendix A.

Surface ceiling mount

(cables exposed)

1.4 Basic Connections

Follow the procedures below to connect the IP high speed dome to the respective apparatuses.

2 Quick Tour

This section guides you with a quick tour on IP high speed dome.

2.1 Configure the IP High Speed Dome

2.1.1 Make sure network environment

Default IP of IP high speed dome is 192.168.0.100. Please make sure IP high

speed dome and your PC are on the same network segment before running the

installation.

2

Please set the settings as below.

IP address: 192.168. 0.xxx

Subnet mask: 255.255.255. 0

(NOTE: xxx should be a number

from 1 to 254, but 100 is

excepted.)

2.1.2 Open Internet Explorer with IP address

NOTE: If your web browser is earlier than IE6, then download IE6 is

recommended.

NOTE: The IP high speed dome default IP address is set to 192.168.0.100

2.1.3 Login with default administrator’s account & password

NOTE: Default administrator account is set to Admin, password is set to

123456, and click button.
