ActionTec GT701D Manuale utente

DSL Modem

Model #: GT701D

User Manual

Ver 1.0

Solutions for the Digital Life™

Table of Contents

1 Introduction 1

Minimum System Requirements 1

Features 2

Getting to Know the Modem 3

2 Performing a Quick Setup 7

Accessing Quick Setup Screens 7

Changing the Password 9

3 Viewing the Modem’s Status 11

Broadband Connection Status 11

Network Status 14

4 Configuring Advanced Setup Options 15

Accessing the Advanced Setup Options 15

DSL Settings 17

DHCP Settings 18

LAN IP Address 20

WAN IP Address 21

QoS Settings Upstream 23

QoS Settings Downstream 25

QoS Status 26

Remote Management 26

Telnet Timeout Setting 27

Dynamic Routing 28

Static Routing 28

UPnP (Universal Plug and Play) 29

Time Zone 29

Remote Syslog Capture 30

5 Configuring Security Settings 31

Accessing Wired Security Screens 31

Admin User Name and Password 32

Firewall 33

Port Forwarding 37

DMZ Hosting 39

NAT (Network Address Translation) 40

Actiontec DSL Modem User Manual

6 Configuring Internet Access Controls 41

Accessing Internet Access Control Screens 41

Services Blocking 42

Website Blocking 43

Schedule Rules 44

7 Configuring the Modem’s Utilities 47

Accessing the Utilities Screens 47

Restore Default Settings 49

Upgrade Firmware 49

Web Activity Log 50

System Log 51

OAM Ping Test 52

Ping Test 52

Reboot 53

8 Troubleshooting 55

Troubleshooting 55

Frequently Asked Questions 57

A Specifications 61

General 61

LED Indicators 62

Environmental 62

B Setting up Static IPon a Computer 63

Windows 2000 63

Windows XP 68

Windows Vista 71

C Service Acronyms 75

Service Acronym Definitions 75

D Glossary 79

Notices 83

Regulatory Compliance Notices 83

Modifications 83

Limited Warranty 85

Introduction

Thank you for purchasing the Actiontec DSL Modem. The Modem is the simplest

way to connect computers to a high-speed broadband connection. This easy-to-use

product is perfect for the home office or small business. If you want to take your

computing to the next level, the DSL Modem is sure to be one of the keys to

your success.

Minimum System Requirements

tActive DSL service

tComputer with a 10 Mbps or 10/100 Mbps Ethernet connection

tMicrosoft Windows 2000, XP, Vista

Mac OS 7.1+, 8.0+, 9.0+, OS X+

tInternet Explorer 4.0 or higher (5.x+ recommended) or Netscape Navigator

4.0 or higher (4.7+ recommended)

tTCP/IP network protocol installed on each computer

Actiontec DSL Modem User Manual

Features

tADSL WAN port (RJ-11)

tFull-rate ANSI T1.413 Issue 2, ITU G.992.1(G.dmt) and G.992.2(G.lite)

standard compliance

tAuto-handshake for different ADSL services

tBridged Ethernet over ATM, PPP over ATM, PPP over Ethernet

tPrecise ATM traffic shaping

tIP packet routing and transparent bridge

tRIP-1, RIP-2, and static routing protocol support

tBuilt-in NAT, DHCP server

tDNS relay support

tPAP/CHAP authentication, administrative passwords through Telnet

tIEEE 802.3 Ethernet standard compliance

t10/100 Base-T Ethernet ports (4)

tFast Ethernet flow control support

tWeb-based configuration setup

tFTP firmware upgradeable

tWeb download support

Chapter 1 Introduction

Getting to Know the Modem

This section contains a quick description of the Modem’s lights, ports, etc.

The Modem has several indicator lights (LEDs) on its front panel and a series of

ports on its rear panel.

Front Panel

The front panel of the Modem features four lights: Power, DSL, Internet, and

Ethernet.

Power Light

The Power light displays the Modem’s current status. If the Power light glows

steadily green, the Modem is receiving power and fully operational. When the

Power light is rapidly flashing, the Modem is initializing. If the Power light glows

red when the Power cord is plugged in, the Modem has suffered a critical error

and technical support should be contacted.

DSL Light

The DSL light illuminates when the Modem is connected to a DSL line and the

unit is able to synchronize to the DSL signal from the ISP. When it flashes, the

Modem’s built-in DSL modem is training for the DSL service.

Actiontec DSL Modem User Manual

Internet Light

When the Internet light glows steadily, the Modem is connected to the

DSL provider.

Ethernet Light

The Ethernet light illuminates when the Modem is connected to a computer via

its yellow Ethernet port.

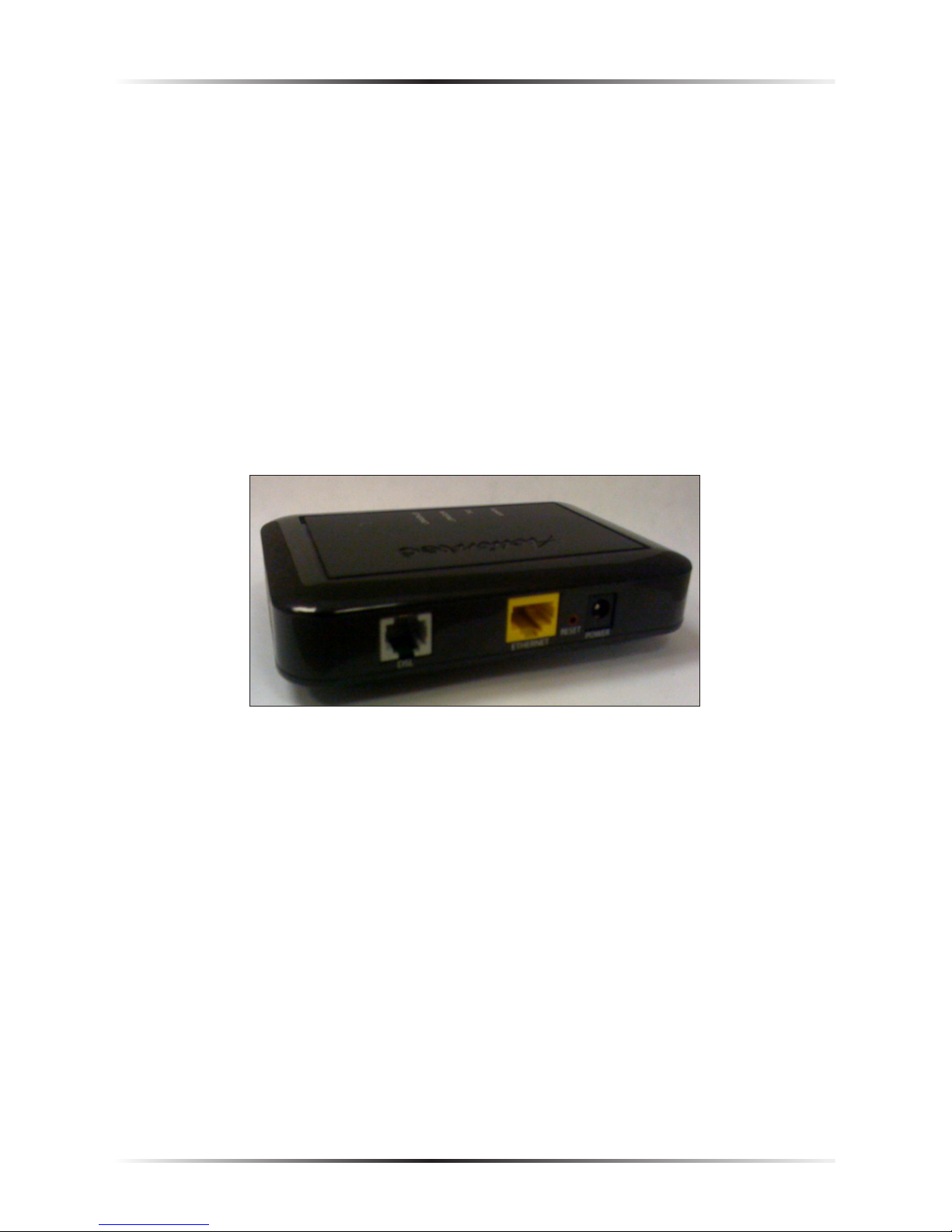

Rear Panel

The rear panel of the Modem features three ports (DSL, Ethernet, and Power), as

well as a Reset switch.

Ethernet Port

The Ethernet port is used to connect a computer to the Modem via Ethernet

cable. The Ethernet port is a 10/100 Mbps auto-sensing port, and either a

straight-through or crossover Ethernet cable can be used when connecting to

the port.

DSL Port

The DSL port is used to connect the Modem to a DSL (Digital Subcriber Line)

connection.

Chapter 1 Introduction

Reset Switch

Depressing the Reset switch restores the Modem’s factory default settings. To

reset the Modem, depress and hold the Reset switch for five to seven seconds.

The reset process will start after releasing the switch, during which the Power

light will turn from green to orange.

USB Port

The USB port is used to connect a computer to the Modem via USB cable.

Power Port

The Power port is used to connect the Power cord to the Modem.

MWarning:Do not unplug the Power cord from the Modem dur-

ing the reset process. Doing so may result in permanent damage

to the Modem.

Power Switch

The Power switch is used to power the Modem on and off.

Actiontec DSL Modem User Manual

This page left intentionally blank.

Performing a

Quick Setup

This chapter is a guide through a quick set up of the Modem, including how to

connect the Modem to the ISP.

To complete the quick setup, have the Welcome Letter or ISP Worksheet handy. If

the document is not available, contact the ISP immediately.

Accessing Quick Setup Screens

To access the Quick Setup screens:

1. Open a Web browser. In the “Address” text box, type:

http://192.168.0.1

then press Enter on the keyboard.
