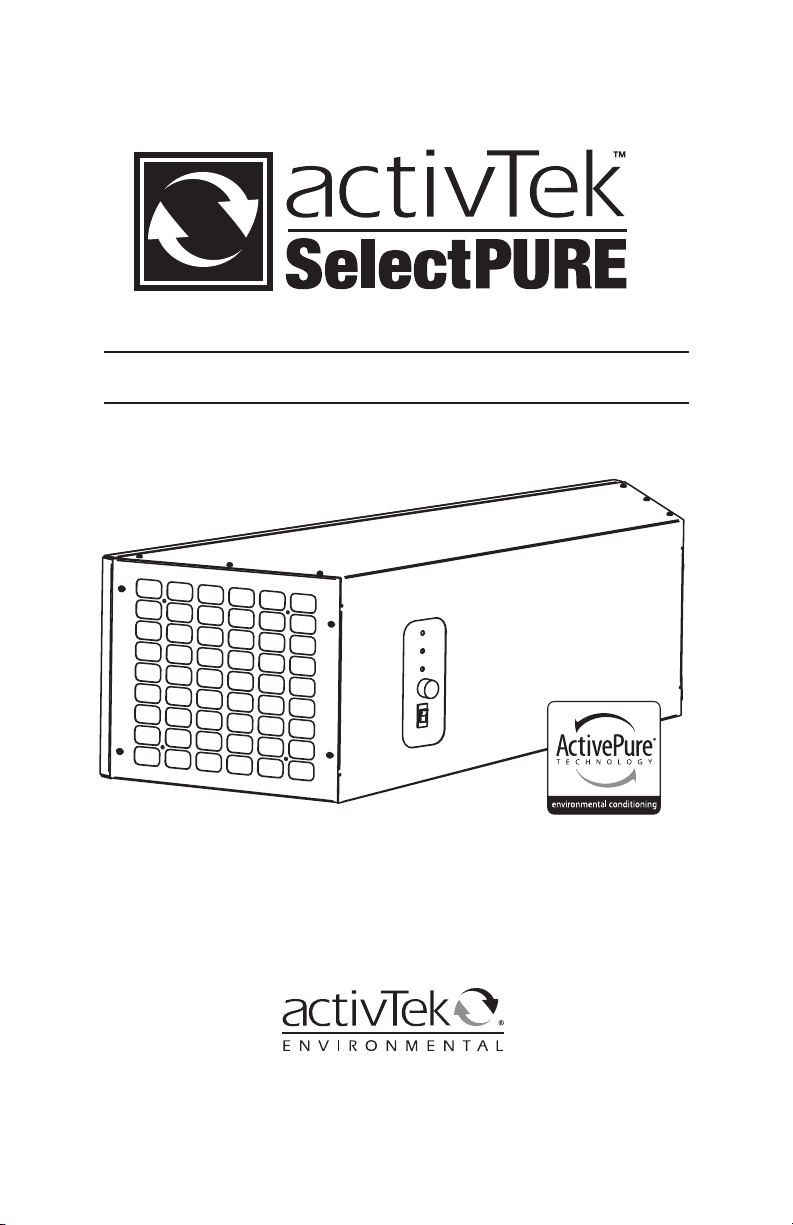

activTek SelectPURE Manuale utente
HEAVYDUTY ACTIVEPURE® AIR SYSTEM
OWNER’S MANUAL • INSTALLATION & MAINTENANCE GUIDE
CAUTION: Read manual carefully for proper procedures and operation.
Please record the name and phone of your activTek Distributor:
Name______________________________________________________________
Phone _____________________________________________________________
Please record the serial number of your SelectPURE by activTek:
Serial #_____________________________________________________________
2
Features............................................................................3
Specications ......................................................................3
Principals of Operation .............................................................4
Inspection..........................................................................4
Panel Controls......................................................................5
Recommended Positioning .........................................................5
Opening the Grills . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installing the Unit ..................................................................6
Changing the Filter & Cartridge .....................................................7
Removing the ActivePure® Plate ....................................................8
Removing the ActivePure® Cells.....................................................9
Removing the Ballasts .............................................................10
Installing the Ballasts ..............................................................11
Installing the ActivePure® Cells.....................................................12
Installing the ActivePure® Plate ....................................................12
Adjusting the Pressure Switch......................................................13
Warranty ..........................................................................15
Replacement Parts List.............................................................16
CONTENTS
Location for Protective Earth Line.
To reduce the risk of electric shock, this equipment has a grounding type plug that has a
third (grounding) pin. This plug will only fit into a grounding type power outlet. If the plug
does not fit into the outlet, contact qualified personnel to install the proper outlet. Do not
alter the plug in any way.
CAUTION! - For outlet installation only! Never connect to an extension cord or other
power source. Improper installation could result in electrical shock or short.
WARNING! - UV Lamp operation. Do not operate unless the unit is completely and
correctly assembled. Failure to comply may result in serious eye damage.
3
This owner’s manual is also available online at: http://www.activTek.net
Features:
• ActivePure® output control
• Replaceable ActivePure® Cells
• Replaceable ActivePure® Ballast
Electrical:
• 120 volt 60 Hz
• 250 watts, 2.5 amps power consumption
Mechanical:
• 549 CFM fan
• 4-function rotary switch
• Rocker style power on/o switch
Size:
• Height: 13"; Width: 37"; Depth: 13" (H: 33cm W: 94cm D: 33cm)
• Weight: 58 pounds (W: 26.308 kg)
Ozone Output:
• Low level O3 production
Warranty:
• See page 15
• Secure • No Duct Work Required
• No Chemicals • Low Maintenance
• Complete User Control • Plugs into 120 volt outlet
• Filter/Cartridges specic to use
FEATURES
SPECIFICATIONS
The ActivePure® Cell (Advanced Oxidation System) is designed to reduce odors,
air pollutants, and other contaminants with the added benet of producing
safe, low levels of ozone as a by-product of the Advanced Oxidation Process.
This low level ozone further cleanses the air as it travels through the unit.
4
PRINCIPLES OF OPERATION
1. Remove unit from shipping carton.
2. Remove all protective materials.
3. Check for shipping damage and loose or broken parts.
4. Read Owner's Manual thoroughly prior to installation.
5. Determine placement location for the unit, plug the unit into a 120 volt outlet
and adjust controls according to the application.
INSPECTION
Power Cord
Mounting Holes
Air Intake Grill
Control Panel
Air Exit Grill
5
RECOMMENDED POSITIONING
Change Filter ....Light illuminates when particulate
cartridges need changed.
. . . . . . . . . . . . . . . . . .Light illuminates when Mode Select is off
to indicate the unit has power.
Turbo ............Light illuminates when unit is in Turbo
Position, Maximum Cleaning Potential.
High .............Light illuminates when unit is in the High
Position, ActivePure® Activated High.
Medium .........Light illuminates when unit is in the
Medium Position, ActivePure® Activated.
System On .......Light illuminates when system is On,
Cartridges in use.
Mode Select .....Control knob which functions by turning
clockwise to select power mode.
• The SelectPURE unit should be installed within 7 feet of a standard 120 volt
outlet to accommodate the power cord.
• The SelectPURE unit should be secured into wall studs if possible. Mounting
holes are on 16 inch centers to accommodate installation to be secured into wall
studs (See mounting holes indicated in illustration on page 4.).
• Fasteners are recommended to be at least 2 1/2 inches in length, minimum size,
#10 screws. Use appropriate fasteners when mounting.
PANEL CONTROLS
Change Filter
UV 2
UV 1
See owner's manual for proper operation.
If UV indicator LED fails, UV bulb requires service.
Turbo
Low High
Fan
Power
SelectPURE
Disconnect
Power
Before
Servicing
1
1. After removing grills, move unit into
final position. Install 2 1/2" fasteners into
mounting holes provided on left side.
INSTALLING THE UNIT
2
2. Install 2 1/2" fasteners in mounting
holes on right side.
3
3. Once unit is securely in place,
reinstall grills reversing steps 1 & 2,
Opening the Grills (above).
4
4. Plug in unit to
grounded 120V
outlet only.
6
OPENING THE GRILLS
1
1. Remove the ten (10) screws in the
SelectPURE grills from both ends.
2
2. (a) Lift cover
(b) Slide toward back of unit to remove.
(c) Repeat for other grill.
CAUTION: Unplug the unit before performing any maintenance procedures.
Filter & Cartridges
follow steps 1 - 6, pg 7
ActivePure® Plate
follow steps 1 - 4, pg 8
ActivePure® Cell
follow steps 1 - 4, pg 9
Ballast
follow steps 1 - 6, pg 10
Adjusting the
Pressure Switch
follow steps 1 - 5, pg 13
To Remove:
a
b
1
1. Remove left side grill (nearest control panel). See Opening the Grills, page 6.
7
CHANGING THE FILTER & CARTRIDGE
2
2. Turn locking tabs out of the way.
3
3. Remove support frame from front of
the filter chassis (Order and contents
will vary depending on your machine's
purpose.).
4
4. Remove filter from chassis.
5
5. Remove cartridge from chassis.
6
6. Discard and replace old cartridges
and filters. Reverse steps to install
new cartridges and filters.
See SelectPURE parts list on page 15 for a
complete list of cartridges and filters.
8
1
1. Remove right side grill (furthest from control panel).
See Opening the Grills, page 6.
2
2. Remove the two (2) phillips
head screws located in the
flange of the ActivePure®
plate.
4
4. Disconnect power couplings
and remove plate from chassis.
REMOVING THE ACTIVEPURE® PLATE
3
3. Slide ActivePure® plate forward
over the adjustment tube and tilt
outward.
Adjustment Tube
9
3
3. Remove the two (2) phillips head
screws connecting the ActivePure®
Cell to the Mounting Bracket. Lift and
remove large cell from mounting
bracket, by grasping cell and pulling
outward.
2
2. Lay plate on flat surface.
4
4. Remove the second (small) cell
from mounting bracket in the
same manner.
REMOVING THE ACTIVEPURE® CELLS
See SelectPURE parts list on page 16 to reference the ActivePure® Cells.
1
1. Remove ActivePure® Plate.
See Removing the ActivePure®
Plate, page 8.
Mounting Bracket
• To remove the ballasts, continue to next page.
• To reassemble, continue to page 12.
10
REMOVING THE BALLASTS
3
3. Remove the screws (2) from the mounting
bracket connected to the ActivePure®
plate.
4
4. Remove the two (2) phillips head screws
connecting the ballast to the ActivePure®
plate.
5
5. Remove the screws (2) from the second
ballast.
2
2. Remove the screws (2) from the mounting
bracket connected to the ActivePure® plate.
See SelectPURE parts list on page 16 to reference the ActivePure® Cells.
1
1. Remove ActivePure® Plate. See Removing the ActivePure® Plate, page 8.
• To reassemble, continue to next page
6
6. Dispose of ballasts, mounting brackets and
wire assembly.
