ACU-RITE 13020 Manuale utente

Instruction Manual

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: Sensor..... 2

Features & Benets: Alarm...... 3

Setup .................................... 5

Sensor Setup ......................... 5

Alarm Setup .......................... 6

Setup Preferences .................. 7

Intelli-Time Clock.................... 7

Placement Guidelines ............. 8

Using the Alarm Clock............ 9

USB Charging........................ 9

Using the Projector................10

Backlight Settings..................10

Troubleshooting ....................11

Care & Maintenance.............12

Specications........................13

FCC Information ...................13

Customer Support .................14

Warranty..............................14

Projection Alarm Clock

model 13020 / 13026

180º

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Alarm clock

2. Outdoor sensor

3. Power adapter

4. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

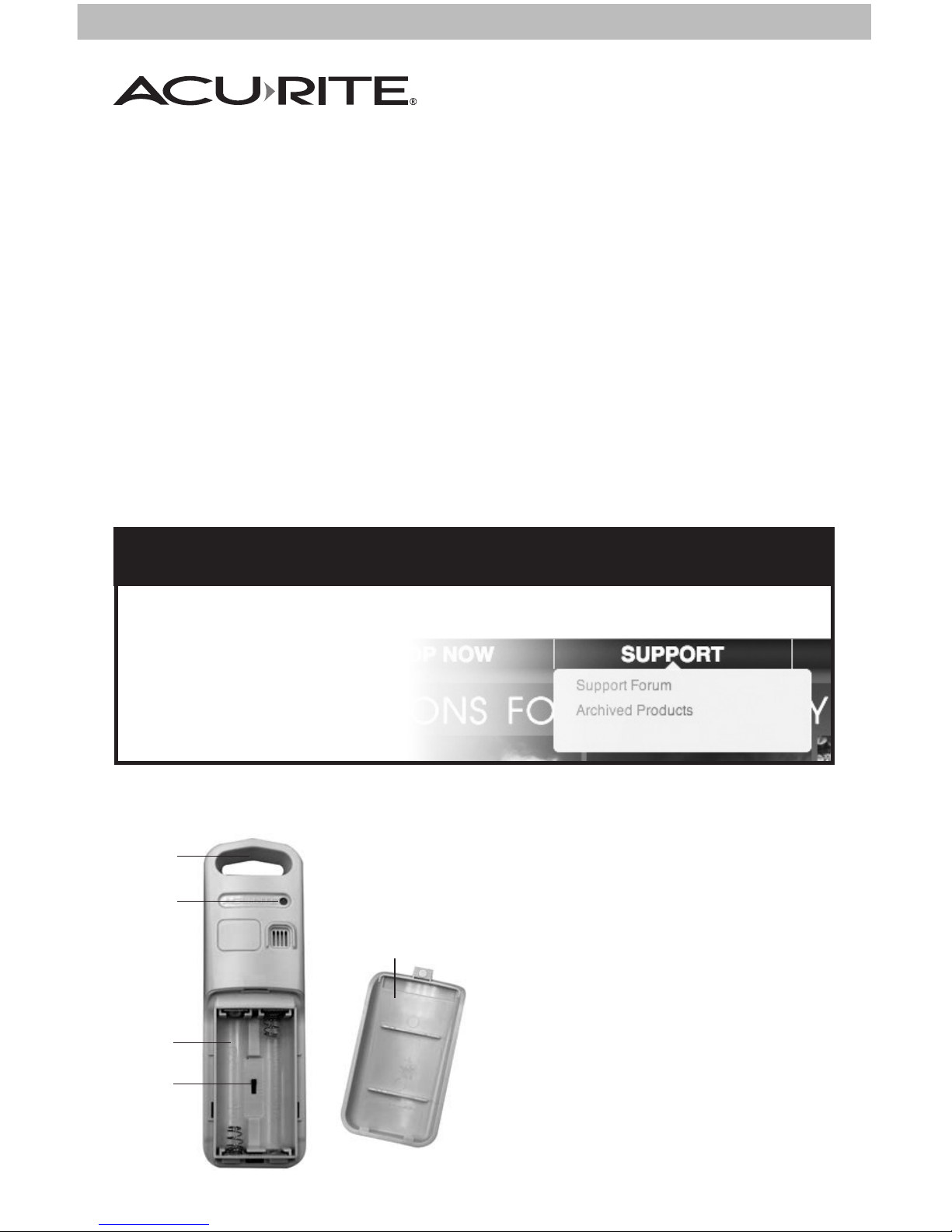

OUTDOOR SENSOR

1. Integrated Hanger

for easy placement.

2. Wireless Signal Indicator

Flashes when data is being

sent to the display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

5. Battery Compartment Cover

180º

Features & Benets

FRONT OF ALARM

6. Projector Power On/Off

7. Flip Projection 180

for versatile viewing angles.

8. Projection Information

Toggle between time, indoor

temperature or outdoor temperature

9. Projection Color

Toggle between red or amber.

10. UP, SET & DOWN Buttons

for setup preferences.

11. Alarm Setup

12. Alarm On/Off Button

13. Snooze Button

BACK OF ALARM

14. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure units

synchronize.

15. ˚C/˚F Switch

Select degrees Celsius or degrees

Fahrenheit temperature units.

16. Zone Button

Set time zone preference.

17. RESET Button

Full reset to factory defaults.

18. Projector Focus

Adjust the size and focus of the

projected image.

19. DC 5v Power Input

20. USB Charging

for compatible smartphones.

21. + Brightness Button

Increase display brightness.

22. — Brightness Button

Decrease display brightness.

23. Battery Compartment

24. Battery Compartment Cover

(not shown)

CHARGE

USB DEVICE

DC 5 v

6 7

8 9

11 12

1514 17

1819 20

22 23

1613

Features & Benets

1. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

2. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

3. Intelli-Time®Clock

Pre-programmed to the correct

time and automatically updates for

Daylight Saving Time.

4. Intelli-Time®Date

Pre-programmed to the correct date.

5. Moon Phase

6. Alarm On/Off

7. Alarm Set Time

8. Alarm Days Active

Indicates daily alarm or

weekday-only alarm setup.

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and the

display unit in order for the units to

synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for the

best product performance. Heavy

duty or rechargeable batteries are

not recommended.

The sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the sensor for temperatures below

-4ºF / -20ºC.

1. Slide off the battery

compartment cover. Take note

of the A-B-C switch setting inside

the battery compartment for

display unit setup.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Sensor Setup

1A-B-C Switch

set to match

display unit

2Install Batteries

2 AA batteries

A B C

CHARGE

USB DEVICE

DC 5 v

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Alarm Clock Setup

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

Install or Replace Backup

Batteries

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

A B C

Install

Batteries

3 AA alkaline

batteries

IMPORTANT: Batteries are a backup power source to preserve records in the event of a

power outage. Power adapter recommended as the primary power source to enjoy the full

functionality of the product.

Plug in Power

Adapter

1A-B-C Switch

set to match

sensor

Intelli-Time®Clock

Intelli-Time clock and calendar are pre-programmed to the correct time and

date, and update automatically for Daylight Saving Time. All you need to do is

select your time zone using the “ZONE” button.

Set the Time, Date & Language

Press and hold the “ ” button, located on the right side of the display, to

enter SET MODE. Once in set mode, the preference you are currently setting

will blink on the display.

To adjust the currently selected (ashing) item, press and release the “ ” or

“ “ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button to adjust the next

preference. The preference set order is as follows:

LANGUAGE (English or French)

TIME ZONE (PST MST CST EST AST HAST AKST)

AUTO DST (Automatically adjust time -/+ on DST dates)

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

You will automatically exit SET MODE if no buttons are pressed for 5 seconds.

Enter setup mode at any time by pressing the “ ” button.

Manual Clock Quick-Adjust

Self-timed clocks may drift by a few minutes over time. You can adjust the time

using the “Quick Adjust” feature.

To access “Quick Adjust” mode, press AND HOLD the “ ” OR “ ” buttons

for at least 8 seconds. The minutes will ash to indicate they can be adjusted.

Press the “ ” or “ ” buttons to adjust the minutes. After 3 seconds of

inactivity, any adjustments will be saved and the clock will return to normal

operation.

Alarm Clock Placement

Place alarm clock in a dry area free of dirt and dust. To help ensure

an accurate indoor temperature measurement, be sure to place the

display away from heat sources or vents.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor use,

however, to extend its life place the sensor in an area protected

from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or by

using string (not included) to hang it from a suitable location, like a

well covered tree branch. The best location is 4 to 8 feet above the

ground with permanent shade and plenty of fresh air to circulate

around the sensor.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and outdoor sensor are critical to the

accuracy and performance of this product.

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

• To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

• To prevent wireless interference, place both units at least 3 ft (.9 m) away

from electronic devices (TV, computer, microwave, radio, etc.).

Setup is Complete

The sensor will now synchronize with the alarm clock. It may take a few

minutes for synchronization to complete.

(100 meters)

(330 feet maximum)

(.91 m)

LEAST

APART

Using the Alarm Clock

Set Alarm Time

Press and release the “ ” button to enter ALARM SET MODE.

To adjust the currently selected (ashing) item, press and release the “ ” or

“ “ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button to adjust the next

preference. The preference set order is as follows:

ALARM CLOCK HOUR

ALARM CLOCK MINUTE

ALARM EVERY DAY or WEEKDAY ONLY SELECTION

You will automatically exit ALARM SET MODE if no buttons are pressed for 5

seconds. Enter setup mode at any time by pressing the “ ” button.

Momentary Backlight

During power adapter use, press the Snooze button for momentary backlight

at 100% brightness. During battery-powered use, press any button for

momentary backlight.

Moon Phase

Track the phases of the moon, conveyed through simple lunar phase icons.

USB Charging

Charge your mobile device by plugging your device’s

USB power cord (not included) into the USB charging

port on the back of the alarm clock.

USB charging is only available during power adapter

use; USB charging is not active when operating on

battery-power only.

Note: Follow the manufacturer’s instructions for your mobile

device(s) to determine compatibility with the USB charging

feature on this product. Some devices may not support USB

charging or may require a higher power rating than this product provides.

Observe the charging status on your device. Ensure your device is working

properly before attempting to charge.

OPERATION

CHARGE

USB DEVICE

DC 4.5 v

FULLNEW WAXING

CRESCENT

WANING

CRESCENT

WAXING

GIBBOUS

WANING

GIBBOUS

1ST

QUARTER

3RD

QUARTER

Using The Projector

The projector can be rotated to project the time, indoor temperature, or

outdoor temperature on a wall or on the ceiling.

Press the projector power button “ ” to turn the projector ON/OFF.

Press the “ ” button to ip the projection image 180º for use on a ceiling

or wall.

Press the “ “ button, located on the left side of the display, to select the

information you want to be projected:

CURRENT TIME

INDOOR TEMPERATURE ( )

OUTDOOR TEMPERATURE ( )

Press the color selection button ( ) to choose between a RED or AMBER

projection.

If the projected information is hard to read or blurry, use the “FOCUS” dial on

the back of the projector to make the projected image clearer.

NOTES:

• Do not stare into the projector lens directly!

• Do not touch the projector lens.

• Some rough surfaces will not display the projection clearly.

Display Backlight

Display backlight has 6 brightness levels: 100% (default), 70%, 50%, 30%,

10% and 5%. The backlight will be ON 100% intensity by default, you may

adjust the backlight using the dimmer control buttons located on the back of

the unit.

BATTERY POWER NOTE: The display unit is intended to be plugged in during

use with included AC power adaptor; batteries are optional for maintaining

settings in case of a power outage. Please note that to conserve backup

battery power, the projector and display illumination only activate momentarily

for 10 seconds at a time when the unit is powered by batteries alone. The

display dimmer option is only available when the unit is plugged in.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ACU-RITE Sveglia

ACU-RITE

ACU-RITE 13019W2 Manuale utente

ACU-RITE

ACU-RITE 13239CC Manuale utente

ACU-RITE

ACU-RITE 13041CAUDI Manuale utente

ACU-RITE

ACU-RITE 13024A1 Manuale utente

ACU-RITE

ACU-RITE 13036 Manuale utente

ACU-RITE

ACU-RITE Intelli-Time 13003 Manuale utente

ACU-RITE

ACU-RITE 47311 Manuale utente

ACU-RITE

ACU-RITE 13239 Manuale utente

ACU-RITE

ACU-RITE 13131A3 Manuale utente

ACU-RITE

ACU-RITE Set and Forget Manuale utente

ACU-RITE

ACU-RITE 15606 Manuale utente

ACU-RITE

ACU-RITE Intelli-Time 13019W2 Manuale utente

ACU-RITE

ACU-RITE 15605 Manuale utente

ACU-RITE

ACU-RITE 13022 Manuale utente

ACU-RITE

ACU-RITE 13131W2 Manuale utente

ACU-RITE

ACU-RITE 13131A3 Manuale utente

ACU-RITE

ACU-RITE 13024 Manuale utente

ACU-RITE

ACU-RITE 13021 Manuale utente

ACU-RITE

ACU-RITE Intelli-Time 13030 Manuale utente

ACU-RITE

ACU-RITE 13239CC Manuale utente

ACU-RITE

ACU-RITE 15607 Manuale utente

ACU-RITE

ACU-RITE Intelli-Time 13027W5 Manuale utente

ACU-RITE

ACU-RITE Intelli-Time 13027 Manuale utente

ACU-RITE

ACU-RITE Set & Forget 19956 Manuale utente

Manuali Sveglia popolari di altre marche

Steren

Steren CLK-210 Manuale utente

COP-USA

COP-USA ALCDVR32-SL Manuale utente

Philips

Philips HF3505/70 Manuale tecnico

Casio

Casio PQ-70 Manuale utente

iHome

iHome IA63 Manuale utente

Coopers

Coopers 9765 Manuale utente

ANJANK

ANJANK AC-190 Guida

TFA

TFA 98.1075 Manuale utente

Sharper Image

Sharper Image 204050 Manuale utente

Lumie

Lumie Zest Manuale utente

Dexford

Dexford RCT200 Manuale utente

Philips

Philips AJL303/37B Manuale utente

RST

RST Q754 Manuale utente

iHome

iHome iKT50 Manuale utente

Sony

Sony dash HID-B7 Manuale utente

SVINZ

SVINZ SCC009 Manuale utente

Clas Ohlson

Clas Ohlson 918863 Manuale utente

IKEA

IKEA FNURRA Manuale utente
