ACU-RITE 9150 Manuale utente

Internet Bridge

Web Portal & APP

for AcuRite Weather Sensors

model #09150

Instruction Manual

ACU-LINK INST 010412

www.AcuRite.com

COMPATIBLE

Introduction

What do I need? (not included)

1. Network router with an available Ethernet port

2. “Always On “Internet connection

3. PC or Smart phone for registration

4. AcuRite weather sensor(s)

How does it work?

AcuRite weather sensors collect and broadcast current conditions

such as temperature and wind speed. The Bridge receives weather

data from Acu-Link compatible AcuRite weather sensors. The

Bridge connects to your existing home internet router via a

standard network cable. The information is automatically streamed

to the internet to allow you to monitor home weather conditions

remotely on a smart phone and PC.

1 Introduction: About the Acu-Link Internet Bridge

2 Getting to Know the Acu-Link Internet Bridge

Section 1: Connect

3 Choosing a location

4Connecting the cables

7 Prepare the Bridge for Registration

Whatʼs in the box? (included)

Contents

Section 2: Registration - Web site

8 Register online

Section 4: Registration - Mobile APP

26 Register using the mobile APP

12:34PM

AcuRite Sensor(s) Bridge Router

FREE WEB SITE

for PC access

FREE APP for

Android and iPhone

Internet

Bridge

Ethernet

Cable

AC Power

Adapter

(877) 221-1252

www.AcuRite.com

Section 3: Using the Web site

12 Overview

13 Adding Sources & Managing Sensors

15 Widget Overview

16 Managing Widgets

17 Sensor Settings

18 Charting History

19 Alarms

20 Weather Select Widgets - Forecasting, etc..

22 Following a Friendʼs Bridge/ Sharing Your Bridge

Section 5: Using the APP

30 Overview

31 Records

32 Sensor Settings

33 Alarms

34 Dashboard Viewing Mode

36 Forecast

Section 6: Troubleshooting and Information

38 Troubleshooting

43 Contact Us

44 Product Information & Registration

45 Warranty and FCC Information

Getting to Know the Acu-Link Internet Bridge Choosing a location

The Acu-Link Internet Bridge receives data from sensors via

433mhz wireless radio frequency. Reception range of the

signal from sensors can be limited by very thick concrete or

metallic walls or materials. Other “noisy” electronic devices

such as TVʼs and microwaves may also interfere with the signal

reception.

To help ensure a successful reception from the AcuRite sensors,

choose a suitable location no more than 330 feet from the

sensor to place the Bridge. Choose a location free of large

stone or concrete surfaces, metallic surfaces, and place at least

3 feet away from other electronic devices.

Weather Sensor RF

Reception antennae

Connections

STATUS LIGHT 2

RF Reception

STATUS LIGHT 1

Network Uplink

DEVICE I.D.

(MAC Address)

Ethernet

Port

Power

Port

Connect

A unique ID that

is needed to

bridge online.

(bottom)

You will need the MAC address number that is printed on the bottom of the

bridge when it comes time to register your bridge online, so write it down

and keep it handy!

Acu-Link Tip

330 feet Maximum

(100 meters) sensor(s)

Acu-Link

Internet

Bridge

Add Additional Sensors

Look for this logo on products that have sensors that are

compatible with your Acu-Link Internet Bridge. Visit the

web site for the most up to date complete listing of

Acu-Link compatible sensors.

COMPATIBLE

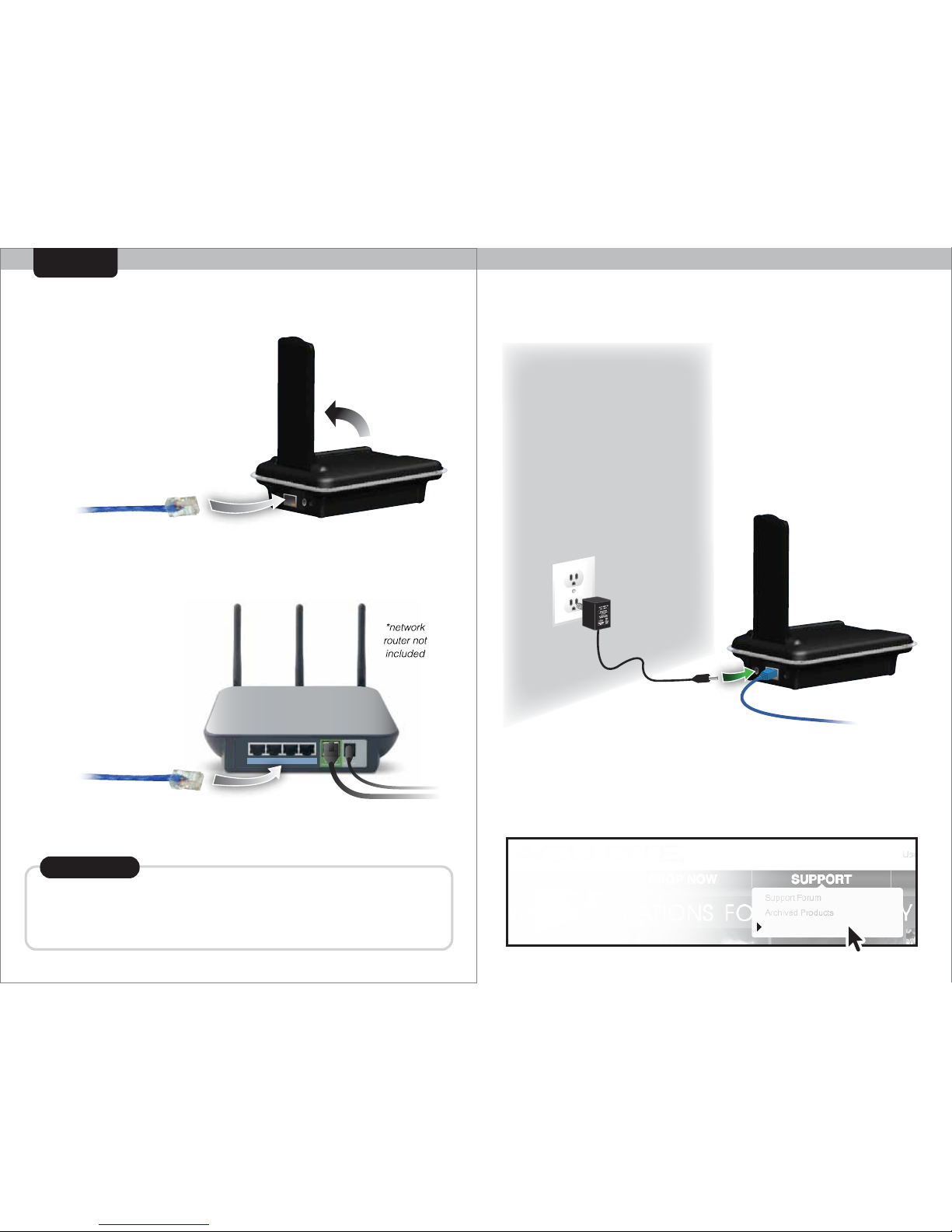

Step 1. Connect the Ethernet cable Step 2. Connect the AC power adaptor

Connect the Ethernet cable

to the Ethernet port on the

Acu-Link Internet Bridge

flip-up the

RF Antennae

for best

reception

Connect

Acu-Link will work with standard routers, wireless routers, and Ethernet

hubs the same, as long as there is an available Ethernet port and an active

“always on” internet connection available.

Acu-Link Tip

Connect the other end

of the Ethernet cable to

an open Ethernet port

on your network router*

www.AcuRite.com

To receive product updates,

warranty service,

and information, Go to

PRODUCT REGISTRATION

YOUR PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

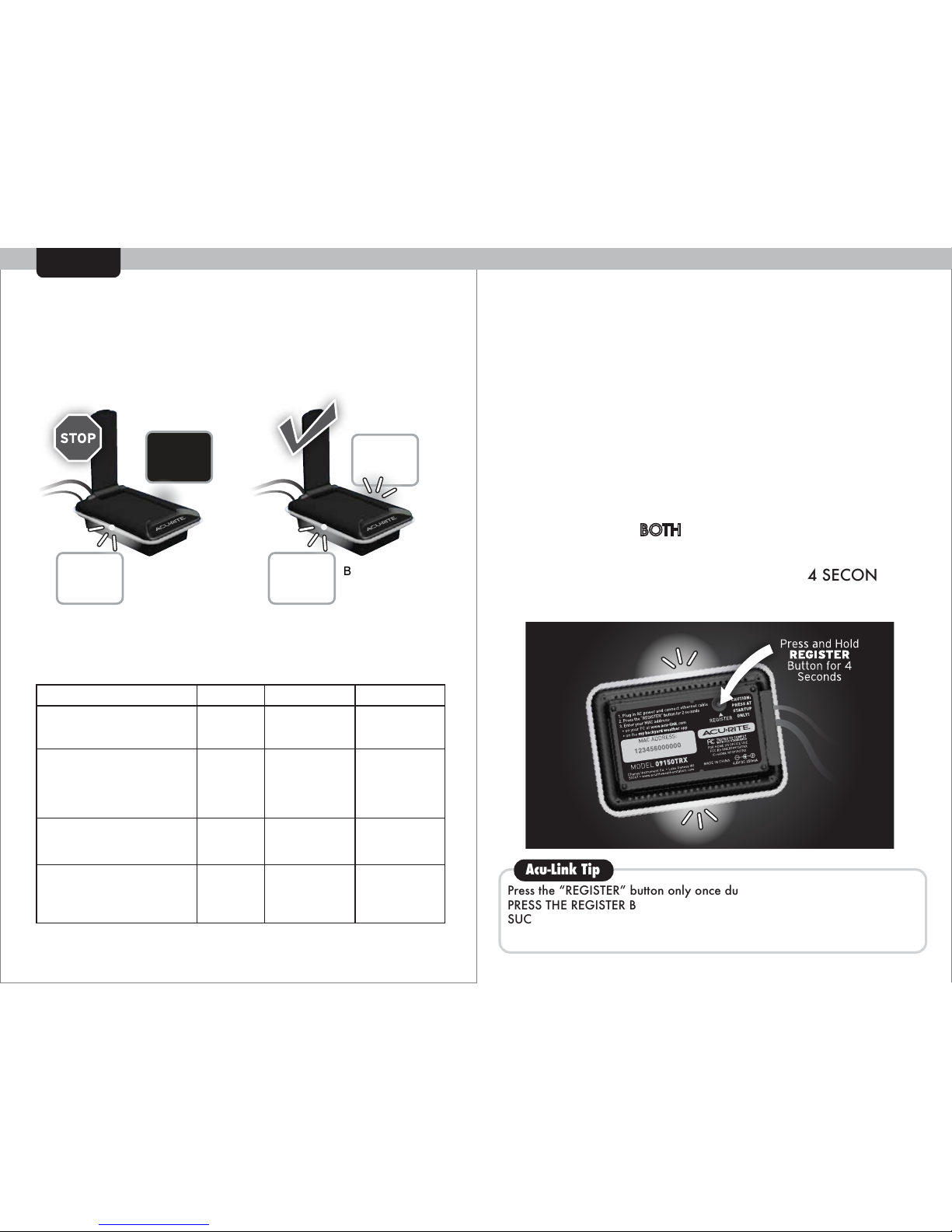

Step 3. Wait for the bridge to start up

Connect

Press the “REGISTER” button only once during initial installation. DO NOT

PRESS THE REGISTER BUTTON AGAIN AFTER YOUR BRIDGE HAS BEEN

SUCCESSFULLY REGISTERED, or you will lose previously stored weather

data and have to register again!

Acu-Link Tip

After connecting the power and Ethernet cable, the

Acu-Link Internet Bridge may need up to 30 MINUTES to

start up and automatically download the latest software

before it can register with the server.

1. Make sure that BOTH status lights are blinking rapidly.

2. Press AND HOLD the “REGISTER” button on the

bottom of the Acu-Link Internet Bridge for 4 SECONDS.

Step 4. Prepare the Bridge for Registration

The Acu-link Internet Bridge will transmit your weather

information to the secure AcuRite servers. From there you

will be able to view and track this information via the

web site or by downloading and using the Acu-Link APP

for iPhone and Android smart phones, we will cover that

later.

Before you can access all this wonderful information, you

must first “make the connection” by registering your

bridge.

STATUS

LIGHT 1

STATUS

LIGHT 2

BLINKING

STATUS

LIGHT 1

BLINKING

STEADY

MAY TAKE

UP TO

30 MINUTES

STATUS

LIGHT 2

BLINKING

BOTH LIGHTS

ALTERNATING

BLINKING

WAIT READY

After plugging in the AC adapter the bridge will automatically

perform the following boot operations: BLINKING

BLINKING

Initial Boot STEADY STEADY

STATUS LIGHT 1durationStartup Sequence

STATUS LIGHT 2

seconds

Downloading

firmware from

Acu-Link server

Ready for Use

BLINKING

RAPIDLY

BLINKING

RAPIDLY

BLINKING

RAPIDLY

STEADY

5 to 30

minutes

Re-Booting STEADY STEADY

seconds

READY

1. On your PC, browse to www.AcuRite.com and click on

the “Register Acu-Link Internet Bridge” link in the support

menu.

3. Enter in your information to create your account. Click

“SAVE” to continue.

The main web site page, or DASHBOARD will now show

but will be empty. Your bridge information still needs to

be entered to view your weather.

2. Click “Create Account”

Before attempting to register your bridge, make sure that

BOTH status lights are blinking rapidly.

The Acu-Link Internet Bridge can be registered using a PC

or on your smart phone. We are going to cover the PC

registration process first. Note that most newer tablet

devices can also be used to register online.

www.acurite.com

Click to save settings

Registration - Web site

1110

My Web Bridges

DEVICE ID

(MAC Address)

The “Name” that you type will appear on the dashboard as the bridge

name. It will also appear on the title bar of each widget. This helps to

identify multiple bridges and locations, as well as allowing you to

personalize your weather.

Acu-Link Tip

The Acu-Link system allows you to add multiple bridges to your account

from multiple locations (for example- a bridge at your home and a bridge

at your business or at another property). You would add additional bridges

from this same window by clicking on the “+” button again.

Acu-Link Tip

Registration - Web site

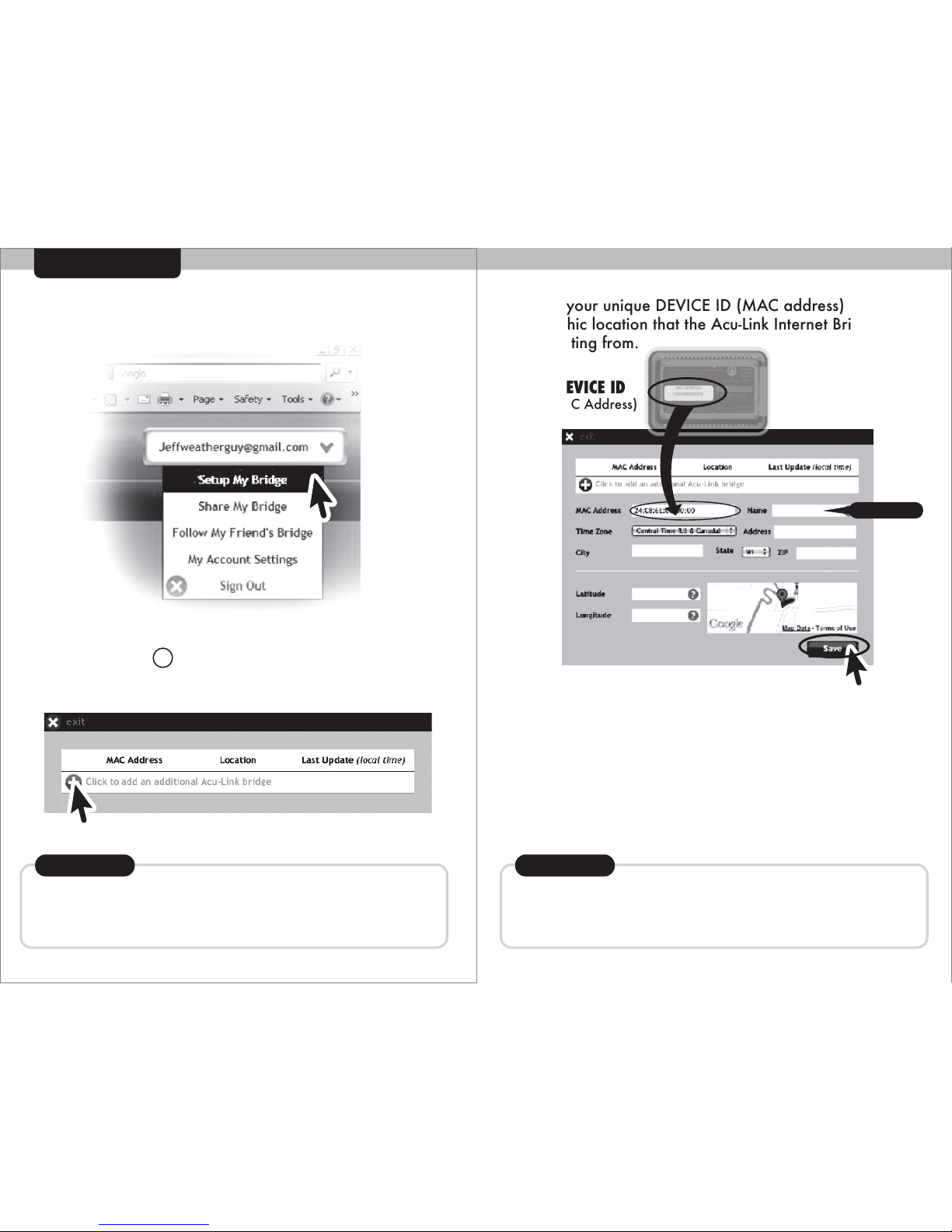

4. Select “SETUP MY BRIDGE” from the web site drop

down menu in the upper right corner of the web site.

5. Click on the “ + ” button to add your bridge.

6. Enter your unique DEVICE ID (MAC address) and the

geographic location that the Acu-Link Internet Bridge will

be operating from.

7. Click “SAVE” to complete the registration process. You

will then be returned to the DASHBOARD page. Widgets

will automatically show up on the dashboard. Note that

your widgets may display “-- --” values initially or will not

show at all, this is normal until data is received.

After a minute or so, press your browserʼs “REFRESH” or

“RELOAD” button to refresh the page.

Click to save settings

1312

My Dashboard

Acu-Link.com

The dashboard displays all of your widgets for your

sensor(s), think of it as your weather home page. From

the dashboard you can access and use all of the features

of the Acu-Link system.

My Sources

The sources list will display the available weather widgets

for your bridge. If you are subscribing to a friendʼs

bridge, that bridge and itʼs available shared sources will

show up under the “My Sources” list as well.

Widgets

Each weather category is given itʼs own “widget” that

will display the latest information as well as the daily and

weekly records. Each widget also allows you to chart the

data and set alarms for that weather category. Most

widgets will also have a “settings” button which allows

you to rename the sensor, set sharing and unit

preferences (ºC or ºF, etc.)

Using the Web site

Adding Sources and Managing Sensors

For each Acu-Link web bridge there is a “MANAGE

SENSORS” window that shows you all the sensors that

the bridge is receiving. If you want these sensors to be

available in the “My Sources” list, you can add them by

clicking the “MANAGE SENSORS” button.

Manage Sensors

2. Click the “ + ” button

to add a sensor to the

dashboard source list

Manage Sensors

3. Click “SAVE” 4. Sensor data

now available

1. Click on the

“Manage Sensors”

button

My Bridge - Wind

1514

The 5-in-1sensor wind widget is shown here, there will be little differences

between the widgets, such as temperature widgets having a recorded

“low” instead of an “average”. Also note that the widgets do not

automatically refresh, so refresh your browser to see the latest readings.

Acu-Link Tip

Getting to Know the Widgets

Using the Web site

Deleting Sources and Managing Sensors

For each battery powered sensor there is at least one

widget that will show a specific weather category. Some

sensors will have more than one widget. For example, a

5-in-1 sensor will have a separate widget for wind speed

and direction (shown below), temperature, humidity and

rain.

You may want to delete sensors and their widgets from

the source list and/or dashboard. You can add them

back to your sources list at a later time if you wish. This

function allows you to “ignore” a sensor that your bridge

is receiving that you have no interest in.

PLEASE NOTE that the specific sensor history data and

charting will be ERASED from the server if you click the

red “X” button to remove it from the “My Sources” list.

Click on the “X” button to delete the

sensor and all of itʼs widgets from the

sources list and dashboard.

recorded

high

today/week

records toggle

sensor wireless

reception strength

widget

title

chart

button

most

recent

readings

time/date

of most

recent

reading

sensor settings

button

alarm button/

indicator

close widget

(remove

from view)

reset records

recorded

average

units

My Bridge - Wind Wind - Backyard 5N1

Click on the GREEN

arrow source icon to

show the widget on

the dashboard

Click on the RED

arrow icon to hide

the weather widget

HIDE

SHOW

1716

Showing & Hiding Widgets

Using the Web site

When you “show” widgets on the dashboard, they automatically tile in the

order that you expand them. You cannot ”drag and drop” widgets or move

them around in your web browser. So make sure and expand your most

used widget first so that it will be near the top of the dashboard.

Acu-Link Tip

You may customize which weather widgets you want

displayed on your dashboard by showing or hiding them.

Sensor Settings

For each sensor based widget there is a “SETTINGS”

button that allows you to rename the sensor, choose units

(ºF or ºC, etc), and set sharing preferences if you wish to

share your sensor data online with friends and family.

Sensor Name

You may customize each sensor by entering a custom

name. For example- if you decide to add an additional

sensor to your bridge to monitor your basement

temperature and humidity, you may want to name that

sensor “basement”.

Sharing Sensor Data Online

You may wish to share your sensor data online with

friends and family. The sharing preference in the sensor

settings panel determine whether or not a particular

sensor will be visible to people following your bridge.

This will be covered in greater detail in the “Sharing”

section of this manual.

Click to save settings

Indice

Altri manuali ACU-RITE Hardware di rete

ACU-RITE

ACU-RITE Acu-Link Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
