Instruction Manual

Weather Station

model 02027

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: Sensor..... 2

Features & Benets: Display.... 3

Setup .................................... 5

Sensor Setup ......................... 5

Display Setup ........................ 6

Intelli-Time® Clock .................. 7

Set the Time, Date & Units ...... 7

Backlight Settings................... 7

Placement Guidelines ............. 8

Using the Weather Station...... 9

Troubleshooting ....................10

Care & Maintenance.............12

Calibration ...........................12

Replace Intelli-Time® battery ..13

Specications........................14

FCC Information ...................14

Customer Support .................15

Warranty..............................15

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Archive:l Products

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit

2. Outdoor sensor

3. Power adapter

4. Instruction Manual

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

►

Features & Benets

OUTDOOR SENSOR

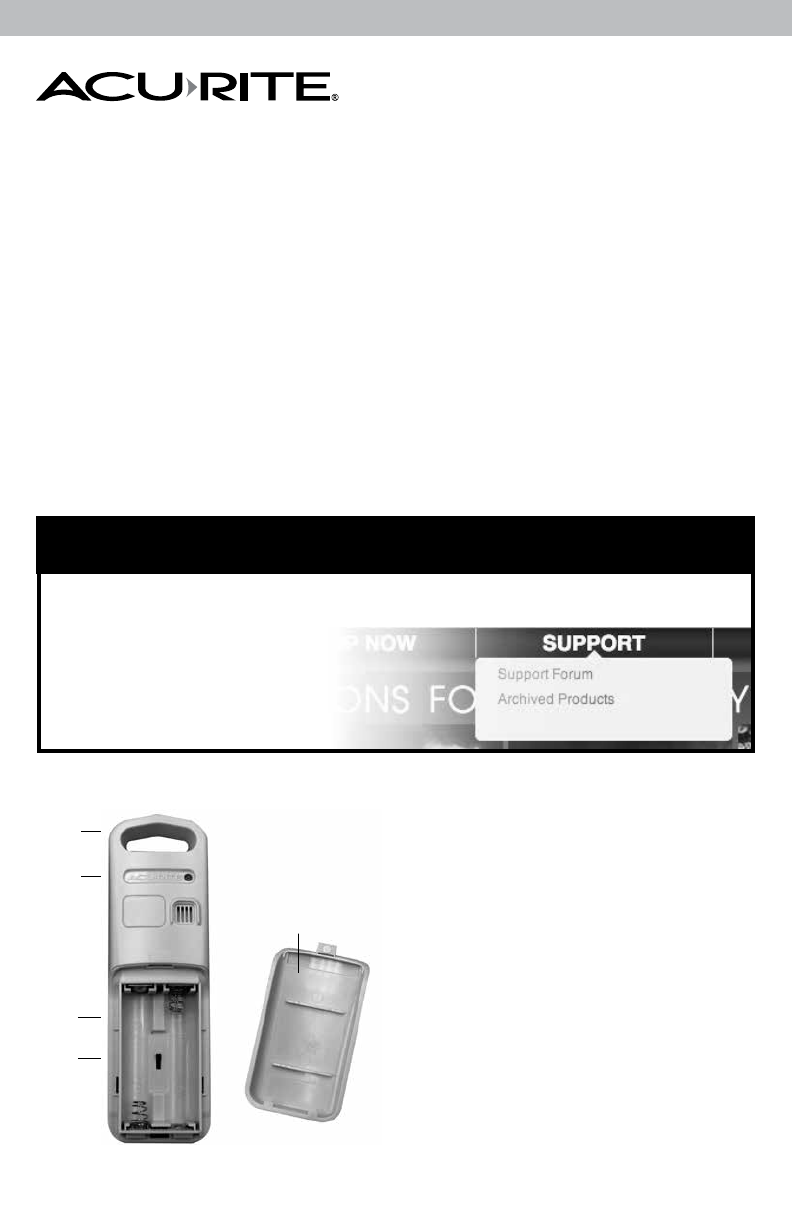

1. Integrated Hanger

For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent to the

display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s A-B-C

switch to ensure units synchronize.

5. Battery Compartment Cover

Features & Benets 19 18 17 16 15

5 6 7 8 9

8. Barometric Pressure

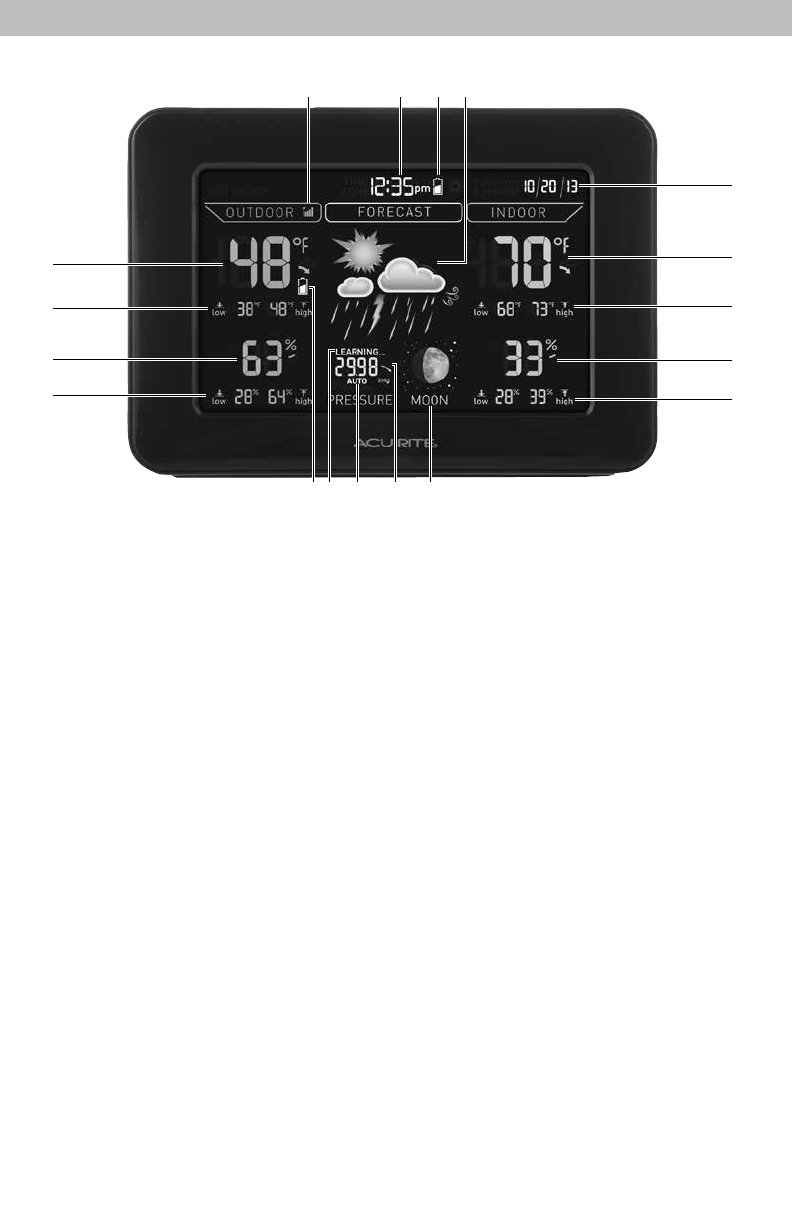

DISPLAY UNIT Arrow icon indicates the direction

1. Current Outdoor Temperature the pressure is trending.

Arrow icon indicates the direction the 9. Moon Phase

temperature is trending. 10. Low/High Humidity Records

2. Low/High Temperature Records Lowest and highest indoor

Lowest and highest outdoor humidity recorded since midnight.

temperature recorded since midnight. 11. Current Indoor Humidity

3. Current Outdoor Humidity Arrow icon indicates the direction

Arrow icon indicates the direction the humidity is trending.

the humidity is trending. 12. Low/High Temperature Records

4. Low/High Humidity Records Lowest and highest indoor

Lowest and highest outdoor humidity temperature recorded since midnight.

recorded since midnight. 13. Current Indoor Temperature

5. Sensor Low Battery Indicator Arrow icon indicates the direction the

6. Learning Mode Icon temperature is trending.

Disappears after weather forecast 14. Date

self-calibration is complete. 15. 12 to 24 Hour Weather Forecast

7. Auto or Manual Pressure Mode Self-Calibrating Forecasting pulls data

Indicates pressure mode preference. from the outdoor sensor to generate

Auto Pressure Mode your personal forecast.

Pressure will self-calibrate over a 14

day Learning Mode. 16. Display Low Battery Indicator

Manual Pressure Mode 17. Intelli-Time®Clock

Indicates raw pressure value, no Automatically updates itself for

adjustment for sea level (can be Daylight Saving Time.

calibrated). 18. Momentary Backlight Button

19. Outdoor Sensor Signal Strength

Features & Benets

BACK OF DISPLAY UNIT

1. All-Time Records Button

Press to access all-time high and low

records.

2. Adjust Up Button

for setup preferences.

3. Setup Mode Button

for setup preferences.

4. Adjust Down Button

for setup preferences.

5. Battery Compartment

5 6

6. Reset Button

Full reset to factory defaults.

7. Plug-in for Power Adapter

8. A-B-C Switch

ID code that must match sensor’s A-B-C

switch to ensure units synchronize.

9. Integrated Hang Hole

for easy wall mounting.

10. Battery Compartment Cover

(not shown)

•

• •

B~~f~~~S

It(•Q¥•¥&•

ALKALINE

BATTERIES

(70°C) 1S8°F I

SETUP

Sensor Setup

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries in

the outdoor sensor for the best

product performance. Heavy

duty or rechargeable batteries

are not recommended.

The sensor requires lithium

batteries in low temperature

2 Install Batteries

2 AA batteries

conditions. Cold temperatures

can cause alkaline batteries

to function improperly. Use

lithium batteries in the sensor for

temperatures below -4ºF / -20ºC.

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment for display unit

setup.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

1 A-B-C Switch

set to match

display unit

A B C

•

• •

Display Unit Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

2 Install or Replace Backup

Batteries (optional)

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline batteries

into the battery compartment,

as shown. Follow the polarity

(+/–) diagram in the battery

compartment.

3. Replace the battery cover.

3 Plug in Power Adapter

For the best performance, plug

in the power adapter as the main

power source for this product.

1 A-B-C Switch

set to match

sensor

3 Plug in Power Adapter

Install Batteries

2 3 AA batteries

IMPORTANT: Batteries

are a backup power

source to preserve records

in the event of a power

outage. Power adapter

is recommended as the

primary power source to

enjoy the full functionality

of this product.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

“

Intelli-Time®Clock

Intelli-Time products are pre-programmed with the correct time and date.

Intelli-Time technology instructs the time and date to set themselves. All you

need to do is select your Time Zone and Daylight Saving Time preferences. The

clock will then automatically set itself and change for Daylight Saving Time.

Set the Time, Date & Units

Press the “ ” button, located on the back of the display unit, to enter SET

MODE. Once in set mode, the preference you are currently setting will blink on

the display.

To adjust the currently selected (ashing) item, press and release the “ “ or

“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “ ” button again to adjust

the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)

DST (Daylight Saving Time ON or OFF)*

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR

TEMPERATURE UNITS (ºF or ºC)

PRESSURE UNITS (inHg or hPa)

*If you live in an area that observes DST, DST should be set to ON, even if it is

not currently Daylight Saving Time.

You will automatically exit SET MODE if no buttons are pressed for 10 seconds.

Enter setup mode at any time by pressing the “ ” button.

Display Backlight Settings

This weather station’s color display features three different lighting settings:

High (100%) brightness, Medium (60%) brightness and Low (30%) brightness

Using battery power alone, the backlight is available momentarily for 10

seconds by pressing the “BACKLIGHT” button.

When display is powered with the power adapter, backlight remains on at

100% brightness. Press “BACKLIGHT” button once to dim to 60% brightness;

press again to dim to 30%, press a 3rd time to enter “AUTO DIM” mode.

AUTO DIM MODE: Automatically adjusts display brightness based on time of day & year.

MARCH 11- NOVEMBER 4 6:00 a.m. - 9:00 p.m. = 100% brightness

9:01 p.m. - 5:59 a.m.= 30% brightness

NOVEMBER 5 - MARCH 10 7:30 a.m. - 7:00 p.m.= 100% brightness

7:01 p.m. - 7:29 a.m. = 30% brightness

1111

...,'011.,.

- -

/ I \'

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and outdoor sensor are critical to the

accuracy and performance of this product.

Display Unit Placement

Place the display unit in a dry area free of dirt and dust. Display

unit stands upright for tabletop use or is wall-mountable.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions.

Sensor is water resistant and is designed for general outdoor

use, however, to extend its life place the sensor in an area

protected from direct weather elements.

Hang the sensor using the integrated hang holes or hanger, or

by using string (not included) to hang it from a suitable location,

like a well covered tree branch. The best location is 4 to 8 feet

above the ground with permanent shade and plenty of fresh air

to circulate around the sensor.

Important Placement Guidelines

•To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

•Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

•To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

•To prevent wireless interference, place both units at least 3 ft (.9 m) away

from electronic devices (TV, computer, microwave, radio, etc.).

TV 3

(330 feet maximum)

(.91 m)

LEAST

APART

(100 meters)

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. Please refer to the troubleshooting

section of this manual if anything appears to be functioning improperly.

OPERATION

Using the Weather Station

Learning Mode

Self-Calibrating Forecasting uses a unique algorithm to analyze changes in

pressure over a time period (called Learning Mode) to determine your altitude.

After 14 days, the Learning Mode icon disappears from the display screen. At

this point, the self-calibrated pressure is tuned in to your location and the unit is

ready for superior weather prediction.

Weather Forecast

AcuRite’s patented Self-Calibrating Forecasting provides your personal forecast

of weather conditions for the next 12 to 24 hours by collecting data from

the sensor in your backyard. It generates a forecast with pinpoint accuracy -

personalized for your exact location.

STORM

DEVELOPING

(Flashing)

SNOW

LIKELY

LIGHT RAIN

LIKELY

CLOUDY PARTLY

CLOUDY

SUNNY

View the complete list of icons at www.AcuRite.com/acurite-icons

Barometric Pressure

Subtle variations in barometric pressure greatly affect the weather. This

weather station displays the current pressure with an arrow icon to indicate the

direction the pressure is trending (FALLING, STEADY, or RISING).

Moon Phase

Track the phases of the moon, conveyed through simple lunar phase icons:

NEW WAXING 1ST FULL 3RD WANING

CRESCENT QUARTER QUARTER CRESCENT

High & Low Records

Today’s high and low records are displayed for indoor and outdoor

temperature and humidity. Today’s records automatically clear at 12:00am

midnight every day.

To manually clear all of today’s LOW recorded values, press and hold the

” button for 2 seconds. Dashes display to conrm you have cleared the “

Tull

“

LOW records.

To manually clear all of today’s HIGH recorded values, press and hold the

” button for 2 seconds. Dashes display to conrm you have cleared the

HIGH records.

Press the “ ” button to cycle through the all-time high and low recorded

values (one record is shown at a time) for outdoor and indoor temperature and

humidity. Located in the top right corner of the screen, a date and time stamp

are shown for when each value was recorded. You will automatically exit

all-time records if no buttons are pressed for 5 seconds.

To manually clear an all-time LOW record, press and hold the “ ” button

for 2 seconds while viewing the record you wish to clear. Dashes display to

conrm you have cleared the record.

To manually clear an all-time HIGH record, press and hold the “ ” button

for 2 seconds while viewing the record you wish to clear. Dashes display to

conrm you have cleared the record.

Troubleshooting

No outdoor sensor

reception

no bars

If the wireless signal indicator shows no bars:

• Relocate the display unit and/or the outdoor sensor.

The units must be within 330 ft (100 m) of each other.

• Make sure both units are placed at least 3 feet (.9

m) away from electronics that may interfere with the

wireless communication (such as TVs, microwaves,

computers, etc).

• Use standard alkaline batteries (or lithium batteries in

sensor when temperature is below -4ºF/-20ºC). Do not

use heavy duty or rechargeable batteries. NOTE: It

may take up to 20 minutes for display unit and sensor

to synchronize after batteries are replaced.

Display screen

not working

• Check that the batteries are installed correctly.

Batteries may need to be replaced.

• Reset display by pressing the RESET button, located

on the back of the display unit. Date and time will

need to be entered after a reset.

Outdoor

temperature

is ashing or

showing dashes

Flashing of the outdoor temperature is generally an

indication of wireless interference.

1. Bring both the sensor and display unit indoors and

remove at least one battery from each.

2. Make sure the A-B-C switch on both units match.

3. Reinstall the battery in the outdoor sensor.

4. Reinstall the battery in the display unit.

5. Let the units sit within a couple feet of each other

for about 20 minutes to gain a strong connection.

Altri manuali per 02027

Indice

Altri manuali ACU-RITE Stazione meteorologica

ACU-RITE

ACU-RITE 838 Manuale utente

ACU-RITE

ACU-RITE 2001 Manuale utente

ACU-RITE

ACU-RITE 01608 Manuale utente

ACU-RITE

ACU-RITE 02007/06035RM Manuale utente

ACU-RITE

ACU-RITE 2038 Manuale utente

ACU-RITE

ACU-RITE 1605 Manuale utente

ACU-RITE

ACU-RITE 01121 Manuale utente

ACU-RITE

ACU-RITE Weather Forecaster 00821 Manuale utente

ACU-RITE

ACU-RITE 01535 Manuale utente

ACU-RITE

ACU-RITE 1035 Manuale utente

ACU-RITE

ACU-RITE 01518 Manuale utente

ACU-RITE

ACU-RITE 01531 Manuale utente

ACU-RITE

ACU-RITE 02048HD Manuale utente

ACU-RITE

ACU-RITE 06006RM Manuale utente

ACU-RITE

ACU-RITE 1036 Manuale utente

ACU-RITE

ACU-RITE 825 Manuale utente

ACU-RITE

ACU-RITE 737 Manuale utente

ACU-RITE

ACU-RITE 01607BPDI Manuale utente

ACU-RITE

ACU-RITE 615 Manuale utente

ACU-RITE

ACU-RITE 06025RM Manuale utente

ACU-RITE

ACU-RITE 827 Manuale utente

ACU-RITE

ACU-RITE 1050 Manuale utente

ACU-RITE

ACU-RITE 75110 Manuale utente

ACU-RITE

ACU-RITE 502 Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
